TrueNAS Hangs importing pool

mcantkier · Mar 17, 2021

Obligatory server information:
Supermicro X11SCA-F Version 1.01A
Intel(R) Core(TM) i7-9700K CPU @ 3.60GHz
64GB ECC DDR4 (16GB DIMM's)
8 x 10TB Ironwolf (2 RAIDZ1 VDEV's) [ST10000VN0008-2J]
2 x CT480BX500SSD1 SSD's (Mirrored) Boot
LSI SAS2308 HBA IT Mode
Intel 10GB 2 x SFP+
Onboard 1GB
TrueNAS-12-0-U2

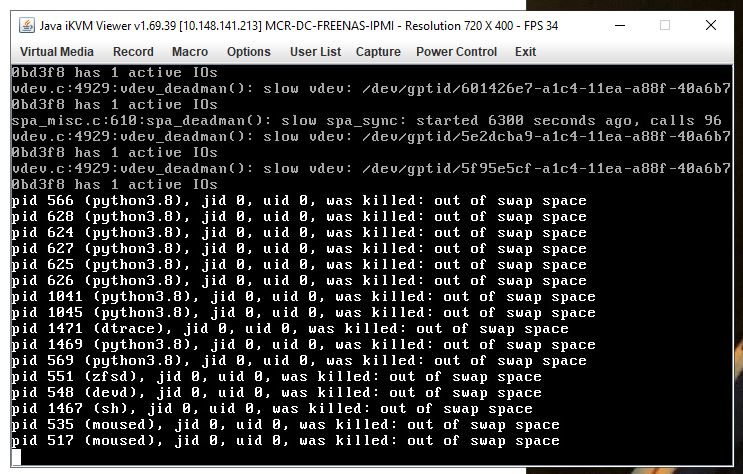

Trying to import an old pool on a fresh install. The import runs for several hours then the system hangs. This is the only console output I have:

Any ideas?

Before I ran the import from the gui I ran this on the pool:

zdb -e -bcsvL VeeamPool

Code:

Traversing all blocks to verify checksums ...

34.5T completed (  65MB/s) estimated time remaining: 296473hr 13min 06sec
        bp count:            1747919408
        ganged count:                 0
        bp logical:      28763745054208      avg:  16455
        bp physical:     24702574020608      avg:  14132     compression:   1.16
        bp allocated:    37886862581760      avg:  21675     compression:   0.76
        bp deduped:                   0    ref>1:      0   deduplication:   1.00
        Normal class:    37869691486208     used: 47.51%

        additional, non-pointer bps of type 0:    4919925
        Dittoed blocks on same vdev: 2137675

Blocks  LSIZE   PSIZE   ASIZE     avg    comp   %Total  Type
     -      -       -       -       -       -        -  unallocated
     2    32K      8K     48K     24K    4.00     0.00  object directory
     6     3K      2K     96K     16K    1.50     0.00  object array
     1    16K      4K     24K     24K    4.00     0.00  packed nvlist
     -      -       -       -       -       -        -  packed nvlist size
    10  1.25M     40K    240K     24K   32.00     0.00  bpobj
     -      -       -       -       -       -        -  bpobj header
     -      -       -       -       -       -        -  SPA space map header
45.9K   561M    425M   2.02G   45.2K    1.32     0.01  SPA space map
34.3K  4.29G   4.29G   5.90G    176K    1.00     0.02  ZIL intent log
6.74K   125M   27.3M    111M   16.4K    4.57     0.00  DMU dnode
    29   106K    106K    472K   16.3K    1.00     0.00  DMU objset
     -      -       -       -       -       -        -  DSL directory
    26    13K   1.50K     72K   2.77K    8.67     0.00  DSL directory child map
    24    12K     512     24K      1K   24.00     0.00  DSL dataset snap map
    36   328K     56K    480K   13.3K    5.86     0.00  DSL props
     -      -       -       -       -       -        -  DSL dataset
     -      -       -       -       -       -        -  ZFS znode
     -      -       -       -       -       -        -  ZFS V0 ACL
  237K  9.77G   7.17G   10.6G   45.9K    1.36     0.03  ZFS plain file
18.2K  21.4M   11.4M    121M   6.64K    1.89     0.00  ZFS directory
    22    22K     18K    352K     16K    1.22     0.00  ZFS master node
     -      -       -       -       -       -        -  ZFS delete queue
1.63G  26.1T   22.5T   34.4T   21.2K    1.16    99.95  zvol object
     -      -       -       -       -       -        -  zvol prop
     -      -       -       -       -       -        -  other uint8[]
     -      -       -       -       -       -        -  other uint64[]
     -      -       -       -       -       -        -  other ZAP
     -      -       -       -       -       -        -  persistent error log
     1   128K     12K     48K     48K   10.67     0.00  SPA history
     -      -       -       -       -       -        -  SPA history offsets
     -      -       -       -       -       -        -  Pool properties
     -      -       -       -       -       -        -  DSL permissions
     -      -       -       -       -       -        -  ZFS ACL
     -      -       -       -       -       -        -  ZFS SYSACL
     -      -       -       -       -       -        -  FUID table
     -      -       -       -       -       -        -  FUID table size
     1  1.50K   1.50K     24K     24K    1.00     0.00  DSL dataset next clones
     1     1K      1K     24K     24K    1.00     0.00  scan work queue
    77  44.5K      9K     96K   1.25K    4.94     0.00  ZFS user/group/project used
     -      -       -       -       -       -        -  ZFS user/group/project quota
     -      -       -       -       -       -        -  snapshot refcount tags
     -      -       -       -       -       -        -  DDT ZAP algorithm
     -      -       -       -       -       -        -  DDT statistics
     -      -       -       -       -       -        -  System attributes
     -      -       -       -       -       -        -  SA master node
    23  34.5K   32.5K    368K     16K    1.06     0.00  SA attr registration
    44   704K    144K    704K     16K    4.89     0.00  SA attr layouts
     -      -       -       -       -       -        -  scan translations
     -      -       -       -       -       -        -  deduplicated block
     -      -       -       -       -       -        -  DSL deadlist map
     -      -       -       -       -       -        -  DSL deadlist map hdr
     1  1.50K   1.50K     24K     24K    1.00     0.00  DSL dir clones
     -      -       -       -       -       -        -  bpobj subobj
     -      -       -       -       -       -        -  deferred free
     -      -       -       -       -       -        -  dedup ditto
    43   330K   29.5K    240K   5.58K   11.17     0.00  other
1.63G  26.2T   22.5T   34.5T   21.2K    1.16   100.00  Total

Block Size Histogram

  block   psize                lsize                asize
   size   Count   Size   Cum.  Count   Size   Cum.  Count   Size   Cum.
    512:  22.5K  11.2M  11.2M  22.4K  11.2M  11.2M      0      0      0
     1K:  25.9K  32.0M  43.2M  25.8K  31.8M  43.1M      0      0      0
     2K:  41.4K   110M   153M  41.4K   110M   153M      0      0      0
     4K:   144M   576G   576G  73.9K   340M   493M      0      0      0
     8K:   303M  2.91T  3.47T  21.3K   235M   728M   144M  1.12T  1.12T
    16K:  1.19G  19.0T  22.5T  1.62G  25.9T  25.9T  1.48G  33.1T  34.2T
    32K:  10.0K   469M  22.5T  6.75M   216G  26.1T  6.64M   213G  34.4T
    64K:  8.54K   711M  22.5T  3.36K   297M  26.1T  11.8K  1005M  34.4T
   128K:  77.4K  9.68G  22.5T   103K  12.9G  26.1T  78.4K  13.4G  34.5T
   256K:      0      0  22.5T      0      0  26.1T  2.55K  1005M  34.5T
   512K:      0      0  22.5T      0      0  26.1T      0      0  34.5T
     1M:      0      0  22.5T      0      0  26.1T      0      0  34.5T
     2M:      0      0  22.5T      0      0  26.1T      0      0  34.5T
     4M:      0      0  22.5T      0      0  26.1T      0      0  34.5T
     8M:      0      0  22.5T      0      0  26.1T      0      0  34.5T
    16M:      0      0  22.5T      0      0  26.1T      0      0  34.5T

                            capacity   operations   bandwidth  ---- errors ----
description                used avail  read write  read write  read write cksum
VeeamPool                 34.4T 38.1T 12.3K     0  113M     0     0     0     0
  raidz1                  17.2T 19.0T 6.16K     0 56.4M     0     0     0     0
    /dev/gptid/5fcda43c-a1c4-11ea-a88f-40a6b70bd3f8               1.58K     0 14.4M     0     0                                           0     0
    /dev/gptid/5f6bb273-a1c4-11ea-a88f-40a6b70bd3f8               1.50K     0 13.8M     0     0                                           0     0
    /dev/gptid/601426e7-a1c4-11ea-a88f-40a6b70bd3f8               1.58K     0 14.4M     0     0                                           0     0
    /dev/gptid/603659fe-a1c4-11ea-a88f-40a6b70bd3f8               1.50K     0 13.8M     0     0                                           0     0
  raidz1                  17.2T 19.0T 6.15K     0 56.3M     0     0     0     0
    /dev/gptid/5e2dcba9-a1c4-11ea-a88f-40a6b70bd3f8               1.58K     0 14.3M     0     0                                           0     0
    /dev/gptid/5ea72078-a1c4-11ea-a88f-40a6b70bd3f8               1.50K     0 13.8M     0     0                                           0     0
    /dev/gptid/5ff12b3d-a1c4-11ea-a88f-40a6b70bd3f8               1.58K     0 14.3M     0     0                                           0     0
    /dev/gptid/5f95e5cf-a1c4-11ea-a88f-40a6b70bd3f8               1.50K     0 13.8M     0     0                                           0     0

mcantkier · Mar 17, 2021

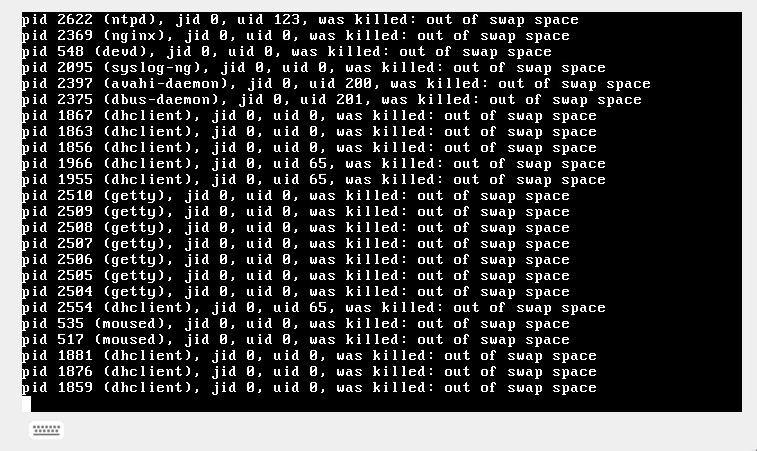

After the reboot, and a few hours I get back to this. Stuck in a loop. Any help would be very appreciated.

HoneyBadger · Mar 17, 2021

I remember you from a previous thread, the Ironwolf drives where hanging on import.

If it hangs with the spa_deadman on import, that could mean your HBA or cables are having an issue; it seems to be flagging all of your vdevs as unresponsive, and the common branch there would be HBA first, maybe the PSU if it's undersized (how big is it driving eight disks?) or maybe the cabling, but it's two separate SAS breakouts so the likelihood of both failing at once is a long shot.

Can you pull SMART stats from the drives?

mcantkier · Mar 18, 2021

I'm going to try to run the SMART tests before it crashes again. In the mean time, after just letting it reboot after every hang the Pool is now showing in the list and show the scrub is (very slowly) making progress. I wonder if it truly might finish if I keep up this reboot every time it hangs? I'll post SMART when I can.

VeeamPool is the pool in question and has gotten to 21.99% completion in the scrub.

Code:

root@truenas[~]# zpool list
NAME        SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
VeeamPool  72.5T  34.5T  38.0T        -         -    12%    47%  1.00x    ONLINE  /mnt
boot-pool   428G  1.18G   427G        -         -     0%     0%  1.00x    ONLINE  -
root@truenas[~]# zpool status
  pool: VeeamPool
 state: ONLINE
  scan: scrub in progress since Sun Mar  7 02:00:02 2021
        13.4T scanned at 6.83G/s, 7.57T issued at 6.93M/s, 34.4T total
        0B repaired, 21.99% done, no estimated completion time
config:

        NAME                                            STATE     READ WRITE CKSUM
        VeeamPool                                       ONLINE       0     0     0
          raidz1-0                                      ONLINE       0     0     0
            gptid/5fcda43c-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
            gptid/5f6bb273-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
            gptid/601426e7-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
            gptid/603659fe-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
          raidz1-1                                      ONLINE       0     0     0
            gptid/5e2dcba9-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
            gptid/5ea72078-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
            gptid/5ff12b3d-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0
            gptid/5f95e5cf-a1c4-11ea-a88f-40a6b70bd3f8  ONLINE       0     0     0

errors: No known data errors

  pool: boot-pool
 state: ONLINE
  scan: scrub repaired 0B in 00:00:02 with 0 errors on Wed Mar 17 05:45:02 2021
config:

        NAME        STATE     READ WRITE CKSUM
        boot-pool   ONLINE       0     0     0
          mirror-0  ONLINE       0     0     0
            ada0p2  ONLINE       0     0     0
            ada1p2  ONLINE       0     0     0

errors: No known data errors
root@truenas[~]#

mcantkier · Mar 18, 2021

Results of smartctl -a /dev/XXX for each drive (including the boot SSD's)

Code:

root@truenas[~]# smartctl -a /dev/ada0
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Crucial/Micron BX/MX1/2/3/500, M5/600, 1100 SSDs
Device Model:     CT480BX500SSD1
Serial Number:    2003E3E38772
LU WWN Device Id: 0 000000 000000000
Firmware Version: M6CR022
User Capacity:    480,103,981,056 bytes [480 GB]
Sector Size:      512 bytes logical/physical
Rotation Rate:    Solid State Device
Form Factor:      2.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:14:37 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  120) seconds.
Offline data collection
capabilities:                    (0x11) SMART execute Offline immediate.
                                        No Auto Offline data collection support.
                                        Suspend Offline collection upon new
                                        command.
                                        No Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        No Selective Self-test supported.
SMART capabilities:            (0x0002) Does not save SMART data before
                                        entering power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (  10) minutes.

SMART Attributes Data Structure revision number: 1
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   000   100   000    Pre-fail  Always       -       0
  5 Reallocate_NAND_Blk_Cnt 0x0032   100   100   010    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   100   100   000    Old_age   Always       -       7159
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       26
171 Program_Fail_Count      0x0032   100   100   000    Old_age   Always       -       0
172 Erase_Fail_Count        0x0032   000   000   000    Old_age   Always       -       0
173 Ave_Block-Erase_Count   0x0032   000   000   000    Old_age   Always       -       0
174 Unexpect_Power_Loss_Ct  0x0032   100   100   000    Old_age   Always       -       20
180 Unused_Reserve_NAND_Blk 0x0033   100   100   000    Pre-fail  Always       -       227
183 SATA_Interfac_Downshift 0x0032   100   100   000    Old_age   Always       -       0
184 Error_Correction_Count  0x0032   100   100   000    Old_age   Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
194 Temperature_Celsius     0x0022   078   056   000    Old_age   Always       -       22 (Min/Max 9/44)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   100   100   000    Old_age   Always       -       0
202 Percent_Lifetime_Remain 0x0030   100   100   001    Old_age   Offline      -       0
206 Write_Error_Rate        0x000e   000   000   000    Old_age   Always       -       0
210 Success_RAIN_Recov_Cnt  0x0032   100   100   000    Old_age   Always       -       0
246 Total_LBAs_Written      0x0032   100   100   000    Old_age   Always       -       75294791
247 Host_Program_Page_Count 0x0032   100   100   000    Old_age   Always       -       2352962
248 FTL_Program_Page_Count  0x0032   100   100   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

Selective Self-tests/Logging not supported

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/ada1
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Crucial/Micron BX/MX1/2/3/500, M5/600, 1100 SSDs
Device Model:     CT480BX500SSD1
Serial Number:    2011E3F03FA3
LU WWN Device Id: 0 000000 000000000
Firmware Version: M6CR022
User Capacity:    480,103,981,056 bytes [480 GB]
Sector Size:      512 bytes logical/physical
Rotation Rate:    Solid State Device
Form Factor:      2.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:16:37 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  120) seconds.
Offline data collection
capabilities:                    (0x11) SMART execute Offline immediate.
                                        No Auto Offline data collection support.
                                        Suspend Offline collection upon new
                                        command.
                                        No Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        No Selective Self-test supported.
SMART capabilities:            (0x0002) Does not save SMART data before
                                        entering power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (  10) minutes.

SMART Attributes Data Structure revision number: 1
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   000   100   000    Pre-fail  Always       -       0
  5 Reallocate_NAND_Blk_Cnt 0x0032   100   100   010    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   100   100   000    Old_age   Always       -       7133
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       20
171 Program_Fail_Count      0x0032   100   100   000    Old_age   Always       -       0
172 Erase_Fail_Count        0x0032   000   000   000    Old_age   Always       -       0
173 Ave_Block-Erase_Count   0x0032   000   000   000    Old_age   Always       -       0
174 Unexpect_Power_Loss_Ct  0x0032   100   100   000    Old_age   Always       -       17
180 Unused_Reserve_NAND_Blk 0x0033   100   100   000    Pre-fail  Always       -       225
183 SATA_Interfac_Downshift 0x0032   100   100   000    Old_age   Always       -       0
184 Error_Correction_Count  0x0032   100   100   000    Old_age   Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
194 Temperature_Celsius     0x0022   077   062   000    Old_age   Always       -       23 (Min/Max 10/38)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   100   100   000    Old_age   Always       -       0
202 Percent_Lifetime_Remain 0x0030   100   100   001    Old_age   Offline      -       0
206 Write_Error_Rate        0x000e   000   000   000    Old_age   Always       -       0
210 Success_RAIN_Recov_Cnt  0x0032   100   100   000    Old_age   Always       -       0
246 Total_LBAs_Written      0x0032   100   100   000    Old_age   Always       -       66436216
247 Host_Program_Page_Count 0x0032   100   100   000    Old_age   Always       -       2076131
248 FTL_Program_Page_Count  0x0032   100   100   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

Selective Self-tests/Logging not supported

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da0
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ0AFBX
LU WWN Device Id: 5 000c50 0c4def3aa
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:17:28 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  567) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 978) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   080   064   044    Pre-fail  Always       -       93635335
  3 Spin_Up_Time            0x0003   088   088   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   086   060   045    Pre-fail  Always       -       386456090
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   068   047   040    Old_age   Always       -       32 (Min/Max 27/36)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       21
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       381
194 Temperature_Celsius     0x0022   032   053   000    Old_age   Always       -       32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   080   064   000    Old_age   Always       -       93635335
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7049 (141 246 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       368756906712
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       338125690174

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Conveyance offline  Completed without error       00%        69         -
# 2  Short offline       Completed without error       00%        69         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da1
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ1DZ18
LU WWN Device Id: 5 000c50 0c4f949ab
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:18:26 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  567) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 978) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   084   064   044    Pre-fail  Always       -       237108432
  3 Spin_Up_Time            0x0003   088   088   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   085   060   045    Pre-fail  Always       -       349242903
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   068   046   040    Old_age   Always       -       32 (Min/Max 27/35)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       23
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       366
194 Temperature_Celsius     0x0022   032   054   000    Old_age   Always       -       32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   084   064   000    Old_age   Always       -       237108432
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7073 (159 214 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       364254624159
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       319334034890

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da2
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ309N8
LU WWN Device Id: 5 000c50 0c4eb2090
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:19:19 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  575) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 977) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   079   064   044    Pre-fail  Always       -       79869503
  3 Spin_Up_Time            0x0003   088   087   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   085   060   045    Pre-fail  Always       -       352901657
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   068   048   040    Old_age   Always       -       32 (Min/Max 26/34)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       21
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       370
194 Temperature_Celsius     0x0022   032   052   000    Old_age   Always       -       32 (0 20 0 0 0)
195 Hardware_ECC_Recovered  0x001a   079   064   000    Old_age   Always       -       79869503
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7067 (71 5 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       364229794634
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       319690113405

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da3
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ062J5
LU WWN Device Id: 5 000c50 0c4eb7834
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:19:50 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  575) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 978) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   081   064   044    Pre-fail  Always       -       113810235
  3 Spin_Up_Time            0x0003   088   088   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   086   060   045    Pre-fail  Always       -       391603789
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   070   053   040    Old_age   Always       -       30 (Min/Max 25/32)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       21
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       379
194 Temperature_Celsius     0x0022   030   047   000    Old_age   Always       -       30 (0 18 0 0 0)
195 Hardware_ECC_Recovered  0x001a   081   064   000    Old_age   Always       -       113810235
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7050 (131 152 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       368755723643
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       337903285404

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da4
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ07CG5
LU WWN Device Id: 5 000c50 0c4dee802
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:20:30 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  575) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 975) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   075   064   044    Pre-fail  Always       -       33894724
  3 Spin_Up_Time            0x0003   087   087   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   085   060   045    Pre-fail  Always       -       342178564
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7180
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   070   050   040    Old_age   Always       -       30 (Min/Max 25/32)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       21
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       379
194 Temperature_Celsius     0x0022   030   045   000    Old_age   Always       -       30 (0 18 0 0 0)
195 Hardware_ECC_Recovered  0x001a   075   064   000    Old_age   Always       -       33894724
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7051 (61 217 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       363547246545
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       317885101728

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da5
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ0AZ1S
LU WWN Device Id: 5 000c50 0c4ec1333
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:20:57 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  575) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 978) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   079   064   044    Pre-fail  Always       -       77099728
  3 Spin_Up_Time            0x0003   088   087   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   085   060   045    Pre-fail  Always       -       339528530
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   068   050   040    Old_age   Always       -       32 (Min/Max 26/34)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       23
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       365
194 Temperature_Celsius     0x0022   032   050   000    Old_age   Always       -       32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   079   064   000    Old_age   Always       -       77099728
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7072 (202 18 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       363529129336
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       317946632268

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da6
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ0BFDM
LU WWN Device Id: 5 000c50 0c4eb0032
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:21:31 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  575) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 977) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   077   064   044    Pre-fail  Always       -       52335974
  3 Spin_Up_Time            0x0003   087   087   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   086   060   045    Pre-fail  Always       -       388115280
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   068   048   040    Old_age   Always       -       32 (Min/Max 27/35)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       21
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       380
194 Temperature_Celsius     0x0022   032   052   000    Old_age   Always       -       32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   077   064   000    Old_age   Always       -       52335974
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7051 (41 246 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       368075658265
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       335836283046

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

Code:

root@truenas[~]# smartctl -a /dev/da7
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p3 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ0867S
LU WWN Device Id: 5 000c50 0c4eb853a
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Mar 18 09:21:59 2021 CDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  575) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 977) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   082   064   044    Pre-fail  Always       -       173158813
  3 Spin_Up_Time            0x0003   088   087   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       35
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   086   060   045    Pre-fail  Always       -       382042066
  9 Power_On_Hours          0x0032   092   092   000    Old_age   Always       -       7179
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       35
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   067   047   040    Old_age   Always       -       33 (Min/Max 27/35)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       21
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       377
194 Temperature_Celsius     0x0022   033   053   000    Old_age   Always       -       33 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   082   064   000    Old_age   Always       -       173158813
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       7051 (206 94 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       368075764135
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       335957517476

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

mcantkier · Mar 18, 2021

HoneyBadger said:
I remember you from a previous thread, the Ironwolf drives where hanging on import.

If it hangs with the spa_deadman on import, that could mean your HBA or cables are having an issue; it seems to be flagging all of your vdevs as unresponsive, and the common branch there would be HBA first, maybe the PSU if it's undersized (how big is it driving eight disks?) or maybe the cabling, but it's two separate SAS breakouts so the likelihood of both failing at once is a long shot.

Can you pull SMART stats from the drives?

It has dual power supplies, not sure the rating. I am working on it remotely. Here is a snap from IPMI:

What steps should I take to look at the HBA? All of the gear was purchased brand new less than a year ago and up until March 7th worked flawlessly 100% of the time.

HoneyBadger · Mar 18, 2021

What kind of case do you have? If it's a conventional "tower style" case you might not have sufficient cooling on the HBA.

Given that it seems to be dying under scrub, I'd start with checking the heatsink (use a thermometer if you have one, rather than burning a finger) to see if it's burning hot. I don't believe they have their own thermal sensors.

Important Announcement for the TrueNAS Community.

TrueNAS Hangs importing pool

mcantkier

Dabbler

mcantkier

Dabbler

HoneyBadger

actually does care

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

mcantkier

Dabbler

HoneyBadger

actually does care

Similar threads
