Truenas & Broadcom netXtreme II BCM5716 Gigabit Ethernet

Jakub

Newbie
Joined
Apr 26, 2021
Messages
2
Hi.
In our company, we have a DELL R510 server with Broadcom netXtreme II BCM5716 Gigabit Ethernet network card.
Unfortunately, after installation of Truenas (v. 12.0-U3) not working network driver. I'm tried reset network, set static IP in Truenas, on router too, dhclient command, and down & up too.

Can anyone advise me how to set up a network?

Thanks




Code:

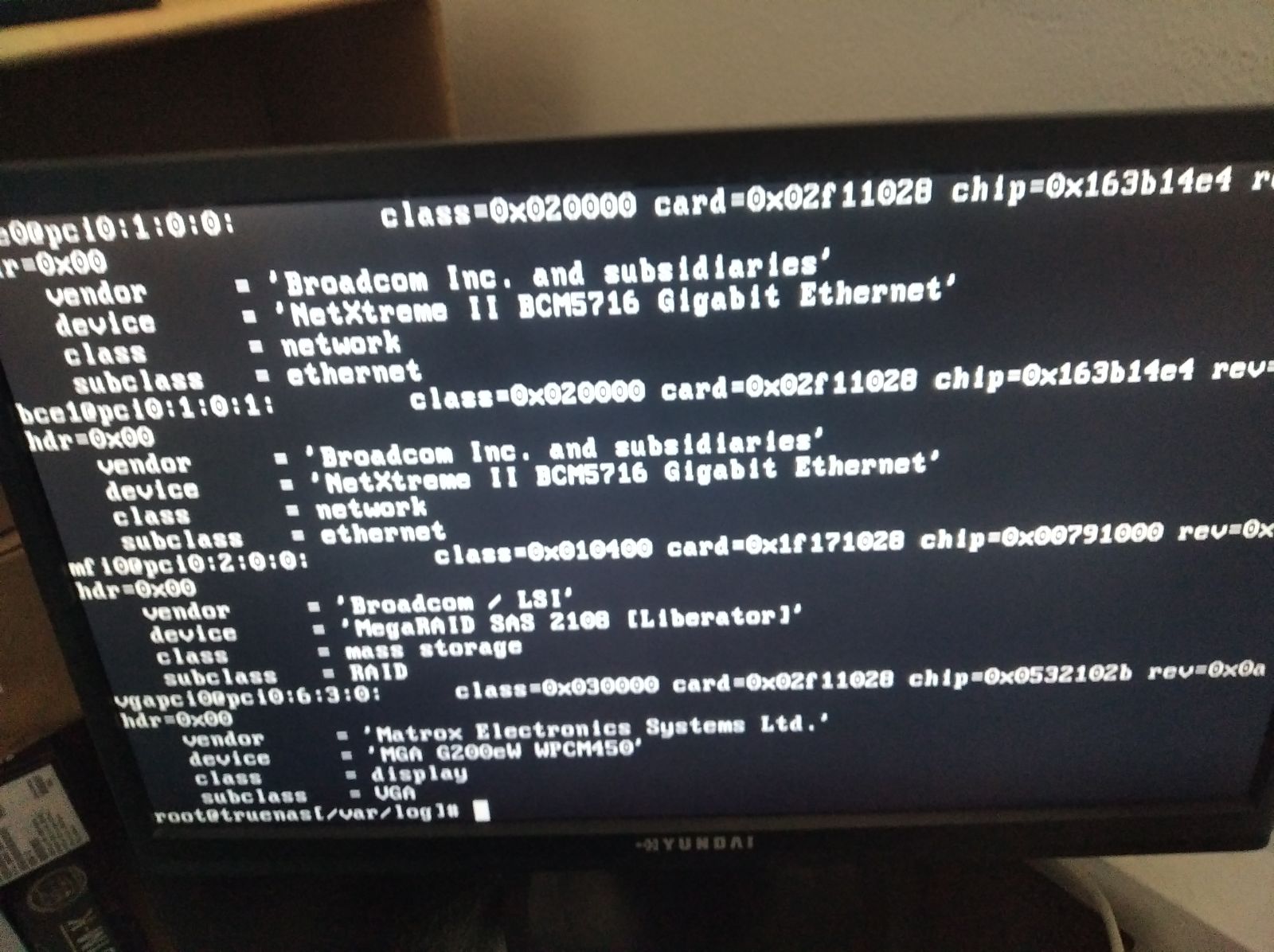

pciconf -lv



Code:

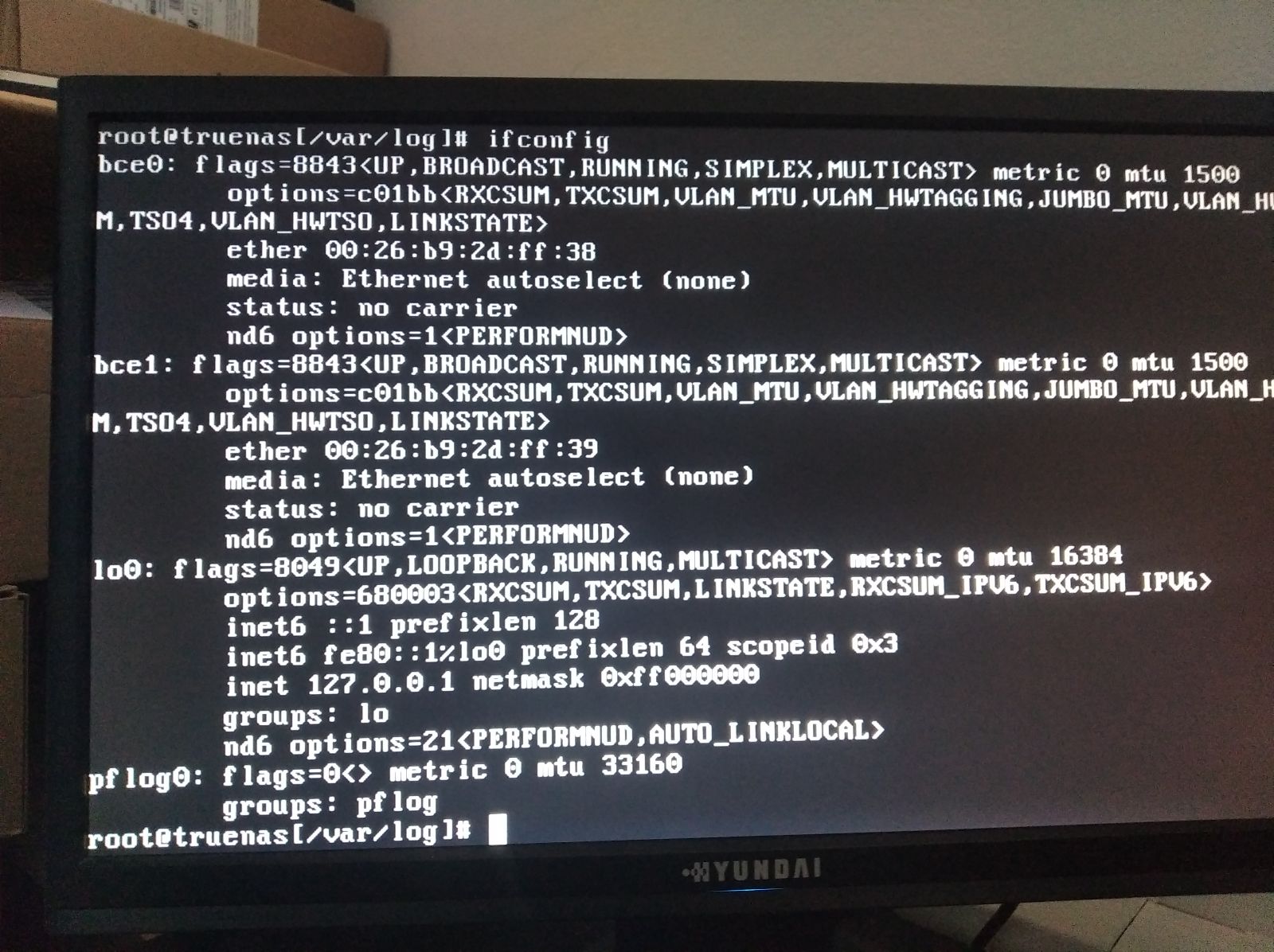

ifconfig

unnamed (1).jpg


sretalla

Wizened Sage
Joined
Jan 1, 2016
Messages
4,918
Well, the first thing you need to have for a network is a carrier... seems to be saying in the ifconfig that you don't have one for bce0 and bce1 (so check the cables).


sretalla

Wizened Sage
Joined
Jan 1, 2016
Messages
4,918

Jakub

Newbie
Joined
Apr 26, 2021
Messages
2
Well, the first thing you need to have for a network is a carrier... seems to be saying in the ifconfig that you don't have one for bce0 and bce1 (so check the cables).
Cable is connected correctly, in another system (Ubuntu booted from USB, network working correctly).
RJ45 port stops blinking after Truenas shows message "Starting interfaces...". Before this message networks port blinks, after this message port not blinks and not light (its quiet).
