Sorry it's another slow SMB transfer problem... With upload failures

[akc1]

Hi,

Apologies for posting another slow SMB thread but I have used the search and couldn't find anything massively applicable to my situation.

Background: The NAS was working fine on Truenas version 11. something I then upgraded to core 12 and performance has tanked. I was virtualized but have now gone bare metal to try and resolve these issues. I have tried going back to version 11 as well and just can't get my performance back!

System setup:
Supermicro X9SRL-F
E5-2690 V0
96GB Registered ECC Ram
Mellanox ConnectX-5 25Gb NIC running at 10Gb
SAS2308-8I 9217-8I SAS card
6x HGST 7200rpm 4TB NAS Drives
SSD System disk
No tunables and have tried a fresh install

The Issue: Transfers from NAS to desktop seem to start fine then go stop-start-stop-start... as seen below.

It's so bad i can't even stream high quality FLAC files without buffering!

Large files sent to the NAS also fail completely, small files transfer fine.

I have run iperf and get a good 10Gb/s result.

Please help my NAS is pretty much unusable at the moment!

Many thanks in advance,

Alex



[anodos]

Hi,

Apologies for posting another slow SMB thread but I have used the search and couldn't find anything massively applicable to my situation.

Background: The NAS was working fine on Truenas version 11. something I then upgraded to core 12 and performance has tanked. I was virtualized but have now gone bare metal to try and resolve these issues. I have tried going back to version 11 as well and just can't get my performance back!

System setup:
Supermicro X9SRL-F
E5-2690 V0
96GB Registered ECC Ram
Mellanox ConnectX-5 25Gb NIC running at 10Gb
SAS2308-8I 9217-8I SAS card
6x HGST 7200rpm 4TB NAS Drives
SSD System disk
No tunables and have tried a fresh install

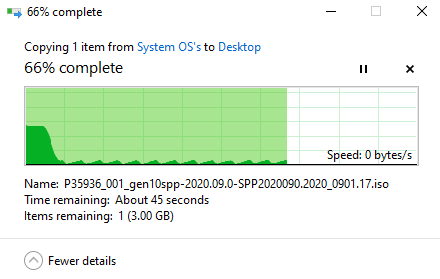

The Issue: Transfers from NAS to desktop seem to start fine then go stop-start-stop-start... as seen below.
View attachment 47501

It's so bad i can't even stream high quality FLAC files without buffering!

Large files sent to the NAS also fail completely, small files transfer fine.

I have run iperf and get a good 10Gb/s result.

Please help my NAS is pretty much unusable at the moment!

Many thanks in advance,

Alex

What's output of testparm -s?



[akc1]

Hi,

Thank you for helping, output below.

Code:

root@tnas-mgmt[~]# testparm -s
Load smb config files from /usr/local/etc/smb4.conf
Loaded services file OK.
Server role: ROLE_STANDALONE

# Global parameters
[global]
        aio max threads = 2
        bind interfaces only = Yes
        disable spoolss = Yes
        dns proxy = No
        enable web service discovery = Yes
        kernel change notify = No
        load printers = No
        logging = file
        max log size = 5120
        netbios name = TRUENAS
        nsupdate command = /usr/local/bin/samba-nsupdate -g
        registry shares = Yes
        restrict anonymous = 2
        server role = standalone server
        server string = TrueNAS Server
        unix extensions = No
        idmap config *: range = 90000001-100000000
        idmap config * : backend = tdb
        directory name cache size = 0
        dos filemode = Yes


[ak]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/AK
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true


[comedy]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/Comedy
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true


[movies]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/Movies
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true


[music]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/Music
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true


[video]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/TV
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true


[VandA Pics]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/VandA Pics
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true


[vanessa]
        ea support = No
        kernel share modes = No
        path = /mnt/AKrz2/Vanessa
        posix locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true
root@tnas-mgmt[~]#

Alex



[anodos]

Send me a debug via private message System->Advanced->Save Debug.



[akc1]

Hi Anados,

Thank you for your continued help, I was trouble shooting trying different things yesterday and tried a direct connection between NAS and 10Gb client. FULL SPEED! very strange as my switch config hasn't changed that I am aware of. I now believe this to be a networking issue rather than Truenas but happy to send debug if you think it might still be a Truenas issue?

Alex
