Recent upgrade to 11.2 U6, also recently replaced HDD... week or so later, issues?

thedirtmerchant · Oct 23, 2019

I updated to 11.2 about a week or so ago. Also sent a 3TB Red for RMA.
Received the replacement and installed (ada4). Resilver completed w/o issue.

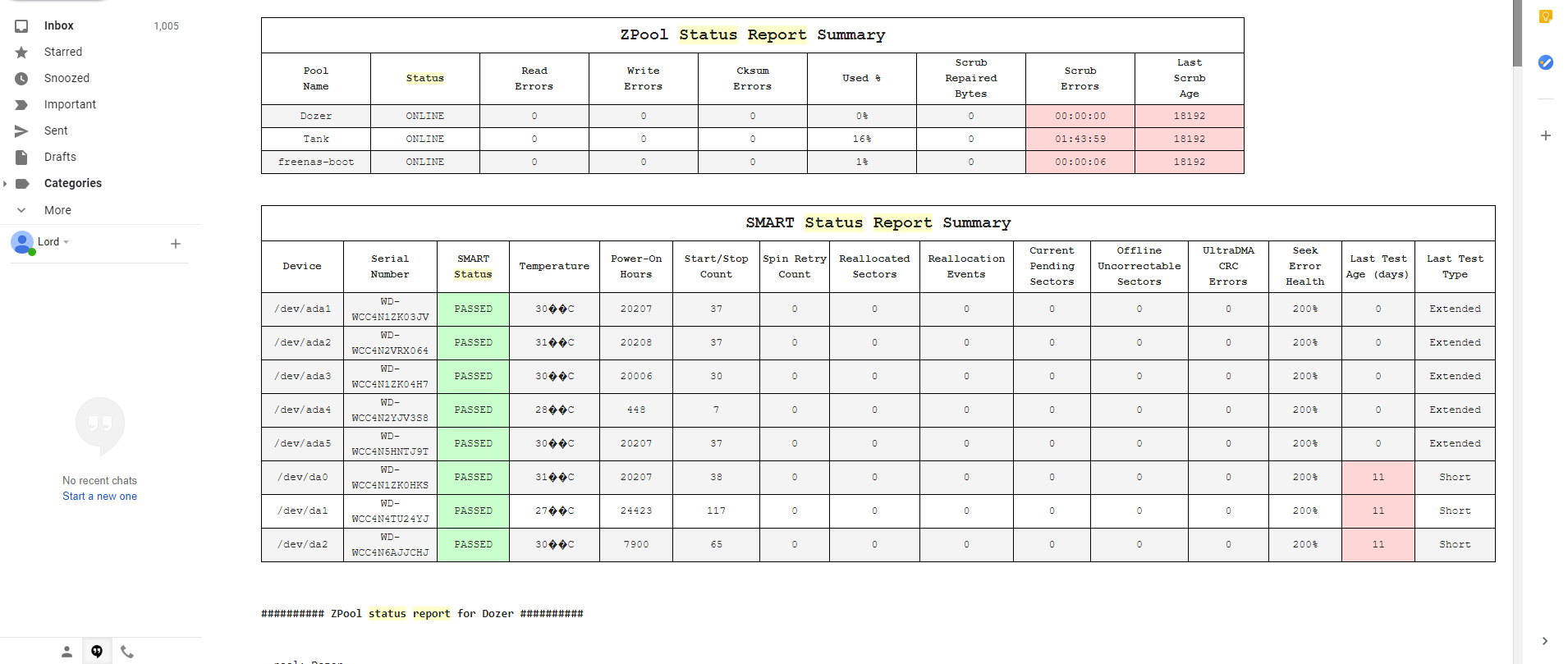

Now in my Status email, I'm getting issues.

Thoughts? Help? Uh oh? or OK?

Code:





########## ZPool status report for Dozer ##########
  pool: Dozer
 state: ONLINE
status: Some supported features are not enabled on the pool. The pool can
	still be used, but some features are unavailable.
action: Enable all features using 'zpool upgrade'. Once this is done,
	the pool may no longer be accessible by software that does not support
	the features. See zpool-features(7) for details.
  scan: scrub repaired 0 in 0 days 00:00:00 with 0 errors on Tue Oct 15 04:00:01 2019
config:

	NAME                                            STATE     READ WRITE CKSUM
	Dozer                                           ONLINE       0     0     0
	  mirror-0                                      ONLINE       0     0     0
	    gptid/fde05a88-4251-11e7-be70-0cc47ae3a3b2  ONLINE       0     0     0
	    gptid/fe94dfc5-4251-11e7-be70-0cc47ae3a3b2  ONLINE       0     0     0



########## ZPool status report for Tank ##########


  pool: Tank
 state: ONLINE
status: Some supported features are not enabled on the pool. The pool can
	still be used, but some features are unavailable.
action: Enable all features using 'zpool upgrade'. Once this is done,
	the pool may no longer be accessible by software that does not support
	the features. See zpool-features(7) for details.
  scan: scrub repaired 0 in 0 days 01:43:59 with 0 errors on Tue Oct 15 05:44:00 2019
config:

	NAME                                            STATE     READ WRITE CKSUM
	Tank                                            ONLINE       0     0     0
	  raidz2-0                                      ONLINE       0     0     0
	    gptid/2801b587-2e95-11e7-bd4a-0cc47ae3a3b2  ONLINE       0     0     0
	    gptid/28fdb264-2e95-11e7-bd4a-0cc47ae3a3b2  ONLINE       0     0     0
	    gptid/4f25b9d4-346e-11e7-ad5c-0cc47ae3a3b2  ONLINE       0     0     0
	    gptid/8e9dbe32-eecb-11e9-b7fb-0cc47ae3a3b2  ONLINE       0     0     0
	    gptid/2bfbdcf5-2e95-11e7-bd4a-0cc47ae3a3b2  ONLINE       0     0     0
	    gptid/2cfce92f-2e95-11e7-bd4a-0cc47ae3a3b2  ONLINE       0     0     0

errors: No known data errors

########## ZPool status report for freenas-boot ##########


  pool: freenas-boot
 state: ONLINE
  scan: scrub repaired 0 in 0 days 00:00:06 with 0 errors on Wed Oct 16 03:45:06 2019
config:

	NAME        STATE     READ WRITE CKSUM
	freenas-boot  ONLINE       0     0     0
	  ada0p2    ONLINE       0     0     0

errors: No known data errors





########## SMART status report for ada1 drive (Western Digital Red: WD-WCC4N1ZK03JV) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   175   174   021    Pre-fail  Always       -       6225
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       37
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   073   073   000    Old_age   Always       -       20207
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       37
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       12
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       288
194 Temperature_Celsius     0x0022   120   111   000    Old_age   Always       -       30
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Extended offline    Completed without error       00%     20188         -





########## SMART status report for ada2 drive (Western Digital Red: WD-WCC4N2VRX064) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   177   176   021    Pre-fail  Always       -       6116
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       37
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   073   073   000    Old_age   Always       -       20208
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       37
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       12
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       296
194 Temperature_Celsius     0x0022   119   109   000    Old_age   Always       -       31
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Extended offline    Completed without error       00%     20188         -





########## SMART status report for ada3 drive (Western Digital Red: WD-WCC4N1ZK04H7) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   178   177   021    Pre-fail  Always       -       6075
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       30
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   073   073   000    Old_age   Always       -       20006
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       30
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       10
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       144
194 Temperature_Celsius     0x0022   120   111   000    Old_age   Always       -       30
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Extended offline    Completed without error       00%     19987         -





########## SMART status report for ada4 drive (Western Digital Red: WD-WCC4N2YJV3S8) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   180   180   021    Pre-fail  Always       -       6000
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       7
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   100   100   000    Old_age   Always       -       448
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       7
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       5
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       182
194 Temperature_Celsius     0x0022   122   113   000    Old_age   Always       -       28
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Extended offline    Completed without error       00%       429         -





########## SMART status report for ada5 drive (Western Digital Red: WD-WCC4N5HNTJ9T) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   178   177   021    Pre-fail  Always       -       6100
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       37
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   073   073   000    Old_age   Always       -       20207
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       37
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       12
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       290
194 Temperature_Celsius     0x0022   120   110   000    Old_age   Always       -       30
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Extended offline    Completed without error       00%     20188         -





########## SMART status report for da0 drive (Western Digital Red: WD-WCC4N1ZK0HKS) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   182   182   021    Pre-fail  Always       -       5858
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       38
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   073   073   000    Old_age   Always       -       20207
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       38
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       36
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       267
194 Temperature_Celsius     0x0022   119   110   000    Old_age   Always       -       31
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Short offline       Completed without error       00%     19940         -





########## SMART status report for da1 drive (Western Digital Red: WD-WCC4N4TU24YJ) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   179   178   021    Pre-fail  Always       -       6050
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       117
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   067   067   000    Old_age   Always       -       24423
 10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       117
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       85
193 Load_Cycle_Count        0x0032   194   194   000    Old_age   Always       -       20176
194 Temperature_Celsius     0x0022   123   105   000    Old_age   Always       -       27
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Short offline       Completed without error       00%     24156         -





########## SMART status report for da2 drive (Western Digital Red: WD-WCC4N6AJJCHJ) ##########
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)

SMART overall-health self-assessment test result: PASSED

ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   178   177   021    Pre-fail  Always       -       6091
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       65
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   090   089   000    Old_age   Always       -       7900
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       65
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       56
193 Load_Cycle_Count        0x0032   194   194   000    Old_age   Always       -       19335
194 Temperature_Celsius     0x0022   120   110   000    Old_age   Always       -       30
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

No Errors Logged

Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
Short offline       Completed without error       00%      7633         -

thedirtmerchant · Oct 23, 2019

Would an upgrade or resilver have removed drives from the SMART Test scheduling?
da0, da1 and da2 were all unchecked in the SMART Test schedule. I've readded them...

"status: Some supported features are not enabled on the pool. The pool can
still be used, but some features are unavailable.
action: Enable all features using 'zpool upgrade'. Once this is done,
the pool may no longer be accessible by software that does not support
the features. See zpool-features(7) for details."

Is there some upgrade that I'm supposed to do? I upgraded from 9.10 to 11.2

dlavigne · Oct 23, 2019

For the message, refer to the Upgrading the Storage Pools section of https://www.ixsystems.com/blog/library/freenas-11-2-release/.

If you haven't updated to 11.2-U6 yet, go ahead and do so as it fixes a bunch of SMART issues, one of which is the issue you described.

thedirtmerchant · Oct 23, 2019

dlavigne said:
For the message, refer to the Upgrading the Storage Pools section of https://www.ixsystems.com/blog/library/freenas-11-2-release/.

If you haven't updated to 11.2-U6 yet, go ahead and do so as it fixes a bunch of SMART issues, one of which is the issue you described.

Apparently, I'm already on 11.2 U6
I upgraded and thought I had installed 11.2 STABLE, but when I check the dashboard, its 11.2 U6.

dlavigne · Oct 23, 2019

Good

It's possible that a migration got missed going from 9.10 -> 11.2, which is over 3 years worth of updates. You should be good now that you have reenabled the tasks.

Important Announcement for the TrueNAS Community.

Recent upgrade to 11.2 U6, also recently replaced HDD... week or so later, issues?

thedirtmerchant

Patron

thedirtmerchant

Patron

dlavigne

Guest

thedirtmerchant

Patron

dlavigne

Guest

Similar threads
