SOLVED PROBLEM: Installing Rancher UI.

Status
Not open for further replies.
ByerRA

ByerRA

Dabbler
Joined
Feb 27, 2016
Messages
16
I'm attempting to install the Rancher OS/UI per the current FreeNAS 11.1-U2 documentation and I'm not getting very far.

I started off by creating a "vm-storage" dataset without any issues.

I've created the "RancherUI" VM with the "VM Type" set to "Docker VM" with 1 CPU, 2048MiB of memory and checked the "Autostart" box.

I go into the "Devices RancherUI" and select the "RAW" device and in the "Raw File" I browse to the "vm-storage" data set (/mnt/wth-freenas/vm-storage) and then add "/rancherui.img" to the end of it so my "Raw File" path looks like "/mnt/wth-freenas/vm-storage/rancherui.img". I click the "Disk boot" and enter a password in the "Password" box and enter "20G" in the "Disk size" box and press "OK".

Now here's the problem...

When I start the "RancherUI" VM, it asks if I want to "Start RancherUI" and I click on "Yes", it starts doing something and then almost instantly it comes up with "Error: Image download failed!".

Now, this box is my media server, it's connected to the network and can get out to the internet. When I go back into the "Devices RancherUI" and check the "NIC" device, the "VM" is set to "RancherUI" which is right, the type is "Network Interface" which is correct, the adapter type is "Intel e82545 (e1000)" which is correct and the "NIC to attach" is "igb0" which is correct and is connected and has a link.

Checking my router, my server is set to get its IP via DHCP and it has its IP and it's connecting and sending/receiving data so I'm not sure what the issue here is as my Plex server running in a jail is getting its IP and is running and connecting fine out to the net.

Doing some searching I saw that I should have a ".bhyve_containers" directory which should have files/image files. I have this directory but it's empty.

I've deleted the "RancherUI" VM and "vm-storage" dataset and re-created them several times rebooting the server in between and always the same error message when starting the "RancherUI" VM.

Any one have any ideas?

Last edited by a moderator:
D

dlavigne

Guest
Which build version (System -> Information)?

What is the output of ifconfig?

ByerRA

ByerRA

Dabbler
Joined
Feb 27, 2016
Messages
16
Here's the output of my ifconfig.

Code:
root@wth-freenas:~ # ifconfig
igb0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=2400b9<RXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,RXCSUM_IPV6>
		ether 00:25:90:1e:99:52
		hwaddr 00:25:90:1e:99:52
		inet 10.2.1.100 netmask 0xffffff00 broadcast 10.2.1.255
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect (1000baseT <full-duplex>)
		status: active
igb1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=6403bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
		ether 00:25:90:1e:99:53
		hwaddr 00:25:90:1e:99:53
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
em0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=209b<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM,WOL_MAGIC>
		ether 00:15:17:e0:03:69
		hwaddr 00:15:17:e0:03:69
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
em1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=9b<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM>
		ether 00:15:17:e0:03:68
		hwaddr 00:15:17:e0:03:68
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
em2: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=9b<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM>
		ether 00:15:17:e0:03:6b
		hwaddr 00:15:17:e0:03:6b
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
em3: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=9b<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM>
		ether 00:15:17:e0:03:6a
		hwaddr 00:15:17:e0:03:6a
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
igb2: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=6403bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
		ether 00:25:90:1e:99:50
		hwaddr 00:25:90:1e:99:50
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
igb3: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=6403bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
		ether 00:25:90:1e:99:51
		hwaddr 00:25:90:1e:99:51
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect
		status: no carrier
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
		options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
		inet6 ::1 prefixlen 128
		inet6 fe80::1%lo0 prefixlen 64 scopeid 0x9
		inet 127.0.0.1 netmask 0xff000000
		nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
		groups: lo
bridge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		ether 02:38:49:55:78:00
		nd6 options=1<PERFORMNUD>
		groups: bridge
		id 00:00:00:00:00:00 priority 32768 hellotime 2 fwddelay 15
		maxage 20 holdcnt 6 proto rstp maxaddr 2000 timeout 1200
		root id 00:00:00:00:00:00 priority 32768 ifcost 0 port 0
		member: epair0a flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
				ifmaxaddr 0 port 11 priority 128 path cost 2000
		member: igb0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
				ifmaxaddr 0 port 1 priority 128 path cost 20000
epair0a: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=8<VLAN_MTU>
		ether 02:d9:90:00:0b:0a
		hwaddr 02:d9:90:00:0b:0a
		nd6 options=1<PERFORMNUD>
		media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
		status: active
		groups: epair
root@wth-freenas:~ #

Last edited by a moderator:
ByerRA

ByerRA

Dabbler
Joined
Feb 27, 2016
Messages
16
dlavigne said:
Which build version (System -> Information)?

What is the output of ifconfig?
Click to expand...

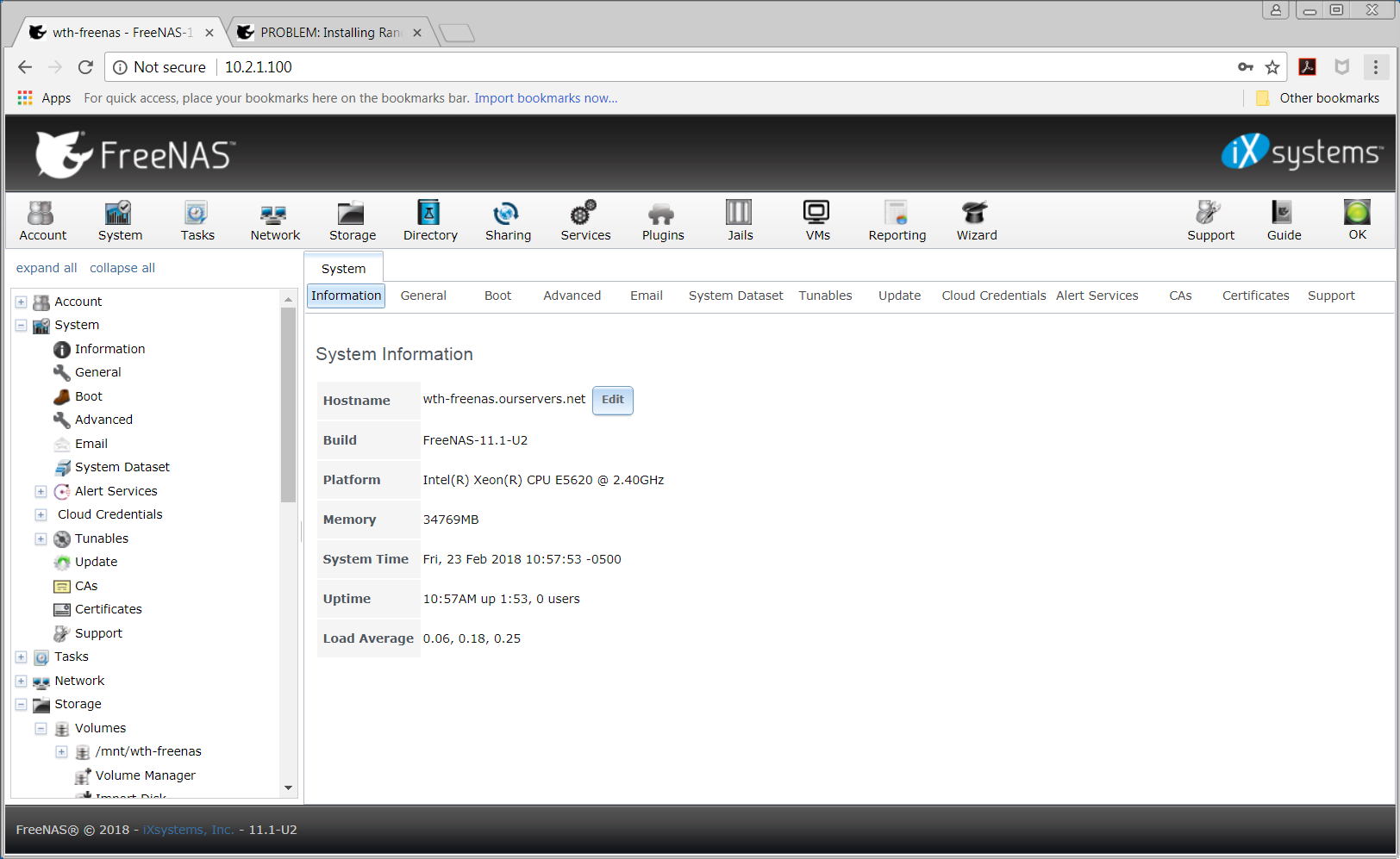

Whoops, forgot the system information...


M

maxman

Cadet
Joined
Feb 9, 2018
Messages
1
- As a workaroud download the rancheros image from the link below and put it in the .bhyve_containers/iso_files.
- Now start the VM it should run
- It should create a .img file with the name you gave in the RAW File Name in the Dataset dialog
- Then connect to the session (with the cu -l /dev/nm... command)

Link for downloading rancheros ==> https://download.freenas.org/bhyve-templates/rancheros-bhyve-v1.1.0/

S

stevennic

Cadet
Joined
Feb 25, 2018
Messages
1
I'm running into a similar issue to ByerRA. Shortly after clicking 'Start', I receive the Image Download Failed error message. I don't have the .bhyve_containers folder appearing anywhere.

In a bid to get it to work, I created a new folder with 644 privileges. iso_files and img.gz file download from freenas link above with same privileges. I get a repeat of the above whenever I attempt to create the VM.

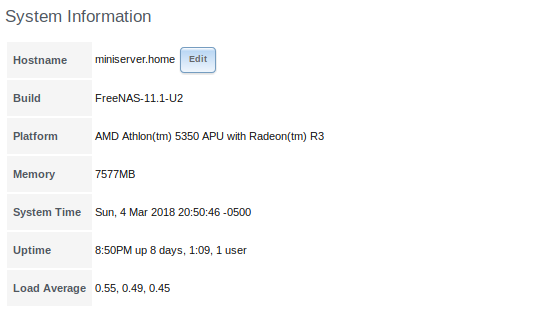

System info and ifconfig attached.

Code:
re0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
   options=82099<RXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM,WOL_MAGIC,LINKSTATE>
   ether d0:50:99:4a:84:39
   hwaddr d0:50:99:4a:84:39
   inet 192.168.1.10 netmask 0xffffff00 broadcast 192.168.1.255
   inet6 fe80::d250:99ff:fe4a:8439%re0 prefixlen 64 scopeid 0x1
   inet6 fd3c:e0d9:3614:0:d250:99ff:fe4a:8439 prefixlen 64 autoconf
   nd6 options=23<PERFORMNUD,ACCEPT_RTADV,AUTO_LINKLOCAL>
   media: Ethernet autoselect (1000baseT <full-duplex>)
   status: active
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
   options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
   inet6 ::1 prefixlen 128
   inet6 fe80::1%lo0 prefixlen 64 scopeid 0x2
   inet 127.0.0.1 netmask 0xff000000
   nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
   groups: lo
bridge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
   ether 02:16:3c:1a:9e:00
   nd6 options=1<PERFORMNUD>
   groups: bridge
   id 00:00:00:00:00:00 priority 32768 hellotime 2 fwddelay 15
   maxage 20 holdcnt 6 proto rstp maxaddr 2000 timeout 1200
   root id 00:00:00:00:00:00 priority 32768 ifcost 0 port 0
   member: epair0a flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
		   ifmaxaddr 0 port 4 priority 128 path cost 2000
   member: re0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
		   ifmaxaddr 0 port 1 priority 128 path cost 20000
epair0a: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
   options=8<VLAN_MTU>
   ether 02:7c:50:00:04:0a
   hwaddr 02:7c:50:00:04:0a
   nd6 options=1<PERFORMNUD>
   media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
   status: active
   groups: epair



ByerRA

ByerRA

Dabbler
Joined
Feb 27, 2016
Messages
16
maxman said:
- As a workaroud download the rancheros image from the link below and put it in the .bhyve_containers/iso_files.
- Now start the VM it should run
- It should create a .img file with the name you gave in the RAW File Name in the Dataset dialog
- Then connect to the session (with the cu -l /dev/nm... command)

Link for downloading rancheros ==> https://download.freenas.org/bhyve-templates/rancheros-bhyve-v1.1.0/
Click to expand...

Thanks, that solved the problem and I'm up and running.

T

theGleep

Cadet
Joined
Jul 25, 2018
Messages
1
This worked for me, too!

FreeNas 11.1-U5

the .bhyve_containers folder was directly under the volume (/mnt/{volumeName}) and I had to create the iso_files folder. For good measure, I set RWX for everything. Also, I got a few checksum errors (possibly from trying other versions of the image file)

maxman said:
- As a workaroud download the rancheros image from the link below and put it in the .bhyve_containers/iso_files.
- Now start the VM it should run
- It should create a .img file with the name you gave in the RAW File Name in the Dataset dialog
- Then connect to the session (with the cu -l /dev/nm... command)

Link for downloading rancheros ==> https://download.freenas.org/bhyve-templates/rancheros-bhyve-v1.1.0/
Click to expand...

B

beedix

Dabbler
Joined
Aug 11, 2017
Messages
20
I'm on 11.1-U5 and I do not have a ".bhyve_containers" directory. Anywhere else I should look??
