Power connections for a DELL SAS Expander 5R10N

[JasonP123456]

I am trying to find out which power pins are which on a DELL SAS Expander 5R10N. I have read in other posts that the 4 pins are +5, +12, gnd, & gnd so the 4 pin from the power supply wont work because it has 2x +12's and 2x gnd's. I am going to make my own adapter out of an old 4 pin from a power supply and a molex connector (I can't find them pre-made). I just need to know what the power pins are on the 5R10N. A picture would be really helpful. This is a link to one of those SAS expanders I am talking about.
https://www.ebay.com/itm/DELL-SAS-E...471156&hash=item56a4a4605a:g:CeQAAOSwevlaAdsZ



[deathvenom369]

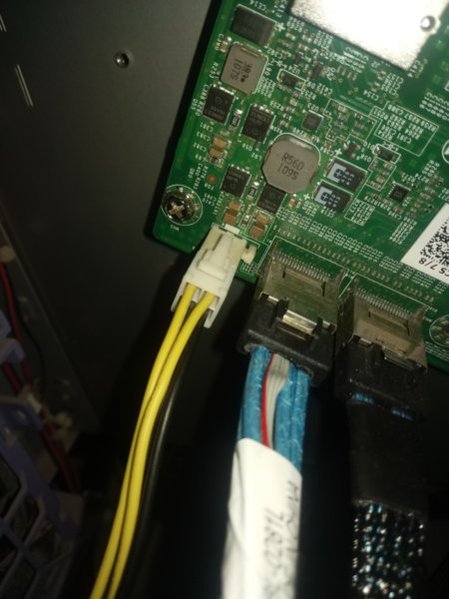

bobby shared 1 photo with you

www.amazon.com

1 - GND
2 - GND
3 - 12V
4 - 5V

Dell 6TDVN SAS Expander

Just got my power cables today and am hoping to adapt them and then convert one of my FreeNAS boxes to a FreeDAS (hehe) in the next week or so. Has anyone hooked up the blinkenlichtmachinen panel to see what it does? @Dave Corder what 20mm fans are you trying? I assume that panel is drive...

forums.servethehome.com



[Ninja123]

Slightly off topic, but can either of you provide dimensions of this expander card? I'm trying to decide between this and a RES2CV240 for a fairly compact NAS build.



[TekSoup]

this cable was close i bought. https://www.amazon.com/dp/B08D9HDSMD?psc=1&ref=ppx_yo2ov_dt_b_product_details but ill have to mod it.
