Pool FreeNAS state is ONLINE: One or more devices has experienced an unrecoverable error.

grocerylist

Dabbler
Joined
Feb 15, 2017
Messages
11
I found a critical alert on my pool:

Pool FreeNAS state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected.​


zpool status -v
Code:
  pool: FreeNAS
 state: ONLINE
status: One or more devices has experienced an unrecoverable error.  An
        attempt was made to correct the error.  Applications are unaffected.
action: Determine if the device needs to be replaced, and clear the errors
        using 'zpool clear' or replace the device with 'zpool replace'.
   see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-9P
  scan: scrub repaired 0B in 1 days 04:45:46 with 0 errors on Fri Jun  2 07:45:4                                                                                                                  7 2023
config:

        NAME                                            STATE     READ WRITE CKS                                                                                                                  UM
        FreeNAS                                         ONLINE       0     0                                                                                                                       0
          raidz2-0                                      ONLINE       0     0                                                                                                                       0
            gptid/f2dd0a90-27db-11ed-8090-d05099d11a44  ONLINE       0     0                                                                                                                       0
            gptid/8cc41d88-2931-11ed-8090-d05099d11a44  ONLINE       0     0                                                                                                                       1
            gptid/ab6f5f53-2dd4-11ed-b8ea-d05099d11a44  ONLINE       0     0                                                                                                                       0
            gptid/7f1005f3-2d1d-11ed-b8ea-d05099d11a44  ONLINE       0     0                                                                                                                       0
            gptid/b0540f77-2b57-11ed-b8ea-d05099d11a44  ONLINE       0     0                                                                                                                       0
            gptid/841cd433-2ac2-11ed-b8ea-d05099d11a44  ONLINE       0     0                                                                                                                       0
            gptid/10a11d01-2f4a-11ed-b8ea-d05099d11a44  ONLINE       0     0                                                                                                                       0
            gptid/5ea8f0b7-2e7f-11ed-b8ea-d05099d11a44  ONLINE       0     0                                                                                                                       0

errors: No known data errors



glabel status
Code:
                                      Name  Status  Components
gptid/8cc41d88-2931-11ed-8090-d05099d11a44     N/A  ada1p2
gptid/7f1005f3-2d1d-11ed-b8ea-d05099d11a44     N/A  ada3p2
gptid/b0540f77-2b57-11ed-b8ea-d05099d11a44     N/A  ada4p2
gptid/841cd433-2ac2-11ed-b8ea-d05099d11a44     N/A  ada5p2
gptid/ab6f5f53-2dd4-11ed-b8ea-d05099d11a44     N/A  ada2p2
gptid/5ea8f0b7-2e7f-11ed-b8ea-d05099d11a44     N/A  ada7p2
gptid/10a11d01-2f4a-11ed-b8ea-d05099d11a44     N/A  ada6p2
gptid/f2dd0a90-27db-11ed-8090-d05099d11a44     N/A  ada0p2
gptid/f0b0e38f-f213-11e6-af7e-d05099c185ff     N/A  da0p1
gptid/77d8a6c9-bed8-11ed-a509-d05099d11a44     N/A  da1p1
gptid/7eebd30f-2d1d-11ed-b8ea-d05099d11a44     N/A  ada3p1
gptid/8c9dcd34-2931-11ed-8090-d05099d11a44     N/A  ada1p1


smartctl -a /dev/ada1
Code:
root@freenas:~ # smartctl -a /dev/ada1
smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p7 amd64] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     WDC WD140EFGX-68B0GN0
Serial Number:    9LJ83BMG
LU WWN Device Id: 5 000cca 28fdfdea5
Firmware Version: 85.00A85
User Capacity:    14,000,519,643,136 bytes [14.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Fri Jun  2 13:55:44 2023 PDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x84) Offline data collection activity
                                        was suspended by an interrupting command from host.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  101) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (1572) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   001    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0004   133   133   054    Old_age   Offline      -       108
  3 Spin_Up_Time            0x0007   085   085   001    Pre-fail  Always       -       238 (Average 363)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       9
  5 Reallocated_Sector_Ct   0x0033   100   100   001    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000a   100   100   001    Old_age   Always       -       0
  8 Seek_Time_Performance   0x0004   128   128   020    Old_age   Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       6598
 10 Spin_Retry_Count        0x0012   100   100   001    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       9
 22 Unknown_Attribute       0x0023   100   100   025    Pre-fail  Always       -       100
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       262
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       262
194 Temperature_Celsius     0x0002   053   053   000    Old_age   Always       -       31 (Min/Max 25/34)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   100   100   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

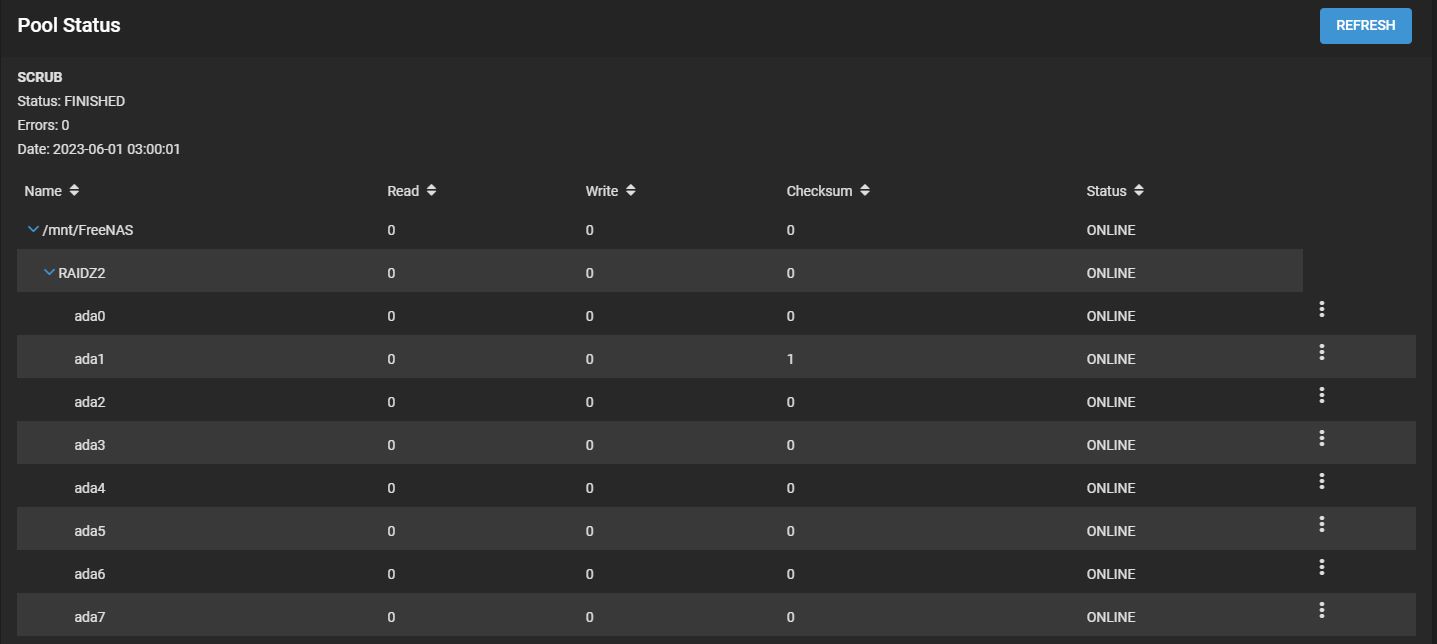

Can anyone help me figure out what all this means? As far as I can tell everything is ok but my pool status shows ONLINE (Unhealthy). All disks show ONLINE and last scrub shows finishing without errors but that was the day before this critical alert popped up.
2023-06-02 at 14.03.55.jpg


Am I missing something? Should I run another scrub?


NugentS

MVP
Joined
Apr 16, 2020
Messages
2,945
chksum error on ada1
You have no data errors

A chksum error is usually a cabling issue. Try powering down, reseating or replace the cable and power back up
then run a scrub. If all OK run zpool clear to clear the error and watch for repeats


NugentS

MVP
Joined
Apr 16, 2020
Messages
2,945
Remember sata cables are crap. They are rated for very few insertion / removals - so old cables are always suspect


grocerylist

Dabbler
Joined
Feb 15, 2017
Messages
11
I didn't touch the sata cables but my scrub completed with no errors. Cleared the error... hopefully all is good but I'll keep an eye on future scrubs and look out for any more alerts. Thanks @NugentS
