I am setting up my newly acquired TERRAMASTER F2-423 2 Bay (I am testing the TERRAMASTER devices if it could be a viable option for a project I am working on, to later obtain their 5bay and 9bay solution and run TrueNas Scale on them). It has 2 M.2 slots available where as in the first slot I have installed a Patriot P300 M.2 PCIe Gen 3x4 128 GB SSD (the boot drive), and in the second slot a Generic FORESEE M.2 SATA 128 GB SSD (which works fine when connected to my windows machine and I had it laying around). In the drive bays I have 2x 2TB Seagate drives (just for testing purposes and had them also laying around).

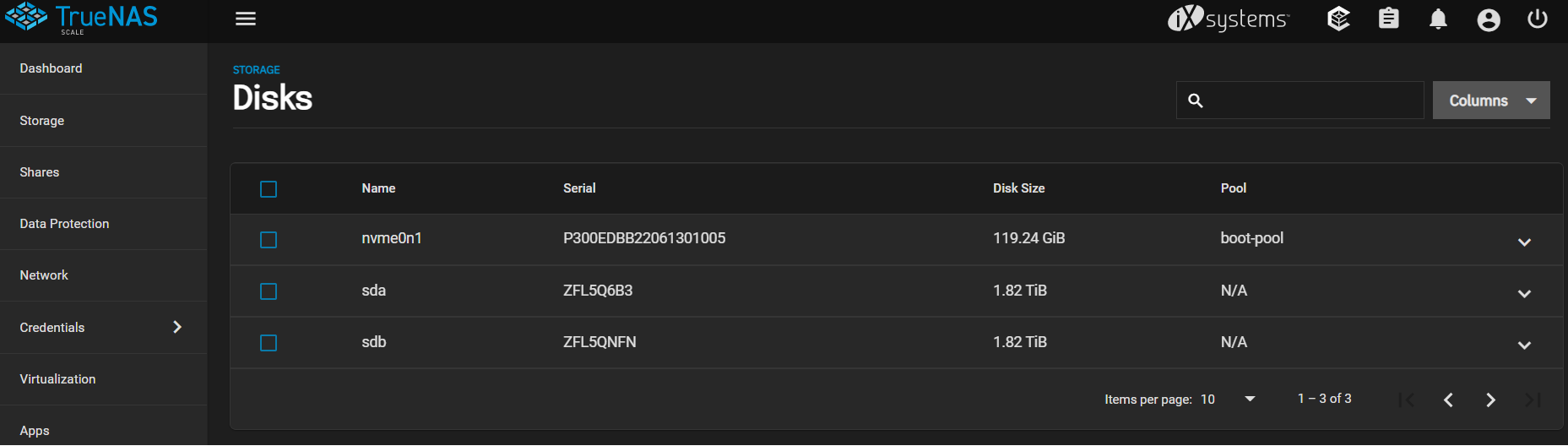

Here is my issue ... TrueNAS-SCALE-22.02.3 is unable to detect the second M.2 SSD (see screenshot below).
If I remove the current boot drive listed above and insert the Foresee 128G M.2 SSD into the slot the current boot drive was in and perform a fresh install of TrueNas Scale that drive is not visible either.
What puzzles me is the drive works fine in my windows machine. I have even reset to factory default and it still does not show up in TrueNas Scale. Is this a known issue with some M.2 SSDs? Also is there a way to get this SSD to be recognized by TrueNas?
I have ordered a new drive (the same as the boot drive), but would really like to know what would be the root cause of the drive not being recognized.
Thanks much,
Tom
