I just finished my new NAS and started running some basic testing. Today I got the following messages:
Besides that the Dashboard Says "HEALTHY" the Pool Status shows the following:
So now I'm confused. There are two HDDs running. 3xHGST Ultrastar He10 and 5x Seagate IronWolf NAS.
I'm currently running some longer SMART tests, but these are the current results. It looks like Seagate and WD are using completely different values.
First zpool status:
SMART ad0
SMART ad1
SMART ad2
SMART ad6
andThe volume cH_RAID state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected.
Tue, 01 Jan 2019 11:10:49 GMT
Device: /dev/da1 [SAT], 16 Currently unreadable (pending) sectors
Tue, 01 Jan 2019 13:50:54 GMT

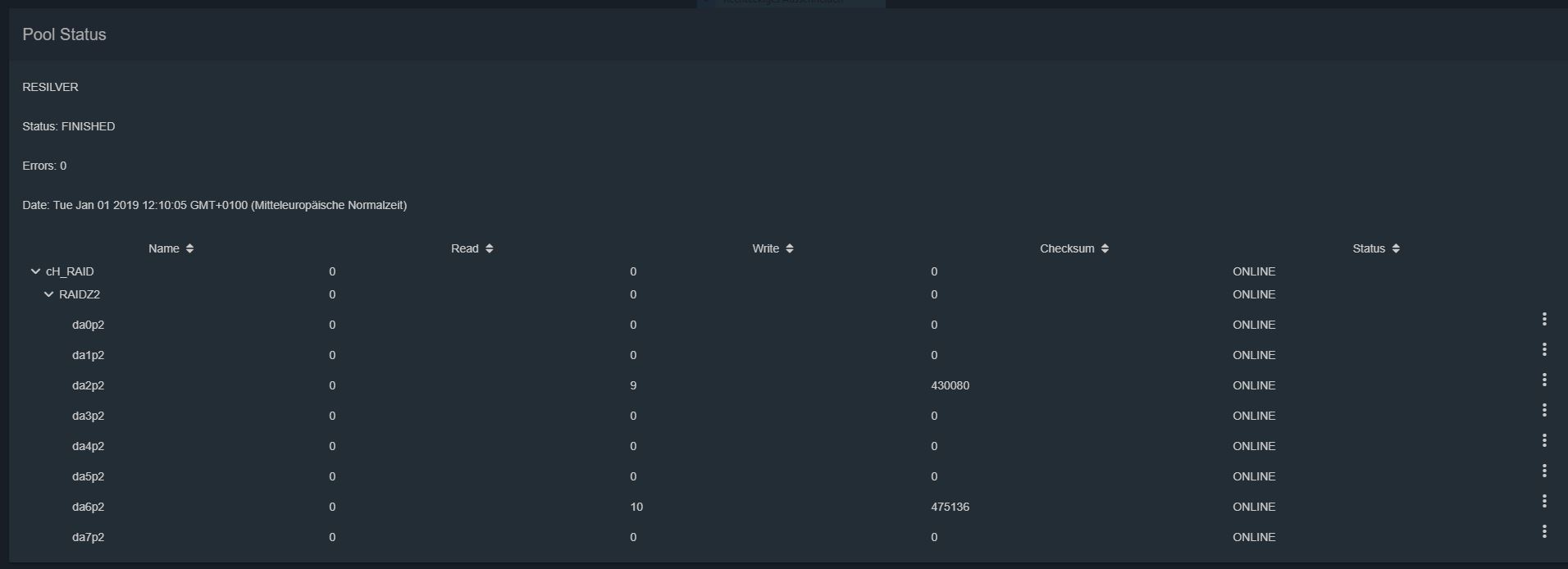

Besides that the Dashboard Says "HEALTHY" the Pool Status shows the following:
So now I'm confused. There are two HDDs running. 3xHGST Ultrastar He10 and 5x Seagate IronWolf NAS.
I'm currently running some longer SMART tests, but these are the current results. It looks like Seagate and WD are using completely different values.
First zpool status:
Code:
pool: cH_RAID state: ONLINE status: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected. action: Determine if the device needs to be replaced, and clear the errors using 'zpool clear' or replace the device with 'zpool replace'. see: http://illumos.org/msg/ZFS-8000-9P scan: resilvered 44.5M in 0 days 00:00:03 with 0 errors on Tue Jan 1 12:10:08 2019 config: NAME STATE READ WRITE CKSUM cH_RAID ONLINE 0 0 0 raidz2-0 ONLINE 0 0 0 gptid/fd51b4db-06ba-11e9-89e2-ac1f6b70532e ONLINE 0 0 0 gptid/ffd3a373-06ba-11e9-89e2-ac1f6b70532e ONLINE 0 0 0 gptid/0221c1d5-06bb-11e9-89e2-ac1f6b70532e ONLINE 0 0 9 gptid/04b24048-06bb-11e9-89e2-ac1f6b70532e ONLINE 0 0 0 gptid/0734c09f-06bb-11e9-89e2-ac1f6b70532e ONLINE 0 0 0 gptid/08cb18f0-06bb-11e9-89e2-ac1f6b70532e ONLINE 0 0 0 gptid/0b2e4e01-06bb-11e9-89e2-ac1f6b70532e ONLINE 0 0 10 gptid/0cca2c6b-06bb-11e9-89e2-ac1f6b70532e ONLINE 0 0 0 errors: No known data errors pool: freenas-boot state: ONLINE scan: scrub repaired 0 in 0 days 00:00:06 with 0 errors on Sat Dec 29 03:45:06 2018 config: NAME STATE READ WRITE CKSUM freenas-boot ONLINE 0 0 0 ada0p2 ONLINE 0 0 0 errors: No known data errors
SMART ad0
Code:
=== START OF INFORMATION SECTION === Model Family: Seagate IronWolf Device Model: ST10000VN0004-1ZD101 Serial Number: ZA2906MZ LU WWN Device Id: 5 000c50 0b2b312df Firmware Version: SC60 User Capacity: 10,000,831,348,736 bytes [10.0 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Tue Jan 1 15:34:54 2019 CET SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 249) Self-test routine in progress... 90% of test remaining. Total time to complete Offline data collection: ( 567) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: ( 841) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x50bd) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 076 064 044 Pre-fail Always - 38492313 3 Spin_Up_Time 0x0003 087 087 000 Pre-fail Always - 0 4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 8 5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0 7 Seek_Error_Rate 0x000f 077 060 045 Pre-fail Always - 51581108 9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 194 (117 99 0) 10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 8 184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 189 High_Fly_Writes 0x003a 100 100 000 Old_age Always - 0 190 Airflow_Temperature_Cel 0x0022 070 049 040 Old_age Always - 30 (Min/Max 30/43) 191 G-Sense_Error_Rate 0x0032 100 100 000 Old_age Always - 259 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 7 193 Load_Cycle_Count 0x0032 100 100 000 Old_age Always - 132 194 Temperature_Celsius 0x0022 030 051 000 Old_age Always - 30 (0 23 0 0 0) 195 Hardware_ECC_Recovered 0x001a 005 005 000 Old_age Always - 38492313 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0023 100 100 001 Pre-fail Always - 0 240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 188 (241 244 0) 241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 10339255754 242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 3113899323 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Self-test routine in progress 90% 194 - # 2 Short offline Completed without error 00% 162 - # 3 Short offline Completed without error 00% 77 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
SMART ad1
Code:
=== START OF INFORMATION SECTION === Model Family: HGST Ultrastar He10 Device Model: HGST HUH721010ALE600 Serial Number: 7P0K1BTC LU WWN Device Id: 5 000cca 3c4c7bf7d Firmware Version: LHGNT384 User Capacity: 10,000,831,348,736 bytes [10.0 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Tue Jan 1 15:36:02 2019 CET SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 248) Self-test routine in progress... 80% of test remaining. Total time to complete Offline data collection: ( 93) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1090) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 134 134 054 Pre-fail Offline - 96 3 Spin_Up_Time 0x0007 100 100 024 Pre-fail Always - 0 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 7 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 100 100 000 Old_age Always - 194 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 7 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 15 193 Load_Cycle_Count 0x0012 100 100 000 Old_age Always - 15 194 Temperature_Celsius 0x0002 193 193 000 Old_age Always - 31 (Min/Max 21/45) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 128 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 162 - # 2 Short offline Completed without error 00% 77 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
SMART ad2
Code:
=== START OF INFORMATION SECTION === Model Family: Seagate IronWolf Device Model: ST10000VN0004-1ZD101 Serial Number: ZA29H33N LU WWN Device Id: 5 000c50 0b3411dac Firmware Version: SC60 User Capacity: 10,000,831,348,736 bytes [10.0 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Tue Jan 1 15:37:09 2019 CET SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 248) Self-test routine in progress... 80% of test remaining. Total time to complete Offline data collection: ( 575) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: ( 859) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x50bd) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 079 064 044 Pre-fail Always - 86794673 3 Spin_Up_Time 0x0003 086 086 000 Pre-fail Always - 0 4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 8 5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0 7 Seek_Error_Rate 0x000f 077 060 045 Pre-fail Always - 51785478 9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 194 (164 8 0) 10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 8 184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 189 High_Fly_Writes 0x003a 099 099 000 Old_age Always - 1 190 Airflow_Temperature_Cel 0x0022 069 046 040 Old_age Always - 31 (Min/Max 31/44) 191 G-Sense_Error_Rate 0x0032 100 100 000 Old_age Always - 607 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 7 193 Load_Cycle_Count 0x0032 100 100 000 Old_age Always - 150 194 Temperature_Celsius 0x0022 031 054 000 Old_age Always - 31 (0 23 0 0 0) 195 Hardware_ECC_Recovered 0x001a 007 006 000 Old_age Always - 86794673 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0023 100 100 001 Pre-fail Always - 0 240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 188 (242 194 0) 241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 10338472330 242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 3102950684 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Self-test routine in progress 80% 194 - # 2 Short offline Completed without error 00% 162 - # 3 Short offline Completed without error 00% 77 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
SMART ad6
Code:
=== START OF INFORMATION SECTION === Model Family: Seagate IronWolf Device Model: ST10000VN0004-1ZD101 Serial Number: ZA29MCBJ LU WWN Device Id: 5 000c50 0b35d7778 Firmware Version: SC60 User Capacity: 10,000,831,348,736 bytes [10.0 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Tue Jan 1 15:37:58 2019 CET SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 248) Self-test routine in progress... 80% of test remaining. Total time to complete Offline data collection: ( 567) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: ( 845) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x50bd) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 079 064 044 Pre-fail Always - 86572459 3 Spin_Up_Time 0x0003 087 087 000 Pre-fail Always - 0 4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 32 5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0 7 Seek_Error_Rate 0x000f 077 060 045 Pre-fail Always - 51124154 9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 199 (12 13 0) 10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 32 184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 189 High_Fly_Writes 0x003a 100 100 000 Old_age Always - 0 190 Airflow_Temperature_Cel 0x0022 067 054 040 Old_age Always - 33 (Min/Max 31/36) 191 G-Sense_Error_Rate 0x0032 099 099 000 Old_age Always - 2933 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 17 193 Load_Cycle_Count 0x0032 100 100 000 Old_age Always - 178 194 Temperature_Celsius 0x0022 033 046 000 Old_age Always - 33 (0 23 0 0 0) 195 Hardware_ECC_Recovered 0x001a 007 005 000 Old_age Always - 86572459 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0023 100 100 001 Pre-fail Always - 0 240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 188 (5 101 0) 241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 10338437586 242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 3099815865 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Self-test routine in progress 80% 199 - # 2 Short offline Completed without error 00% 167 - # 3 Short offline Completed without error 00% 82 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
