Mod: How to use add-on card with "shortie" bracket in standard case

[esamett]

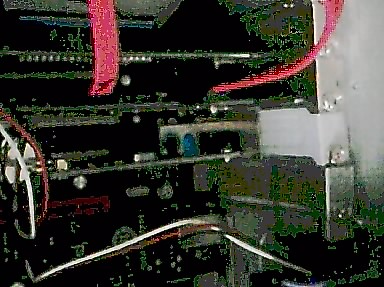

I found a gigabit NIC for $10 but it had the short bracket. I came up with a mod to get it to work. (Photo attached) I used "tin snips" to cut the top of the shortie bracket off. Then I took a bracket "cover" (that comes with a case) and cut off the length of the shortie bracket. The total length of the two pieces should equal the original length of the bracket cover. I installed the NIC then screwed in the modified bracket cover. All is secure.



[matthewowen01]

you can also find an old NIC and steal it's backplate. for reference, they are called 'half height'.
