Intel x710 not recognized

[giuseppe30]

Hello,

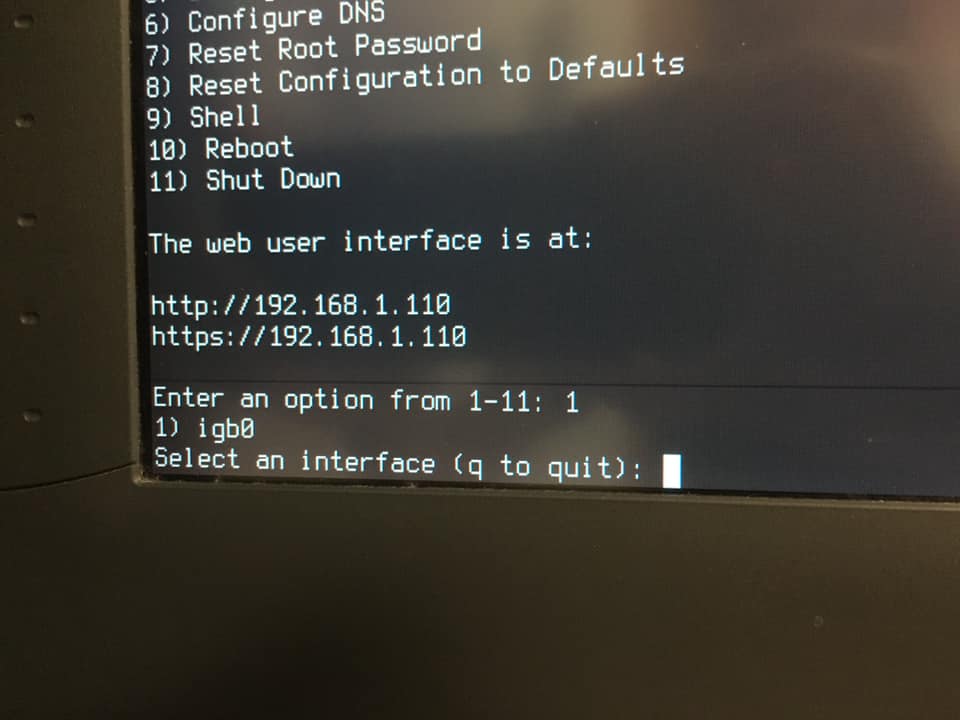

new installation with TrueNas 12-U3 but the system not show me Intel x710-DA2 card.

Can you help me?



[Ericloewe]

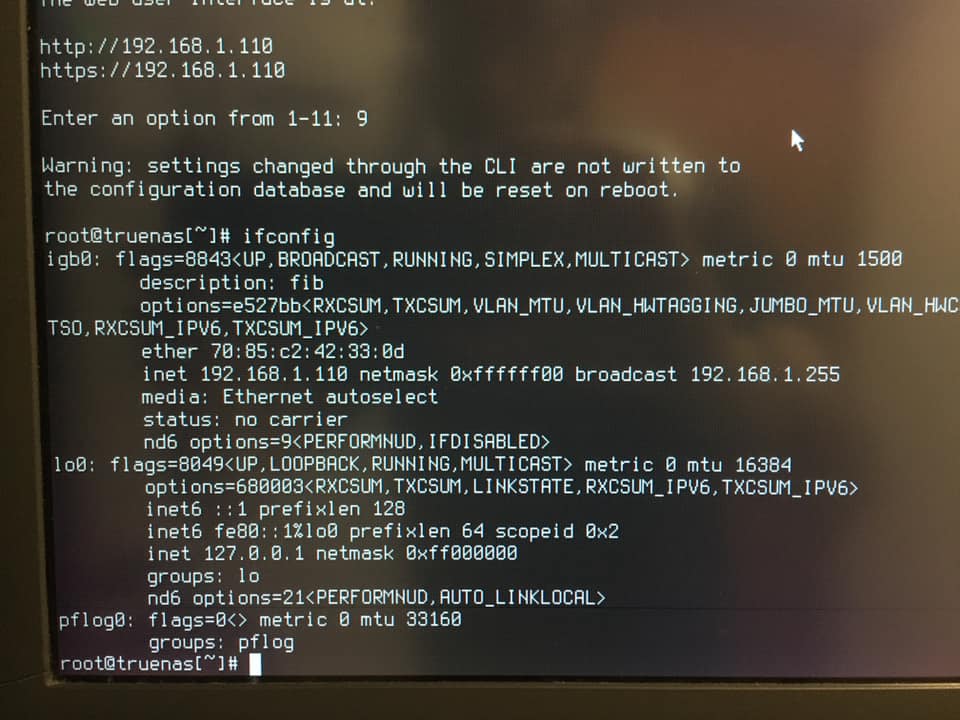

What's the output of lspci -v?



[giuseppe30]

solved my issue in bios setting.
MB had pcie disabled!



[giuseppe30]

now I have this issue

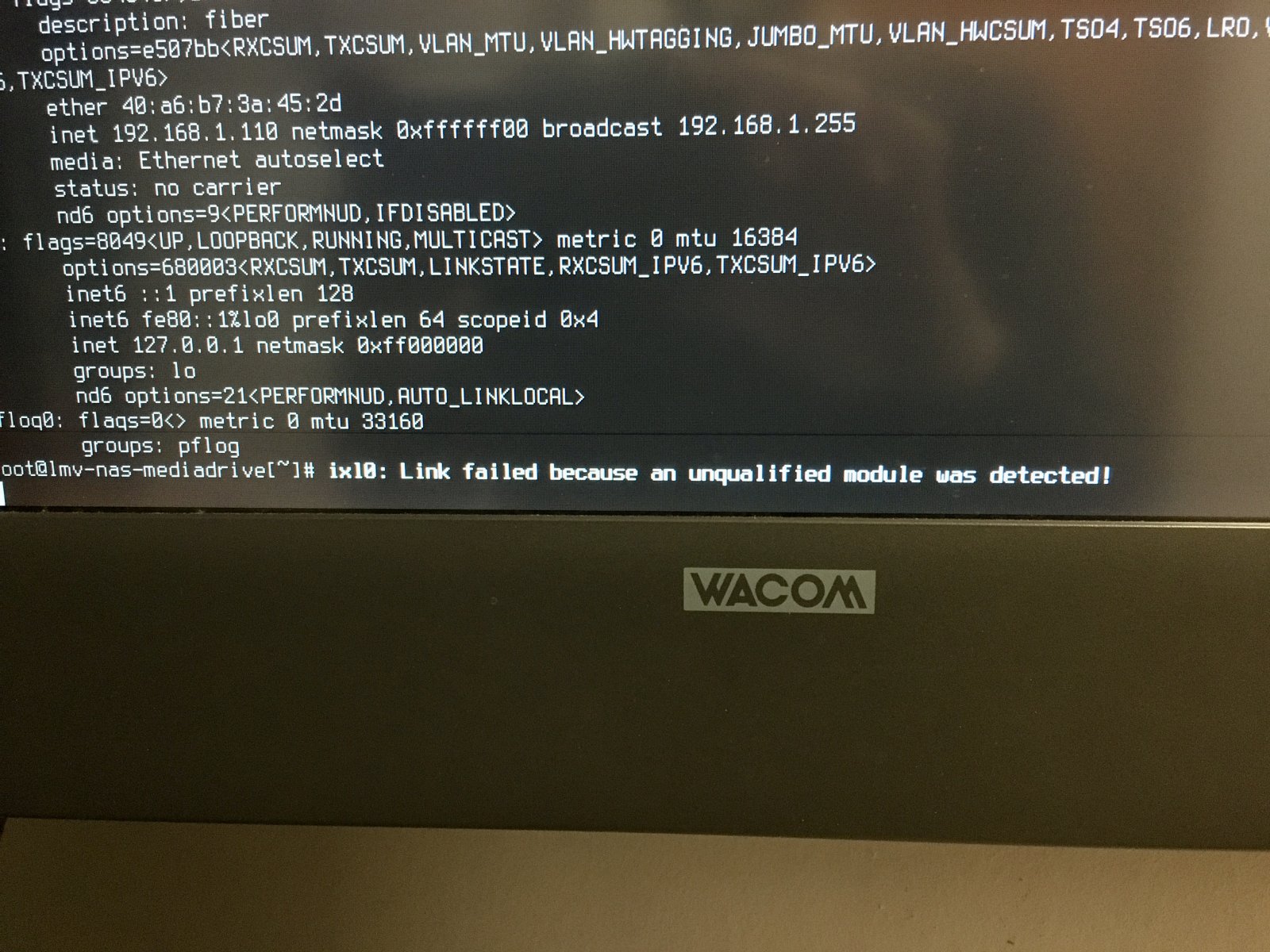

“link failed because an unqualified module was detected”



[Ericloewe]

Intel doesn't like non-Intel SFP modules. There are ways around that, including some firmware or driver tweaking.



[giuseppe30]

Intel doesn't like non-Intel SFP modules. There are ways around that, including some firmware or driver tweaking.

with Ubiquiti UF-MM-10G transceiver I have this issue.
Now I have to order Intel E10GSFPSR Transceiver but I'm not sure is compatible with my switch Netgear XS712-v2.

This mean I have to use a compatible Transceiver for each hardware?

Intel x710 -> Intel Transceiver -> Fiber cable -> Ubiquiti transceiver -> Switch Netgear xs712



[Ericloewe]

This mean I have to use a compatible Transceiver for each hardware?

Some hardware doesn't care, or cares only a bit. It varies.



[giuseppe30]

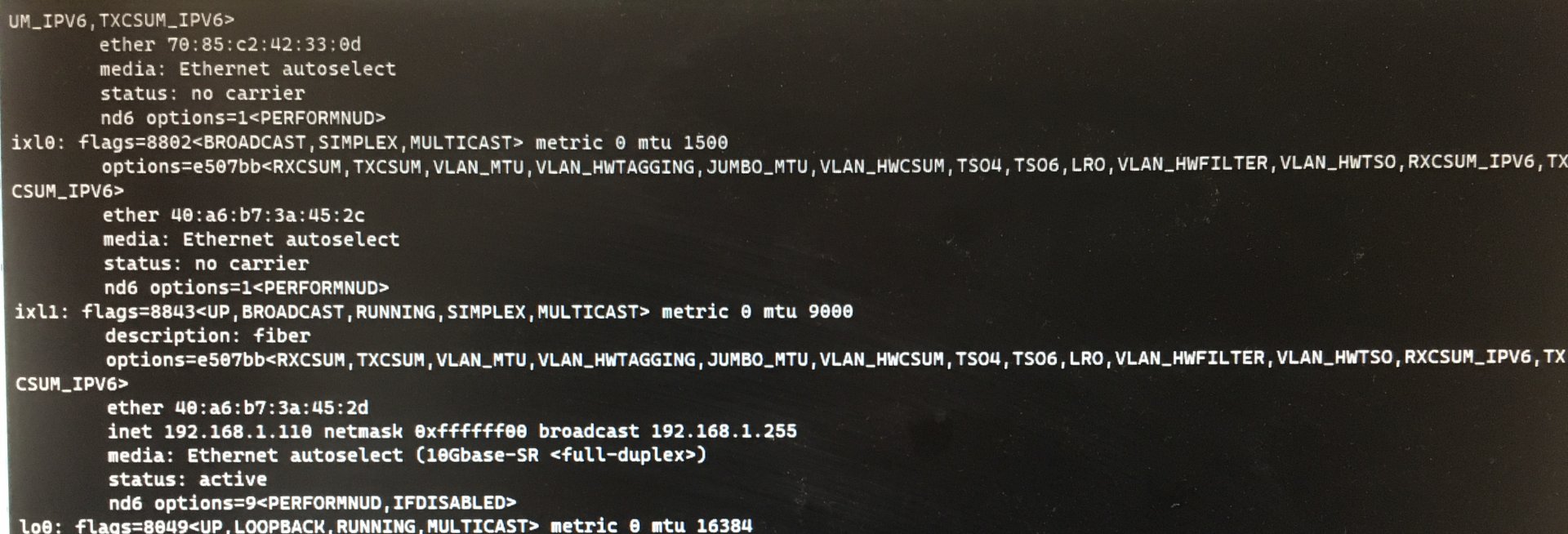

now compatible Intel Transceiver works.

But I don’t have 10Gbits connection.
what can I verify?



[Ericloewe]

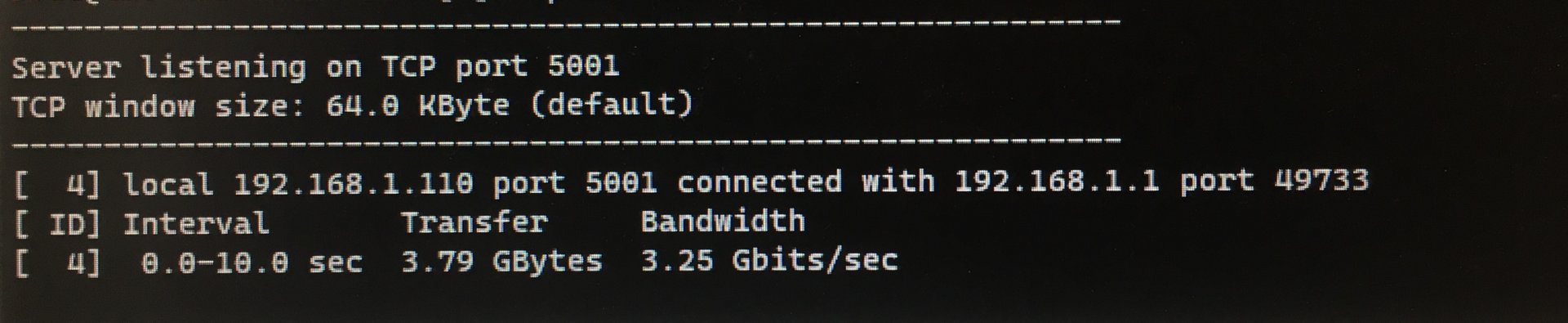

Clearly it's saying the connection is 10 Gb/s and it's pushing ~3 Gb/s in that test. There could be a million reasons for that, from the rest of the system not keeping up, to the other end not keeping up, congested switch...
