How does routing work within Kubernetes and Scale

[NugentS]

Does anyone here understand how Kubernetes routes? Or perhaps how its meant to route

I have a container on 172.16.0.y/24 on a Scale host 192.168.38.32/24. I have a DNS Server on 192.168.38.10. My firewall / internet gateway is 192.168.38.15

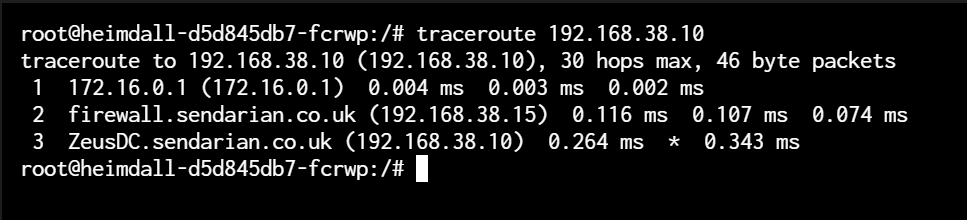

There is a traceroute above from the container to a local DNS Server it shows the leaves scale, hitting the gateway and then being redirected to the DNS Server.

Given the the DNS Server doesn't know anything about the 172.16.0.y/24 network and neither does the gateway. Unless the packet has a source address of 192.168.38.32:port_number then this couldn't work as no packets would ever return to the container.

As far as I am aware the 172.16.0.0/24 address range is NAT'd behind the 192.168.38.32 address so the outgoing packet would create a state table inside K3S so the returning packet would know which container to be directed to. But this means that packet 2 above has a source address of 192.168.38.32:port_number and that it should go direct to 192.168.38.10 as its on net.

This is clearly not happenning.

Anyone care to shed some light on this?



[sretalla]

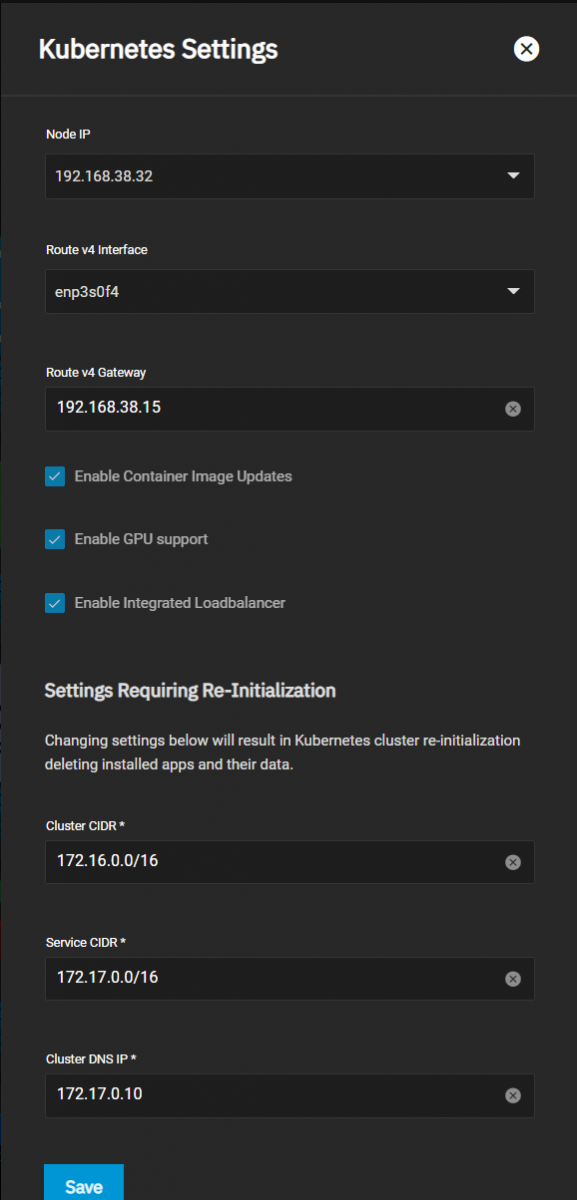

How does it look on your Apps - Settings - Advanced settings screen (you'll need to do that from the Available Applications page if you're on the current version)?



[NugentS]



[sretalla]

Is that NIC the one linked with that IP?

Is the routing making the same sense when read together with the values there? ( or are you saying routing is contrary to it?)

Also, your attachment of the traceroute isn't visible (at least not for me)... I would try to repeat the same and compare for you if I knew what you were doing exactly. I run a bridged config on my SCALE nodes, so maybe that makes it different.



[NugentS]

I'll redo the traceroute

There

Line 1 is fine - the container - which sends the packet to the 172.16.0.1 gateway
I think the packets then get NAT'd behind the 192.168.38.32 address of the scale NAS. So they now have a source address of 192.168.38.32. However they are sent to 192.168.38.15 - the gateway - which then has to redirect to 192.168.38.10 despite 192.168.38.32 being on-net for 192.168.38.10

The firewall has no idea that 172.16.0.0/16 exists - so cannot route to it
My DNS Server has no idea that 172.16.0.0/16 exists - so cannot route to it
So the source address of the packet leaving the NAS MUST be 192.1687.38.32:port_address otherwise traffic could never return to the container

This behaviour, whilst largely irrelavent for DNS traffic, is incorrect and I would have an issue if the container was a database app with a lot of traffic that I would not want hitting the firewall and then being sent back, again across the firewall cable, into the LAN network (or similar)

I logged a ticket with IX - but they don't seem to see the problem

I spotted the issue due to Policy Based Routing on the firewall which prevented the traffic from being sent back to the LAN and was sending it out the WAN side. I have worked around it - but the behaviour must be incorrect

The container I am using is Heimdall as whoever built that built it badly (badly is probably the wrong word here) and left enough inside the container to include things like ping, traceroute etc - which is great for my purposes.

I tried removing the Route v4 Gateway from Kubernetes Settings - but that doesn't work (can't be done)
I also tested this on a second scale box - it does the same

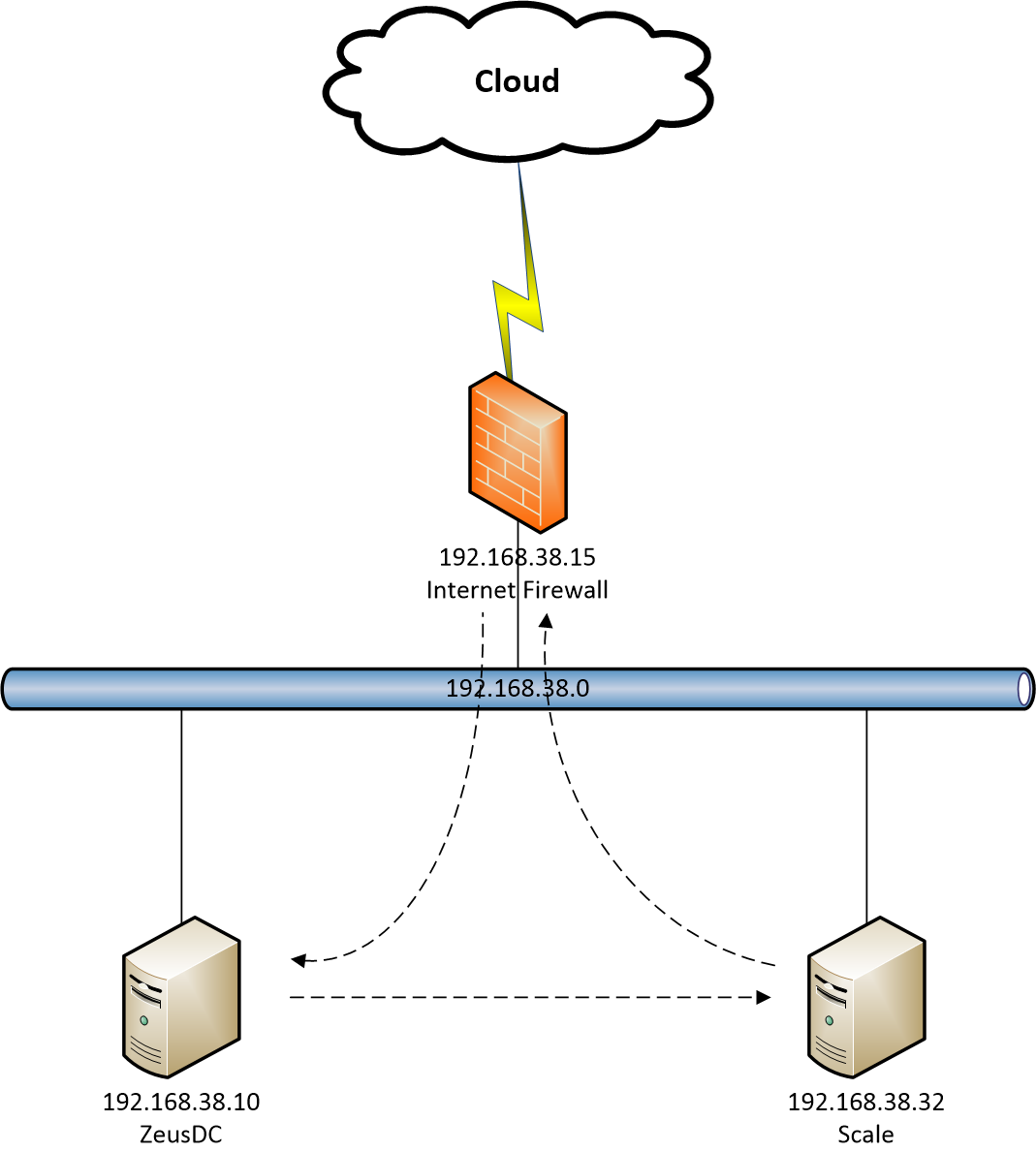

Diagram below - if it helps. The dotted lines MUST be the (incorrect) traffic path



[sretalla]

OK, so I tested it and got the same result as you (I had my pfSense gateway as the RouteV4 Gateway).

However... I discovered by means of simple logic that if I change the setting for the Route V4 Gateway to the IP of the node itself, the routing from kubernetes is now direct to other LAN hosts.

But I think that's breaking the routing to the internet... even though sysctl net.ipv4.ip_forward shows routing is enabled, so all apps that want to go outside the LAN for something are somehow broken... I guess you could set a proxy or whatever to fix that.

I think I'll keep running with my pfSense in that spot until somebody convinces me there's a better way.



[NugentS]

easy enough to test.
Definately a bad idea if I want to be able to route to the internet.
OTOH internal routing, on the same network does work



[NugentS]

I am trying to convince IX that they have a bug - but they don't want to listen
