How blink a drive with SAS2IRCU on a IBM M1015 controller??

[mbalsam]

I need to identify a bad drive on a IBM M1015 controller. I read that the sas2ircu command would do the trick.

I got the the Serial No From STORAGE > VIEW > DISKS

Ran "sas2ircu 0 DISPLAY" to list all of the serial numbers and enclose numbers on controller 0.

The disk with the matching serial number was enclosure 1 slot 2

so i ran "sas2ircu 0 LOCATE 1:2 ON".

I expected one light to blink. But all of the drives on that controller blinked???

Any ideas?



[Ericloewe]

It's rather hard to approach the issue if you don't even tell us what kind of backplane you're using.

Chassis lights are very poorly standardized and a pain to get to work.
A much simpler option is to use dd to exercise the drive. Say, dd if=/dev/da7 of=/dev/null. CTRL+C to stop it once the drive has been identified.



[mbalsam]

Got it. Many thanks...



[Chris Moore]

Got it. Many thanks...

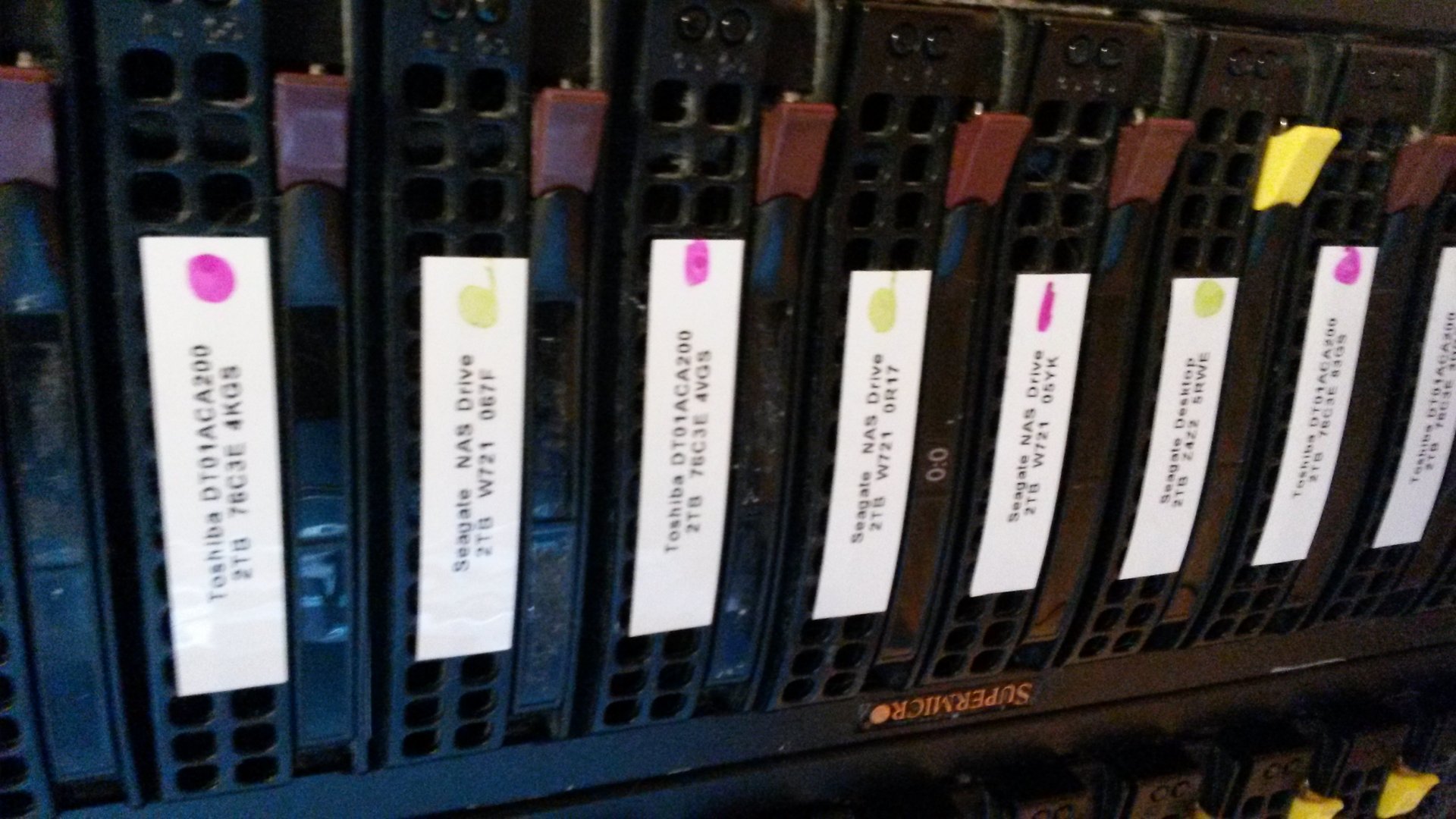

The most reliable way is to label the drive carriers before you put the drives in the chassis. Mark the last 4 digits of the SN on the label. It is usually unique enough to identify the drive. I have a chassis where the drive activity lights don't work, and another that has no lights at all, so this is the only way that works every time.
