Don't see drive status LED after connecting it HP H220 HBA
- Thread starter hysel
- Start date
vampirebyte
Dabbler
- Joined
- Nov 28, 2022
- Messages
- 20
We have the same "issue" with our build on HPE DL380 G9.
We also used the OEM H220 card and flashed it, all works great, all 8 SATA HPE Enterprise SSDs are visible and usable including SMART status, just the LEDs don't work anymore... what a pity.

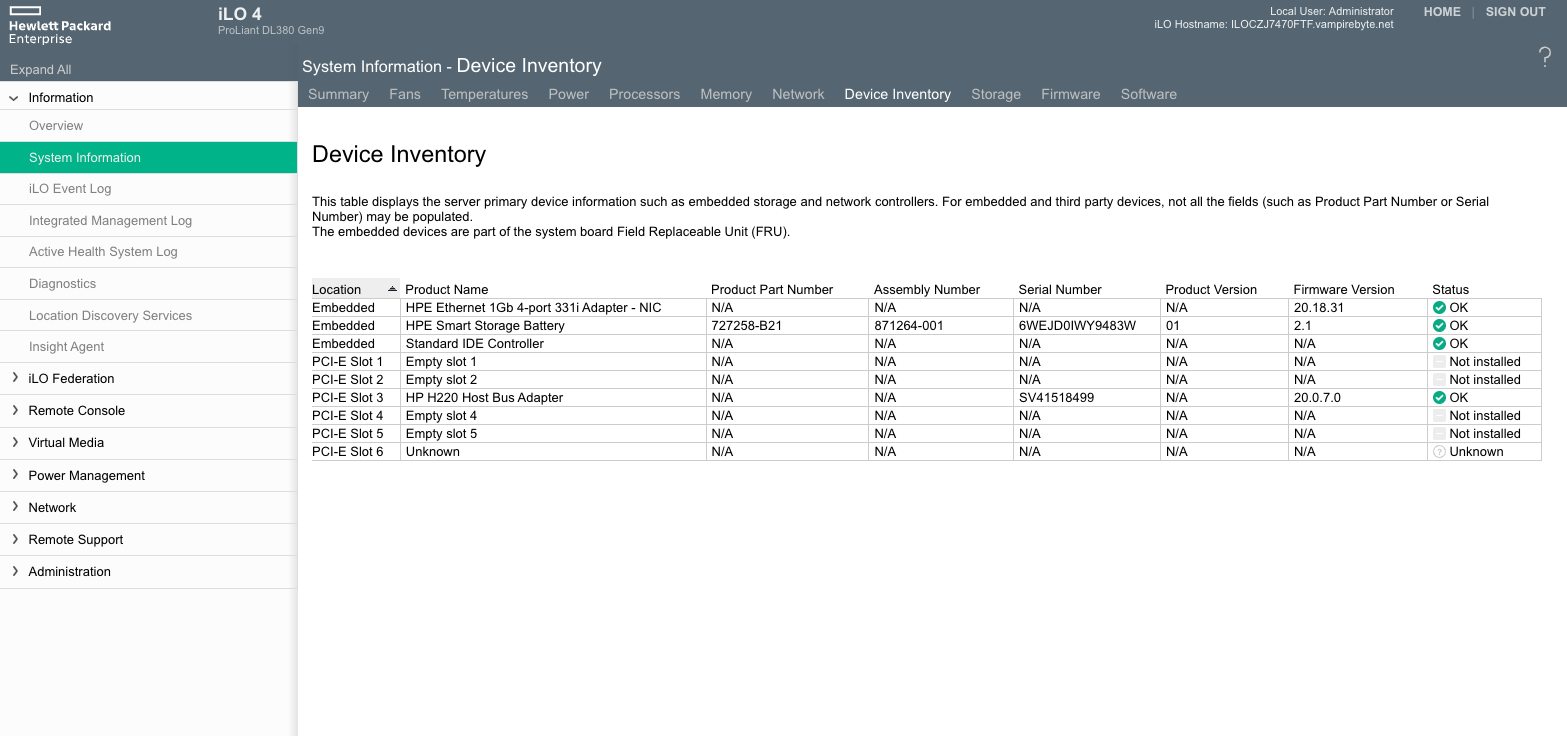

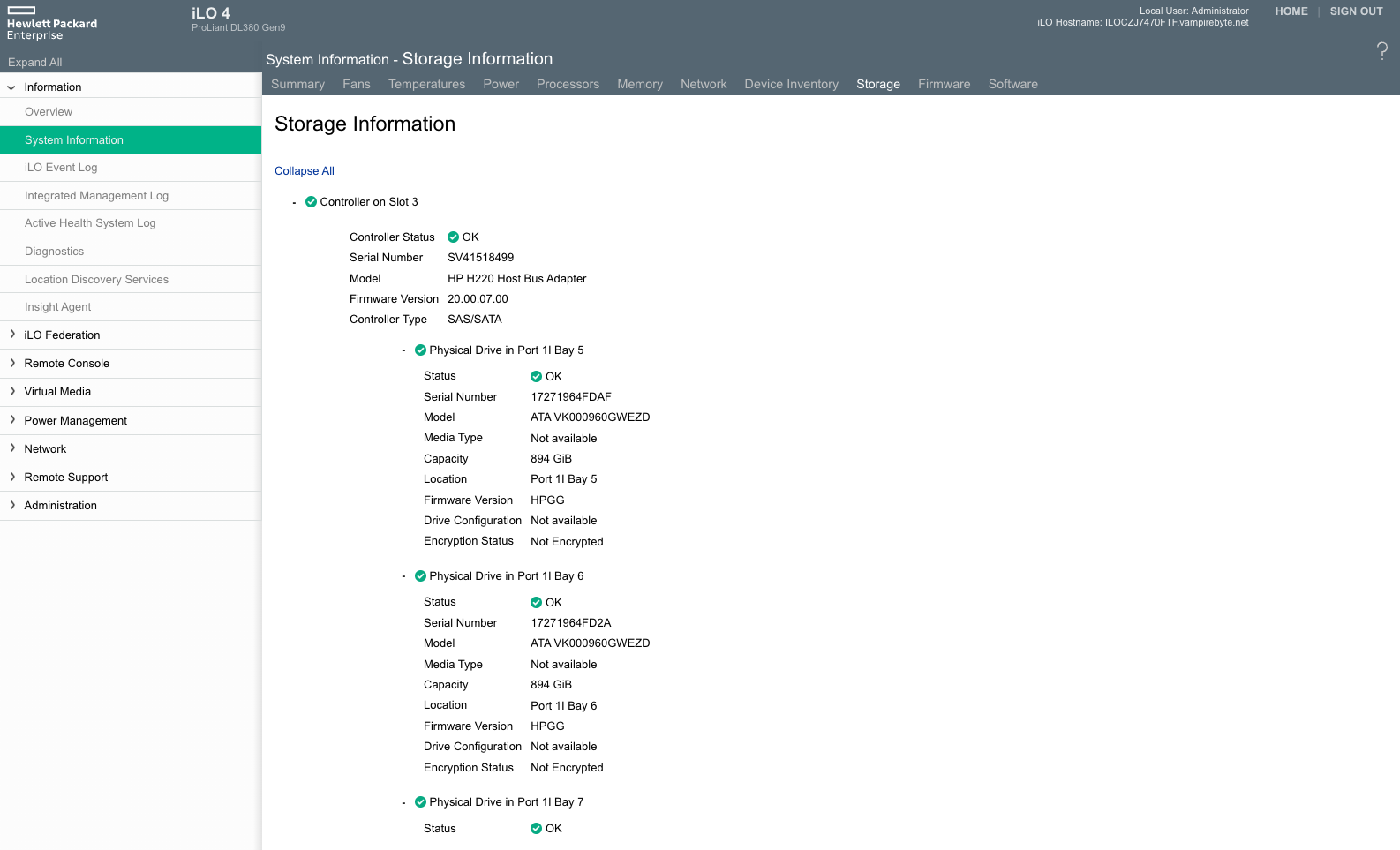

It is actually detected and visible in HP iLO 4, it just needs AMS installed on the host to display also the drives.
Not sure how/if we can fix this without using the HP firmware :( I actually did not change the BIOS of the card, it's the original one afaik.
We also used the OEM H220 card and flashed it, all works great, all 8 SATA HPE Enterprise SSDs are visible and usable including SMART status, just the LEDs don't work anymore... what a pity.
It is actually detected and visible in HP iLO 4, it just needs AMS installed on the host to display also the drives.
Not sure how/if we can fix this without using the HP firmware :( I actually did not change the BIOS of the card, it's the original one afaik.
Code:
root@truenas[~]# sas2ircu 0 display LSI Corporation SAS2 IR Configuration Utility. Version 20.00.00.00 (2014.09.18) Copyright (c) 2008-2014 LSI Corporation. All rights reserved. Read configuration has been initiated for controller 0 ------------------------------------------------------------------------ Controller information ------------------------------------------------------------------------ Controller type : SAS2308_2 BIOS version : 7.39.00.00 Firmware version : 20.00.07.00 Channel description : 1 Serial Attached SCSI Initiator ID : 0 Maximum physical devices : 1023 Concurrent commands supported : 10240 Slot : 3 Segment : 0 Bus : 8 Device : 0 Function : 0 RAID Support : No ------------------------------------------------------------------------ IR Volume information ------------------------------------------------------------------------ ------------------------------------------------------------------------ Physical device information ------------------------------------------------------------------------ Initiator at ID #0 Device is a Hard disk Enclosure # : 1 Slot # : 0 SAS Address : 4433221-1-0300-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FD8C GUID : 500a07511964fd8c Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 1 SAS Address : 4433221-1-0200-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FCF7 GUID : 500a07511964fcf7 Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 2 SAS Address : 4433221-1-0100-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FD2A GUID : 500a07511964fd2a Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 3 SAS Address : 4433221-1-0000-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FDAF GUID : 500a07511964fdaf Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 4 SAS Address : 4433221-1-0700-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FD01 GUID : 500a07511964fd01 Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 5 SAS Address : 4433221-1-0600-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FD9B GUID : 500a07511964fd9b Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 6 SAS Address : 4433221-1-0500-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FDEB GUID : 500a07511964fdeb Protocol : SATA Drive Type : SATA_SSD Device is a Hard disk Enclosure # : 1 Slot # : 7 SAS Address : 4433221-1-0400-0000 State : Ready (RDY) Size (in MB)/(in sectors) : 915715/1875385007 Manufacturer : ATA Model Number : VK000960GWEZD Firmware Revision : HPGG Serial No : 17271964FDFF GUID : 500a07511964fdff Protocol : SATA Drive Type : SATA_SSD ------------------------------------------------------------------------ Enclosure information ------------------------------------------------------------------------ Enclosure# : 1 Logical ID : 500605b0:08c416b0 Numslots : 8 StartSlot : 0 ------------------------------------------------------------------------ SAS2IRCU: Command DISPLAY Completed Successfully. SAS2IRCU: Utility Completed Successfully. root@truenas[~]#
