HELP to get my USB Liebert PSI UPS working

[dannyb78]

Hi, I'm running the last stabel Freenas version [FreeNAS-9.2.1.3-RELEASE-x64 (dc0c46b)] and I'm tryin' to get my USB connected UPS working.

The UPS is an "Emerson Power Liebert PowerSure PSI 1440" wich is not supported by NUT.

I tryed using all belkin and liebert models in list, but it wont' works.

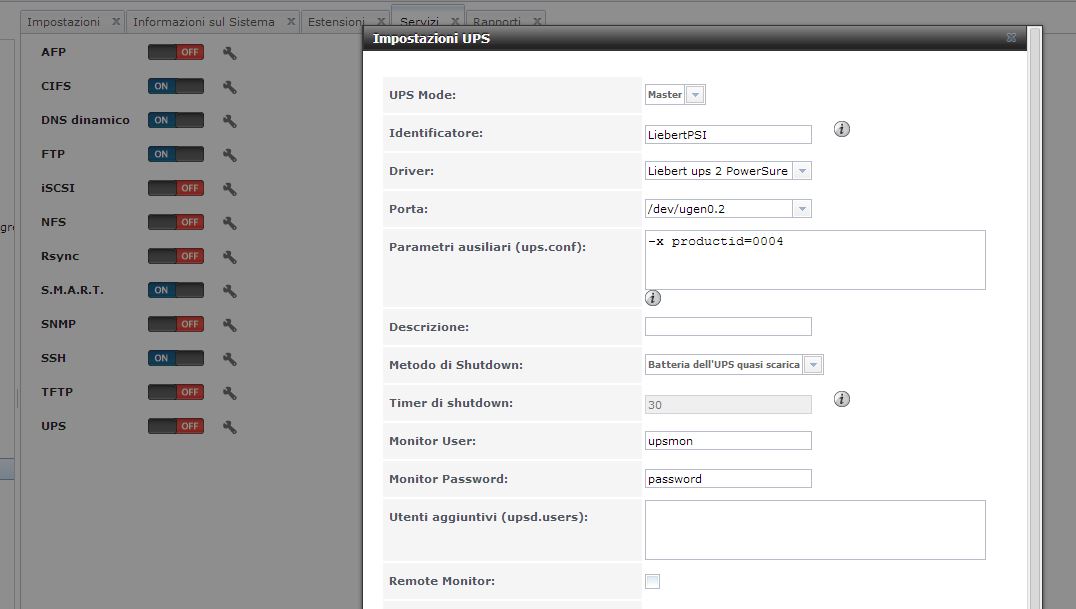

Here is a console log, and attached you can find a screen of my config. Any help is welcome :)

Apr 2 13:58:00 archivio notifier: This Liebert device (10af:0004) is not (or perhaps not yet) supported
Apr 2 13:58:00 archivio notifier: by usbhid-ups. Please make sure you have an up-to-date version of NUT. If
Apr 2 13:58:00 archivio notifier: this does not fix the problem, try running the driver with the
Apr 2 13:58:00 archivio notifier: '-x productid=0004' option. Please report your results to the NUT user's
Apr 2 13:58:00 archivio notifier: mailing list <nut-upsuser@lists.alioth.debian.org>.
Apr 2 13:58:00 archivio notifier:
Apr 2 13:58:00 archivio notifier: Network UPS Tools - Generic HID driver 0.38 (2.7.1)
Apr 2 13:58:00 archivio notifier: USB communication driver 0.32
Apr 2 13:58:00 archivio notifier: No matching HID UPS found
Apr 2 13:58:00 archivio notifier: Driver failed to start (exit status=1)
Apr 2 13:58:00 archivio notifier: Network UPS Tools - UPS driver controller 2.7.1
Apr 2 13:58:00 archivio root: /usr/local/etc/rc.d/nut: WARNING: failed precmd routine for nut
Apr 2 13:58:00 archivio notifier: /usr/local/etc/rc.d/nut: WARNING: failed precmd routine for nut
Apr 2 13:58:00 archivio notifier: nut_upsmon not running? (check /var/db/nut/upsmon.pid).
Apr 2 13:58:00 archivio notifier: Starting nut_upsmon.
Apr 2 13:58:00 archivio notifier: kill: No such process
Apr 2 13:58:00 archivio notifier: UPS: LiebertPSI (master) (power value 1)
Apr 2 13:58:00 archivio upsmon[95132]: UPS [LiebertPSI]: connect failed: Connection failure: Connection refused
Apr 2 13:58:00 archivio upsmon[95132]: Communications with UPS LiebertPSI lost
Apr 2 13:58:00 archivio notifier: nut_upslog not running? (check /var/db/nut/upslog.pid).
Apr 2 13:58:00 archivio notifier: Starting nut_upslog.
Apr 2 13:58:00 archivio notifier: Warning: initial connect failed: Connection failure: Connection refused
Apr 2 13:58:02 archivio notifier: Stopping nut_upslog.
Apr 2 13:58:02 archivio notifier: Waiting for PIDS: 95160.
Apr 2 13:58:02 archivio notifier: Stopping nut_upsmon.
Apr 2 13:58:25 archivio upsmon[95131]: upsmon parent: read



[cyberjock]

If it's not supported by NUT then you will need to get a UPS that is supported by NUT. The FreeNAS project simply bundles NUT into the OS. We don't actually support NUT at all. :(



[dannyb78]

It's not so easy to replace a 1440v ups in a home installation. Thats' why I'm asking here, I'm not a FreeBSD expert, so may miss some important things to know, or tricks to make it working.
I should find some workaround, like read the ups status from a machine using a different OS :)



[cyberjock]

1440v!? Never heard of that voltage being anywhere on the planet(electrician by trade).

I'd go as the NUT guys. They have a support structure of their own. But to be honest, I wouldn't expect overnight service and if they can't find the information or get local access to your box I wouldn't ever expect it to be supported.



[dannyb78]

I think you're right
I missed an "a". The ups is a 1440va, 220v

Thanks for your help, I'm contacting NUT guys. I wuold not give access to my box, but I can connect the ups to a test VM and open its ssh port to the world ;)



[dannyb78]

solved by NUT mail list users. I removed the leading "-x" in freenas GUI config and now it works :)



[epouliot]

solved by NUT mail list users. I removed the leading "-x" in freenas GUI config and now it works :)

What leading -x ? Care to share? I have the same issue. Thanks!
