Hello guys,

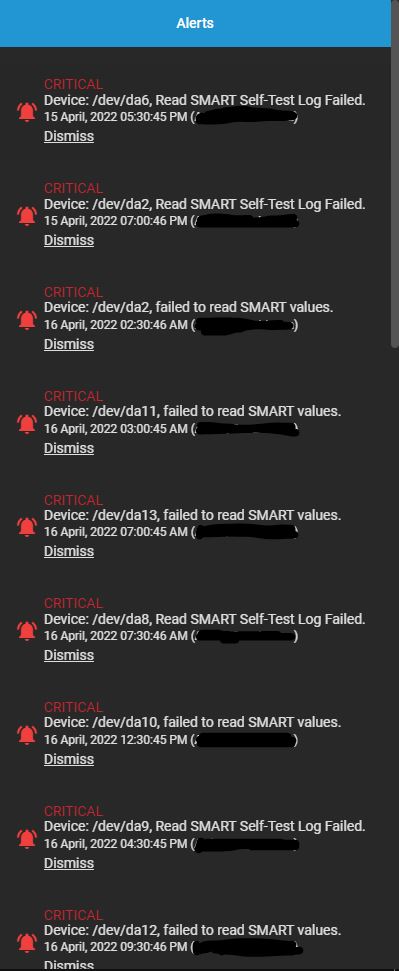

I keep getting these alerts (check the attachments or below) for all my drives except the boot array.
Alerts :
I have run a `smartctl -a /dev/daX` and here are the results :
All the drives show the same output, except for /dev/da12 and /dev/da14 which is the hardware RAID boot pool.
I keep getting these alerts (check the attachments or below) for all my drives except the boot array.
Alerts :
CRITICAL
Device: /dev/da3, failed to read SMART values.
------CRITICAL
Device: /dev/da12, Read SMART Self-Test Log Failed.
I have run a `smartctl -a /dev/daX` and here are the results :
smartctl 7.2 2020-12-30 r5155 [FreeBSD 12.2-RELEASE-p12 amd64] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: SEAGATE
Product: DL2400MM0159
Revision: ST58
Compliance: SPC-4
User Capacity: 2,400,476,553,216 bytes [2.40 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 10000 rpm
Form Factor: 2.5 inches
Logical Unit id: 0x5000c500e27514a7
Serial number: WBM5W6BC
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Wed Apr 20 12:20:58 2022 +00
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Disabled or Not Supported
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 29 C
Drive Trip Temperature: 60 C
Accumulated power on time, hours:minutes 553:05
Manufactured in week 48 of year 2021
Specified cycle count over device lifetime: 10000
Accumulated start-stop cycles: 14
Specified load-unload count over device lifetime: 300000
Accumulated load-unload cycles: 125
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 360696
Blocks received from initiator = 829856
Blocks read from cache and sent to initiator = 64459
Number of read and write commands whose size <= segment size = 5170
Number of read and write commands whose size > segment size = 6
Vendor (Seagate/Hitachi) factory information
number of hours powered up = 553.08
number of minutes until next internal SMART test = 12
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 44030 0 0 44030 0 0.183 0
write: 0 0 0 0 0 1.216 0
verify: 1057 0 0 1057 0 0.004 0
Non-medium error count: 0
No Self-tests have been logged
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: SEAGATE
Product: DL2400MM0159
Revision: ST58
Compliance: SPC-4
User Capacity: 2,400,476,553,216 bytes [2.40 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 10000 rpm
Form Factor: 2.5 inches
Logical Unit id: 0x5000c500e27514a7
Serial number: WBM5W6BC
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Wed Apr 20 12:20:58 2022 +00
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Disabled or Not Supported
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 29 C
Drive Trip Temperature: 60 C
Accumulated power on time, hours:minutes 553:05
Manufactured in week 48 of year 2021
Specified cycle count over device lifetime: 10000
Accumulated start-stop cycles: 14
Specified load-unload count over device lifetime: 300000
Accumulated load-unload cycles: 125
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 360696
Blocks received from initiator = 829856
Blocks read from cache and sent to initiator = 64459
Number of read and write commands whose size <= segment size = 5170
Number of read and write commands whose size > segment size = 6
Vendor (Seagate/Hitachi) factory information
number of hours powered up = 553.08
number of minutes until next internal SMART test = 12
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 44030 0 0 44030 0 0.183 0
write: 0 0 0 0 0 1.216 0
verify: 1057 0 0 1057 0 0.004 0
Non-medium error count: 0
No Self-tests have been logged
smartctl 7.2 2020-12-30 r5155 [FreeBSD 12.2-RELEASE-p12 amd64] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: SEAGATE
Product: DL2400MM0159
Revision: ST58
Compliance: SPC-4
User Capacity: 2,400,476,553,216 bytes [2.40 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 10000 rpm
Form Factor: 2.5 inches
Logical Unit id: 0x5000c500e275abeb
Serial number: WBM5WDCM
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Wed Apr 20 12:27:50 2022 +00
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Disabled or Not Supported
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 28 C
Drive Trip Temperature: 60 C
Accumulated power on time, hours:minutes 553:12
Manufactured in week 48 of year 2021
Specified cycle count over device lifetime: 10000
Accumulated start-stop cycles: 14
Specified load-unload count over device lifetime: 300000
Accumulated load-unload cycles: 126
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 374720
Blocks received from initiator = 827552
Blocks read from cache and sent to initiator = 68965
Number of read and write commands whose size <= segment size = 5175
Number of read and write commands whose size > segment size = 3
Vendor (Seagate/Hitachi) factory information
number of hours powered up = 553.20
number of minutes until next internal SMART test = 5
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 45374 0 0 45374 0 0.191 0
write: 0 0 0 0 0 1.217 0
verify: 1044 0 0 1044 0 0.004 0
Non-medium error count: 0
SMART Self-test log
Num Test Status segment LifeTime LBA_first_err [SK ASC ASQ]
Description number (hours)
# 1 Background short Completed 96 22 - [- - -]
# 2 Background short Completed 96 22 - [- - -]
Long (extended) Self-test duration: 12590 seconds [209.8 minutes]
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: SEAGATE
Product: DL2400MM0159
Revision: ST58
Compliance: SPC-4
User Capacity: 2,400,476,553,216 bytes [2.40 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 10000 rpm
Form Factor: 2.5 inches
Logical Unit id: 0x5000c500e275abeb
Serial number: WBM5WDCM
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Wed Apr 20 12:27:50 2022 +00
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Disabled or Not Supported
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 28 C
Drive Trip Temperature: 60 C
Accumulated power on time, hours:minutes 553:12
Manufactured in week 48 of year 2021
Specified cycle count over device lifetime: 10000
Accumulated start-stop cycles: 14
Specified load-unload count over device lifetime: 300000
Accumulated load-unload cycles: 126
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 374720
Blocks received from initiator = 827552
Blocks read from cache and sent to initiator = 68965
Number of read and write commands whose size <= segment size = 5175
Number of read and write commands whose size > segment size = 3
Vendor (Seagate/Hitachi) factory information
number of hours powered up = 553.20
number of minutes until next internal SMART test = 5
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 45374 0 0 45374 0 0.191 0
write: 0 0 0 0 0 1.217 0
verify: 1044 0 0 1044 0 0.004 0
Non-medium error count: 0
SMART Self-test log
Num Test Status segment LifeTime LBA_first_err [SK ASC ASQ]
Description number (hours)
# 1 Background short Completed 96 22 - [- - -]
# 2 Background short Completed 96 22 - [- - -]
Long (extended) Self-test duration: 12590 seconds [209.8 minutes]
smartctl 7.2 2020-12-30 r5155 [FreeBSD 12.2-RELEASE-p12 amd64] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: SEAGATE
Product: DL2400MM0159
Revision: ST58
Compliance: SPC-4
User Capacity: 2,400,476,553,216 bytes [2.40 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 10000 rpm
Form Factor: 2.5 inches
Logical Unit id: 0x5000c500e275d6bb
Serial number: WBM5WCL6
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Wed Apr 20 12:29:32 2022 +00
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Disabled or Not Supported
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned = 66
Power on minutes since format <not available>
Current Drive Temperature: 29 C
Drive Trip Temperature: 60 C
Accumulated power on time, hours:minutes 553:15
Manufactured in week 48 of year 2021
Specified cycle count over device lifetime: 10000
Accumulated start-stop cycles: 14
Specified load-unload count over device lifetime: 300000
Accumulated load-unload cycles: 125
Elements in grown defect list: 66
Vendor (Seagate Cache) information
Blocks sent to initiator = 347304
Blocks received from initiator = 874152
Blocks read from cache and sent to initiator = 77940
Number of read and write commands whose size <= segment size = 4599
Number of read and write commands whose size > segment size = 3
Vendor (Seagate/Hitachi) factory information
number of hours powered up = 553.25
number of minutes until next internal SMART test = 26
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 40647 43 0 40690 64 0.171 20
write: 0 0 0 0 0 3.024 0
verify: 1829 29 0 1858 41 0.009 0
Non-medium error count: 0
No Self-tests have been logged
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: SEAGATE
Product: DL2400MM0159
Revision: ST58
Compliance: SPC-4
User Capacity: 2,400,476,553,216 bytes [2.40 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 10000 rpm
Form Factor: 2.5 inches
Logical Unit id: 0x5000c500e275d6bb
Serial number: WBM5WCL6
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Wed Apr 20 12:29:32 2022 +00
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Disabled or Not Supported
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned = 66
Power on minutes since format <not available>
Current Drive Temperature: 29 C
Drive Trip Temperature: 60 C
Accumulated power on time, hours:minutes 553:15
Manufactured in week 48 of year 2021
Specified cycle count over device lifetime: 10000
Accumulated start-stop cycles: 14
Specified load-unload count over device lifetime: 300000
Accumulated load-unload cycles: 125
Elements in grown defect list: 66
Vendor (Seagate Cache) information
Blocks sent to initiator = 347304
Blocks received from initiator = 874152
Blocks read from cache and sent to initiator = 77940
Number of read and write commands whose size <= segment size = 4599
Number of read and write commands whose size > segment size = 3
Vendor (Seagate/Hitachi) factory information
number of hours powered up = 553.25
number of minutes until next internal SMART test = 26
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 40647 43 0 40690 64 0.171 20
write: 0 0 0 0 0 3.024 0
verify: 1829 29 0 1858 41 0.009 0
Non-medium error count: 0
No Self-tests have been logged
smartctl 7.2 2020-12-30 r5155 [FreeBSD 12.2-RELEASE-p12 amd64] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: DELL
Product: PERC H750 Adp
Revision: 5.16
Compliance: SPC-3
User Capacity: 479,559,942,144 bytes [479 GB]
Logical block size: 512 bytes
Rotation Rate: Solid State Device
>> Terminate command early due to bad response to IEC mode page
A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options.
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: DELL
Product: PERC H750 Adp
Revision: 5.16
Compliance: SPC-3
User Capacity: 479,559,942,144 bytes [479 GB]
Logical block size: 512 bytes
Rotation Rate: Solid State Device
>> Terminate command early due to bad response to IEC mode page
A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options.
All the drives show the same output, except for /dev/da12 and /dev/da14 which is the hardware RAID boot pool.
TrueNAS : TrueNAS-12.0-U8
Server : Dell PowerEdge R740
RAID Controller : PERC H750
RAM : 64 GB
CPU : Intel(R) Xeon(R) Silver 4210R CPU @ 2.40GHz
Hard drives :
Server : Dell PowerEdge R740
RAID Controller : PERC H750
RAM : 64 GB
CPU : Intel(R) Xeon(R) Silver 4210R CPU @ 2.40GHz
Hard drives :
- 2 x SSD SATA 480GB as RAID 1 array
- 14 x HDD SAS 10k 2.4TB as Non-RAID
