Communication with UPS over Ethernet?

[thomas-hn]

Hello,

in the hardware guide it is mentioned "TrueNAS provides the ability to communicate with a battery-backed, uninterruptible power supply (UPS) over a traditional serial or USB connection to coordinate a graceful shutdown in the case of power loss.".
However, does someone know if TrueNAS also supports communicating with an APC Smart UPS 1000VA SMT1000I over Ethernet?
The UPS is equiped with an AP9630 Network Management card.

Thanks in advance,

Thomas



[elvisimprsntr]

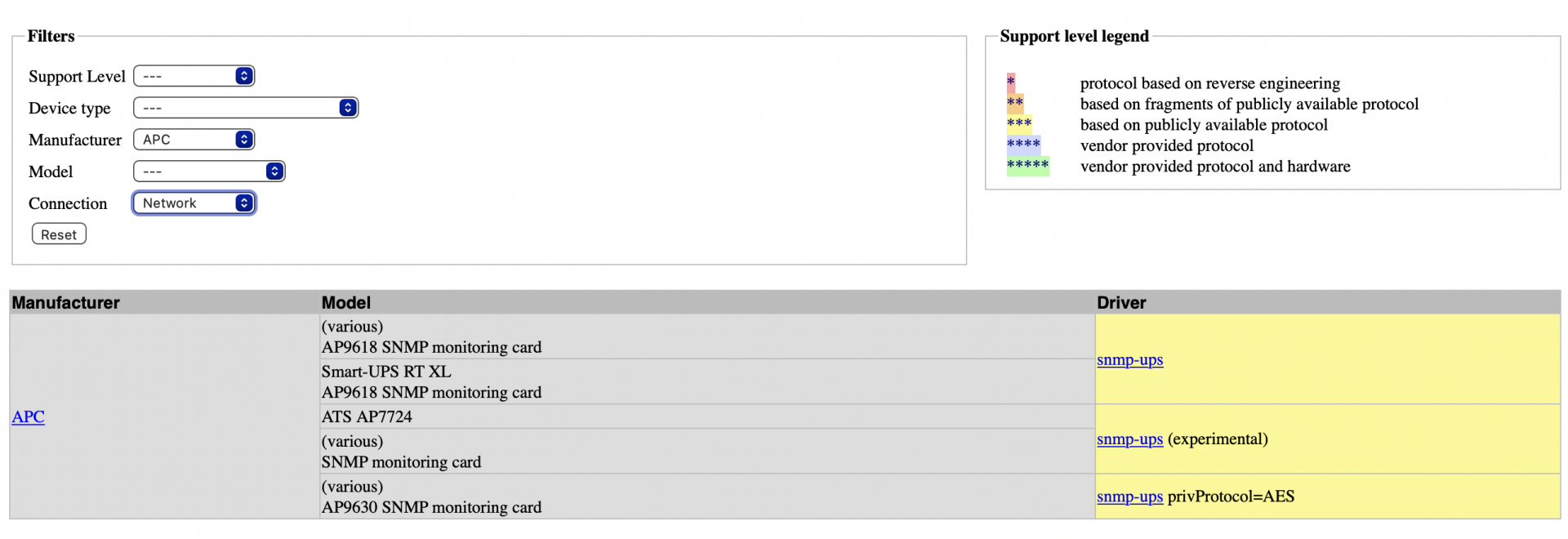

Short answer is maybe. TrueNAS uses NUT

Network UPS Tools - Welcome

Power Devices support

networkupstools.org

See the following posts

UPS Setup with APC AP9630

Anyone out there using FreeNAS with AP9630 via Ethernet? What do I have to configure on FreeNAS and AP9630 side?

www.truenas.com

How to set up my APC UPS + network card?

I have an APC UPS with an AP9630 network card (not using USB). I'm having issues configuring it, because the official docs are pretty minimal and ambiguous, and unfortunately so is guidance in the forum. There is an entry in the drivers list for AP9630, but the rest is unclear. Rather than...

www.truenas.com

What config to enter for an APC UPS with 9630 network card?

I've read every thread I can find on this, but none (including the guide and the NUT docs) actually say in clear terms, what config to enter on the UPS service dialog. So far I've never succeeded in getting the two communicating. I'm hoping someone who has got this working, can explain. The UPS...

www.truenas.com

Although it might be easier to use the APC USB to Serial cable connected to a NUT Master, then slave it out to other clients,
