Cant create Pool with sas. Wip disk and partition error

Western Digital Drives - The Preferred Drives of FreeNAS and TrueNAS CORE

rafaelkkksalgado

Neophyte
Joined
Jul 2, 2021
Messages
9
Hellow,
i have a Sas disk in IBM Storage. When i put on my Truenas server to create a pool, dont work.
Any idea ?

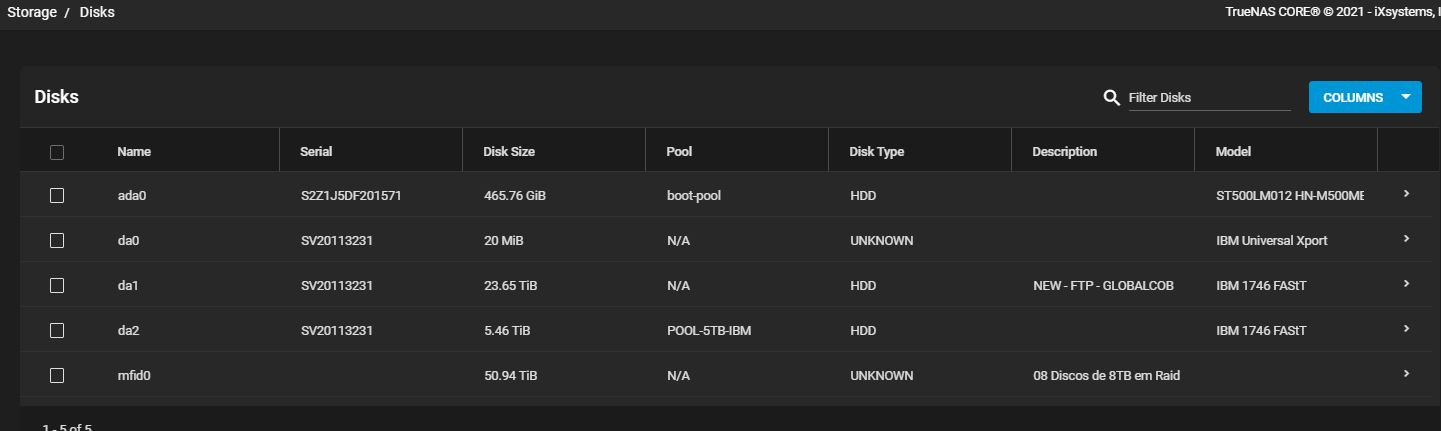

23.65 TiB

HDD

IBM 1746 FAStT



"

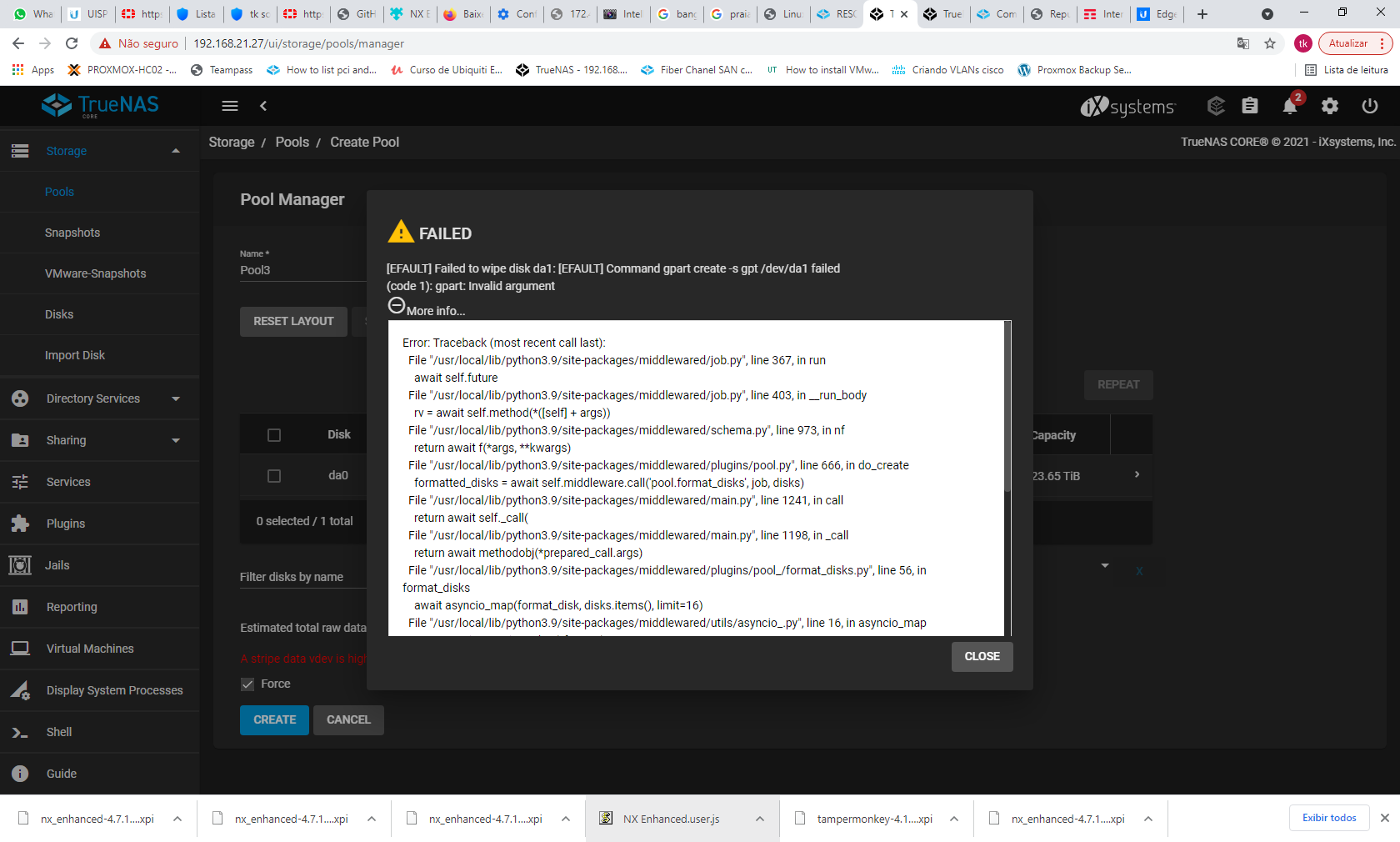

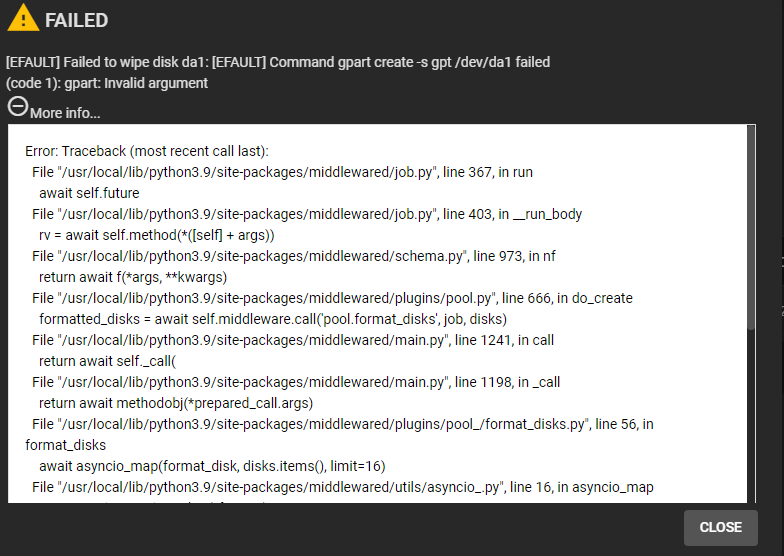

Error: Traceback (most recent call last):
File "/usr/local/lib/python3.9/site-packages/middlewared/job.py", line 367, in run
await self.future
File "/usr/local/lib/python3.9/site-packages/middlewared/job.py", line 403, in __run_body
rv = await self.method(*([self] + args))
File "/usr/local/lib/python3.9/site-packages/middlewared/schema.py", line 973, in nf
return await f(*args, **kwargs)
File "/usr/local/lib/python3.9/site-packages/middlewared/plugins/pool.py", line 666, in do_create
formatted_disks = await self.middleware.call('pool.format_disks', job, disks)
File "/usr/local/lib/python3.9/site-packages/middlewared/main.py", line 1241, in call
return await self._call(
File "/usr/local/lib/python3.9/site-packages/middlewared/main.py", line 1198, in _call
return await methodobj(*prepared_call.args)
File "/usr/local/lib/python3.9/site-packages/middlewared/plugins/pool_/format_disks.py", line 56, in format_disks
await asyncio_map(format_disk, disks.items(), limit=16)
File "/usr/local/lib/python3.9/site-packages/middlewared/utils/asyncio_.py", line 16, in asyncio_map
return await asyncio.gather(*futures)
File "/usr/local/lib/python3.9/site-packages/middlewared/utils/asyncio_.py", line 13, in func
return await real_func(arg)
File "/usr/local/lib/python3.9/site-packages/middlewared/plugins/pool_/format_disks.py", line 29, in format_disk
await self.middleware.call(
File "/usr/local/lib/python3.9/site-packages/middlewared/main.py", line 1241, in call
return await self._call(
File "/usr/local/lib/python3.9/site-packages/middlewared/main.py", line 1209, in _call
return await self.run_in_executor(prepared_call.executor, methodobj, *prepared_call.args)
File "/usr/local/lib/python3.9/site-packages/middlewared/main.py", line 1113, in run_in_executor
return await loop.run_in_executor(pool, functools.partial(method, *args, **kwargs))
File "/usr/local/lib/python3.9/site-packages/middlewared/utils/io_thread_pool_executor.py", line 25, in run
result = self.fn(*self.args, **self.kwargs)
File "/usr/local/lib/python3.9/site-packages/middlewared/plugins/disk_/format.py", line 25, in format
raise CallError(f'Failed to wipe disk {disk}: {job.error}')
middlewared.service_exception.CallError: [EFAULT] Failed to wipe disk da1: [EFAULT] Command gpart create -s gpt /dev/da1 failed (code 1):
gpart: Invalid argument"


Attachments

  • 1630005886590.png
    224 KB · Views: 53

Arwen

Dedicated Sage
Joined
May 17, 2014
Messages
1,693
Some disks from production data center disk arrays use non-common disk block sizes. I think 520 byte blocks are common. This can prevent software that is not expecting that size to fail. In general, it applies to SAS & FC, (Fibre Channel), disks.

I've had that issue when I used de-commed disk array drives in a server. Had to low level re-format them. Kinda annoying but possible, and worked in my case.

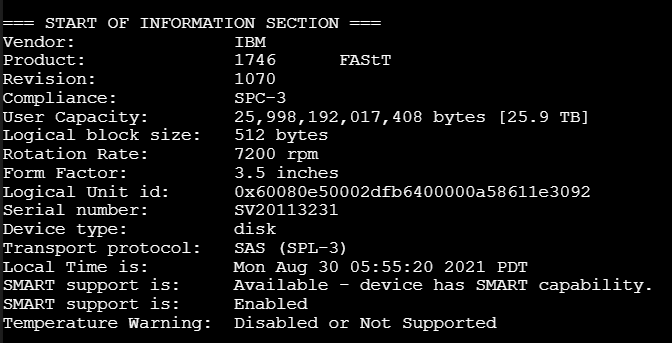

All that said, I don't know if that is your issue. Best way is to run "smartctl -a DEVICE". That should show the current block size.


HoneyBadger

Mushroom! Mushroom!
Joined
Feb 6, 2014
Messages
3,564
That unit appears to be an IBM DS3500 series which itself is a storage array with controllers and appears to be doing some sort of internal RAID or drive consolidation.

You may be able to get it to export all drives individually as JBOD type; if you can't, then it probably isn't a suggested compatible piece of hardware.


rafaelkkksalgado

Neophyte
Joined
Jul 2, 2021
Messages
9
But in that same storage from ibm, I managed to create a 5tb raid and create a pool on truenas. And this 25tb one doesn't work :/





NugentS

Neophyte Sage
Joined
Apr 16, 2020
Messages
1,283
You should be using HBA's - not RAID controllers. TrueNAS/ZFS does not like RAID controllers
