ATA error count

giuseppe30

giuseppe30

Dabbler
Joined
Dec 20, 2020
Messages
36
Hello,
I have TrueNAS-12.0-U3.1 machine with 3x HGST 8TB stripe pool and Dell perc h310.

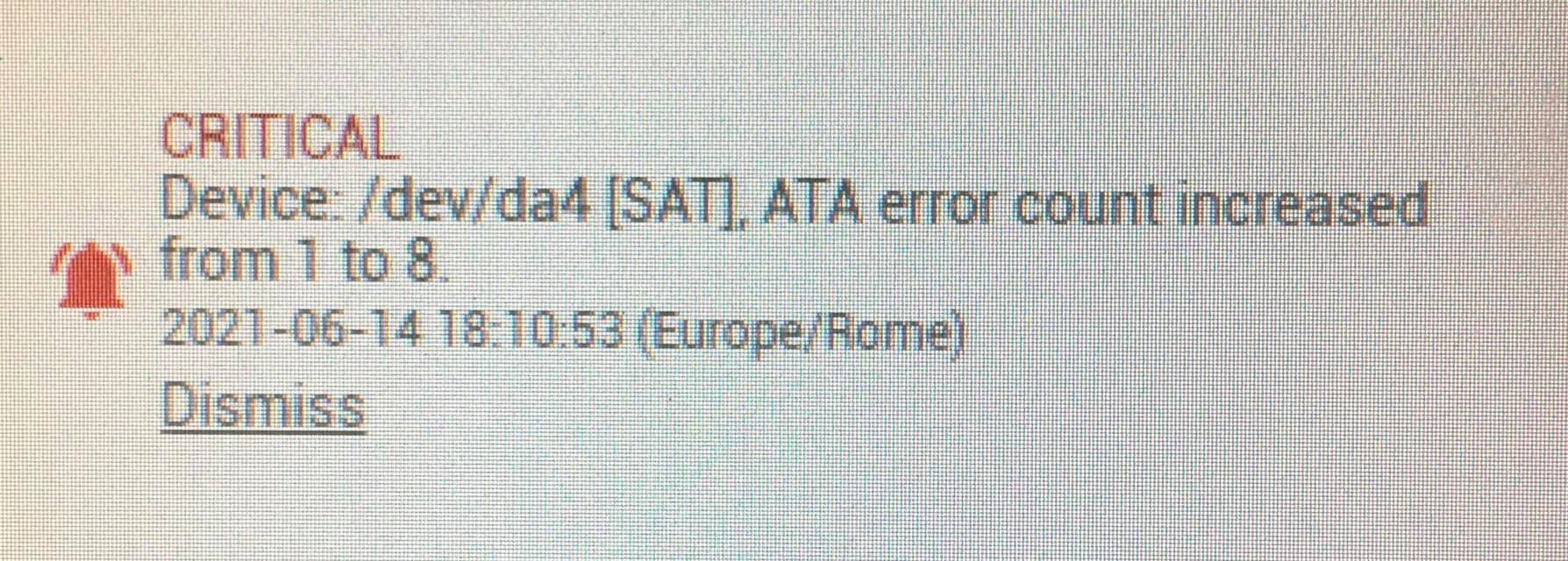

today I have this critical message: ATA error count.

Code:
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     HGST Ultrastar HC310/320
Device Model:     HGST HUS728T8TALE6L4
Serial Number:    VGJT1PUK
LU WWN Device Id: 5 000cca 0bee71e4f
Firmware Version: V8GNW980
User Capacity:    8,001,563,222,016 bytes [8.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Mon Jun 14 21:51:29 2021 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x80) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   87) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 873) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   132   132   054    Pre-fail  Offline      -       96
  3 Spin_Up_Time            0x0007   162   162   024    Pre-fail  Always       -       509 (Average 497)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       25
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   128   128   020    Pre-fail  Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       1059
 10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       25
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       67
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       67
194 Temperature_Celsius     0x0002   139   139   000    Old_age   Always       -       43 (Min/Max 23/57)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       13

SMART Error Log Version: 1
ATA Error Count: 13 (device log contains only the most recent five errors)
        CR = Command Register [HEX]
        FR = Features Register [HEX]
        SC = Sector Count Register [HEX]
        SN = Sector Number Register [HEX]
        CL = Cylinder Low Register [HEX]
        CH = Cylinder High Register [HEX]
        DH = Device/Head Register [HEX]
        DC = Device Command Register [HEX]
        ER = Error register [HEX]
        ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 13 occurred at disk power-on lifetime: 1056 hours (44 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 10 00 c8 cb a9 40 00      01:56:15.190  READ FPDMA QUEUED
  60 10 00 88 c8 a9 40 00      01:56:15.146  READ FPDMA QUEUED
  60 10 10 98 c8 a9 40 00      01:56:15.146  READ FPDMA QUEUED
  60 10 08 78 c8 a9 40 00      01:56:15.146  READ FPDMA QUEUED
  60 10 00 68 c8 a9 40 00      01:56:15.146  READ FPDMA QUEUED

Error 12 occurred at disk power-on lifetime: 1056 hours (44 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 10 00 e0 01 92 40 00      01:52:00.145  READ FPDMA QUEUED
  60 10 10 00 02 92 40 00      01:52:00.145  READ FPDMA QUEUED
  60 10 08 f0 01 92 40 00      01:52:00.145  READ FPDMA QUEUED
  60 10 00 d0 01 92 40 00      01:52:00.145  READ FPDMA QUEUED
  60 10 00 c0 01 92 40 00      01:52:00.144  READ FPDMA QUEUED

Error 11 occurred at disk power-on lifetime: 1056 hours (44 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 90 a2 9c 40 00      01:50:34.826  READ FPDMA QUEUED
  60 10 08 70 81 1c 40 00      01:50:34.826  READ FPDMA QUEUED
  60 10 10 80 a2 9c 40 00      01:50:34.826  READ FPDMA QUEUED
  60 10 08 70 a2 9c 40 00      01:50:34.826  READ FPDMA QUEUED
  60 20 00 50 a2 9c 40 00      01:50:34.826  READ FPDMA QUEUED

Error 10 occurred at disk power-on lifetime: 1056 hours (44 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 10 10 60 9f 70 40 00      01:46:33.674  READ FPDMA QUEUED
  60 10 00 80 9f 70 40 00      01:46:33.674  READ FPDMA QUEUED
  60 10 08 50 9f 70 40 00      01:46:33.674  READ FPDMA QUEUED
  60 10 00 70 9f 70 40 00      01:46:33.674  READ FPDMA QUEUED
  60 10 08 40 9f 70 40 00      01:46:33.670  READ FPDMA QUEUED

Error 9 occurred at disk power-on lifetime: 1056 hours (44 days + 0 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 10 00 b0 d4 0b 40 00      01:39:12.529  READ FPDMA QUEUED
  60 10 08 c0 d4 0b 40 00      01:39:12.529  READ FPDMA QUEUED
  60 10 08 a0 d4 0b 40 00      01:39:12.529  READ FPDMA QUEUED
  60 10 00 90 d4 0b 40 00      01:39:12.529  READ FPDMA QUEUED
  60 10 10 70 d4 0b 40 00      01:39:12.529  READ FPDMA QUEUED

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1059         -
# 2  Short offline       Completed without error       00%       989         -
# 3  Short offline       Completed without error       00%       821         -
# 4  Short offline       Completed without error       00%       581         -
# 5  Short offline       Completed without error       00%       416         -
# 6  Extended offline    Completed without error       00%       358         -
# 7  Short offline       Completed without error       00%       248         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing


Attachments

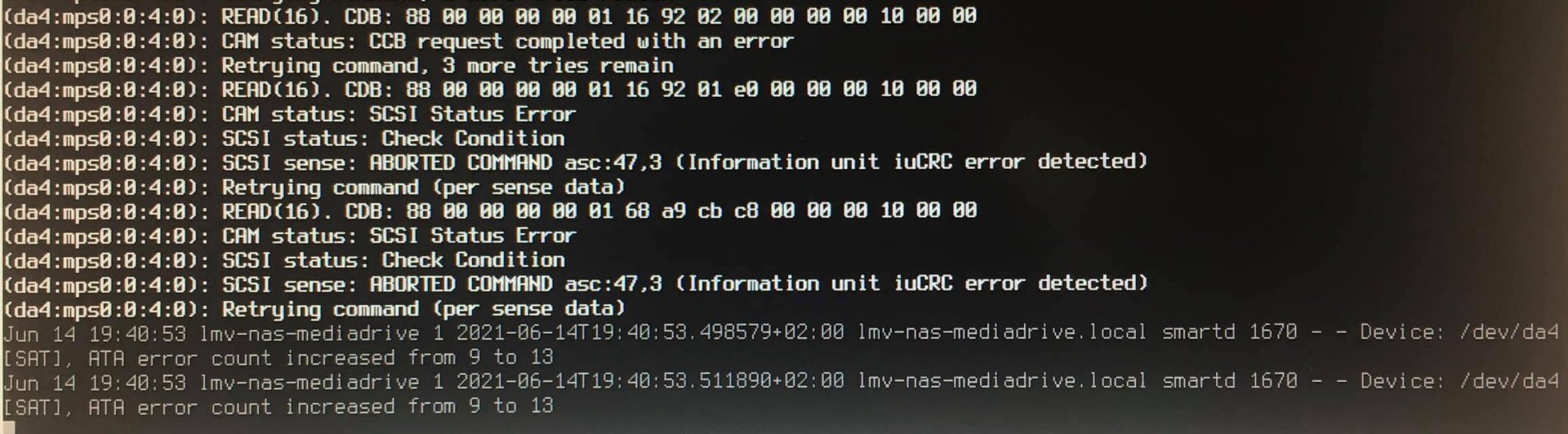

  • 199736765_10225374468258196_6308753263038593143_n.jpg
    189.1 KB · Views: 423
  • 200373102_10225374468098192_7813253138963091263_n.jpg
    229.8 KB · Views: 472
Etorix

Etorix

Wizard
Joined
Dec 30, 2020
Messages
2,134
No SMART error, no reallocated sector. This doesn't look too worrying for the drive, but I'd check the cable.

giuseppe30

giuseppe30

Dabbler
Joined
Dec 20, 2020
Messages
36
Etorix said:
No SMART error, no reallocated sector. This doesn't look too worrying for the drive, but I'd check the cable.
Click to expand...
I will try to replace it anyway.

What do you think about SMART messages "Error x occurred at disk power-on lifetime" and "Error: ICRC, ABRT at LBA = 0x00000000 = 0"

Last edited:
sretalla

sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,700
giuseppe30 said:
What do you think about SMART messages "Error x occurred at disk power-on lifetime" and "Error: ICRC, ABRT at LBA = 0x00000000 = 0"
Click to expand...
I read that as:
A cyclical redundancy check failure caused us to abort a command because we couldn't even contact the disk at all (hence no LBA).

giuseppe30

giuseppe30

Dabbler
Joined
Dec 20, 2020
Messages
36
today I've cange sata connector P1 with P4 (not the entiere mini sas cable to x4 sata)

Code:
=== START OF INFORMATION SECTION ===
Model Family:     HGST Ultrastar HC310/320
Device Model:     HGST HUS728T8TALE6L4
Serial Number:    VGJT1PUK
LU WWN Device Id: 5 000cca 0bee71e4f
Firmware Version: V8GNW980
User Capacity:    8,001,563,222,016 bytes [8.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Tue Jun 15 11:50:29 2021 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x80) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   87) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 873) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   132   132   054    Pre-fail  Offline      -       96
  3 Spin_Up_Time            0x0007   162   162   024    Pre-fail  Always       -       509 (Average 497)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       27
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   128   128   020    Pre-fail  Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       1072
 10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       27
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       70
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       70
194 Temperature_Celsius     0x0002   153   153   000    Old_age   Always       -       39 (Min/Max 23/57)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       21

SMART Error Log Version: 1
ATA Error Count: 21 (device log contains only the most recent five errors)
        CR = Command Register [HEX]
        FR = Features Register [HEX]
        SC = Sector Count Register [HEX]
        SN = Sector Number Register [HEX]
        CL = Cylinder Low Register [HEX]
        CH = Cylinder High Register [HEX]
        DH = Device/Head Register [HEX]
        DC = Device Command Register [HEX]
        ER = Error register [HEX]
        ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 21 occurred at disk power-on lifetime: 1066 hours (44 days + 10 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 10 00 b8 0c db 40 00      12:09:58.902  READ FPDMA QUEUED
  60 10 08 c8 0c db 40 00      12:09:58.901  READ FPDMA QUEUED
  60 80 00 38 0c db 40 00      12:09:58.901  READ FPDMA QUEUED
  60 10 08 58 0c db 40 00      12:09:58.901  READ FPDMA QUEUED
  60 10 00 48 0c db 40 00      12:09:58.901  READ FPDMA QUEUED

Error 20 occurred at disk power-on lifetime: 1064 hours (44 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 f8 88 da 40 00      10:09:52.889  READ FPDMA QUEUED
  60 20 70 e8 96 da 40 00      10:09:52.888  READ FPDMA QUEUED
  60 00 68 e8 95 da 40 00      10:09:52.888  READ FPDMA QUEUED
  60 00 60 e8 94 da 40 00      10:09:52.888  READ FPDMA QUEUED
  60 00 40 e8 93 da 40 00      10:09:52.888  READ FPDMA QUEUED

Error 19 occurred at disk power-on lifetime: 1064 hours (44 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 48 e8 42 da 40 00      10:09:52.829  READ FPDMA QUEUED
  60 00 70 e8 47 da 40 00      10:09:52.823  READ FPDMA QUEUED
  60 00 68 e8 46 da 40 00      10:09:52.823  READ FPDMA QUEUED
  60 00 60 e8 45 da 40 00      10:09:52.823  READ FPDMA QUEUED
  60 00 58 e8 44 da 40 00      10:09:52.823  READ FPDMA QUEUED

Error 18 occurred at disk power-on lifetime: 1063 hours (44 days + 7 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 38 8b e0 40 00      09:09:35.822  READ FPDMA QUEUED
  60 f0 10 38 8d e0 40 00      09:09:35.821  READ FPDMA QUEUED
  60 00 08 38 8c e0 40 00      09:09:35.821  READ FPDMA QUEUED
  60 10 10 28 8b e0 40 00      09:09:35.821  READ FPDMA QUEUED
  60 10 08 18 8b e0 40 00      09:09:35.821  READ FPDMA QUEUED

Error 17 occurred at disk power-on lifetime: 1063 hours (44 days + 7 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 70 cf eb 40 00      08:36:10.874  READ FPDMA QUEUED
  60 10 10 60 cf eb 40 00      08:36:10.873  READ FPDMA QUEUED
  60 10 08 50 cf eb 40 00      08:36:10.873  READ FPDMA QUEUED
  60 10 00 40 cf eb 40 00      08:36:10.873  READ FPDMA QUEUED
  60 80 48 a0 ce eb 40 00      08:36:10.562  READ FPDMA QUEUED

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1072         -
# 2  Short offline       Completed without error       00%      1059         -
# 3  Short offline       Completed without error       00%       989         -
# 4  Short offline       Completed without error       00%       821         -
# 5  Short offline       Completed without error       00%       581         -
# 6  Short offline       Completed without error       00%       416         -
# 7  Extended offline    Completed without error       00%       358         -
# 8  Short offline       Completed without error       00%       248         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

sretalla

sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,700
Seems there have been 6 hours since the last error (currently 1072 hours up and last error at 1066).

Keep an eye on the CRC number and if it goes above 21, you still have a problem.

giuseppe30

giuseppe30

Dabbler
Joined
Dec 20, 2020
Messages
36
sretalla said:
Seems there have been 6 hours since the last error (currently 1072 hours up and last error at 1066).

Keep an eye on the CRC number and if it goes above 21, you still have a problem.
Click to expand...

no error on console from 2 hours (when I cange the sata cable)

giuseppe30

giuseppe30

Dabbler
Joined
Dec 20, 2020
Messages
36
ok, same result!

Code:
=== START OF INFORMATION SECTION ===
Model Family:     HGST Ultrastar HC310/320
Device Model:     HGST HUS728T8TALE6L4
Serial Number:    VGJT1PUK
LU WWN Device Id: 5 000cca 0bee71e4f
Firmware Version: V8GNW980
User Capacity:    8,001,563,222,016 bytes [8.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Jun 17 18:12:07 2021 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   87) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 873) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   132   132   054    Pre-fail  Offline      -       96
  3 Spin_Up_Time            0x0007   162   162   024    Pre-fail  Always       -       509 (Average 497)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       27
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   128   128   020    Pre-fail  Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       1126
 10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       27
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       72
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       72
194 Temperature_Celsius     0x0002   150   150   000    Old_age   Always       -       40 (Min/Max 23/57)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       21

SMART Error Log Version: 1
ATA Error Count: 21 (device log contains only the most recent five errors)
        CR = Command Register [HEX]
        FR = Features Register [HEX]
        SC = Sector Count Register [HEX]
        SN = Sector Number Register [HEX]
        CL = Cylinder Low Register [HEX]
        CH = Cylinder High Register [HEX]
        DH = Device/Head Register [HEX]
        DC = Device Command Register [HEX]
        ER = Error register [HEX]
        ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 21 occurred at disk power-on lifetime: 1066 hours (44 days + 10 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 10 00 b8 0c db 40 00      12:09:58.902  READ FPDMA QUEUED
  60 10 08 c8 0c db 40 00      12:09:58.901  READ FPDMA QUEUED
  60 80 00 38 0c db 40 00      12:09:58.901  READ FPDMA QUEUED
  60 10 08 58 0c db 40 00      12:09:58.901  READ FPDMA QUEUED
  60 10 00 48 0c db 40 00      12:09:58.901  READ FPDMA QUEUED

Error 20 occurred at disk power-on lifetime: 1064 hours (44 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 f8 88 da 40 00      10:09:52.889  READ FPDMA QUEUED
  60 20 70 e8 96 da 40 00      10:09:52.888  READ FPDMA QUEUED
  60 00 68 e8 95 da 40 00      10:09:52.888  READ FPDMA QUEUED
  60 00 60 e8 94 da 40 00      10:09:52.888  READ FPDMA QUEUED
  60 00 40 e8 93 da 40 00      10:09:52.888  READ FPDMA QUEUED

Error 19 occurred at disk power-on lifetime: 1064 hours (44 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 48 e8 42 da 40 00      10:09:52.829  READ FPDMA QUEUED
  60 00 70 e8 47 da 40 00      10:09:52.823  READ FPDMA QUEUED
  60 00 68 e8 46 da 40 00      10:09:52.823  READ FPDMA QUEUED
  60 00 60 e8 45 da 40 00      10:09:52.823  READ FPDMA QUEUED
  60 00 58 e8 44 da 40 00      10:09:52.823  READ FPDMA QUEUED

Error 18 occurred at disk power-on lifetime: 1063 hours (44 days + 7 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 38 8b e0 40 00      09:09:35.822  READ FPDMA QUEUED
  60 f0 10 38 8d e0 40 00      09:09:35.821  READ FPDMA QUEUED
  60 00 08 38 8c e0 40 00      09:09:35.821  READ FPDMA QUEUED
  60 10 10 28 8b e0 40 00      09:09:35.821  READ FPDMA QUEUED
  60 10 08 18 8b e0 40 00      09:09:35.821  READ FPDMA QUEUED

Error 17 occurred at disk power-on lifetime: 1063 hours (44 days + 7 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  84 41 00 00 00 00 00  Error: ICRC, ABRT at LBA = 0x00000000 = 0

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  60 00 00 70 cf eb 40 00      08:36:10.874  READ FPDMA QUEUED
  60 10 10 60 cf eb 40 00      08:36:10.873  READ FPDMA QUEUED
  60 10 08 50 cf eb 40 00      08:36:10.873  READ FPDMA QUEUED
  60 10 00 40 cf eb 40 00      08:36:10.873  READ FPDMA QUEUED
  60 80 48 a0 ce eb 40 00      08:36:10.562  READ FPDMA QUEUED

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1126         -
# 2  Extended offline    Completed without error       00%      1097         -
# 3  Short offline       Completed without error       00%      1072         -
# 4  Short offline       Completed without error       00%      1059         -
# 5  Short offline       Completed without error       00%       989         -
# 6  Short offline       Completed without error       00%       821         -
# 7  Short offline       Completed without error       00%       581         -
# 8  Short offline       Completed without error       00%       416         -
# 9  Extended offline    Completed without error       00%       358         -
#10  Short offline       Completed without error       00%       248         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

You must log in or register to reply here.

Important Announcement for the TrueNAS Community.

The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums.

Related topics on forums.truenas.com for thread: "ATA error count"

Similar threads

trey22
Hard Drive issues (SMART / ATA errors / uncorrectable sectors)
Replies
8
Views
3K
Redcoat
Redcoat
M
SOLVED Error "Device: /dev/ada0, Self-Test Log error count increased from 1 to 2."
Replies
3
Views
3K
Mat_Dum
M
S
ATA Error Count Increase during scrubs
Replies
6
Views
3K
NugentS
NugentS
kirkdickinson
Infant Mortality - New Drive?
2
Replies
20
Views
6K
ChrisRJ
ChrisRJ
2dfx
Dead HDD in ZFS pool...just making sure I have the procedure right...
Replies
1
Views
2K
Samuel Tai
Samuel Tai
Top
