I mentioned this as a side note in another thread, but it really needs it's own discussion. Adding in the notes from the previous discussion.

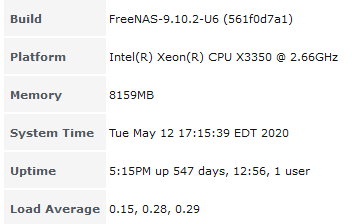

I have an old FreeNAS 9.10 box maxed out at 8GB RAM running with a 240 GB SSD for the L2ARC with just shy of 17 TB written to it.....

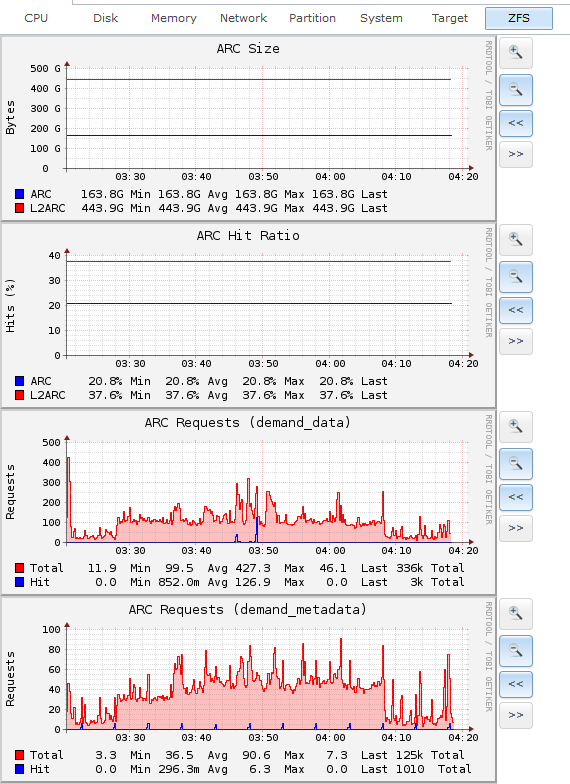

What is strange is the ARC/L2ARC sizes reported there vs my 11.2 box.
(How can 8GB RAM equal 163 GB ARC and a 240 GB SSD equal a 443 GB L2ARC???)
We weighed the options, and ultimately, it came down to being able to compensate to the limitation of the integrated SATA-II controller. Although the array is built out of 4 WD Golds (RAID10), the ammount of I/O trraffic beween the steady flow of email and database transactions made it crawl. The L2ARC helps alleviate that.
I have an old FreeNAS 9.10 box maxed out at 8GB RAM running with a 240 GB SSD for the L2ARC with just shy of 17 TB written to it.....

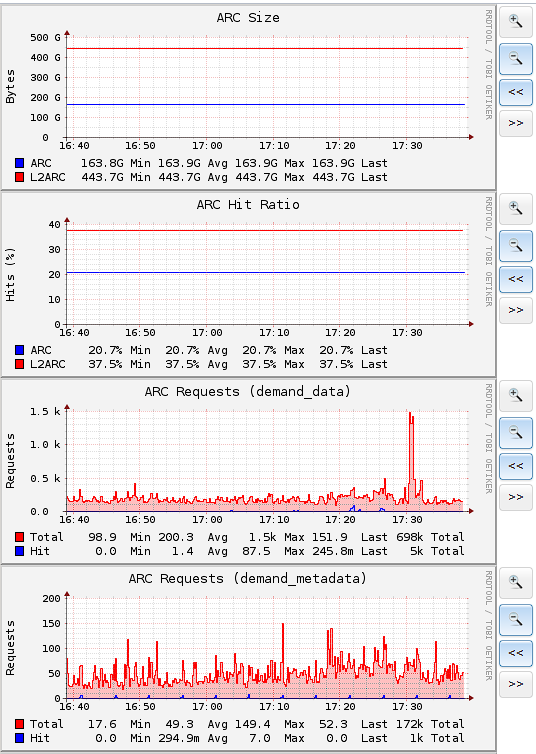

What is strange is the ARC/L2ARC sizes reported there vs my 11.2 box.
(How can 8GB RAM equal 163 GB ARC and a 240 GB SSD equal a 443 GB L2ARC???)
We weighed the options, and ultimately, it came down to being able to compensate to the limitation of the integrated SATA-II controller. Although the array is built out of 4 WD Golds (RAID10), the ammount of I/O trraffic beween the steady flow of email and database transactions made it crawl. The L2ARC helps alleviate that.
Code:
[root@fn1] ~# arc_summary.py System Memory: 1.59% 126.18 MiB Active, 10.05% 797.65 MiB Inact 75.83% 5.88 GiB Wired, 0.20% 16.10 MiB Cache 12.33% 978.83 MiB Free, 0.00% 0 Bytes Gap Real Installed: 8.00 GiB Real Available: 99.61% 7.97 GiB Real Managed: 97.28% 7.75 GiB Logical Total: 8.00 GiB Logical Used: 78.12% 6.25 GiB Logical Free: 21.88% 1.75 GiB Kernel Memory: 254.07 MiB Data: 89.11% 226.41 MiB Text: 10.89% 27.67 MiB Kernel Memory Map: 7.75 GiB Size: 27.90% 2.16 GiB Free: 72.10% 5.59 GiB Page: 1 ------------------------------------------------------------------------ ARC Summary: (HEALTHY) Storage pool Version: 5000 Filesystem Version: 5 Memory Throttle Count: 0 ARC Misc: Deleted: 2.19b Mutex Misses: 2.24b Evict Skips: 2.24b ARC Size: 2427.36% 163.88 GiB Target Size: (Adaptive) 100.00% 6.75 GiB Min Size (Hard Limit): 12.50% 864.18 MiB Max Size (High Water): 8:1 6.75 GiB ARC Size Breakdown: Recently Used Cache Size: 2.87% 4.71 GiB Frequently Used Cache Size: 97.13% 159.17 GiB ARC Hash Breakdown: Elements Max: 40.48m Elements Current: 36.82% 14.90m Collisions: 9.39b Chain Max: 70 Chains: 1.05m Page: 2 ------------------------------------------------------------------------ ARC Total accesses: 4.40b Cache Hit Ratio: 20.71% 911.03m Cache Miss Ratio: 79.29% 3.49b Actual Hit Ratio: 17.89% 786.84m Data Demand Efficiency: 18.04% 2.92b Data Prefetch Efficiency: 30.50% 387.71m CACHE HITS BY CACHE LIST: Most Recently Used: 73.12% 666.15m Most Frequently Used: 13.25% 120.69m Most Recently Used Ghost: 121.64% 1.11b Most Frequently Used Ghost: 46.88% 427.08m CACHE HITS BY DATA TYPE: Demand Data: 57.74% 526.06m Prefetch Data: 12.98% 118.25m Demand Metadata: 23.73% 216.20m Prefetch Metadata: 5.55% 50.52m CACHE MISSES BY DATA TYPE: Demand Data: 68.56% 2.39b Prefetch Data: 7.73% 269.46m Demand Metadata: 19.52% 680.71m Prefetch Metadata: 4.19% 146.01m Page: 3 ------------------------------------------------------------------------ L2 ARC Summary: (DEGRADED) Passed Headroom: 23.59m Tried Lock Failures: 9.61m IO In Progress: 9.16m Low Memory Aborts: 249 Free on Write: 9.74m Writes While Full: 499.02k R/W Clashes: 0 Bad Checksums: 762.89m IO Errors: 0 SPA Mismatch: 159.11m L2 ARC Size: (Adaptive) 443.70 GiB Header Size: 0.27% 1.19 GiB L2 ARC Evicts: Lock Retries: 6.18k Upon Reading: 0 L2 ARC Breakdown: 3.49b Hit Ratio: 37.55% 1.31b Miss Ratio: 62.45% 2.18b Feeds: 47.70m L2 ARC Buffer: Bytes Scanned: 1.08 PiB Buffer Iterations: 47.70m List Iterations: 190.81m NULL List Iterations: 130.01m L2 ARC Writes: Writes Sent: 100.00% 15.41m Page: 4 ------------------------------------------------------------------------ DMU Prefetch Efficiency: 17.78b Hit Ratio: 2.75% 489.48m Miss Ratio: 97.25% 17.29b Page: 5 ------------------------------------------------------------------------ Page: 6 ------------------------------------------------------------------------ ZFS Tunable (sysctl): kern.maxusers 845 vm.kmem_size 8323047424 vm.kmem_size_scale 1 vm.kmem_size_min 0 vm.kmem_size_max 1319413950874 vfs.zfs.vol.unmap_enabled 1 vfs.zfs.vol.mode 2 vfs.zfs.sync_pass_rewrite 2 vfs.zfs.sync_pass_dont_compress 5 vfs.zfs.sync_pass_deferred_free 2 vfs.zfs.zio.dva_throttle_enabled 1 vfs.zfs.zio.exclude_metadata 0 vfs.zfs.zio.use_uma 1 vfs.zfs.zil_slog_limit 786432 vfs.zfs.cache_flush_disable 0 vfs.zfs.zil_replay_disable 0 vfs.zfs.version.zpl 5 vfs.zfs.version.spa 5000 vfs.zfs.version.acl 1 vfs.zfs.version.ioctl 7 vfs.zfs.debug 0 vfs.zfs.super_owner 0 vfs.zfs.min_auto_ashift 12 vfs.zfs.max_auto_ashift 13 vfs.zfs.vdev.queue_depth_pct 1000 vfs.zfs.vdev.write_gap_limit 4096 vfs.zfs.vdev.read_gap_limit 32768 vfs.zfs.vdev.aggregation_limit 131072 vfs.zfs.vdev.trim_max_active 64 vfs.zfs.vdev.trim_min_active 1 vfs.zfs.vdev.scrub_max_active 2 vfs.zfs.vdev.scrub_min_active 1 vfs.zfs.vdev.async_write_max_active 10 vfs.zfs.vdev.async_write_min_active 1 vfs.zfs.vdev.async_read_max_active 3 vfs.zfs.vdev.async_read_min_active 1 vfs.zfs.vdev.sync_write_max_active 10 vfs.zfs.vdev.sync_write_min_active 10 vfs.zfs.vdev.sync_read_max_active 10 vfs.zfs.vdev.sync_read_min_active 10 vfs.zfs.vdev.max_active 1000 vfs.zfs.vdev.async_write_active_max_dirty_percent60 vfs.zfs.vdev.async_write_active_min_dirty_percent30 vfs.zfs.vdev.mirror.non_rotating_seek_inc1 vfs.zfs.vdev.mirror.non_rotating_inc 0 vfs.zfs.vdev.mirror.rotating_seek_offset1048576 vfs.zfs.vdev.mirror.rotating_seek_inc 5 vfs.zfs.vdev.mirror.rotating_inc 0 vfs.zfs.vdev.trim_on_init 1 vfs.zfs.vdev.larger_ashift_minimal 0 vfs.zfs.vdev.bio_delete_disable 0 vfs.zfs.vdev.bio_flush_disable 0 vfs.zfs.vdev.cache.bshift 16 vfs.zfs.vdev.cache.size 0 vfs.zfs.vdev.cache.max 16384 vfs.zfs.vdev.metaslabs_per_vdev 200 vfs.zfs.vdev.trim_max_pending 10000 vfs.zfs.txg.timeout 5 vfs.zfs.trim.enabled 1 vfs.zfs.trim.max_interval 1 vfs.zfs.trim.timeout 30 vfs.zfs.trim.txg_delay 32 vfs.zfs.space_map_blksz 4096 vfs.zfs.spa_min_slop 134217728 vfs.zfs.spa_slop_shift 5 vfs.zfs.spa_asize_inflation 24 vfs.zfs.deadman_enabled 1 vfs.zfs.deadman_checktime_ms 5000 vfs.zfs.deadman_synctime_ms 1000000 vfs.zfs.debug_flags 0 vfs.zfs.recover 0 vfs.zfs.spa_load_verify_data 1 vfs.zfs.spa_load_verify_metadata 1 vfs.zfs.spa_load_verify_maxinflight 10000 vfs.zfs.ccw_retry_interval 300 vfs.zfs.check_hostid 1 vfs.zfs.mg_fragmentation_threshold 85 vfs.zfs.mg_noalloc_threshold 0 vfs.zfs.condense_pct 200 vfs.zfs.metaslab.bias_enabled 1 vfs.zfs.metaslab.lba_weighting_enabled 1 vfs.zfs.metaslab.fragmentation_factor_enabled1 vfs.zfs.metaslab.preload_enabled 1 vfs.zfs.metaslab.preload_limit 3 vfs.zfs.metaslab.unload_delay 8 vfs.zfs.metaslab.load_pct 50 vfs.zfs.metaslab.min_alloc_size 33554432 vfs.zfs.metaslab.df_free_pct 4 vfs.zfs.metaslab.df_alloc_threshold 131072 vfs.zfs.metaslab.debug_unload 0 vfs.zfs.metaslab.debug_load 0 vfs.zfs.metaslab.fragmentation_threshold70 vfs.zfs.metaslab.gang_bang 16777217 vfs.zfs.free_bpobj_enabled 1 vfs.zfs.free_max_blocks 18446744073709551615 vfs.zfs.no_scrub_prefetch 0 vfs.zfs.no_scrub_io 0 vfs.zfs.resilver_min_time_ms 3000 vfs.zfs.free_min_time_ms 1000 vfs.zfs.scan_min_time_ms 1000 vfs.zfs.scan_idle 50 vfs.zfs.scrub_delay 4 vfs.zfs.resilver_delay 2 vfs.zfs.top_maxinflight 32 vfs.zfs.delay_scale 500000 vfs.zfs.delay_min_dirty_percent 60 vfs.zfs.dirty_data_sync 67108864 vfs.zfs.dirty_data_max_percent 10 vfs.zfs.dirty_data_max_max 4294967296 vfs.zfs.dirty_data_max 855611392 vfs.zfs.max_recordsize 1048576 vfs.zfs.zfetch.array_rd_sz 1048576 vfs.zfs.zfetch.max_distance 8388608 vfs.zfs.zfetch.min_sec_reap 2 vfs.zfs.zfetch.max_streams 8 vfs.zfs.prefetch_disable 0 vfs.zfs.send_holes_without_birth_time 1 vfs.zfs.mdcomp_disable 0 vfs.zfs.nopwrite_enabled 1 vfs.zfs.dedup.prefetch 1 vfs.zfs.l2c_only_size 0 vfs.zfs.mfu_ghost_data_esize 3325952 vfs.zfs.mfu_ghost_metadata_esize 111502336 vfs.zfs.mfu_ghost_size 114828288 vfs.zfs.mfu_data_esize 5120 vfs.zfs.mfu_metadata_esize 0 vfs.zfs.mfu_size 95766528 vfs.zfs.mru_ghost_data_esize 2437057024 vfs.zfs.mru_ghost_metadata_esize 4690575872 vfs.zfs.mru_ghost_size 7127632896 vfs.zfs.mru_data_esize 0 vfs.zfs.mru_metadata_esize 0 vfs.zfs.mru_size 116867072 vfs.zfs.anon_data_esize 0 vfs.zfs.anon_metadata_esize 0 vfs.zfs.anon_size 7898624 vfs.zfs.l2arc_norw 1 vfs.zfs.l2arc_feed_again 1 vfs.zfs.l2arc_noprefetch 1 vfs.zfs.l2arc_feed_min_ms 200 vfs.zfs.l2arc_feed_secs 1 vfs.zfs.l2arc_headroom 2 vfs.zfs.l2arc_write_boost 8388608 vfs.zfs.l2arc_write_max 8388608 vfs.zfs.arc_meta_limit 1812326400 vfs.zfs.arc_free_target 14135 vfs.zfs.compressed_arc_enabled 1 vfs.zfs.arc_shrink_shift 7 vfs.zfs.arc_average_blocksize 8192 vfs.zfs.arc_min 906163200 vfs.zfs.arc_max 7249305600 Page: 7 ------------------------------------------------------------------------ [root@fn1] ~#
This box mostly handles emails and databases.@mpyusko
"(How can 8GB RAM equal 163 GB ARC and a 240 GB SSD equal a 443 GB L2ARC???)"
Possibly a UI bug; although ARC and L2ARC both show values considering compression. 20:1 compression on your ARC though would imply you've got something extremely compressible loaded there though.arc_summary.py
may show some insight there as well.
