Why can't I see my CIFS share?

[HazRam]

Hi All,

I am new to FreeNas and I have followed the tutorial videos on how to setup volumes and Windows CIFS shares but I cannot seem to see it on my Windown 10 PC.
I have had several issues over the last couple of days and initially I did managed to to see the Share I had created but I could not access it or create a folder within the share on my Windows PC. I would ask me for the username and password which I would enter but it it would just say I did not have accress or try again etc. So I deleted the volumes and started over again and I had the same issue again. So i tried deleting the volumes again and rebooting the NAS box to the initial boot install and followed the video tutorials to the letter to the point where I even copied the names of the shares they had created in the video and still nothing :(.

I have rebooted both the NAS and my PC several times to see if it would refresh but still no luck.

I am new to all this and am finding it all very confusing. Do i need a DNS and do I need to setup Global Configs and all that? I had assumed that the Initial setup wizard would take care of all that but excuse my ignorance if I have gotten that wrong.
I am at wits end and I am getting really frustrated and need some expert help and easy to follow instructions.

I appreciate all the help you can provide just take it easy on me please.

Cheers

PS: I just realised that I forgot to update the latest stable OS will that fix the issues?



[Fuganater]

Is the CIFS service enabled?



[pirateghost]

You need to define "see your CIFS share"

Do you mean you can't see it in a network browse or you can't even map directly to the IP?

If the former, just stop banging your head into the wall. NetBIOS is literally broken on just about every version of windows. Oddly enough it works perfect with Linux...



[HazRam]

Is the CIFS service enabled?

Yes the CIFS service has been switched on.



[HazRam]

You need to define "see your CIFS share"

Do you mean you can't see it in a network browse or you can't even map directly to the IP?

If the former, just stop banging your head into the wall. NetBIOS is literally broken on just about every version of windows. Oddly enough it works perfect with Linux...

Yes I can't see it in the network browser. How do I map directly to the IP?

Do I need to at Interfaces or static routes in the NAS Network setting? If so can you please explain how I can do that as I am not sure what needs to be done.

Thanks for your help.



[pirateghost]

Yes I can't see it in the network browser. How do I map directly to the IP?

Do I need to at Interfaces or static routes in the NAS Network setting? If so can you please explain how I can do that as I am not sure what needs to be done.

Thanks for your help.

How do you access the webgui?

Use the same IP address in windows explorer. \\ip.of.free.nas



[solarisguy]

In Windows 10, both might work
\\Free.NAS.IP.Address\Exact_Share_Name
and
\\freenas_server_name_in_lower_case\Exact_Share_Name

Users (me too) report Network Browsing to not work in Windows 10, as far as seeing the FreeNAS server...



[HazRam]

How do you access the webgui?

Use the same IP address in windows explorer. \\ip.of.free.nas

I use 196.168.0.8 to access it. However, when I try putting that IP address into Windows explorer it just opens a new webpage to the GUI instead of opening the server.



[pirateghost]

I use 196.168.0.8 to access it. However, when I try putting that IP address into Windows explorer it just opens a new webpage to the GUI instead of opening the server.

direction of slashes is important.

\\192.168.0.8 is correct
//192.168.0.8 will launch in an internet browser



[HazRam]

In Windows 10, both might work
\\Free.NAS.IP.Address\Exact_Share_Name
and
\\freenas_server_name_in_lower_case\Exact_Share_Name

Users (me too) report Network Browsing to not work in Windows 10, as far as seeing the FreeNAS server...

Thanks for the help. Actually I put in the IP address and I can see the folder and I mapped the drive now too BUT I still cannot access it for some reason!



[HazRam]

direction of slashes is important.

\\192.168.0.8 is correct
//192.168.0.8 will launch in an internet browser

Thanks for this. Yes I can see it now. But it still does not allow me to access it or create folders.



[pirateghost]

Thanks for this. Yes I can see it now. But it still does not allow me to access it or create folders.

So fix your permissions?



[HazRam]

So fix your permissions?

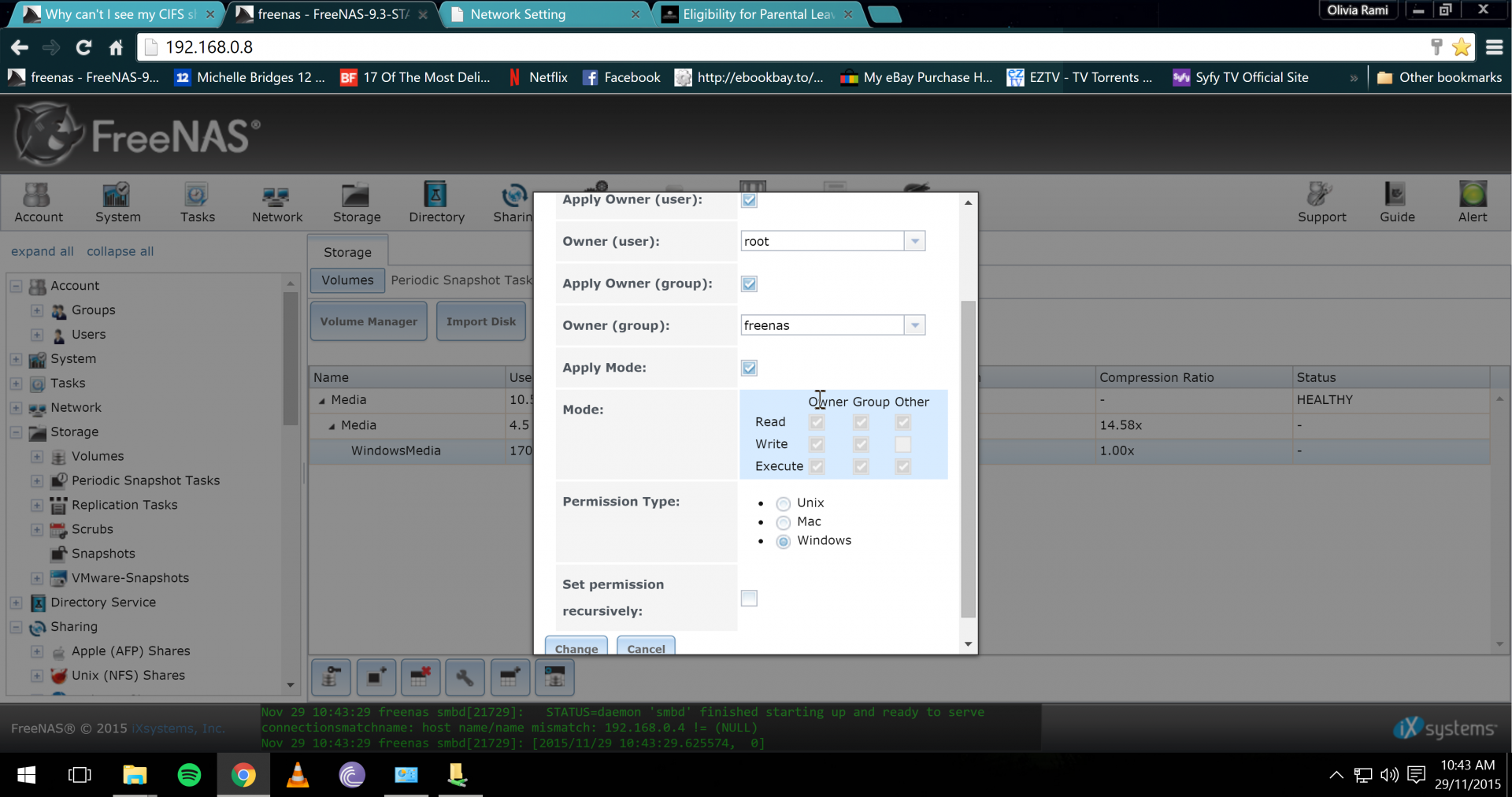

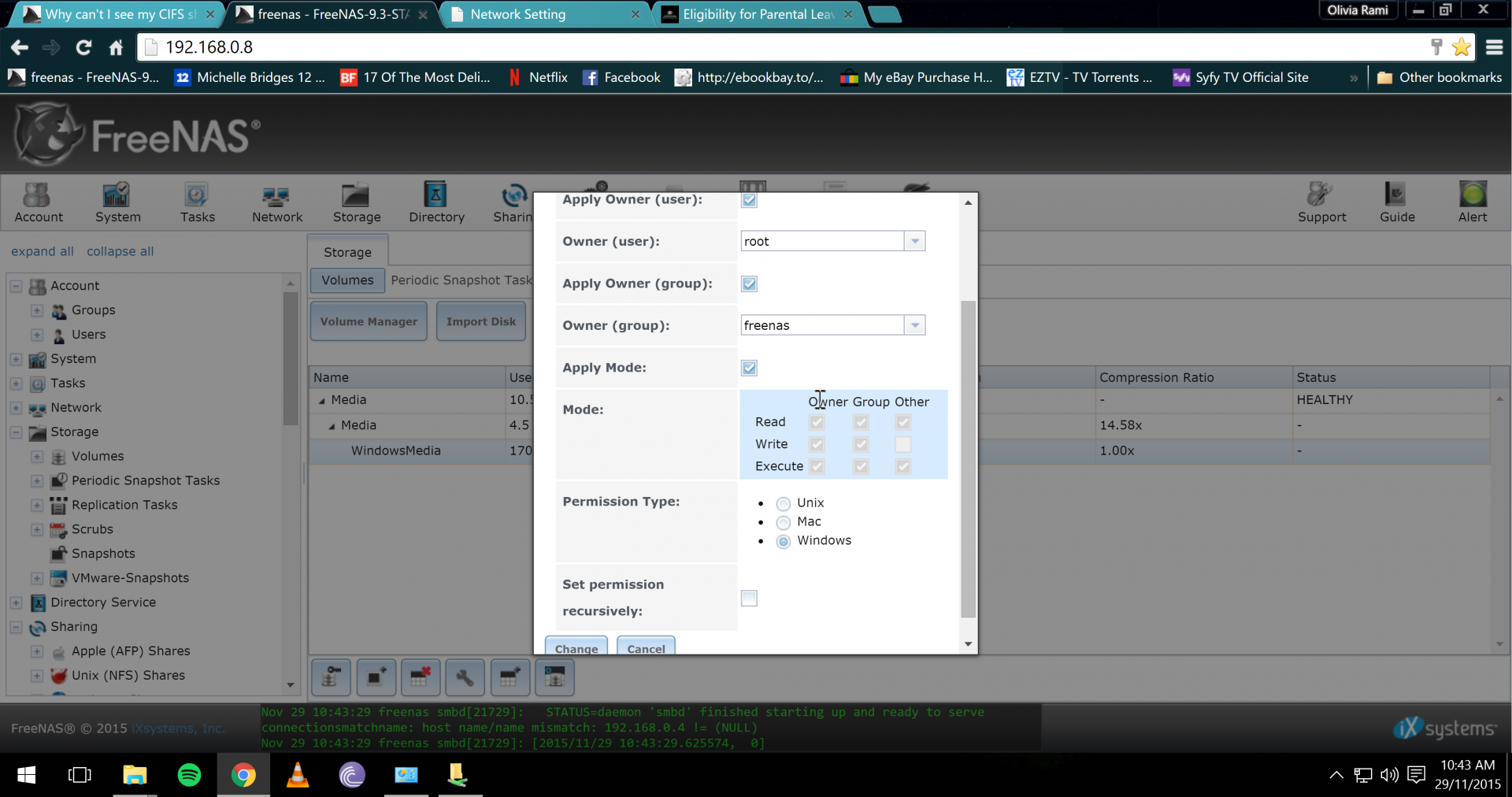

I thought I had, I have set the permissions as follows:



[Ericloewe]

I thought I had, I have set the permissions as follows: View attachment 9401

You'd have to login as root. Change the owner to whoever owns the shared dataset.



[HazRam]

You'd have to login as root. Change the owner to whoever owns the shared dataset.

Do I have to setup owners/users and groups or can I leave it all as the defualt roots etc?



[Ericloewe]

Do I have to setup owners/users and groups or can I leave it all as the defualt roots etc?

Yes, if you want a proper setup.

If "bad practice, minimum effort and no scalability at all" is ok with you, you don't strictly have to.



[HazRam]

I would like to say thank you to all of you who help me figure this out.

Finally got it all working after nearly 4 days of trying.

Thanks guys and have a good one.



[Fuganater]

Do I have to setup owners/users and groups or can I leave it all as the defualt roots etc?

Since I am the only one on my network, I start off by setting my owner to "no one" and group to "no group". That way I can easily migrate my data from all the machines to the new server. This is probably the lazy man's way of doing it but it works out, at least for standing up the new server.



[solarisguy]

I would like to say thank you to all of you who help me figure this out.

Finally got it all working after nearly 4 days of trying.

Thanks guys and have a good one.

May we ask what you had done? ;)



[HazRam]

May we ask what you had done? ;)

To be honest I am not entirely sure! In the end I just deleted my volumes and shares and then started from scratch again. This time I managed to map my server in Windows and its working. However, I am now having serious speed issues where my mouse is juttering and when I try to copy folders from an external hard drive via Windows to the service it the external hard drive keeps hanging.
