SOLVED What is this on the side of my Supermicro 2U?

[scrappy]

I am preparing to upgrade from a Supermicro 1U to a Supermicro 2U server I purchased from eBay. As I prepared to start up my new server for the first time I realized that I had no clue where to power it on from! There is not an actual physical power button on the front like my 1U had. It wasn't until I happened to pull off a piece of tape with some plastic covering a metal ribbon on the left side of the chassis near the front that the server came roaring to life. Can anybody tell me what this ribbon is and does?

Sent from my iPhone using Tapatalk



[Spearfoot]

I am preparing to upgrade from a Supermicro 1U to a Supermicro 2U server I purchased from eBay. As I prepared to start up my new server for the first time I realized that I had no clue where to power it on from! There is not an actual physical power button on the front like my 1U had. It wasn't until I happened to pull off a piece of tape with some plastic covering a metal ribbon on the left side of the chassis near the front that the server came roaring to life. Can anybody tell me what this ribbon is and does?

Sent from my iPhone using Tapatalk

My guess: it's the ribbon connector to the power button and status lights on your left rack ear... which seems to be missing.



[scrappy]

My guess: it's the ribbon connector to the power button and status lights on your left rack ear... which seems to be missing.

Thanks. I know there's a bag with some parts the eBay seller stuffed into a drive bay. I have not opened it up yet but will when I get home tonight. It would make sense. Since my old Supermicro 1U had power/reset buttons on the front panel I was unaware other models might have those controls built into the rack ear.



[Spearfoot]

Thanks. I know there's a bag with some parts the eBay seller stuffed into a drive bay. I have not opened it up yet but will when I get home tonight. It would make sense. Since my old Supermicro 1U had power/reset buttons on the front panel I was unaware other models might have those controls built into the rack ear.

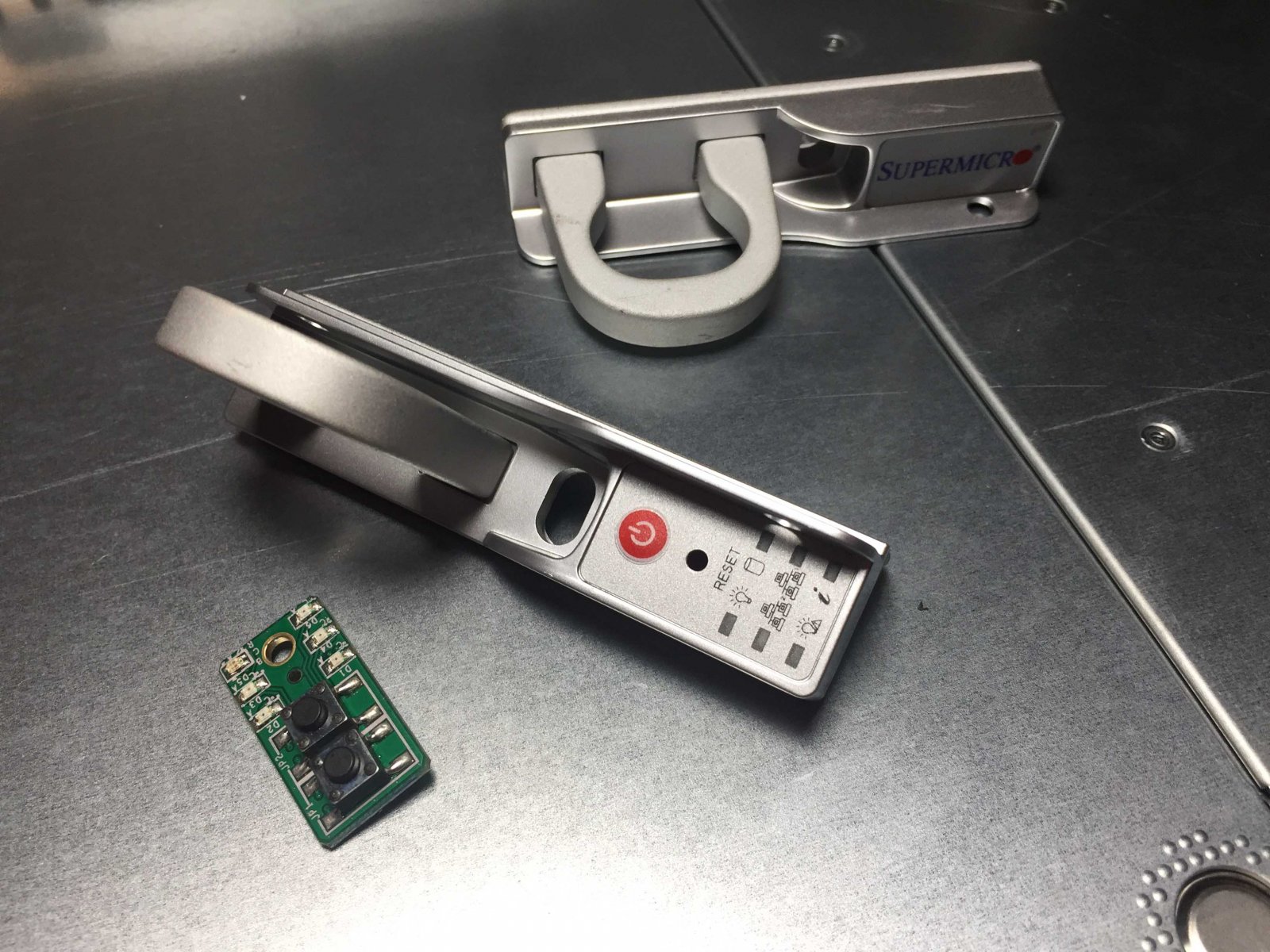

Well, it's just a guess... but hopefully you'll find rack ears, one of which the ribbon cable plugs in to, and all will be well.



[scrappy]

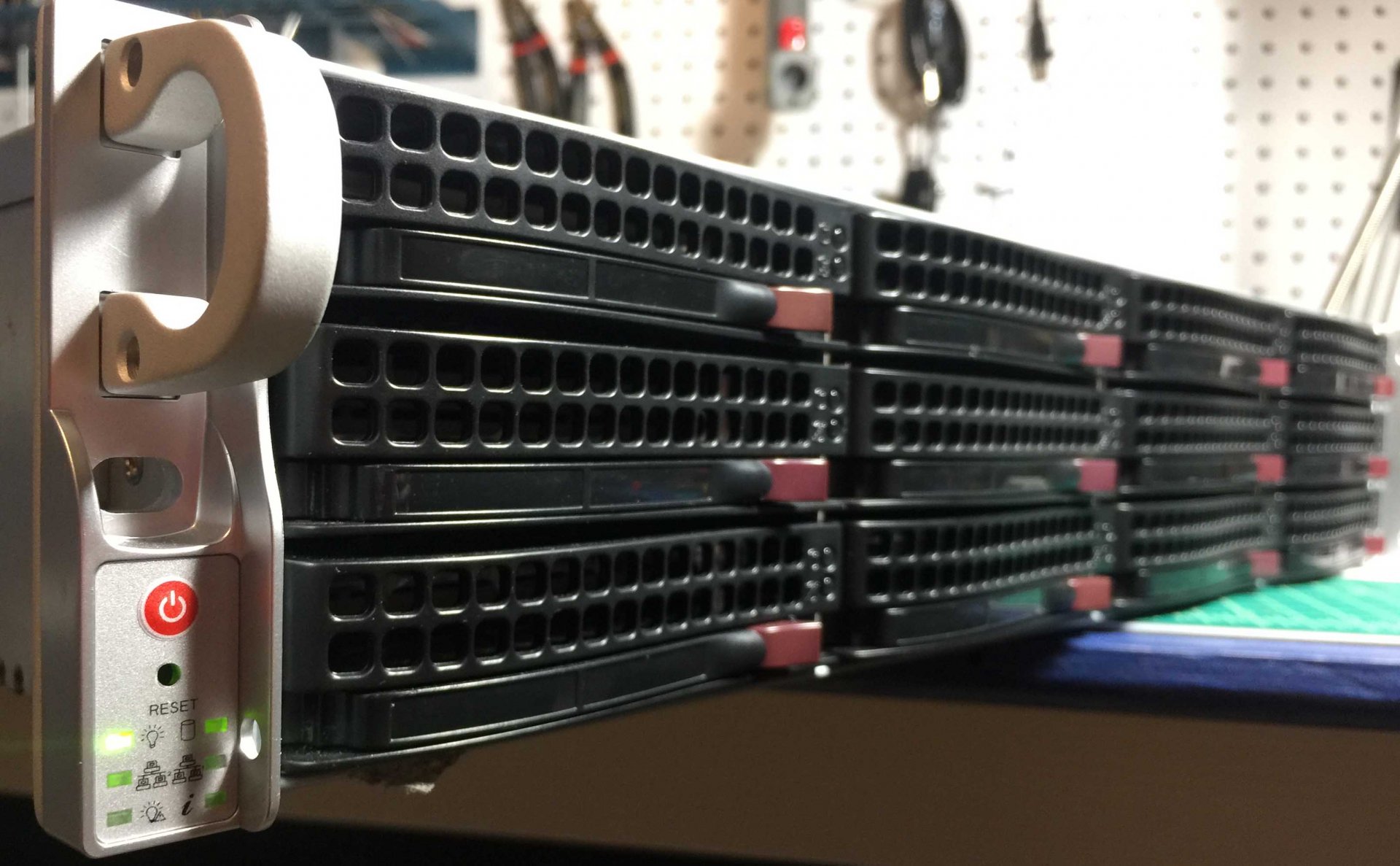

@Spearfoot Yes, you are correct! Thanks again.
