Hello Support,
I have a problem with pool. The pool wasn't be able. I read the forum but noting helps for my issue.

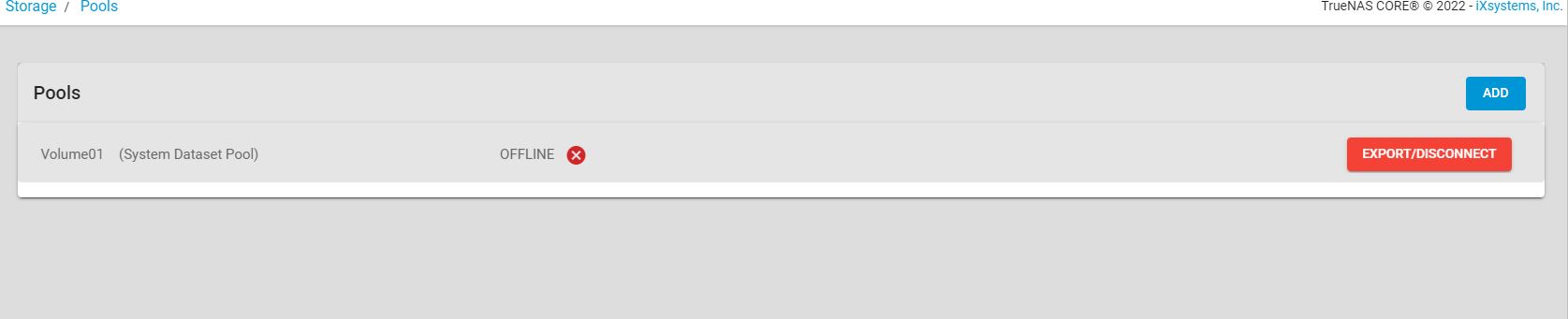

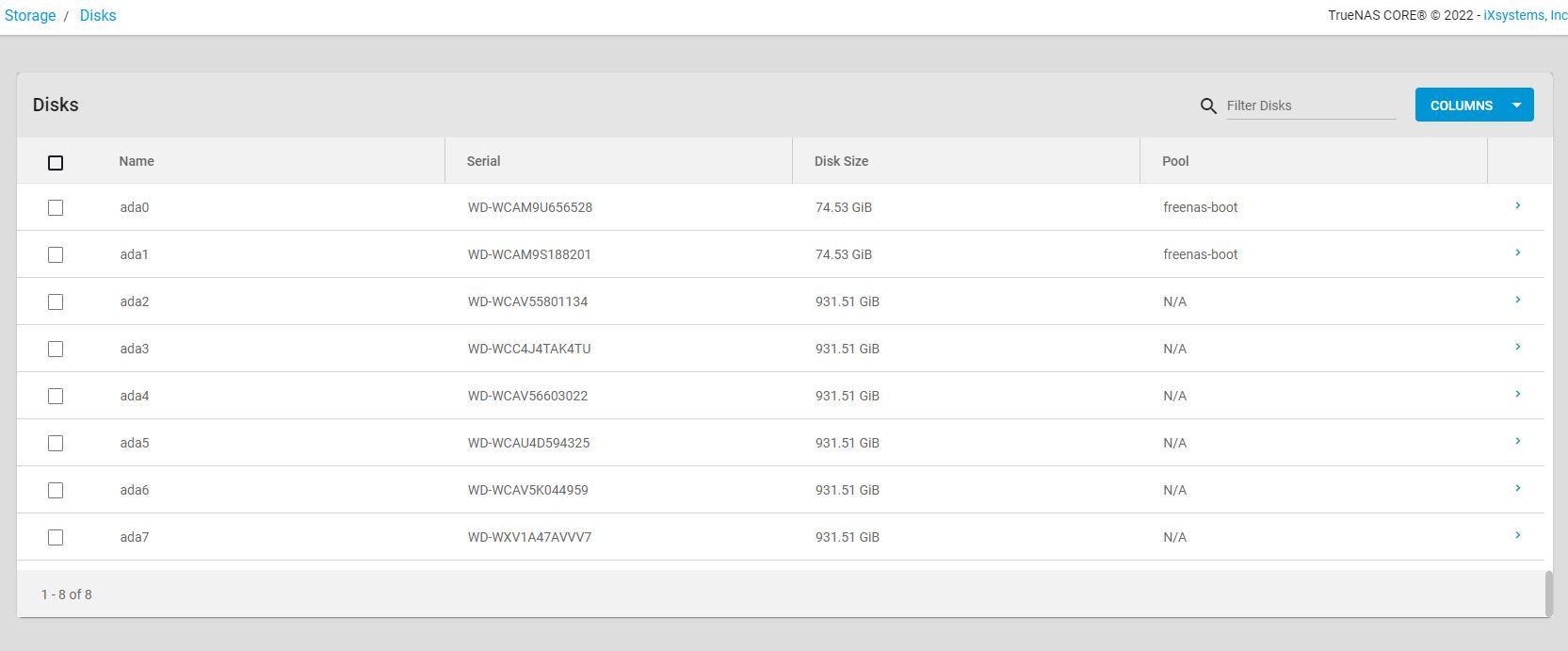

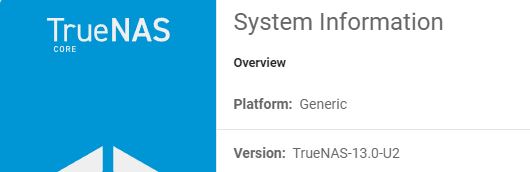

I provided some outputs and picture.
Can support give me some instruction how to fix this problem.
================================================================
root@smfreenas:~ # zpool import
pool: Volume01
id: 4793943268532976409
state: UNAVAIL
status: One or more devices are missing from the system.
action: The pool cannot be imported. Attach the missing
devices and try again.
see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-3C
config:
Volume01 UNAVAIL insufficient replicas
raidz1-0 UNAVAIL insufficient replicas
397310128719056353 ONLINE
gptid/7422da7c-8c7b-11e6-a272-406186e2373c UNAVAIL cannot open
gptid/75183c8b-8c7b-11e6-a272-406186e2373c ONLINE
gptid/76a10d46-8c7b-11e6-a272-406186e2373c UNAVAIL cannot open
gptid/77e5c714-8c7b-11e6-a272-406186e2373c ONLINE
gptid/792fd967-8c7b-11e6-a272-406186e2373c ONLINE
root@smfreenas:~ #
==================================================================
root@smfreenas:~ # zpool list
NAME SIZE ALLOC FREE CKPOINT EXPANDSZ FRAG CAP DEDUP HEALTH ALTROOT
freenas-boot 74.5G 10.6G 63.9G - - 1% 14% 1.00x ONLINE -
==================================================================
root@smfreenas:~ # gpart show
=> 34 156301421 ada0 GPT (75G)
34 1024 1 freebsd-boot (512K)
1058 6 - free - (3.0K)
1064 156300384 2 freebsd-zfs (75G)
156301448 7 - free - (3.5K)
=> 34 1953525101 ada2 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 34 156301421 ada1 GPT (75G)
34 1024 1 freebsd-boot (512K)
1058 6 - free - (3.0K)
1064 156300384 2 freebsd-zfs (75G)
156301448 7 - free - (3.5K)
=> 34 1953525101 ada4 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 34 1953525101 ada6 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 34 1953525101 ada5 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 40 1953525088 ada7 GPT (932G)
40 4194304 1 freebsd-swap (2.0G)
4194344 1949330784 2 freebsd-zfs (930G)
========================================================
root@smfreenas:~ # glabel status
Name Status Components
gptid/a01e5fdc-8c76-11e6-bfad-406186e2373c N/A ada0p1
gptid/a0342a4e-8c76-11e6-bfad-406186e2373c N/A ada1p1
gptid/75183c8b-8c7b-11e6-a272-406186e2373c N/A ada4p2
gptid/77e5c714-8c7b-11e6-a272-406186e2373c N/A ada6p2
gptid/792fd967-8c7b-11e6-a272-406186e2373c N/A ada5p2
gptid/72c2a9bb-8c7b-11e6-a272-406186e2373c N/A ada2p2
gptid/7921f42a-8c7b-11e6-a272-406186e2373c N/A ada5p1
gptid/77d4ae4d-8c7b-11e6-a272-406186e2373c N/A ada6p1
gptid/7500bfb2-8c7b-11e6-a272-406186e2373c N/A ada4p1
gptid/72b01514-8c7b-11e6-a272-406186e2373c N/A ada2p1
gptid/fc97e1cb-4637-11ed-98b7-406186e2373c N/A ada7p1
gptid/038b9fcc-4638-11ed-98b7-406186e2373c N/A ada7p2
root@smfreenas:~ #
============================================================
root@smfreenas:~ # camcontrol devlist
<WDC WD800BB-00JHC0 05.01C05> at scbus2 target 0 lun 0 (ada0,pass0)
<WDC WD800JB-00JJC0 05.01C05> at scbus2 target 1 lun 0 (ada1,pass1)
<WDC WD10EARS-00Y5B1 80.00A80> at scbus3 target 0 lun 0 (ada2,pass2)
<WDC WD10EFRX-68FYTN0 82.00A82> at scbus3 target 1 lun 0 (ada3,pass3)
<WDC WD10EARS-00Y5B1 80.00A80> at scbus4 target 0 lun 0 (ada4,pass4)
<WDC WD10EADS-32L5B1 01.01A01> at scbus4 target 1 lun 0 (ada5,pass5)
<WDC WD10EADS-114BB1 80.00A80> at scbus5 target 0 lun 0 (ada6,pass6)
<WDC WD10JPCX-24UE4T0 01.01A01> at scbus6 target 0 lun 0 (ada7,pass7)
=============================================================
root@smfreenas:~ # gpart list
Geom name: ada0
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 156301454
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada0p1
Mediasize: 524288 (512K)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 17408
Mode: r0w0e0
efimedia: HD(1,GPT,a01e5fdc-8c76-11e6-bfad-406186e2373c,0x22,0x400)
rawuuid: a01e5fdc-8c76-11e6-bfad-406186e2373c
rawtype: 83bd6b9d-7f41-11dc-be0b-001560b84f0f
label: (null)
length: 524288
offset: 17408
type: freebsd-boot
index: 1
end: 1057
start: 34
2. Name: ada0p2
Mediasize: 80025796608 (75G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 544768
Mode: r1w1e1
efimedia: HD(2,GPT,a024fbc3-8c76-11e6-bfad-406186e2373c,0x428,0x950f460)
rawuuid: a024fbc3-8c76-11e6-bfad-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 80025796608
offset: 544768
type: freebsd-zfs
index: 2
end: 156301447
start: 1064
Consumers:
1. Name: ada0
Mediasize: 80026361856 (75G)
Sectorsize: 512
Mode: r1w1e2
Geom name: ada2
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada2p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,72b01514-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 72b01514-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada2p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,72c2a9bb-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 72c2a9bb-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada2
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
Geom name: ada1
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 156301454
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada1p1
Mediasize: 524288 (512K)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 17408
Mode: r0w0e0
efimedia: HD(1,GPT,a0342a4e-8c76-11e6-bfad-406186e2373c,0x22,0x400)
rawuuid: a0342a4e-8c76-11e6-bfad-406186e2373c
rawtype: 83bd6b9d-7f41-11dc-be0b-001560b84f0f
label: (null)
length: 524288
offset: 17408
type: freebsd-boot
index: 1
end: 1057
start: 34
2. Name: ada1p2
Mediasize: 80025796608 (75G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 544768
Mode: r1w1e1
efimedia: HD(2,GPT,a03ad60e-8c76-11e6-bfad-406186e2373c,0x428,0x950f460)
rawuuid: a03ad60e-8c76-11e6-bfad-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 80025796608
offset: 544768
type: freebsd-zfs
index: 2
end: 156301447
start: 1064
Consumers:
1. Name: ada1
Mediasize: 80026361856 (75G)
Sectorsize: 512
Mode: r1w1e2
Geom name: ada4
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada4p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,7500bfb2-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 7500bfb2-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada4p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,75183c8b-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 75183c8b-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada4
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
Geom name: ada6
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada6p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,77d4ae4d-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 77d4ae4d-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada6p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,77e5c714-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 77e5c714-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada6
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
Geom name: ada5
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada5p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 65536
Mode: r0w0e0
efimedia: HD(1,GPT,7921f42a-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 7921f42a-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada5p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 2147549184
Mode: r0w0e0
efimedia: HD(2,GPT,792fd967-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 792fd967-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada5
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Mode: r0w0e0
Geom name: ada7
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525127
first: 40
entries: 128
scheme: GPT
Providers:
1. Name: ada7p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,fc97e1cb-4637-11ed-98b7-406186e2373c,0x28,0x400000)
rawuuid: fc97e1cb-4637-11ed-98b7-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 20480
type: freebsd-swap
index: 1
end: 4194343
start: 40
2. Name: ada7p2
Mediasize: 998057361408 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,038b9fcc-4638-11ed-98b7-406186e2373c,0x400028,0x74306d60)
rawuuid: 038b9fcc-4638-11ed-98b7-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057361408
offset: 2147504128
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194344
Consumers:
1. Name: ada7
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
=======================================================================
I have a problem with pool. The pool wasn't be able. I read the forum but noting helps for my issue.
I provided some outputs and picture.
Can support give me some instruction how to fix this problem.
================================================================
root@smfreenas:~ # zpool import
pool: Volume01
id: 4793943268532976409
state: UNAVAIL
status: One or more devices are missing from the system.
action: The pool cannot be imported. Attach the missing
devices and try again.
see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-3C
config:
Volume01 UNAVAIL insufficient replicas
raidz1-0 UNAVAIL insufficient replicas
397310128719056353 ONLINE
gptid/7422da7c-8c7b-11e6-a272-406186e2373c UNAVAIL cannot open
gptid/75183c8b-8c7b-11e6-a272-406186e2373c ONLINE
gptid/76a10d46-8c7b-11e6-a272-406186e2373c UNAVAIL cannot open
gptid/77e5c714-8c7b-11e6-a272-406186e2373c ONLINE
gptid/792fd967-8c7b-11e6-a272-406186e2373c ONLINE
root@smfreenas:~ #
==================================================================
root@smfreenas:~ # zpool list
NAME SIZE ALLOC FREE CKPOINT EXPANDSZ FRAG CAP DEDUP HEALTH ALTROOT
freenas-boot 74.5G 10.6G 63.9G - - 1% 14% 1.00x ONLINE -
==================================================================
root@smfreenas:~ # gpart show
=> 34 156301421 ada0 GPT (75G)
34 1024 1 freebsd-boot (512K)
1058 6 - free - (3.0K)
1064 156300384 2 freebsd-zfs (75G)
156301448 7 - free - (3.5K)
=> 34 1953525101 ada2 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 34 156301421 ada1 GPT (75G)
34 1024 1 freebsd-boot (512K)
1058 6 - free - (3.0K)
1064 156300384 2 freebsd-zfs (75G)
156301448 7 - free - (3.5K)
=> 34 1953525101 ada4 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 34 1953525101 ada6 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 34 1953525101 ada5 GPT (932G)
34 94 - free - (47K)
128 4194304 1 freebsd-swap (2.0G)
4194432 1949330696 2 freebsd-zfs (930G)
1953525128 7 - free - (3.5K)
=> 40 1953525088 ada7 GPT (932G)
40 4194304 1 freebsd-swap (2.0G)
4194344 1949330784 2 freebsd-zfs (930G)
========================================================
root@smfreenas:~ # glabel status
Name Status Components
gptid/a01e5fdc-8c76-11e6-bfad-406186e2373c N/A ada0p1
gptid/a0342a4e-8c76-11e6-bfad-406186e2373c N/A ada1p1
gptid/75183c8b-8c7b-11e6-a272-406186e2373c N/A ada4p2
gptid/77e5c714-8c7b-11e6-a272-406186e2373c N/A ada6p2
gptid/792fd967-8c7b-11e6-a272-406186e2373c N/A ada5p2
gptid/72c2a9bb-8c7b-11e6-a272-406186e2373c N/A ada2p2
gptid/7921f42a-8c7b-11e6-a272-406186e2373c N/A ada5p1
gptid/77d4ae4d-8c7b-11e6-a272-406186e2373c N/A ada6p1
gptid/7500bfb2-8c7b-11e6-a272-406186e2373c N/A ada4p1
gptid/72b01514-8c7b-11e6-a272-406186e2373c N/A ada2p1
gptid/fc97e1cb-4637-11ed-98b7-406186e2373c N/A ada7p1
gptid/038b9fcc-4638-11ed-98b7-406186e2373c N/A ada7p2
root@smfreenas:~ #
============================================================
root@smfreenas:~ # camcontrol devlist
<WDC WD800BB-00JHC0 05.01C05> at scbus2 target 0 lun 0 (ada0,pass0)
<WDC WD800JB-00JJC0 05.01C05> at scbus2 target 1 lun 0 (ada1,pass1)
<WDC WD10EARS-00Y5B1 80.00A80> at scbus3 target 0 lun 0 (ada2,pass2)
<WDC WD10EFRX-68FYTN0 82.00A82> at scbus3 target 1 lun 0 (ada3,pass3)
<WDC WD10EARS-00Y5B1 80.00A80> at scbus4 target 0 lun 0 (ada4,pass4)
<WDC WD10EADS-32L5B1 01.01A01> at scbus4 target 1 lun 0 (ada5,pass5)
<WDC WD10EADS-114BB1 80.00A80> at scbus5 target 0 lun 0 (ada6,pass6)
<WDC WD10JPCX-24UE4T0 01.01A01> at scbus6 target 0 lun 0 (ada7,pass7)
=============================================================
root@smfreenas:~ # gpart list
Geom name: ada0
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 156301454
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada0p1
Mediasize: 524288 (512K)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 17408
Mode: r0w0e0
efimedia: HD(1,GPT,a01e5fdc-8c76-11e6-bfad-406186e2373c,0x22,0x400)
rawuuid: a01e5fdc-8c76-11e6-bfad-406186e2373c
rawtype: 83bd6b9d-7f41-11dc-be0b-001560b84f0f
label: (null)
length: 524288
offset: 17408
type: freebsd-boot
index: 1
end: 1057
start: 34
2. Name: ada0p2
Mediasize: 80025796608 (75G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 544768
Mode: r1w1e1
efimedia: HD(2,GPT,a024fbc3-8c76-11e6-bfad-406186e2373c,0x428,0x950f460)
rawuuid: a024fbc3-8c76-11e6-bfad-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 80025796608
offset: 544768
type: freebsd-zfs
index: 2
end: 156301447
start: 1064
Consumers:
1. Name: ada0
Mediasize: 80026361856 (75G)
Sectorsize: 512
Mode: r1w1e2
Geom name: ada2
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada2p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,72b01514-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 72b01514-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada2p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,72c2a9bb-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 72c2a9bb-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada2
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
Geom name: ada1
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 156301454
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada1p1
Mediasize: 524288 (512K)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 17408
Mode: r0w0e0
efimedia: HD(1,GPT,a0342a4e-8c76-11e6-bfad-406186e2373c,0x22,0x400)
rawuuid: a0342a4e-8c76-11e6-bfad-406186e2373c
rawtype: 83bd6b9d-7f41-11dc-be0b-001560b84f0f
label: (null)
length: 524288
offset: 17408
type: freebsd-boot
index: 1
end: 1057
start: 34
2. Name: ada1p2
Mediasize: 80025796608 (75G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 544768
Mode: r1w1e1
efimedia: HD(2,GPT,a03ad60e-8c76-11e6-bfad-406186e2373c,0x428,0x950f460)
rawuuid: a03ad60e-8c76-11e6-bfad-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 80025796608
offset: 544768
type: freebsd-zfs
index: 2
end: 156301447
start: 1064
Consumers:
1. Name: ada1
Mediasize: 80026361856 (75G)
Sectorsize: 512
Mode: r1w1e2
Geom name: ada4
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada4p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,7500bfb2-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 7500bfb2-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada4p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,75183c8b-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 75183c8b-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada4
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
Geom name: ada6
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada6p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,77d4ae4d-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 77d4ae4d-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada6p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,77e5c714-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 77e5c714-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada6
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
Geom name: ada5
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525134
first: 34
entries: 128
scheme: GPT
Providers:
1. Name: ada5p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 65536
Mode: r0w0e0
efimedia: HD(1,GPT,7921f42a-8c7b-11e6-a272-406186e2373c,0x80,0x400000)
rawuuid: 7921f42a-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 65536
type: freebsd-swap
index: 1
end: 4194431
start: 128
2. Name: ada5p2
Mediasize: 998057316352 (930G)
Sectorsize: 512
Stripesize: 0
Stripeoffset: 2147549184
Mode: r0w0e0
efimedia: HD(2,GPT,792fd967-8c7b-11e6-a272-406186e2373c,0x400080,0x74306d08)
rawuuid: 792fd967-8c7b-11e6-a272-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057316352
offset: 2147549184
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194432
Consumers:
1. Name: ada5
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Mode: r0w0e0
Geom name: ada7
modified: false
state: OK
fwheads: 16
fwsectors: 63
last: 1953525127
first: 40
entries: 128
scheme: GPT
Providers:
1. Name: ada7p1
Mediasize: 2147483648 (2.0G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(1,GPT,fc97e1cb-4637-11ed-98b7-406186e2373c,0x28,0x400000)
rawuuid: fc97e1cb-4637-11ed-98b7-406186e2373c
rawtype: 516e7cb5-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 2147483648
offset: 20480
type: freebsd-swap
index: 1
end: 4194343
start: 40
2. Name: ada7p2
Mediasize: 998057361408 (930G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
efimedia: HD(2,GPT,038b9fcc-4638-11ed-98b7-406186e2373c,0x400028,0x74306d60)
rawuuid: 038b9fcc-4638-11ed-98b7-406186e2373c
rawtype: 516e7cba-6ecf-11d6-8ff8-00022d09712b
label: (null)
length: 998057361408
offset: 2147504128
type: freebsd-zfs
index: 2
end: 1953525127
start: 4194344
Consumers:
1. Name: ada7
Mediasize: 1000204886016 (932G)
Sectorsize: 512
Stripesize: 4096
Stripeoffset: 0
Mode: r0w0e0
=======================================================================
