Running on 13-U3.1 everything was great on my second NAS, no issues
Upgraded to 13-U4, and none of my data disks show up! They did however show up in the LSI list from the HBA booting when the system was turning on. Went back to U3.1 and still no disks.
What is the best way to go about figuring out the issue here? The only thing I can think is that this card is on pretty old firmware, and maybe the U4 added a new driver that removes support? But, then going to U3.1 should work again right?
If I do sas2flash -listall I get a message about no LSI Adapters found
But, If I do dmesg | grep mps I get this, showing me that the card and disk are there!
How can I figure out why these disks don't show?

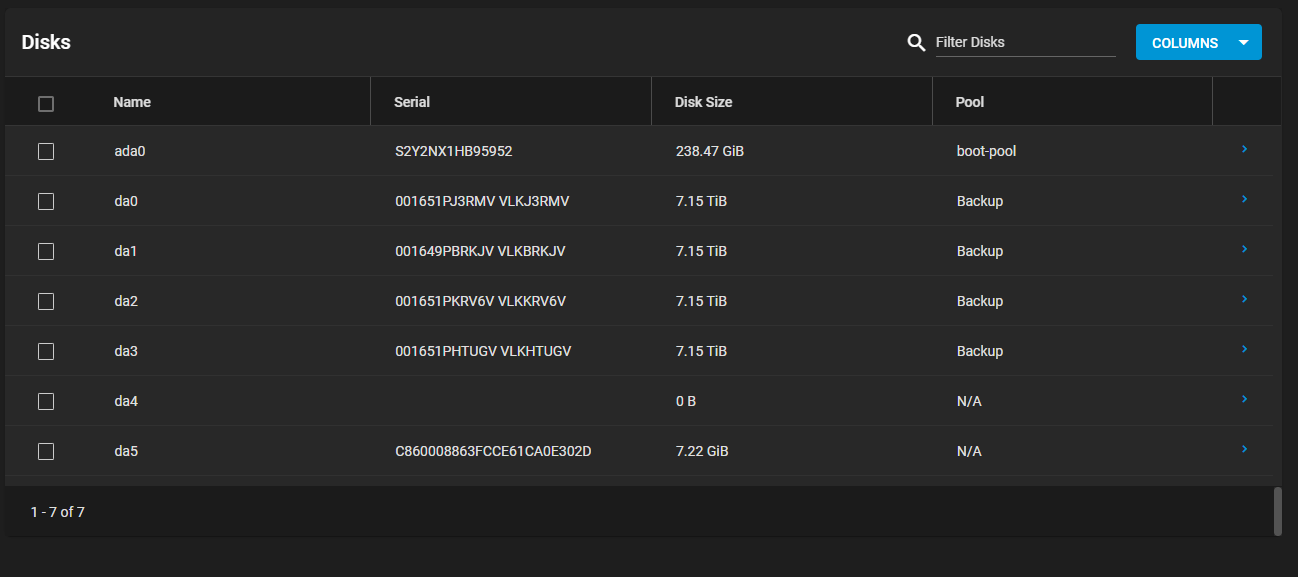

The boot log also shows it syncing 7 disks, which I think is correct
* A flash drive I have connected
* Virtual TinyPilot Media
* Boot Device
* 4 x SAS Disks
Upgraded to 13-U4, and none of my data disks show up! They did however show up in the LSI list from the HBA booting when the system was turning on. Went back to U3.1 and still no disks.
What is the best way to go about figuring out the issue here? The only thing I can think is that this card is on pretty old firmware, and maybe the U4 added a new driver that removes support? But, then going to U3.1 should work again right?
If I do sas2flash -listall I get a message about no LSI Adapters found
But, If I do dmesg | grep mps I get this, showing me that the card and disk are there!
Code:
root@NASBK[~]# dmesg | grep mps mps0: <Avago Technologies (LSI) SAS2008> port 0xe000-0xe0ff mem 0xdf1c0000-0xdf1c3fff,0xdf180000-0xdf1bffff irq 16 at device 0.0 on pci1 mps0: Firmware: 10.00.05.00, Driver: 21.02.00.00-fbsd mps0: IOCCapabilities: 1285c<ScsiTaskFull,DiagTrace,SnapBuf,EEDP,TransRetry,EventReplay,HostDisc> da0 at mps0 bus 0 scbus0 target 4 lun 0 da1 at mps0 bus 0 scbus0 target 5 lun 0 da2 at mps0 bus 0 scbus0 target 6 lun 0 da3 at mps0 bus 0 scbus0 target 7 lun 0 mps0: <Avago Technologies (LSI) SAS2008> port 0xe000-0xe0ff mem 0xdf1c0000-0xdf1c3fff,0xdf180000-0xdf1bffff irq 16 at device 0.0 on pci1 mps0: Firmware: 10.00.05.00, Driver: 21.02.00.00-fbsd mps0: IOCCapabilities: 1285c<ScsiTaskFull,DiagTrace,SnapBuf,EEDP,TransRetry,EventReplay,HostDisc> da0 at mps0 bus 0 scbus0 target 4 lun 0 da1 at mps0 bus 0 scbus0 target 5 lun 0 da2 at mps0 bus 0 scbus0 target 6 lun 0 da3 at mps0 bus 0 scbus0 target 7 lun 0
How can I figure out why these disks don't show?
The boot log also shows it syncing 7 disks, which I think is correct
* A flash drive I have connected
* Virtual TinyPilot Media
* Boot Device
* 4 x SAS Disks
Code:
Mar 8 13:44:11 NASBK Starting devd. Mar 8 13:44:11 NASBK Autoloading module: ichsmb Mar 8 13:44:11 NASBK Starting zfsd. Mar 8 13:44:11 NASBK Setting hostuuid: 3bc28570-1946-0000-0000-000000000000. Mar 8 13:44:11 NASBK Setting hostid: 0xc34f0bba. Mar 8 13:44:11 NASBK <118>middlewared: starting middlewared: loaded plugin middlewared.plugins.mail middlewared: loaded plugin middlewared.plugins.webdav middlewared: loaded plugin middlewared.plugins.tftp middlewared: loaded plugin middlewared.plugins.activedirectomiddlewared: loaded plugin middlewared.plugins.pool middlewared: loaded plugin middlewared.plugins.smb middlewared: loaded plugin middlewared.plugins.etc middlewared: loaded plugin middlewared.plugins.usage middlewared: loaded plugin middlewared.plugins.zettarepl middlewared: loaded plugin middlewared.plugins.filesystem middlewared: loaded plugin middlewared.plugins.device middlewared: loaded plugin middlewared.plugins.ipmi middlewared: loaded plugin middlewared.plugins.sysdataset middlewared: loaded plugin middlewared.plugins.update middlewared: loaded plugin middlewared.plugins.directoryservmiddlewared: loaded plugin middlewared.plugins.afp middlewared: loaded plugin middlewared.plugins.iscsi middlewared: loaded plugin middlewared.plugins.kerberos middlewared: loaded plugin middlewared.plugins.lldp middlewared: loaded plugin middlewared.plugins.multipath middlewared: loaded plugin middlewared.plugins.s3 middlewared: loaded plugin middlewared.plugins.support middlewared: loaded plugin middlewared.plugins.bootenv middlewared: loaded plugin middlewared.plugins.keyvalue middlewared: loaded plugin middlewared.plugins.alert middlewared: loaded plugin middlewared.plugins.boot middlewared: loaded plugin middlewared.plugins.replication middlewared: loaded plugin middlewared.plugins.account middlewared: loaded plugin middlewared.plugins.ssh middlewared: loaded plugin middlewared.plugins.idmap middlewared: loaded plugin middlewared.plugins.pwenc middlewared: loaded plugin middlewared.plugins.unscheduled_rmiddlewared: loaded plugin middlewared.plugins.auth middlewared: loaded plugin middlewared.plugins.jail_freebsd middlewared: loaded plugin middlewared.plugins.snmp middlewared: loaded plugin middlewared.plugins.keychain middlewared: loaded plugin middlewared.plugins.config middlewared: loaded plugin middlewared.plugins.trueview middlewared: loaded plugin middlewared.plugins.ec2 middlewared: loaded plugin middlewared.plugins.webui middlewared: loaded plugin middlewared.plugins.acme_protocolmiddlewared: loaded plugin middlewared.plugins.crypto middlewared: loaded plugin middlewared.plugins.hardware middlewared: loaded plugin middlewared.plugins.disk middlewared: loaded plugin middlewared.plugins.vmware middlewared: loaded plugin middlewared.plugins.geom middlewared: loaded plugin middlewared.plugins.nis middlewared: loaded plugin middlewared.plugins.vm middlewared: loaded plugin middlewared.plugins.tunables middlewared: loaded plugin middlewared.plugins.cache middlewared: loaded plugin middlewared.plugins.rsync middlewared: loaded plugin middlewared.plugins.init_shutdownmiddlewared: loaded plugin middlewared.plugins.vpn middlewared: loaded plugin middlewared.plugins.zfs middlewared: loaded plugin middlewared.plugins.ntp middlewared: loaded plugin middlewared.plugins.migration middlewared: loaded plugin middlewared.plugins.service middlewared: loaded plugin middlewared.plugins.api_key middlewared: loaded plugin middlewared.plugins.cron middlewared: loaded plugin middlewared.plugins.snapshot middlewared: loaded plugin middlewared.plugins.smart middlewared: loaded plugin middlewared.plugins.ldap middlewared: loaded plugin middlewared.plugins.cloud_sync middlewared: loaded plugin middlewared.plugins.ups middlewared: loaded plugin middlewared.plugins.dyndns middlewared: loaded plugin middlewared.plugins middlewared: loaded plugin middlewared.plugins.ftp middlewared: loaded plugin middlewared.plugins.stats middlewared: loaded plugin middlewared.plugins.network middlewared: loaded plugin middlewared.plugins.nfs middlewared: loaded plugin middlewared.plugins.system middlewared: loaded plugin middlewared.plugins.pool_.format_middlewared: loaded plugin middlewared.plugins.pool_.import_middlewared: loaded plugin middlewared.plugins.pool_.replacemiddlewared: loaded plugin middlewared.plugins.pool_ middlewared: loaded plugin middlewared.plugins.pool_.expand middlewared: loaded plugin middlewared.plugins.pool_.encryptmiddlewared: loaded plugin middlewared.plugins.pool_.encryptmiddlewared: loaded plugin middlewared.plugins.pool_.attach_middlewared: loaded plugin middlewared.plugins.pool_.info middlewared: loaded plugin middlewared.plugins.pool_.import_middlewared: loaded plugin middlewared.plugins.iscsi_.iscsi_middlewared: loaded plugin middlewared.plugins.iscsi_.globalmiddlewared: loaded plugin middlewared.plugins.iscsi_ middlewared: loaded plugin middlewared.plugins.interface.lagmiddlewared: loaded plugin middlewared.plugins.interface.capmiddlewared: loaded plugin middlewared.plugins.interface.netmiddlewared: loaded plugin middlewared.plugins.interface.dhcmiddlewared: loaded plugin middlewared.plugins.interface middlewared: loaded plugin middlewared.plugins.interface.typmiddlewared: loaded plugin middlewared.plugins.interface.conmiddlewared: loaded plugin middlewared.plugins.interface.linmiddlewared: loaded plugin middlewared.plugins.interface.brimiddlewared: loaded plugin middlewared.plugins.interface.lagmiddlewared: loaded plugin middlewared.plugins.interface.conmiddlewared: loaded plugin middlewared.plugins.interface.vlamiddlewared: loaded plugin middlewared.plugins.boot_ middlewared: loaded plugin middlewared.plugins.boot_.format middlewared: loaded plugin middlewared.plugins.boot_.boot_lomiddlewared: loaded plugin middlewared.plugins.geom_.cache middlewared: loaded plugin middlewared.plugins.geom_ middlewared: loaded plugin middlewared.plugins.device_.devd_middlewared: loaded plugin middlewared.plugins.device_ middlewared: loaded plugin middlewared.plugins.update_.utilsmiddlewared: loaded plugin middlewared.plugins.update_.instamiddlewared: loaded plugin middlewared.plugins.update_.uploamiddlewared: loaded plugin middlewared.plugins.update_.trainmiddlewared: loaded plugin middlewared.plugins.update_.instamiddlewared: loaded plugin middlewared.plugins.update_.utilsmiddlewared: loaded plugin middlewared.plugins.update_.pendimiddlewared: loaded plugin middlewared.plugins.update_.downlmiddlewared: loaded plugin middlewared.plugins.update_.downlmiddlewared: loaded plugin middlewared.plugins.update_.trainmiddlewared: loaded plugin middlewared.plugins.update_ middlewared: loaded plugin middlewared.plugins.account_.syncmiddlewared: loaded plugin middlewared.plugins.account_ middlewared: loaded plugin middlewared.plugins.nfs_.v4_freebmiddlewared: loaded plugin middlewared.plugins.nfs_.krb5 middlewared: loaded plugin middlewared.plugins.nfs_ middlewared: loaded plugin middlewared.plugins.nfs_.sec middlewared: loaded plugin middlewared.plugins.hardware_.mcamiddlewared: loaded plugin middlewared.plugins.hardware_ middlewared: loaded plugin middlewared.plugins.mail_.gmail middlewared: loaded plugin middlewared.plugins.mail_ middlewared: loaded plugin middlewared.plugins.zfs_.zfs_evenmiddlewared: loaded plugin middlewared.plugins.zfs_.events middlewared: loaded plugin middlewared.plugins.zfs_ middlewared: loaded plugin middlewared.plugins.zfs_.disks_frmiddlewared: loaded plugin middlewared.plugins.disk_.temperamiddlewared: loaded plugin middlewared.plugins.disk_.swap_comiddlewared: loaded plugin middlewared.plugins.disk_.hddstanmiddlewared: loaded plugin middlewared.plugins.disk_.disk_inmiddlewared: loaded plugin middlewared.plugins.disk_.encryptmiddlewared: loaded plugin middlewared.plugins.disk_.dumpdevmiddlewared: loaded plugin middlewared.plugins.disk_.availabmiddlewared: loaded plugin middlewared.plugins.disk_.smart middlewared: loaded plugin middlewared.plugins.disk_.disk_evmiddlewared: loaded plugin middlewared.plugins.disk_.swap_mimiddlewared: loaded plugin middlewared.plugins.disk_.wipe middlewared: loaded plugin middlewared.plugins.disk_.smartctmiddlewared: loaded plugin middlewared.plugins.disk_.remove_middlewared: loaded plugin middlewared.plugins.disk_.identifmiddlewared: loaded plugin middlewared.plugins.disk_ middlewared: loaded plugin middlewared.plugins.disk_.nvme_frmiddlewared: loaded plugin middlewared.plugins.disk_.swap_remiddlewared: loaded plugin middlewared.plugins.disk_.format middlewared: loaded plugin middlewared.plugins.disk_.sync middlewared: loaded plugin middlewared.plugins.disk_.overpromiddlewared: loaded plugin middlewared.plugins.disk_.smart_amiddlewared: loaded plugin middlewared.plugins.disk_.info middlewared: loaded plugin middlewared.plugins.disk_.zfs_guimiddlewared: loaded plugin middlewared.plugins.disk_.label_fmiddlewared: loaded plugin middlewared.plugins.zettarepl_.utmiddlewared: loaded plugin middlewared.plugins.zettarepl_ middlewared: loaded plugin middlewared.plugins.zettarepl_.stmiddlewared: loaded plugin middlewared.plugins.replication_ middlewared: loaded plugin middlewared.plugins.replication_.middlewared: loaded plugin middlewared.plugins.replication_.middlewared: loaded plugin middlewared.plugins.enterprise.m_middlewared: loaded plugin middlewared.plugins.enterprise middlewared: loaded plugin middlewared.plugins.service_ middlewared: loaded plugin middlewared.plugins.sysctl.hint_imiddlewared: loaded plugin middlewared.plugins.sysctl middlewared: loaded plugin middlewared.plugins.kmip.sed_keysmiddlewared: loaded plugin middlewared.plugins.kmip.zfs_keysmiddlewared: loaded plugin middlewared.plugins.kmip.sync middlewared: loaded plugin middlewared.plugins.kmip.connectimiddlewared: loaded plugin middlewared.plugins.kmip middlewared: loaded plugin middlewared.plugins.kmip.update middlewared: loaded plugin middlewared.plugins.cloud_sync_.cmiddlewared: loaded plugin middlewared.plugins.cloud_sync_ middlewared: loaded plugin middlewared.plugins.smb_.passdb middlewared: loaded plugin middlewared.plugins.smb_.status middlewared: loaded plugin middlewared.plugins.smb_.groupmapmiddlewared: loaded plugin middlewared.plugins.smb_.sharesecmiddlewared: loaded plugin middlewared.plugins.smb_.sid middlewared: loaded plugin middlewared.plugins.smb_ middlewared: loaded plugin middlewared.plugins.smb_.admin_grmiddlewared: loaded plugin middlewared.plugins.smb_.registrymiddlewared: loaded plugin middlewared.plugins.smb_.util_sd middlewared: loaded plugin middlewared.plugins.system_.dmi middlewared: loaded plugin middlewared.plugins.system_ middlewared: loaded plugin middlewared.plugins.reporting.updmiddlewared: loaded plugin middlewared.plugins.reporting middlewared: loaded plugin middlewared.plugins.reporting.rrdmiddlewared: loaded plugin middlewared.plugins.reporting.plumiddlewared: loaded plugin middlewared.plugins.reporting.iosmiddlewared: loaded plugin middlewared.plugins.reporting.conmiddlewared: loaded plugin middlewared.plugins.reporting.evemiddlewared: loaded plugin middlewared.plugins.reporting.plumiddlewared: loaded plugin middlewared.plugins.reporting.promiddlewared: loaded plugin middlewared.plugins.vm_.events middlewared: loaded plugin middlewared.plugins.vm_ middlewared: loaded plugin middlewared.plugins.vm_.connectiomiddlewared: loaded plugin middlewared.plugins.truecommand.emiddlewared: loaded plugin middlewared.plugins.truecommand middlewared: loaded plugin middlewared.plugins.truecommand.cmiddlewared: loaded plugin middlewared.plugins.truecommand.wmiddlewared: loaded plugin middlewared.plugins.truecommand.umiddlewared: loaded plugin middlewared.plugins.truecommand.pmiddlewared: loaded plugin middlewared.plugins.s3_.attachmenmiddlewared: loaded plugin middlewared.plugins.s3_ middlewared: loaded plugin middlewared.plugins.datastore.conmiddlewared: loaded plugin middlewared.plugins.datastore.wrimiddlewared: loaded plugin middlewared.plugins.datastore.reamiddlewared: loaded plugin middlewared.plugins.datastore.filmiddlewared: loaded plugin middlewared.plugins.datastore.evemiddlewared: loaded plugin middlewared.plugins.datastore middlewared: loaded plugin middlewared.plugins.datastore.utimiddlewared: loaded plugin middlewared.plugins.datastore.schmiddlewared: loaded plugin middlewared_truenas.plugins.fcpormiddlewared: loaded plugin middlewared_truenas.plugins.sensomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.truenmiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.enclomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: loaded plugin middlewared_truenas.plugins.failomiddlewared: resolving plugins schemas middlewared: registering services middlewared: setting up plugins (datastore) [1/60] middlewared: setting up plugins (auth) [2/60] middlewared: setting up plugins (service) [3/60] middlewared: setting up plugins (pwenc) [4/60] middlewared: setting up plugins (boot) [5/60] middlewared: setting up plugins (system) [6/60] middlewared: setting up plugins (alert) [7/60] middlewared: setting up plugins (account) [8/60] middlewared: setting up plugins (network) [9/60] middlewared: setting up plugins (webdav) [10/60] middlewared: setting up plugins (activedirectory) [11/60] middlewared: setting up plugins (pool) [12/60] middlewared: setting up plugins (smb) [13/60] middlewared: setting up plugins (etc) [14/60] middlewared: setting up plugins (usage) [15/60] middlewared: setting up plugins (zettarepl) [16/60] middlewared: setting up plugins (filesystem) [17/60] middlewared: setting up plugins (ipmi) [18/60] middlewared: setting up plugins (sysdataset) [19/60] middlewared: setting up plugins (directoryservices) [20/60] middlewared: setting up plugins (afp) [21/60] middlewared: setting up plugins (iscsi) [22/60] middlewared: setting up plugins (replication) [23/60] middlewared: setting up plugins (unscheduled_reboot_alert) [middlewared: setting up plugins (jail_freebsd) [25/60] middlewared: setting up plugins (trueview) [26/60] middlewared: setting up plugins (ec2) [27/60] middlewared: setting up plugins (crypto) [28/60] middlewared: setting up plugins (disk) [29/60] middlewared: setting up plugins (vm) [30/60] middlewared: setting up plugins (cache) [31/60] middlewared: setting up plugins (rsync) [32/60] middlewared: setting up plugins (vpn) [33/60] middlewared: setting up plugins (snapshot) [34/60] middlewared: setting up plugins (cloud_sync) [35/60] middlewared: setting up plugins (ups) [36/60] middlewared: setting up plugins (ftp) [37/60] middlewared: setting up plugins (nfs) [38/60] middlewared: setting up plugins (interface.link_address) [39 Mar 8 13:44:11 NASBK <118>middlewared: setting up plugins (device_.devd_events) [40/60middlewared: setting up plugins (mail_.gmail) [41/60] middlewared: setting up plugins (zfs_.zfs_events) [42/60] middlewared: setting up plugins (zfs_.events) [43/60] middlewared: setting up plugins (disk_.hddstandby_force) [44middlewared: setting up plugins (disk_.disk_events) [45/60] middlewared: setting up plugins (disk_.smartctl) [46/60] middlewared: setting up plugins (disk_.sync) [47/60] middlewared: setting up plugins (disk_.zfs_guid) [48/60] middlewared: setting up plugins (enterprise.m_series_nvdimm_middlewared: setting up plugins (sysctl.hint_isp_role_freebsmiddlewared: setting up plugins (kmip) [51/60] middlewared: setting up plugins (reporting.events) [52/60] middlewared: setting up plugins (reporting.processes) [53/60middlewared: setting up plugins (truecommand) [54/60] middlewared: setting up plugins (s3_.attachments) [55/60] middlewared: setting up plugins (failover) [56/60] middlewared: setting up plugins (enclosure) [57/60] middlewared: setting up plugins (failover_.remote) [58/60] middlewared: setting up plugins (failover_.event) [59/60] middlewared: setting up plugins (failover_.fenced) [60/60] middlewared: loading completed Mar 8 13:44:11 NASBK Loading early kernel modules: Mar 8 13:44:11 NASBK Syncing disks... Mar 8 13:44:11 NASBK Waiting on devd connection Mar 8 13:44:11 NASBK Enumerating system disks Mar 8 13:44:11 NASBK Enumerating geom disk XML information Mar 8 13:44:11 NASBK Enumerating disk information from database Mar 8 13:44:11 NASBK Syncing disk 1/3 Mar 8 13:44:11 NASBK Syncing disk 2/3 Mar 8 13:44:11 NASBK Syncing disk 3/3 Mar 8 13:44:11 NASBK Syncing disk 4/3 Mar 8 13:44:11 NASBK Syncing disk 5/3 Mar 8 13:44:11 NASBK Syncing disk 6/3 Mar 8 13:44:11 NASBK Syncing disk 7/3 Mar 8 13:44:11 NASBK Syncing all disks complete! Mar 8 13:44:11 NASBK Alarm clock Mar 8 13:44:11 NASBK Starting file system checks: Mar 8 13:44:11 NASBK Mounting local filesystems:. Mar 8 13:44:11 NASBK Beginning pools import Mar 8 13:44:11 NASBK Importing Backup Mar 8 13:44:11 NASBK Pools import completed Mar 8 13:44:11 NASBK Updating CPU Microcode... Mar 8 13:44:11 NASBK Done. Mar 8 13:44:11 NASBK Setting up harvesting: PURE_RDRAND,[UMA],[FS_ATIME],SWI,INTERRUPT,NET_NG,[NET_ETHER],NET_TUN,MOUSE,KEYBOARD,ATTACH,CACHED Mar 8 13:44:11 NASBK Feeding entropy: . Mar 8 13:44:11 NASBK ELF ldconfig path: /lib /usr/lib /usr/lib/compat /usr/local/lib /usr/local/lib/compat/pkg /usr/local/lib/compat /usr/local/lib/compat/pkg /usr/local/lib/e2fsprogs /usr/local/lib/gcc10 /usr/local/lib/perl5/5.32/mach/CORE /usr/local/lib/samba4 Mar 8 13:44:11 NASBK 32-bit compatibility ldconfig path: /usr/local/lib32/compat
