Unable to create cluster volume.

Western Digital Drives - The Preferred Drives of FreeNAS and TrueNAS CORE

rtrombetta

Neophyte
Joined
Oct 6, 2021
Messages
4
Hello guys!
I´m trying to add a cluster volume into a 3 node system. I just installed Truenas Scale into 3 VMs and a VM with TrueCommand (just for testing purposes). All 3 nodes are usingstatic IP addresses and were added into TrueCommand. I can browse and edit all 3 nodes using TrueCommand.

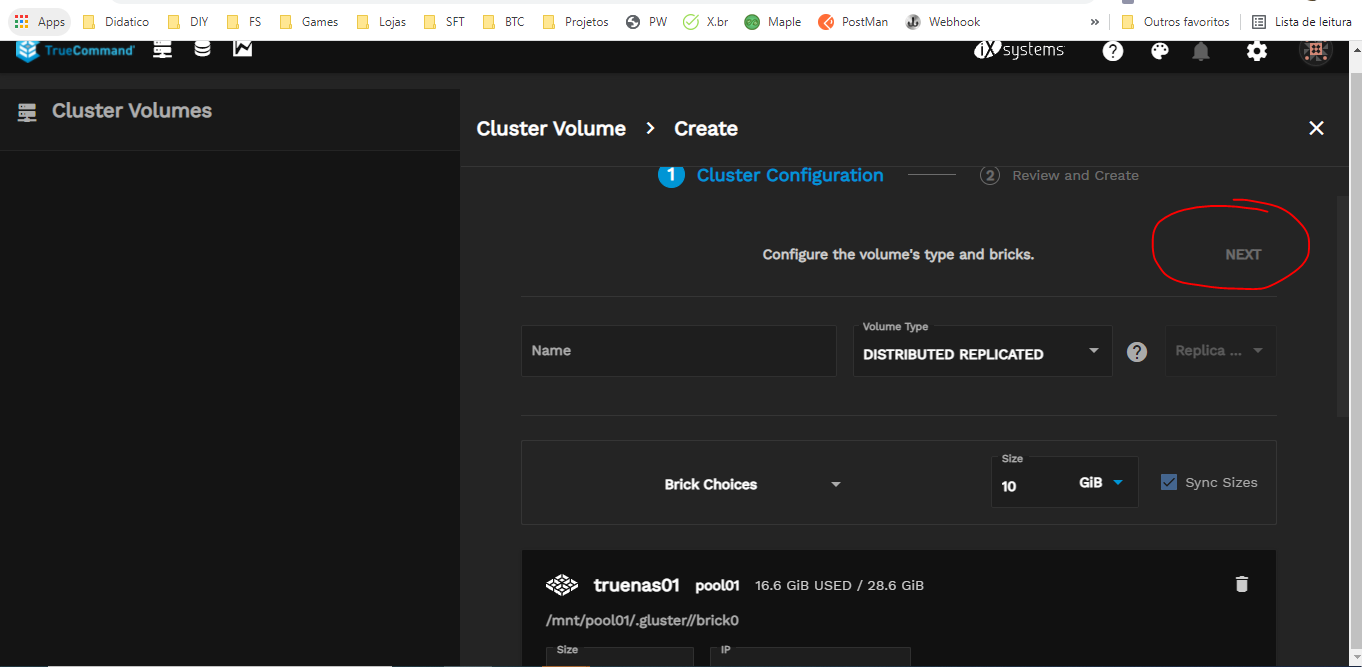

When I click to add a new cluster volume, the "next" button is disabled. I can select all 3 node in the brick choices but the next button remains disabled. I´m missing something ?



Thank You!


sretalla

Wizened Sage
Joined
Jan 1, 2016
Messages
4,923
You didn't name it.


rtrombetta

Neophyte
Joined
Oct 6, 2021
Messages
4
You didn't name it.
Thanks for the answer!

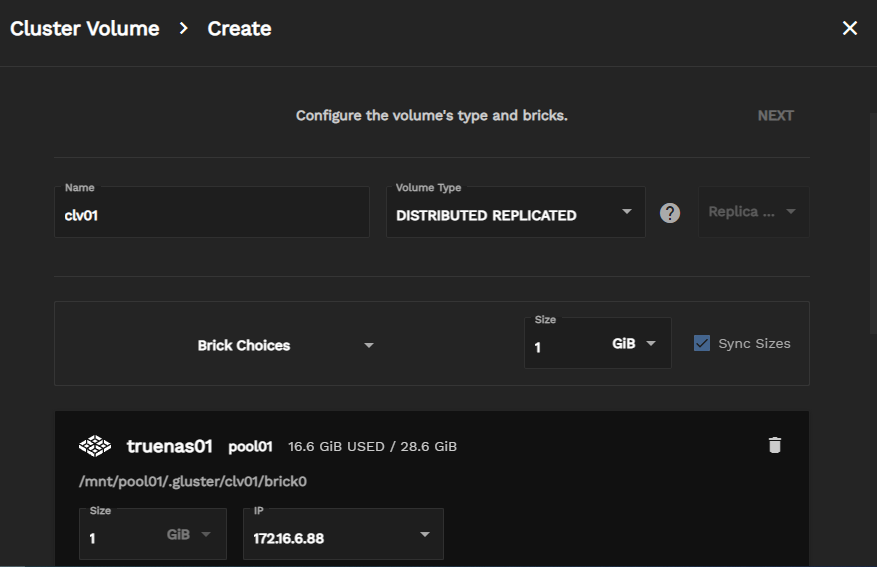

Sorry, I hadn't seen that the image I captured had the volume without the name, but anyway, even completing everything the "next" button remains disabled. As this is my first time using TrueCommand and I am not familiar with it, I would like to know if it is necessary to do some kind of license activation or something similar to activate these functions.
Thank You!


sretalla

Wizened Sage
Joined
Jan 1, 2016
Messages
4,923
No. I was able to get the next button to go blue just by filling in the name after having set enough bricks at the bottom.

I see that with Distributed replicated (you seem to have selected that) that the minimum bricks is 4 to allow that to proceed (i.e. set a replica count of 2).


rtrombetta

Neophyte
Joined
Oct 6, 2021
Messages
4
No. I was able to get the next button to go blue just by filling in the name after having set enough bricks at the bottom.

I see that with Distributed replicated (you seem to have selected that) that the minimum bricks is 4 to allow that to proceed (i.e. set a replica count of 2).
Thank you very much. I was trying to create a cluster volume with 3 nodes...
