Unable to configure FreeNAS-9.10.2 (a476f16) Active directory integration

[venkata]

Hi All,

I am trying to integrate FreeNAS to Windows server 2012 AD server. Based on http://doc.freenas.org/9.10/directoryservice.html#active-directory this document.
But after configuration wbinfo -u, it showing
could not obtain winbind interface details: WBC_ERR_WINBIND_NOT_AVAILABLE
could not obtain winbind domain name!
Error looking up domain users

My test AD server: ad3.test.com-10.0.0.132
Domain: test.com

FreeNAS server: freenas.test.com - 10.0.0.128

result of : wbinfo -t
could not obtain winbind interface details: WBC_ERR_WINBIND_NOT_AVAILABLE
could not obtain winbind domain name!
checking the trust secret for domain (null) via RPC calls failed
failed to call wbcCheckTrustCredentials: WBC_ERR_WINBIND_NOT_AVAILABLE
Could not check secret

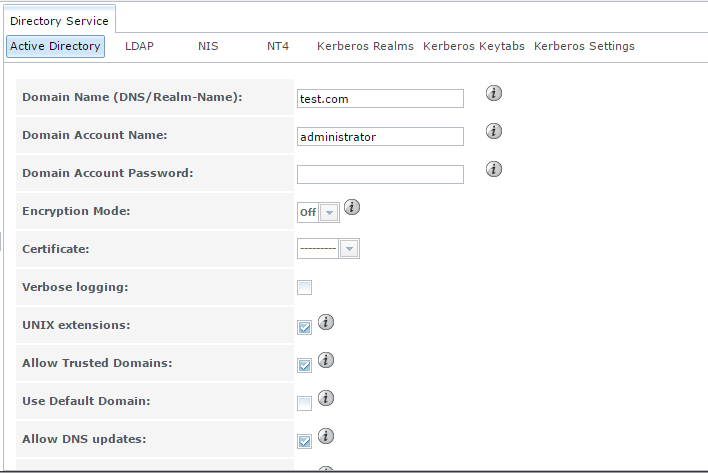

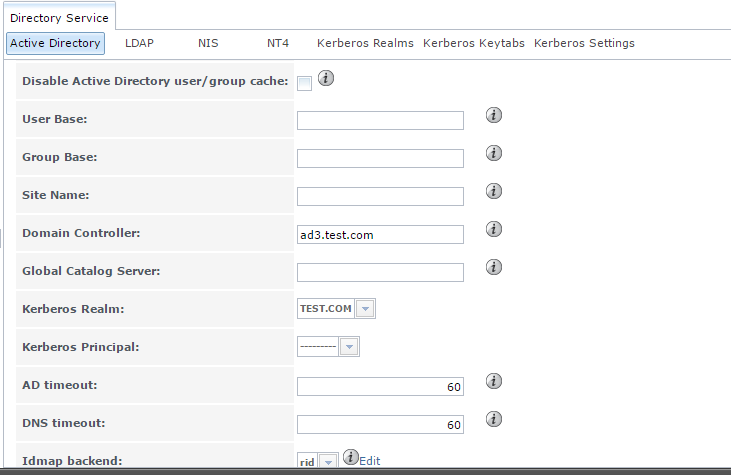

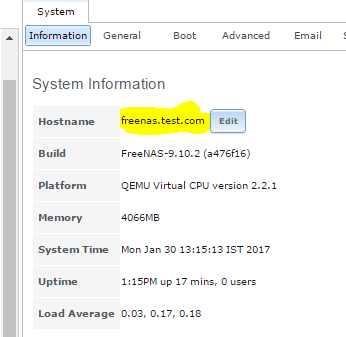

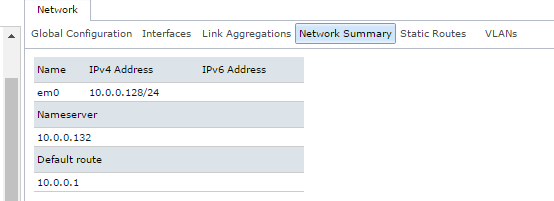

Here i am uploaded all my freeNAS configuration screenshot, please help me regard this..

Thank you so much for advance..



[tvsjr]

In the AD config, there's an "enabled" checkbox about 2/3 of the way down. I've had it become unchecked (bounced both DCs simultaneously and pissed it off... oops) and had the same behavior. Have you checked that box?

Any relevant information in the log files? /var/log/messages and anything in /var/log/samba4 are good places to start.

User name = administrator? *cringe*
