TrueNas core 12.0-U1.1 reporting same iscsi target multiple times?

[frankw]

Using proxmox 6.3-3 attempting to add iscsi from a TrueNAS core 12.0-U1.1.

Adding iScsi through iscsiadm works, but it ends up creating TWO devices for the same target, which then has LVM creation fail.

The truenas box works fine to provide iscsi targets to other machines.

scanning shows the diffferent targets served by the box.
root@proxmox:~# pvesm scan iscsi 192.168.1.30
iqn.2005-10.org.freenas.ctl:pbs-backup 192.168.1.30:3260
iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks 192.168.1.30:3260
iqn.2005-10.org.freenas.ctl:windows-data 192.168.1.30:3260

However, when adding it, it seems to create one device using the DNS name as the portal name and one device using the IP as the portal name. It doesn't matter whether I specify the DNS name or the IP address as the portal in iscsiadm

root@proxmox:~# iscsiadm --mode node -d 3 --targetname iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks --portal 192.168.1.30 --login
iscsiadm: ip 192.168.1.30, port -1, tgpt -1
iscsiadm: Max file limits 1024 1048576
iscsiadm: exec_node_op: : node [iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks,192.168.1.30,3260] sid 0
iscsiadm: default: Creating session 1/1
Logging in to [iface: default, target: iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks, portal: truenas.theweigels.org,3260] (multiple)
iscsiadm: default: Creating session 1/1
Logging in to [iface: default, target: iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks, portal: 192.168.1.30,3260] (multiple)
Login to [iface: default, target: iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks, portal: truenas.theweigels.org,3260] successful.
Login to [iface: default, target: iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks, portal: 192.168.1.30,3260] successful.

And trying to create LVM fails. Doing it manually it results in the reasonable error about not being able to use the device as duplicates exist:
root@proxmox:~# pvcreate /dev/sde
/dev/sdd: open failed: No medium found
WARNING: Not using device /dev/sdf for PV aqqceH-TDt5-ojEn-Evtl-bjan-sEUd-JL1I41.
WARNING: PV aqqceH-TDt5-ojEn-Evtl-bjan-sEUd-JL1I41 prefers device /dev/sde because device was seen first.
Cannot use device /dev/sde with duplicates.

root@proxmox:~# lsblk -p -f
NAME FSTYPE LABEL UUID FSAVAIL FSUSE% MOUNTPOINT
/dev/sde LVM2_member aqqceH-TDt5-ojEn-Evtl-bjan-sEUd-JL1I41
/dev/sdf LVM2_member aqqceH-TDt5-ojEn-Evtl-bjan-sEUd-JL1I41
/dev/sr0

Any ideas? Anyone else seeing this?

Thanks!

Frank



[Kris Moore]

Offhand I'm not sure we've really seen this before. Suggest you create a ticket on jira.ixsystems.com, attach a debug (System -> Advanced -> Save Debug) and then we'll take a deeper look to see if this is a bug or some configuration oddity.



[HoneyBadger]

If you have multiple NICs in the machine, even if not designated for iSCSI traffic, you may have inadvertently created a scenario where there are multiple paths to the TrueNAS machine (eg: via routing from another subnet).

Can you describe your network config (NIC count, IP/subnet/VLAN) of the ProxMox machine, as well as provide the output of multipath -ll from it?



[frankw]

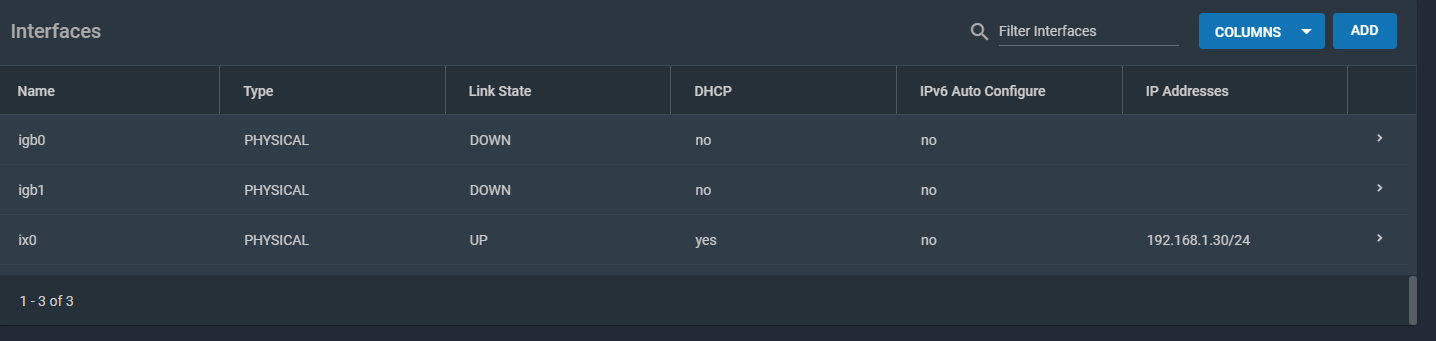

@HoneyBadger that was my first thought as well. I had a 10Gbe and a 1Gbe but on the same subnet on the TrueNAS box. However, I disabled the 1Gbe interface and the issue remains unchanged.

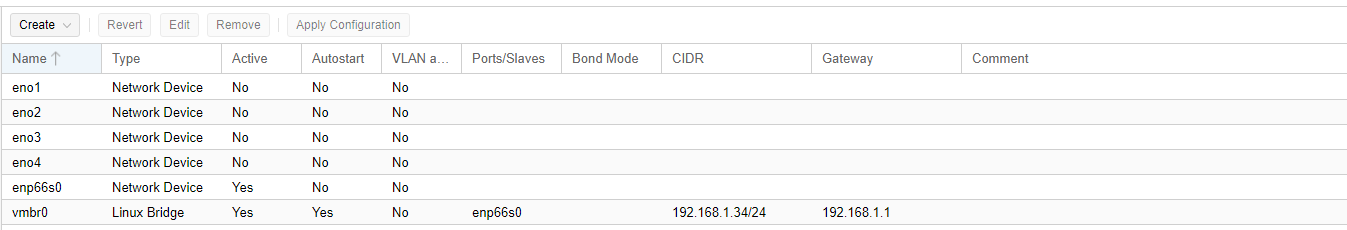

Proxmox also only has one physical interface

multipath on the proxmox box also does not seem to detect multiple routes to the TrueNas box

root@proxmox:~# multipath -v 3 -ll
Jan 21 10:24:00 | set open fds limit to 1048576/1048576
Jan 21 10:24:00 | loading //lib/multipath/libchecktur.so checker
Jan 21 10:24:00 | checker tur: message table size = 3
Jan 21 10:24:00 | loading //lib/multipath/libprioconst.so prioritizer
Jan 21 10:24:00 | foreign library "nvme" loaded successfully
Jan 21 10:24:00 | sda: udev property ID_WWN whitelisted
Jan 21 10:24:00 | sda: mask = 0x7
Jan 21 10:24:00 | sda: dev_t = 8:0
Jan 21 10:24:00 | sda: size = 976773168
Jan 21 10:24:00 | sda: vendor = ATA
Jan 21 10:24:00 | sda: product = Samsung SSD 860
Jan 21 10:24:00 | sda: rev = 3B6Q
Jan 21 10:24:00 | sda: h:b:t:l = 0:0:4:0
Jan 21 10:24:00 | sda: tgt_node_name =
Jan 21 10:24:00 | sda: path state = running
Jan 21 10:24:00 | sda: 60801 cyl, 255 heads, 63 sectors/track, start at 0
Jan 21 10:24:00 | sda: serial = S4CMNE0M703486B
Jan 21 10:24:00 | sda: get_state
Jan 21 10:24:00 | sda: detect_checker = yes (setting: multipath internal)
Jan 21 10:24:00 | failed to issue vpd inquiry for pgc9
Jan 21 10:24:00 | sda: path_checker = tur (setting: multipath internal)
Jan 21 10:24:00 | sda: checker timeout = 90 s (setting: kernel sysfs)
Jan 21 10:24:00 | sda: tur state = up
Jan 21 10:24:00 | sdb: udev property ID_WWN whitelisted
Jan 21 10:24:00 | sdb: mask = 0x7
Jan 21 10:24:00 | sdb: dev_t = 8:16
Jan 21 10:24:00 | sdb: size = 976773168
Jan 21 10:24:00 | sdb: vendor = ATA
Jan 21 10:24:00 | sdb: product = Samsung SSD 860
Jan 21 10:24:00 | sdb: rev = 3B6Q
Jan 21 10:24:00 | sdb: h:b:t:l = 0:0:5:0
Jan 21 10:24:00 | sdb: tgt_node_name =
Jan 21 10:24:00 | sdb: path state = running
Jan 21 10:24:00 | sdb: 60801 cyl, 255 heads, 63 sectors/track, start at 0
Jan 21 10:24:00 | sdb: serial = S4CMNE0M703477N
Jan 21 10:24:00 | sdb: get_state
Jan 21 10:24:00 | sdb: detect_checker = yes (setting: multipath internal)
Jan 21 10:24:00 | failed to issue vpd inquiry for pgc9
Jan 21 10:24:00 | sdb: path_checker = tur (setting: multipath internal)
Jan 21 10:24:00 | sdb: checker timeout = 90 s (setting: kernel sysfs)
Jan 21 10:24:00 | sdb: tur state = up
Jan 21 10:24:00 | sdc: udev property ID_WWN whitelisted
Jan 21 10:24:00 | sdc: mask = 0x7
Jan 21 10:24:00 | sdc: dev_t = 8:32
Jan 21 10:24:00 | sdc: size = 570949632
Jan 21 10:24:00 | sdc: vendor = DELL
Jan 21 10:24:00 | sdc: product = PERC H310
Jan 21 10:24:00 | sdc: rev = 2.12
Jan 21 10:24:00 | sdc: h:b:t:l = 0:2:0:0
Jan 21 10:24:00 | sdc: tgt_node_name =
Jan 21 10:24:00 | sdc: path state = running
Jan 21 10:24:00 | sdc: 35539 cyl, 255 heads, 63 sectors/track, start at 0
Jan 21 10:24:00 | sdc: serial = 0048b250098d003c27000f0f17c0110b
Jan 21 10:24:00 | sdc: get_state
Jan 21 10:24:00 | sdc: detect_checker = yes (setting: multipath internal)
Jan 21 10:24:00 | failed to issue vpd inquiry for pgc9
Jan 21 10:24:00 | sdc: path_checker = tur (setting: multipath internal)
Jan 21 10:24:00 | sdc: checker timeout = 90 s (setting: kernel sysfs)
Jan 21 10:24:00 | sdc: tur state = up
Jan 21 10:24:00 | sdd: blacklisted, udev property missing
Jan 21 10:24:00 | sr0: udev property ID_WWN whitelisted
Jan 21 10:24:00 | sr0: device node name blacklisted
Jan 21 10:24:00 | sde: udev property ID_WWN whitelisted
Jan 21 10:24:00 | sde: mask = 0x7
Jan 21 10:24:00 | sde: dev_t = 8:64
Jan 21 10:24:00 | sde: size = 21474836544
Jan 21 10:24:00 | sde: vendor = TrueNAS
Jan 21 10:24:00 | sde: product = iSCSI Disk
Jan 21 10:24:00 | sde: rev = 0123
Jan 21 10:24:00 | sde: h:b:t:l = 8:0:0:21
Jan 21 10:24:00 | sde: tgt_node_name = iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks
Jan 21 10:24:00 | sde: path state = running
Jan 21 10:24:00 | sde: 65535 cyl, 255 heads, 63 sectors/track, start at 0
Jan 21 10:24:00 | sde: serial = 0cc47a6a5abe003
Jan 21 10:24:00 | sde: get_state
Jan 21 10:24:00 | sde: detect_checker = yes (setting: multipath internal)
Jan 21 10:24:00 | failed to issue vpd inquiry for pgc9
Jan 21 10:24:00 | sde: path_checker = tur (setting: storage device autodetected)
Jan 21 10:24:00 | sde: checker timeout = 30 s (setting: kernel sysfs)
Jan 21 10:24:00 | sde: tur state = up
Jan 21 10:24:00 | sdf: udev property ID_WWN whitelisted
Jan 21 10:24:00 | sdf: mask = 0x7
Jan 21 10:24:00 | sdf: dev_t = 8:80
Jan 21 10:24:00 | sdf: size = 21474836544
Jan 21 10:24:00 | sdf: vendor = TrueNAS
Jan 21 10:24:00 | sdf: product = iSCSI Disk
Jan 21 10:24:00 | sdf: rev = 0123
Jan 21 10:24:00 | sdf: h:b:t:l = 9:0:0:21
Jan 21 10:24:00 | sdf: tgt_node_name = iqn.2005-10.org.freenas.ctl:r620proxmox-vmdisks
Jan 21 10:24:00 | sdf: path state = running
Jan 21 10:24:00 | sdf: 65535 cyl, 255 heads, 63 sectors/track, start at 0
Jan 21 10:24:00 | sdf: serial = 0cc47a6a5abe003
Jan 21 10:24:00 | sdf: get_state
Jan 21 10:24:00 | sdf: detect_checker = yes (setting: multipath internal)
Jan 21 10:24:00 | failed to issue vpd inquiry for pgc9
Jan 21 10:24:00 | sdf: path_checker = tur (setting: storage device autodetected)
Jan 21 10:24:00 | sdf: checker timeout = 30 s (setting: kernel sysfs)
Jan 21 10:24:00 | sdf: tur state = up
Jan 21 10:24:00 | loop0: blacklisted, udev property missing
Jan 21 10:24:00 | loop1: blacklisted, udev property missing
Jan 21 10:24:00 | loop2: blacklisted, udev property missing
Jan 21 10:24:00 | loop3: blacklisted, udev property missing
Jan 21 10:24:00 | loop4: blacklisted, udev property missing
Jan 21 10:24:00 | loop5: blacklisted, udev property missing
Jan 21 10:24:00 | loop6: blacklisted, udev property missing
Jan 21 10:24:00 | loop7: blacklisted, udev property missing
===== paths list =====
uuid hcil dev dev_t pri dm_st chk_st vend/prod/rev dev_st
0:0:4:0 sda 8:0 -1 undef undef ATA,Samsung SSD 860 unknown
0:0:5:0 sdb 8:16 -1 undef undef ATA,Samsung SSD 860 unknown
0:2:0:0 sdc 8:32 -1 undef undef DELL,PERC H310 unknown
8:0:0:21 sde 8:64 -1 undef undef TrueNAS,iSCSI Disk unknown
9:0:0:21 sdf 8:80 -1 undef undef TrueNAS,iSCSI Disk unknown
Jan 21 10:24:00 | libdevmapper version 1.02.155 (2018-12-18)
Jan 21 10:24:00 | DM multipath kernel driver v1.13.0
Jan 21 10:24:00 | unloading const prioritizer
Jan 21 10:24:00 | unloading tur checker



[frankw]

Offhand I'm not sure we've really seen this before. Suggest you create a ticket on jira.ixsystems.com, attach a debug (System -> Advanced -> Save Debug) and then we'll take a deeper look to see if this is a bug or some configuration oddity.

Done. https://jira.ixsystems.com/browse/NAS-109083



[frankw]

If you have multiple NICs in the machine, even if not designated for iSCSI traffic, you may have inadvertently created a scenario where there are multiple paths to the TrueNAS machine (eg: via routing from another subnet).

Can you describe your network config (NIC count, IP/subnet/VLAN) of the ProxMox machine, as well as provide the output of multipath -ll from it?

Your gut turned out to be correct. I always assumed multipath only occurs and is used if there are multiple physical NICs and routes between target and SAN. Turns out multipathig also is the answer to working if you only have the system believing there are multiple devices.

So using multipath config I was able to work around the issue.

Followed the multipath docs, and even though both devices have a single wwid (as both devices report the same wwid) it now seems to roundrobin and treat them as a multipath device.

I still am very confused though why the TrueNAS reports multiple devices to iscsiadm, given there is only one pyshical route between the boxes and there is a single portal. So leaving the bug open, as I had not found anyone else runnning into this situation and it seems like a common scenario.

And for anyone trying to do the same fix/workaround, here is the simple multipath.conf file that did the magic for me:

root@proxmox:~# cat /etc/multipath.conf
blacklist {
wwid .*
}

blacklist_exceptions {
wwid "36589cfc000000c0b4c7b5d47c5f59bf4"
}
multipaths {
multipath {
wwid "36589cfc000000c0b4c7b5d47c5f59bf4"
alias mpath0
}
}

defaults {
polling_interval 2
path_selector "round-robin 0"
path_grouping_policy multibus
uid_attribute ID_SERIAL
rr_min_io 100
failback immediate
no_path_retry queue
user_friendly_names yes
}



[HoneyBadger]

Thanks for circling back and posting the how-to for a fix. I didn't have a chance to try a ProxMox setup to reproduce it unfortunately, but if it consistently shows up, even on older versions of FreeNAS, it might be considered as a hypervisor bug or a problem in iscsiadm itself.
