Hi,
I could not figure out whats happened on 01 May on our production server.

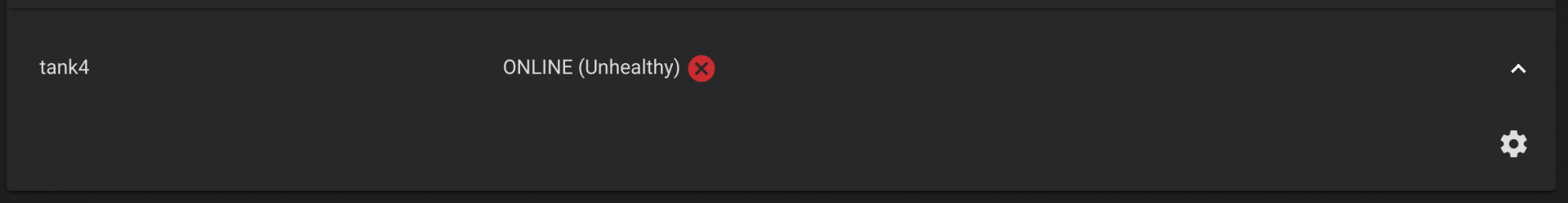

We've 2 pool on storage. One of is giant 12x4TB array (tank1) and the other one is single SSD drive (480GB) pool which name is "tank4".
Suddenly, tank4 became unavailable at 11:00 am. Actually it won't be a problem because all kinds of stuff stored in tank1 but all entire NFS service crashed due to tank4 failure. Each application who try to connect NFS on our application site throwed an error until we reset to server from power button.
We could not stop/start NFS service over GUI.
We could not restart NFS service over CLI.
When I checked 'ps aux | grep nfs', process 1886 stucked as running. When I tried to kill 1886, nothing changed. It nailed there!
Everytime I get an error like that;
When I tried to reboot system over CLI, it still tried to stop that process :)
So I have to reset over power button.
Now, I collect all logs during failure so maybe some of our guru's could explain.
I could not figure out whats happened on 01 May on our production server.
We've 2 pool on storage. One of is giant 12x4TB array (tank1) and the other one is single SSD drive (480GB) pool which name is "tank4".
Suddenly, tank4 became unavailable at 11:00 am. Actually it won't be a problem because all kinds of stuff stored in tank1 but all entire NFS service crashed due to tank4 failure. Each application who try to connect NFS on our application site throwed an error until we reset to server from power button.
We could not stop/start NFS service over GUI.
We could not restart NFS service over CLI.
When I checked 'ps aux | grep nfs', process 1886 stucked as running. When I tried to kill 1886, nothing changed. It nailed there!
Everytime I get an error like that;
Code:
[2021/05/01 15:36:30] (WARNING) middlewared.plugins.service_.services.base_freebsd.freebsd_service():134 - lockd forcestop failed with code 1: 'lockd not running?\n' [2021/05/01 15:36:31] (WARNING) middlewared.plugins.service_.services.base_freebsd.freebsd_service():134 - statd forcestop failed with code 1: 'statd not running?\n'
When I tried to reboot system over CLI, it still tried to stop that process :)
Code:
[2021/05/01 15:36:30] (WARNING) middlewared.plugins.service_.services.base_freebsd.freebsd_service():134 - lockd forcestop failed with code 1: 'lockd not running?\n' [2021/05/01 15:36:31] (WARNING) middlewared.plugins.service_.services.base_freebsd.freebsd_service():134 - statd forcestop failed with code 1: 'statd not running?\n' root@freenas2[/var/log]# /usr/sbin/service nfsd onestart nfsd already running? (pid=1886). root@freenas2[/var/log]# /usr/sbin/service nfsd restart Stopping nfsd. Waiting for PIDS: 1886
So I have to reset over power button.
Now, I collect all logs during failure so maybe some of our guru's could explain.
Code:
[2021/05/01 11:18:28] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 11:53:30] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 12:18:31] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 12:53:32] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 13:18:33] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 13:53:35] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 14:18:36] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 14:53:37] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 15:43:22] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 15:43:23] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 15:43:23] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 15:43:35] (ERROR) libzfs.<listcomp>():430 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended [2021/05/01 15:43:37] (ERROR) libzfs.query():494 - Failed to retrieve dataset handle for tank4: pool I/O is currently suspended
Code:
May 1 10:58:40 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 1793 loginfo 31170000 May 1 10:58:40 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 1121 loginfo 31170000 May 1 10:58:40 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 1150 loginfo 31170000 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 ff 30 00 00 68 00 May 1 10:58:40 freenas2 mpr0: (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:40 freenas2 Controller reported scsi ioc terminated tgt 20 SMID 831 loginfo 31170000 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): Retrying command, 3 more tries remain May 1 10:58:40 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 785 loginfo 31170000 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1e 02 3f 28 00 00 28 00 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): Retrying command, 3 more tries remain May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 1d 77 bf 00 00 00 10 00 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): Retrying command, 3 more tries remain May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 fe e8 00 00 20 00 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): Retrying command, 3 more tries remain May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 37 61 20 78 00 00 08 00 May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:40 freenas2 (da12:mpr0:0:20:0): Retrying command, 3 more tries remain May 1 10:58:41 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 458 loginfo 31170000 May 1 10:58:41 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 1645 loginfo 31170000 May 1 10:58:41 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 2152 loginfo 31170000 May 1 10:58:41 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 1973 loginfo 31170000 May 1 10:58:41 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 485 loginfo 31170000 May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 37 61 20 78 00 00 08 00 May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): Retrying command, 2 more tries remain May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 1d 77 bf 00 00 00 10 00 May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): Retrying command, 2 more tries remain May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1e 02 3f 28 00 00 28 00 May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): Retrying command, 2 more tries remain May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 fe e8 00 00 20 00 May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): Retrying command, 2 more tries remain May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 ff 30 00 00 68 00 May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:41 freenas2 (da12:mpr0:0:20:0): Retrying command, 2 more tries remain May 1 10:58:46 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 2060 loginfo 31110e05 May 1 10:58:46 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 949 loginfo 31110e05 May 1 10:58:46 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 617 loginfo 31110e05 May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 ff 30 00 00 68 00 May 1 10:58:46 freenas2 mpr0: (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): Retrying command, 1 more tries remain May 1 10:58:46 freenas2 Controller reported scsi ioc terminated tgt 20 SMID 1865 loginfo 31110e05 May 1 10:58:46 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 481 loginfo 31110e05 May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 fe e8 00 00 20 00 May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): Retrying command, 1 more tries remain May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1e 02 3f 28 00 00 28 00 May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): Retrying command, 1 more tries remain May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 1d 77 bf 00 00 00 10 00 May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): Retrying command, 1 more tries remain May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 37 61 20 78 00 00 08 00 May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:46 freenas2 (da12:mpr0:0:20:0): Retrying command, 1 more tries remain May 1 10:58:47 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 953 loginfo 31170000 May 1 10:58:47 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 1470 loginfo 31170000 May 1 10:58:47 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 632 loginfo 31170000 May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 37 61 20 78 00 00 08 00 May 1 10:58:47 freenas2 mpr0: (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): Retrying command, 0 more tries remain May 1 10:58:47 freenas2 Controller reported scsi ioc terminated tgt 20 SMID 273 loginfo 31170000 May 1 10:58:47 freenas2 mpr0: Controller reported scsi ioc terminated tgt 20 SMID 170 loginfo 31170000 May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 1d 77 bf 00 00 00 10 00 May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): Retrying command, 0 more tries remain May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1e 02 3f 28 00 00 28 00 May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): Retrying command, 0 more tries remain May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 fe e8 00 00 20 00 May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): Retrying command, 0 more tries remain May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): WRITE(10). CDB: 2a 00 1a 01 ff 30 00 00 68 00 May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): CAM status: CCB request completed with an error May 1 10:58:47 freenas2 (da12:mpr0:0:20:0): Retrying command, 0 more tries remain May 1 10:58:54 freenas2 (da12:mpr0:0:20:0): READ(10). CDB: 28 00 37 61 20 78 00 00 08 00 May 1 10:58:54 freenas2 (da12:mpr0:0:20:0): CAM status: SCSI Status Error May 1 10:58:54 freenas2 (da12:mpr0:0:20:0): SCSI status: Check Condition May 1 10:58:54 freenas2 (da12:mpr0:0:20:0): SCSI sense: UNIT ATTENTION asc:29,0 (Power on, reset, or bus device reset occurred) May 1 10:58:54 freenas2 (da12:mpr0:0:20:0): Error 6, Retries exhausted May 1 10:58:54 freenas2 (da12:mpr0:0:20:0): Invalidating pack May 1 10:58:54 freenas2 Solaris: WARNING: Pool 'tank4' has encountered an uncorrectable I/O failure and has been suspended. May 1 11:00:04 freenas2 1 2021-05-01T11:00:04.177442+03:00 freenas2.istanbul mountd 1879 - - can't open /etc/zfs/exports May 1 15:43:38 freenas2 GEOM_ELI: Device mirror/swap4.eli destroyed. May 1 15:43:39 freenas2 GEOM_MIRROR: Device swap4: provider destroyed. May 1 15:43:39 freenas2 GEOM_MIRROR: Device swap4 destroyed. May 1 15:43:39 freenas2 GEOM_ELI: Device mirror/swap3.eli destroyed. May 1 15:43:40 freenas2 GEOM_MIRROR: Device swap3: provider destroyed. May 1 15:43:40 freenas2 GEOM_MIRROR: Device swap3 destroyed. May 1 15:43:40 freenas2 GEOM_ELI: Device mirror/swap2.eli destroyed. May 1 15:43:40 freenas2 GEOM_MIRROR: Device swap2: provider destroyed. May 1 15:43:40 freenas2 GEOM_MIRROR: Device swap2 destroyed. May 1 15:43:41 freenas2 GEOM_ELI: Device mirror/swap1.eli destroyed. May 1 15:43:41 freenas2 GEOM_MIRROR: Device swap1: provider destroyed. May 1 15:43:41 freenas2 GEOM_MIRROR: Device swap1 destroyed. May 1 15:43:41 freenas2 GEOM_ELI: Device mirror/swap0.eli destroyed. May 1 15:43:42 freenas2 GEOM_MIRROR: Device swap0: provider destroyed. May 1 15:43:42 freenas2 GEOM_MIRROR: Device swap0 destroyed. May 1 15:47:42 freenas2 1 2021-05-01T15:47:42.675726+03:00 freenas2.istanbul collectd 2056 - - Traceback (most recent call last): File "/usr/local/lib/collectd_pyplugins/disktemp.py", line 62, in read with Client() as c: File "/usr/local/lib/python3.8/site-packages/middlewared/client/client.py", line 281, in __init__ self._ws.connect() File "/usr/local/lib/python3.8/site-packages/middlewared/client/client.py", line 124, in connect rv = super(WSClient, self).connect() File "/usr/local/lib/python3.8/site-packages/ws4py/client/__init__.py", line 223, in connect bytes = self.sock.recv(128) socket.timeout: timed out May 1 15:48:58 freenas2 1 2021-05-01T15:48:58.033641+03:00 freenas2.istanbul reboot 5869 - - rebooted by root May 1 15:50:30 freenas2 1 2021-05-01T15:50:30.154692+03:00 freenas2.istanbul shutdown 6227 - - reboot by root: May 1 15:50:53 freenas2 proftpd[1962]: 127.0.0.1 - ProFTPD killed (signal 15) May 1 15:50:53 freenas2 proftpd[1962]: 127.0.0.1 - ProFTPD 1.3.6b standalone mode SHUTDOWN May 1 15:50:53 freenas2 1 2021-05-01T15:50:53.988686+03:00 freenas2.istanbul ntpd 1937 - - ntpd exiting on signal 15 (Terminated)
Code:
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p2 amd64] (local build) Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Micron 5100 Pro / 5200 SSDs Device Model: MTFDDAK480TDN Serial Number: 200426191BAF LU WWN Device Id: 5 00a075 126191baf Add. Product Id: DELL(tm) Firmware Version: D1DF003 User Capacity: 480,103,981,056 bytes [480 GB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: Solid State Device Form Factor: 2.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Thu May 6 09:46:32 2021 +03 SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 1474) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 26) minutes. Conveyance self-test routine recommended polling time: ( 3) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002e 100 100 050 Old_age Always - 0 5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0 9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 9403 12 Power_Cycle_Count 0x0032 100 100 001 Old_age Always - 188 13 Read_Soft_Error_Rate 0x0032 100 100 000 Old_age Always - 0 173 Avg_Block-Erase_Count 0x0032 100 100 000 Old_age Always - 5 174 Unexpect_Power_Loss_Ct 0x0032 100 100 000 Old_age Always - 33 179 Used_Rsvd_Blk_Cnt_Tot 0x0033 100 100 000 Pre-fail Always - 0 180 Unused_Rsvd_Blk_Cnt_Tot 0x0032 000 000 000 Old_age Always - 9898 181 Program_Fail_Cnt_Total 0x0032 100 100 001 Old_age Always - 0 182 Erase_Fail_Count_Total 0x0032 100 100 001 Old_age Always - 0 183 SATA_Int_Downshift_Ct 0x0032 100 100 000 Old_age Always - 0 184 End-to-End_Error 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 42 193 Unknown_SSD_Attribute 0x0032 100 100 000 Old_age Always - 0 194 Temperature_Celsius 0x0022 059 037 000 Old_age Always - 41 (Min/Max 16/63) 195 Hardware_ECC_Recovered 0x002e 100 100 000 Old_age Always - 0 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0032 100 100 000 Old_age Always - 0 199 UDMA_CRC_Error_Count 0x0032 100 100 000 Old_age Always - 0 201 Unknown_SSD_Attribute 0x0033 100 100 001 Pre-fail Always - 0 202 Percent_Lifetime_Remain 0x0033 100 100 005 Pre-fail Always - 9659 206 Write_Error_Rate 0x000e 100 100 000 Old_age Always - 0 210 RAIN_Success_Recovered 0x0032 100 100 000 Old_age Always - 0 233 Media_Wearout_Indicator 0x0032 100 100 000 Old_age Always - 9307331734 245 Unknown_Attribute 0x0030 100 100 001 Old_age Offline - 100 247 Host_Program_Page_Count 0x0032 100 100 000 Old_age Always - 290855349 248 Bckgnd_Program_Page_Cnt 0x0032 100 100 000 Old_age Always - 14373281 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 9394 - # 2 Short offline Completed without error 00% 9370 - # 3 Short offline Completed without error 00% 9346 - # 4 Short offline Completed without error 00% 9322 - # 5 Short offline Completed without error 00% 9298 - # 6 Offline Completed without error 00% 9290 - # 7 Extended offline Completed without error 00% 9290 - # 8 Short offline Completed without error 00% 9290 - # 9 Short offline Completed without error 00% 9290 - #10 Short offline Completed without error 00% 9274 - #11 Short offline Completed without error 00% 9250 - #12 Short offline Completed without error 00% 9226 - #13 Short offline Completed without error 00% 9202 - #14 Short offline Completed without error 00% 9178 - #15 Short offline Completed without error 00% 9154 - #16 Short offline Completed without error 00% 9130 - #17 Short offline Completed without error 00% 9106 - #18 Short offline Completed without error 00% 9082 - #19 Short offline Completed without error 00% 9058 - #20 Short offline Completed without error 00% 9034 - #21 Short offline Completed without error 00% 9010 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
