SMB / NFS not accessible via second LAN Card

[damonizer]

This has me stumped , am on scale latest

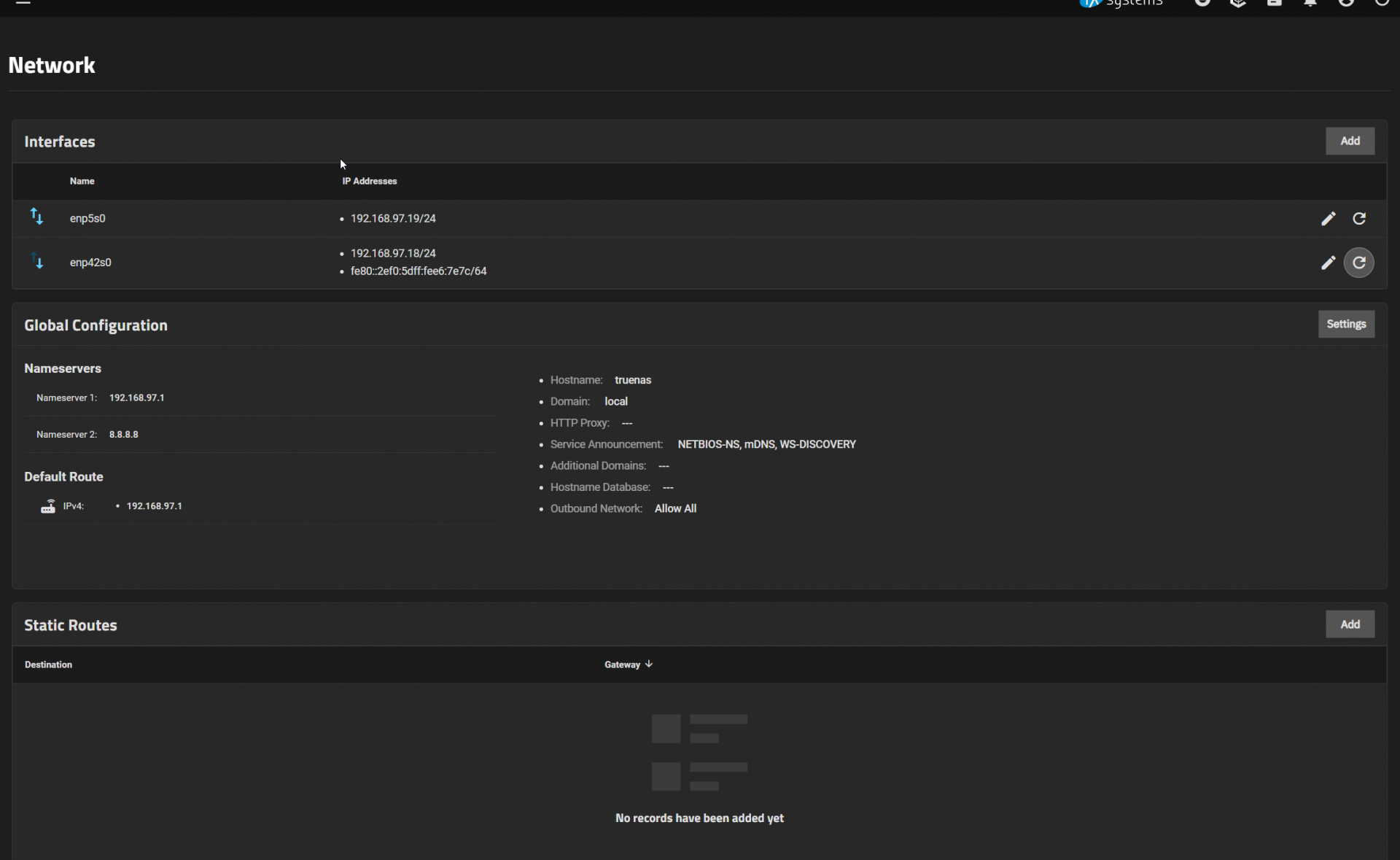

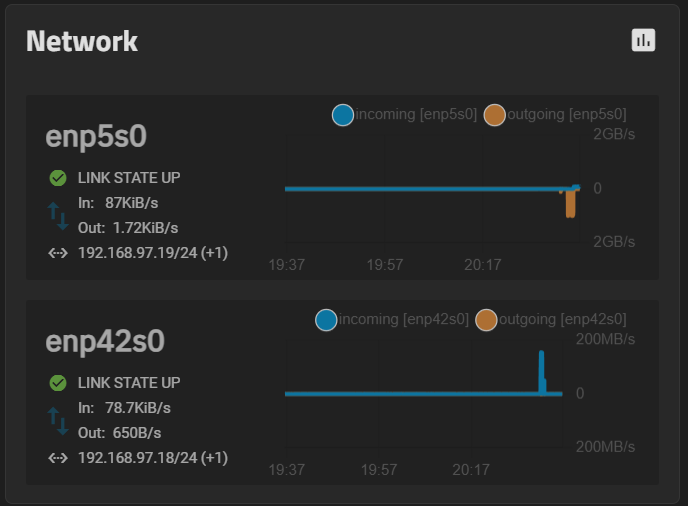

I have 2 Ethernet Cards connected, one that is 1 gb (x.x.x.19) and another 2.5g.(x.x.x.18)

19 is where I access the NAS UI etc and 18 is where I have Plex and SMB and NFS running.

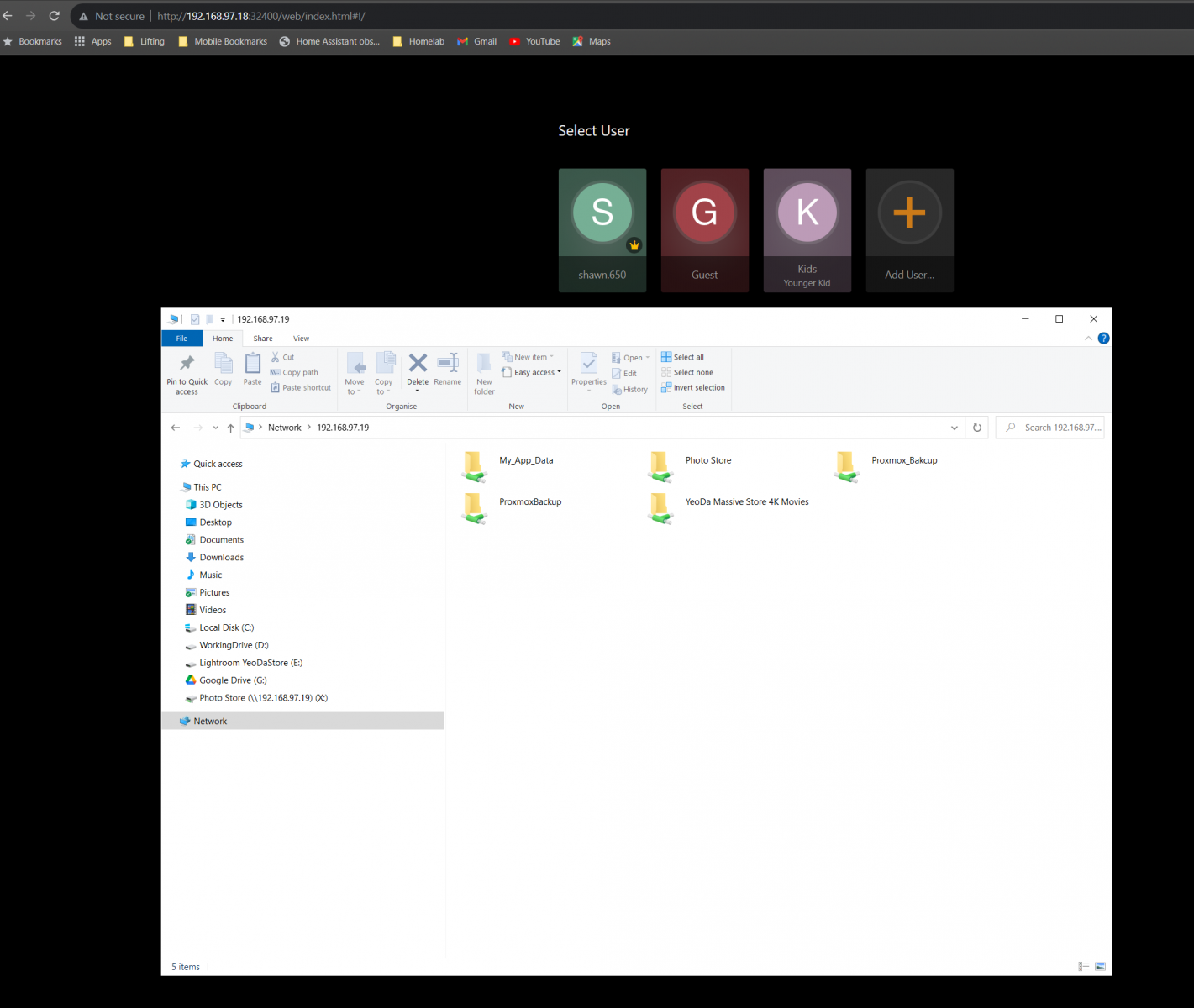

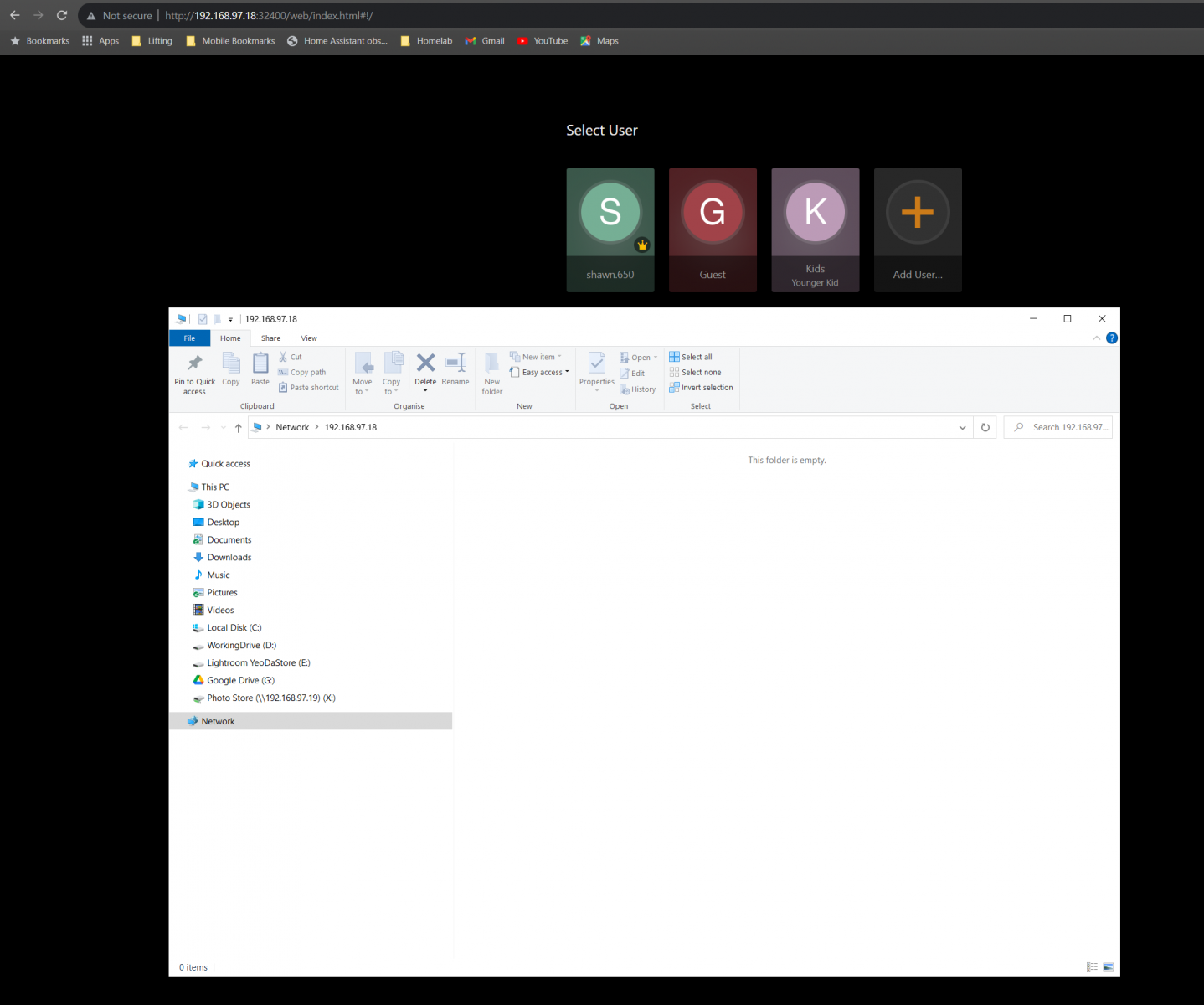

Used to work but now I can't seem to browse via smb to 18 anymore but plex is working just fine via the IP address on the browser



[Patrick M. Hausen]

You cannot have two interfaces in the same network. That violates all fundamental IP/routing concepts.
Use two different networks or deactivate the 1G.

Resource - Multiple network interfaces on a single subnet

We've had a number of people over the years bring up the topic of multiple network interfaces on a single subnet. Often done by Windows administrators or storage admins, where it works to varying degrees, this is sadly not proper IP networking...

www.truenas.com



[damonizer]

Am just going to use the x.18 interface and monitor ...

Thank you for educating me on the fundamentals.
