SAS Topology tree view

[RegularJoe]

Hi All,

I can't seem to find anyone talking about this. In the adapter BIOS if that is enabled the card will show you how many drives are running off each card and port. Is there a command to get this type of info inside of FreeNAS 9.3?

This thread has some info but I do not want to reboot to get to the BIOS to look at this setting. ;)
https://forums.freenas.org/index.php?threads/confused-about-that-lsi-card-join-the-crowd.11901/

Thanks,
Joe



[Ericloewe]

I'm sure it is. The tool is sas2ircu.

Don't ask me for details, I've never used it, since I don't have any SAS devices. :p



[depasseg]

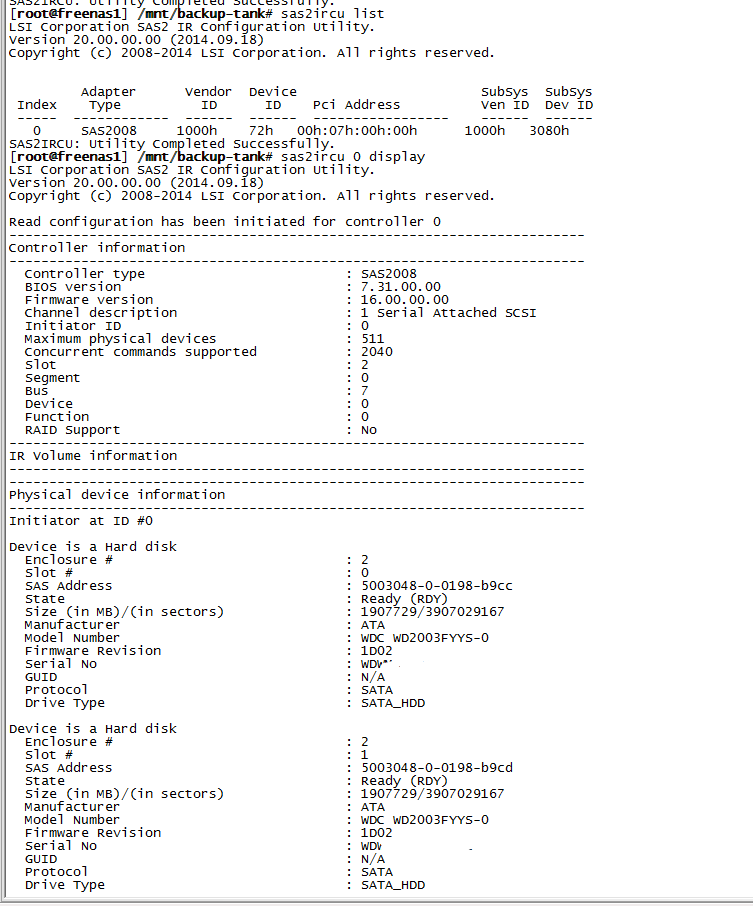

It's not compact, but it gives you the enclosure and slot number. And it works on SATA drives too:
