Same problem each release update

[profwalken]

Hi,
I get something weird for me at each update release of Truenas with USB ports and particularly on two, first is usb boot key, second is EATON UPS.

So when relaese is applyied on first start after there's each time same behavior with those similar message coming infinitely on console until I stop UPS service.

Dec 10 10:28:02 SRV- 1 2021-12-10T10:28:02.873130+01:00 SRV-.local upsmon 1067 - - UPS EATON650@localhost:3493 is unavailable
Dec 10 10:28:07 SRV- 1 2021-12-10T10:28:07.917210+01:00 SRV-.local upsmon 1067 - - UPS [EATON650@localhost:3493]: connect failed: Connection failure: Connection refused
Dec 10 10:28:12 SRV- 1 2021-12-10T10:28:12.943088+01:00 SRV-.local upsmon 1067 - - UPS [EATON650@localhost:3493]: connect failed: Connection failure: Connection refused
Dec 10 10:29:00 SRV- 1 2021-12-10T10:29:00.559614+01:00 SRV-CHUTEL.local upsmon 1065 - - upsmon parent: read
Dec 10 10:29:43 SRV- ugen0.3: <EATON Ellipse PRO> at usbus0 (disconnected)
Dec 10 10:29:45 SRV- ugen0.3: <EATON Ellipse PRO> at usbus0
Dec 10 10:29:56 SRV- interface uhid.1 already present in the KLD 'kernel'!
Dec 10 10:29:56 SRV- linker_load_file: /boot/kernel/uhid.ko - unsupported file type
Dec 10 10:29:56 SRV- interface wmt.1 already present in the KLD 'kernel'!
Dec 10 10:29:56 SRV-linker_load_file: /boot/kernel/wmt.ko - unsupported file type

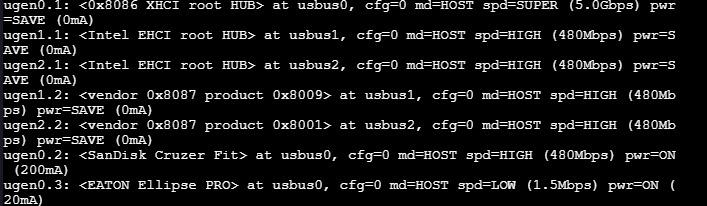

An usb config command returns:

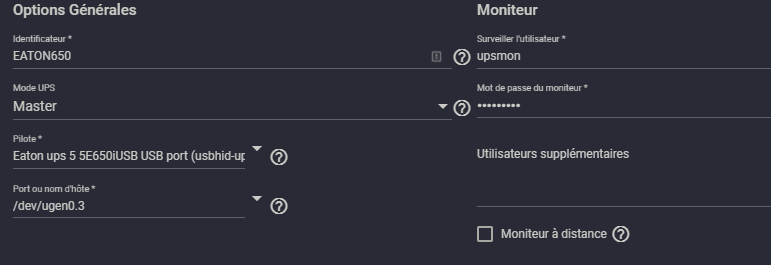

In Services
UPS is set automatic start with ugen0.3

Do you have any experience on this behavior ? What could be done to fix this ?
Thanks for your help.



[Samuel Tai]

Try using auto as the port, instead of /dev/ugen0.3.



[profwalken]

Thanks Samuel, already tried set like this but with same behavior



[Samuel Tai]

OK, then this is a physical layer issue. On my system, my UPS connects on ugen0.4, but at FULL speed (12 Mbps). Yours connects at LOW speed (1.5 Mbps), which is apparently too slow for connectivity at boot. Try a different port, and use auto for the port for the UPS service to auto-detect the new port.



[profwalken]

Thanks i will try this as soon as possible and let you know if it behave fine after.
