Problems about metadata vdevs

[neurax]

HI,my system :TrueNAS-SCALE-22.12.3.3,based on pve8.0.2(CPU D1581) ,8*8T SATA and 2*2T NVME

zpool iostat -v
capacity operations bandwidth
pool alloc free read write read write
---------------------------------------- ----- ----- ----- ----- ----- -----
boot-pool 2.76G 108G 0 0 20.6K 4.10K
mirror-0 2.76G 108G 0 0 20.6K 4.10K
sdl3 - - 0 0 10.4K 2.05K
sdm3 - - 0 0 10.2K 2.05K
---------------------------------------- ----- ----- ----- ----- ----- -----
xms 49.8T 8.80T 104 158 820K 2.84M
raidz1-0 49.6T 8.56T 10 57 168K 1.52M
0998aa16-0a16-4f57-a2e1-6f94374fc745 - - 1 6 22.0K 197K
5dfe9aff-83b2-446d-b089-8b05c0bc4f36 - - 1 7 20.0K 192K
d1c6fede-4a23-41fd-9c93-cbec618bb16f - - 1 6 21.9K 197K
38d22417-ec86-4094-940e-f4117368636c - - 1 6 19.7K 193K
2a1bd060-e0c8-4eb8-90fa-b9a04eea0199 - - 1 7 22.3K 197K
17dd6367-1df6-4b7e-a7c0-780b0f0b08cb - - 1 8 19.9K 192K
2380b09c-b127-4ec7-92c1-277b38da0fee - - 1 8 22.3K 197K
8eeff36a-749a-4aa1-9cc7-3cca1905c9e6 - - 1 6 19.7K 193K
dedup - - - - - -
mirror-4 31.0G 18.5G 1 34 8.02K 580K
9542801b-372a-472e-97e2-dac783f3380c - - 0 15 3.86K 290K
6c547446-4408-41ec-abbf-b1122757ec4a - - 0 19 4.16K 290K
special - - - - - -
mirror-2 102G 126G 92 44 643K 506K
622fdec2-6a56-4280-9607-8367b74ddf58 - - 45 21 317K 253K
d00af9d8-927b-4526-9656-382a024767b3 - - 46 22 327K 253K
logs - - - - - -
mirror-3 596K 199G 0 0 2 27.4K
e5335635-a65d-42c8-84e1-8e2a54e5cd74 - - 0 0 1 13.7K
f8127364-b38b-4ba8-a2ea-fb3193d76970 - - 0 0 1 13.7K
cache - - - - - -
290ff39a-62fa-4310-be8a-1aeb72ccafce 121G 79.3G 90 2 143K 247K
126a498c-4af4-4a93-b23d-8b3484dfa1f0 122G 78.3G 99 2 151K 247K
---------------------------------------- ----- ----- ----- ----- ----- -----

One day I found metadata only used 103G,so I try to change a small one.Then create a test system.

Same Truenas ver,same PVE8.0.2.
zpool iostat -v
capacity operations bandwidth
pool alloc free read write read write
---------------------------------------- ----- ----- ----- ----- ----- -----
boot-pool 5.00G 26.0G 0 1 617 20.6K
sda3 5.00G 26.0G 0 1 617 20.6K
---------------------------------------- ----- ----- ----- ----- ----- -----
test 27.1G 21.9G 0 1 29 10.8K
mirror-0 27.1G 2.43G 0 0 13 1.01K
8d3f4a5f-099d-4d58-b80c-6a836bbf68e0 - - 0 0 8 516
a193f17c-12e8-40ed-80fa-326b09bb9484 - - 0 0 5 516
special - - - - - -
mirror-5 79.4M 19.4G 0 1 13 9.69K
c484d377-d805-4ba5-a91e-9dca49c34df5 - - 0 0 6 4.85K
1a8ad8c5-7f38-4b8c-8458-3568788bc6ce - - 0 0 6 4.85K
logs - - - - - -
mirror-7 0 31.5G 0 0 3 129
ac8f3c48-06e5-499e-84a8-08fbcd88f34a - - 0 0 1 64
0dbd932d-688b-4baa-9f51-5833771bb37c - - 0 0 1 64
---------------------------------------- ----- ----- ----- ----- ----- -----

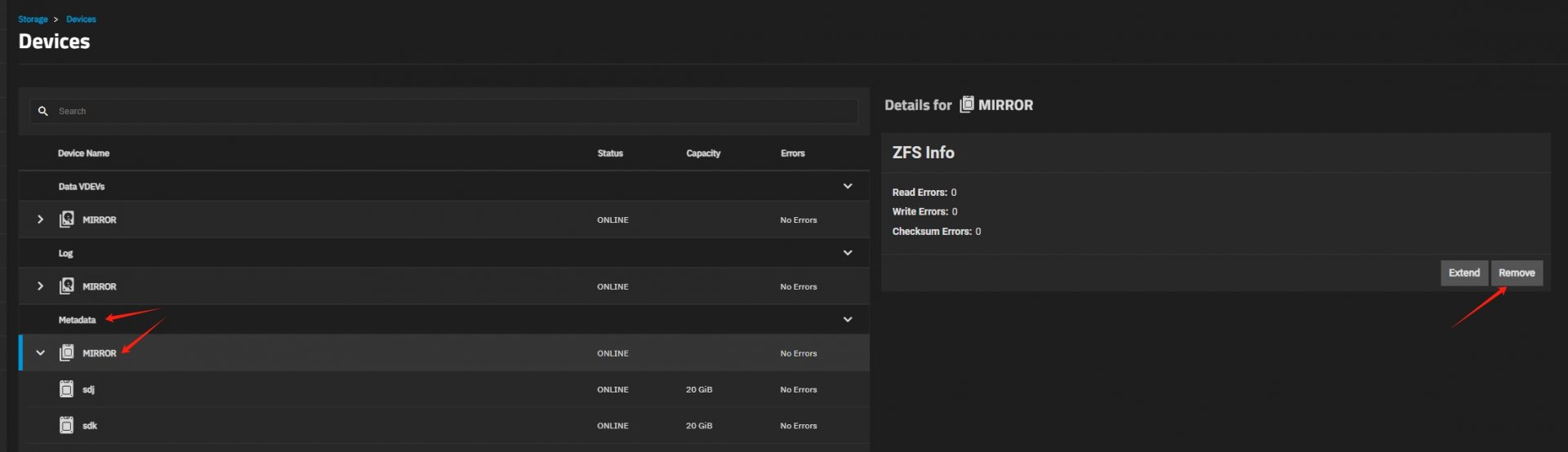

Then I can see remove here in GUI.

and 2* 32G vdev,then can still remove 20G vdev mirror,or remove all of two mirror.

I add 2*100G vdev to first system,and they can`t be remove. Old 230G metadata vdev can`t remove too.

special - - - - - -
mirror-2 102G 126G 92 44 643K 506K
622fdec2-6a56-4280-9607-8367b74ddf58 - - 45 21 317K 253K
d00af9d8-927b-4526-9656-382a024767b3 - - 46 22 327K 253K
mirror-5 83.2M 99.4G 0 27 698 302K
038fd86e-0f39-4769-b3de-33980279d58d - - 0 13 398 147K
ca99fa06-1613-4090-8f98-11fd562ac13c - - 0 13 278 147K


I fill some data to test pool. about 95% used ,and create a share,the metadata vdev still can be remove.
I can`t understand.Did someone meet this before?Thanks!



[Arwen]

When using RAID-Z1 as the data portion of the ZFS pool, you can not remove critical members, (or shrink), of special vDevs. Special vDevs are De-Dup, Special or Small file.

In your example, you use Mirror instead of RAID-Z1, thus, you are able to remove Mirror devices.



[Etorix]

Raidz1 is advised against with large HDDs, and the pool seems to have been designed to tick every possible extra box: special, dedup (distinct from special!), log (any actual sync write load?) and cache (is there is enough RAM to support it?).
But the hardware is listed as "8*8T SATA and 2*2T NVME". Should we understand that the four mirrors vdevs are actually made of partitions from two (consumer?) NVMe drives? This is a disaster waiting to happen…



[neurax]

When using RAID-Z1 as the data portion of the ZFS pool, you can not remove critical members, (or shrink), of special vDevs. Special vDevs are De-Dup, Special or Small file.

In your example, you use Mirror instead of RAID-Z1, thus, you are able to remove Mirror devices.

Thanks a lot,I understand now.



[neurax]

Raidz1 is advised against with large HDDs, and the pool seems to have been designed to tick every possible extra box: special, dedup (distinct from special!), log (any actual sync write load?) and cache (is there is enough RAM to support it?).
But the hardware is listed as "8*8T SATA and 2*2T NVME". Should we understand that the four mirrors vdevs are actually made of partitions from two (consumer?) NVMe drives? This is a disaster waiting to happen…

In fact，I have 4 NVME SSD，made two mirror in pve ，and create vdisk to Truenas，then made mirror again in truenas.
I use a custom motherboard ，CPU D-1581 , 128GB ECC RAM. Use to stor some movies，and a jellyfin media server.
Other important files use a 16T SATA mirror，without special, dedup，log vdev.
so I think it`s OK，thanks a lot.



[Ericloewe]

，I have 4 NVME SSD，made two mirror in pve ，and create vdisk to Truenas，then made mirror again in truenas

That is terrible and pointless. It's added complexity for no gain and a lot more pain. How are the SATA disks attached? Please don't say "virtual disks" or "storage pass-through" or anything other than "LSI SAS HBA via PCIe passthrough to the guest".



[Etorix]

so I think it`s OK，thanks a lot.

None of that is "OK". Virtual disks from a hypervisor are a big, flashing, red NO.

"Absolutely must virtualize FreeNAS!" ... a guide to not completely losing your data.

[---- 2018/02/27: This is still as relevant as ever. As PCIe-Passthru has matured, fewer problems are reported. I've updated some specific things known to be problematic ----] [---- 2014/12/24: Note, there is another post discussing how to deploy a small FreeNAS VM instance for basic file...

www.truenas.com

And 16 TB HDDs in 2-way mirror are a cause for concern as well, due to the amont of data which would be without redundancy after a drive loss and the time to rebuild. Let's hope you have a safe backup of that.



[neurax]

That is terrible and pointless. It's added complexity for no gain and a lot more pain. How are the SATA disks attached? Please don't say "virtual disks" or "storage pass-through" or anything other than "LSI SAS HBA via PCIe passthrough to the guest".

Yes,it`s "storage pass-through" and it`s too late to change it.



[neurax]

None of that is "OK". Virtual disks from a hypervisor are a big, flashing, red NO.

"Absolutely must virtualize FreeNAS!" ... a guide to not completely losing your data.

[---- 2018/02/27: This is still as relevant as ever. As PCIe-Passthru has matured, fewer problems are reported. I've updated some specific things known to be problematic ----] [---- 2014/12/24: Note, there is another post discussing how to deploy a small FreeNAS VM instance for basic file...

www.truenas.com

And 16 TB HDDs in 2-way mirror are a cause for concern as well, due to the amont of data which would be without redundancy after a drive loss and the time to rebuild. Let's hope you have a safe backup of that.

You r right ,I`ll make a backup ASAP!
