Problem running custom docker apps: cannot allocate unhealthy devices amd.com/gpu

[allan.tatter]

I have a fresh install of TrueNAS SCALE on my old PC. I have the following hardware:

• CPU: Intel Core i5-8400 (with integrated graphics)
• Mother board: GIGABYTE H370M DS3H
• Graphics card: AMD Radeon HD 7970/8970 OEM / R9 280X

I have enabled Apps Service (Docker) and deploying application from Discover section works as expected - I can deploy the applications, the go to a running state and work.

However when I try to deploy any custom app (any public image from Docker Hub) the state stays at "Deploying" and never gets to "Running". Under the custom app Details section I have a recurring following Related Kubernetes Event:

Code:

Allocate failed due to no healthy devices present; cannot allocate unhealthy devices amd.com/gpu, which is unexpected

With kubectl I see the following:

Code:

$ kubectl -n ix-whoami4 get pods
NAME                                READY   STATUS                     RESTARTS   AGE
whoami4-ix-chart-749c8ff779-mbrqp   0/1     UnexpectedAdmissionError   0          91s
whoami4-ix-chart-749c8ff779-hf824   0/1     UnexpectedAdmissionError   0          90s
whoami4-ix-chart-749c8ff779-htw88   0/1     UnexpectedAdmissionError   0          89s
whoami4-ix-chart-749c8ff779-lghjc   0/1     UnexpectedAdmissionError   0          89s
whoami4-ix-chart-749c8ff779-9zmz7   0/1     UnexpectedAdmissionError   0          87s
whoami4-ix-chart-749c8ff779-p6g2v   0/1     UnexpectedAdmissionError   0          85s
whoami4-ix-chart-749c8ff779-jnh9m   0/1     Pending                    0          84s`````$ kubectl -n ix-whoami4 describe pods
Name:           whoami4-ix-chart-749c8ff779-mbrqp
Namespace:      ix-whoami4
Priority:       0
Node:           ix-truenas/
Start Time:     Sun, 12 Nov 2023 19:41:04 +0200
Labels:         app.kubernetes.io/instance=whoami4
                app.kubernetes.io/name=ix-chart
                pod-template-hash=749c8ff779
Annotations:    rollme: dcArL
Status:         Failed
Reason:         UnexpectedAdmissionError
Message:        Pod was rejected: Allocate failed due to no healthy devices present; cannot allocate unhealthy devices amd.com/gpu, which is unexpected
IP:
IPs:            <none>
Controlled By:  ReplicaSet/whoami4-ix-chart-749c8ff779
Containers:
  ix-chart:
    Image:      traefik/whoami:latest
    Port:       80/TCP
    Host Port:  0/TCP
    Limits:
      amd.com/gpu:         0
      gpu.intel.com/i915:  0
      nvidia.com/gpu:      0
    Requests:
      amd.com/gpu:         0
      gpu.intel.com/i915:  0
      nvidia.com/gpu:      0
    Environment:           <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-4xrh6 (ro)
Volumes:
  kube-api-access-4xrh6:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type     Reason                    Age   From               Message
  ----     ------                    ----  ----               -------
  Normal   Scheduled                 103s  default-scheduler  Successfully assigned ix-whoami4/whoami4-ix-chart-749c8ff779-mbrqp to ix-truenas
  Warning  UnexpectedAdmissionError  103s  kubelet            Allocate failed due to no healthy devices present; cannot allocate unhealthy devices amd.com/gpu, which is unexpected

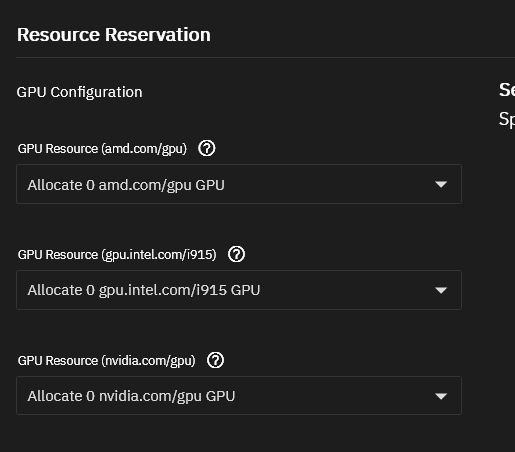

Successfully deployed nginx-proxy-manager app from Discover apps section. Probably related to not having `amd.com/gpu` in the Limits and Requests section.

Code:

$ kubectl -n ix-nginx-proxy-manager get pods
NAME                                   READY   STATUS    RESTARTS   AGE
nginx-proxy-manager-747c57ddf4-qnvfk   1/1     Running   0          119s``````$ kubectl -n ix-nginx-proxy-manager describe pods nginx-proxy-manager-747c57ddf4-qnvfk
Name:         nginx-proxy-manager-747c57ddf4-qnvfk
Namespace:    ix-nginx-proxy-manager
Priority:     0
Node:         ix-truenas/192.168.1.10
Start Time:   Sun, 12 Nov 2023 20:32:25 +0200
Labels:       app=nginx-proxy-manager-1.0.18
              app.kubernetes.io/instance=nginx-proxy-manager
              app.kubernetes.io/managed-by=Helm
              app.kubernetes.io/name=nginx-proxy-manager
              app.kubernetes.io/version=2.10.4
              helm-revision=1
              helm.sh/chart=nginx-proxy-manager-1.0.18
              pod-template-hash=747c57ddf4
              pod.name=npm
              release=nginx-proxy-manager
Annotations:  k8s.v1.cni.cncf.io/network-status:
                [{
                    "name": "ix-net",
                    "interface": "eth0",
                    "ips": [
                        "172.16.0.161"
                    ],
                    "mac": "3e:a4:04:04:81:b6",
                    "default": true,
                    "dns": {},
                    "gateway": [
                        "172.16.0.1"
                    ]
                }]
              rollme: uVBno
Status:       Running
IP:           172.16.0.161
IPs:
  IP:           172.16.0.161
Controlled By:  ReplicaSet/nginx-proxy-manager-747c57ddf4
Containers:
  nginx-proxy-manager:
    Container ID:   containerd://0528182aff475d4963bb237f5e6fb2708a9850bb5fb62a268533bb21f249d5e2
    Image:          jc21/nginx-proxy-manager:2.10.4
    Image ID:       docker.io/jc21/nginx-proxy-manager@sha256:e1000dd653d193ac70cb3635c27333b0183a11f987e2b1c6043589d9d948bc0f
    Ports:          80/TCP, 443/TCP, 81/TCP
    Host Ports:     0/TCP, 0/TCP, 0/TCP
    State:          Running
      Started:      Sun, 12 Nov 2023 20:32:26 +0200
    Ready:          True
    Restart Count:  0
    Limits:
      cpu:     4
      memory:  8Gi
    Requests:
      cpu:      10m
      memory:   50Mi
    Liveness:   exec [/bin/check-health] delay=10s timeout=5s period=10s #success=1 #failure=5
    Readiness:  exec [/bin/check-health] delay=10s timeout=5s period=10s #success=2 #failure=5
    Startup:    exec [/bin/check-health] delay=30s timeout=2s period=5s #success=1 #failure=120
    Environment:
      TZ:                      Europe/Tallinn
      UMASK:                   002
      UMASK_SET:               002
      NVIDIA_VISIBLE_DEVICES:  void
      PUID:                    1000
      USER_ID:                 1000
      UID:                     1000
      PGID:                    1000
      GROUP_ID:                1000
      GID:                     1000
      DB_SQLITE_FILE:          /data/database.sqlite
      DISABLE_IPV6:            true
    Mounts:
      /data from data (rw)
      /etc/letsencrypt from certs (rw)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  certs:
    Type:          HostPath (bare host directory volume)
    Path:          /mnt/pool-2/ix-applications/releases/nginx-proxy-manager/volumes/ix_volumes/certs
    HostPathType:
  data:
    Type:          HostPath (bare host directory volume)
    Path:          /mnt/pool-2/ix-applications/releases/nginx-proxy-manager/volumes/ix_volumes/data
    HostPathType:
QoS Class:         Burstable
Node-Selectors:    <none>
Tolerations:       node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                   node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type     Reason          Age                From               Message
  ----     ------          ----               ----               -------
  Normal   Scheduled       86s                default-scheduler  Successfully assigned ix-nginx-proxy-manager/nginx-proxy-manager-747c57ddf4-qnvfk to ix-truenas
  Normal   AddedInterface  86s                multus             Add eth0 [172.16.0.161/16] from ix-net
  Normal   Pulled          86s                kubelet            Container image "jc21/nginx-proxy-manager:2.10.4" already present on machine
  Normal   Created         85s                kubelet            Created container nginx-proxy-manager
  Normal   Started         85s                kubelet            Started container nginx-proxy-manager
  Warning  Unhealthy       46s (x2 over 51s)  kubelet            Startup probe failed: NOT OK

Additional debugging info:

Code:

$ lspci01:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Tahiti XT [Radeon HD 7970/8970 OEM / R9 280X]

Code:

$ lsmodgpu_sched              53248  1 amdgpu
drm_buddy              20480  2 amdgpu,i915
drm_display_helper    184320  3 amdgpu,radeon,i915
drm_ttm_helper         16384  2 amdgpu,radeon
i2c_algo_bit           16384  3 amdgpu,radeon,i915
video                  65536  3 amdgpu,radeon,i915

Do I need to do anything special about the external GPU when doing a fresh install of TrueNAS SCALE? Maybe installing drivers or anything like that? I have another machine with different hardware and with only integrated graphic and no issues there.



[Etorix]

You cannot and should not "install drivers" on TrueNAS: It is an appliance OS.
It might be that your consumer H370 motherboard does not handle PCIe passthrough properly.



[allan.tatter]

You cannot and should not "install drivers" on TrueNAS: It is an appliance OS.

Makes sense.

It might be that your consumer H370 motherboard does not handle PCIe passthrough properly.

It does have Intel VT-d option in BIOS settings which is a positive indication, but not a guarantee of full passthrough functionality. How to determine whether the motherboard is supported?



[ccfoo242]

Did you ever resolve this? I just got the same error. These are my only choices. AFAIK I don't need a gpu for what I'm installing.



[allan.tatter]

I didn't need a GPU as well for now for my use case. I disabled the GPU somehow, probably isolated the GPU under System Settings > Advanced (/ui/system/advanced) > Isolated GPU Device(s).



[ccfoo242]

I didn't need a GPU as well for now for my use case. I disabled the GPU somehow, probably isolated the GPU under System Settings > Advanced (/ui/system/advanced) > Isolated GPU Device(s).

Thanks. I'm able to create a custom app using the truecharts custom app but I'll check that setting and see if I can change it.



[TSM 0h and six]

I didn't need a GPU as well for now for my use case. I disabled the GPU somehow, probably isolated the GPU under System Settings > Advanced (/ui/system/advanced) > Isolated GPU Device(s).

When I tried to isolate my GPU, I get the following message:
At least 1 GPU is required by the host for its functions.
With your selection, no GPU is available for the host to consume.

Anything else I can try?



[sydonayrex]

Try doing the following:

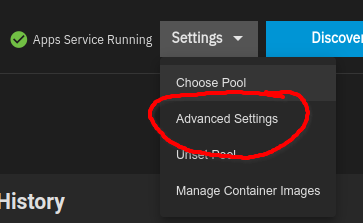

Access the advanced settings for apps:

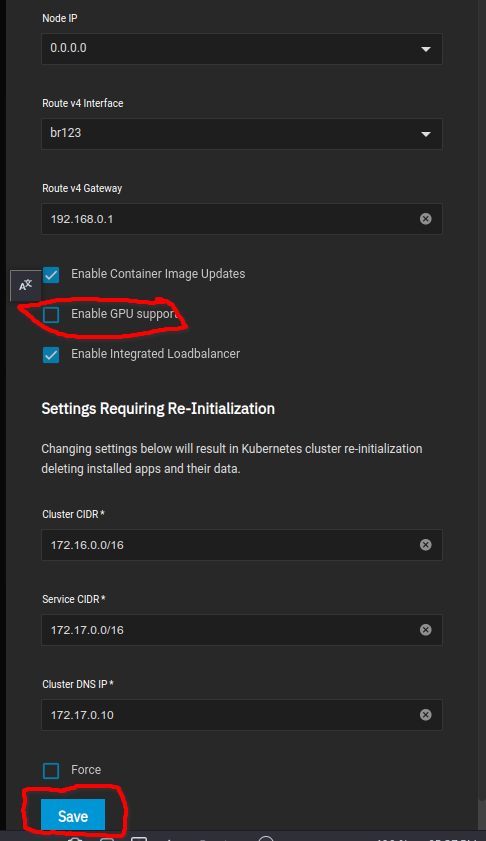

Next, within the settings, uncheck enable GPU support and click save.

If you are on the most recent update for Scale, you may need to click the force button before saving. I had to do that as the most recent update seems to have issues with bridge interfaces.
