I recently completed a project for a client that involved a new FreeNAS build, and I wanted to share it here.
My client had need for a portable NAS device with 10+ TB of capacity, encryption capability, and the ability to copy large quantities of image-based data very quickly. They had been using a Cypertex appliance (basically a rebranded QNAP device with encryption built into the firmware) that they had spent almost $8k on that just wasn't meeting performance expectations. The datasets they were moving were comprised of millions of small files (scanned images) that averaged less than 60kb each. We created a 'dummy' dataset for testing that was 10 TB in size and contained approximately 50 million files (moving this many small files over a network is pretty much a worst-case usage scenario). Using their existing approach with the Ciphertex appliance took over 60 hours to move the 10 TB dataset on/off the box.
The first thing we did to improve performance was to change transfer methods from CIFS to ISCSI - using the software ISCSI initiator built into Windows to connect to a 12TB NTFS formatted target - this brought the transfer time down to 38 hours.
Our next approach involved replacing the firmware on the Ciphertex/QNAP with FreeNAS (booting from an external USB drive). The Ciphertex/QNAP appliance included a dual port 10GbE Base-T card as well as a single port 10GbE SFP+ card (along with 4 1GbE adapters on the motherboard) - the 10GbE Base-T adapter turned out to be Intel-based and was recognized by FreeNAS with no issues; however, we did have to swap the SFP+ adapter to a single port Chelsio card. We then set up the same ISCSI configuration and ran the test again - this reduced our transfer time to 25 hours (the only hardware change at this point was the SFP+ NIC). - This is a huge testament to the changes that have been implemented within FreeNAS over the past few years that address ISCSI performance!
Once we knew that FreeNAS was a truly viable option for this usage case, we set out to build the best portable FreeNAS appliance we could. The build consisted of the components below and came in at just over $4k (roughly half of what the Ciphertex appliance had run)
With this new FreeNAS appliance (nicknamed 'The Beast') assembled and tested I set up the same ISCSI configuration and re-ran the test. Transfer time was now down to 21 Hours! and my client was thrilled! Testing with larger test files and ISCSI multipathing I saw transfer speeds as high as 1,170 MiB/sec! The only thing the Ciphertex/QNAP appliance has over the new FreeNAS box are the 10GbE Base-T ports - which in my experience, just aren't used all that much. Pretty much any source system with 10GbE capabilities is going to be SFP+ based.
Build Sheet:
Case - U-NAS NSC-800
Motherboard/Proc - Gigabyte MB10-DS3
RAM - Kingston ValueRAM 128GB DDR4
Boot Drive - San Disk Cruiser Fit 32GB
Storage Drives - WD Se 5TB
HBA - IBM M1015
Carry Handle - MNPCTech Silver Billet Grooved Handle
Pictures:
Final Thoughts:
I know this build isn't for everyone, but I was pretty happy with how it turned out! We exceeded all of the performance requirements my client had at a price that was significantly less than the commercially available products. In the end I was actually kind of sad to have to turn the box over to my client, and I'm currently trying to make up an excuses as to why I need to build another one for myself... If I do get to build another, one I think the only thing I would change are the hard drives - the WD Se Drives have skyrocketed in price since I put this together, and I belive that HGST drives would provide similar performance at a much better value.
Let me know your thoughts....
My client had need for a portable NAS device with 10+ TB of capacity, encryption capability, and the ability to copy large quantities of image-based data very quickly. They had been using a Cypertex appliance (basically a rebranded QNAP device with encryption built into the firmware) that they had spent almost $8k on that just wasn't meeting performance expectations. The datasets they were moving were comprised of millions of small files (scanned images) that averaged less than 60kb each. We created a 'dummy' dataset for testing that was 10 TB in size and contained approximately 50 million files (moving this many small files over a network is pretty much a worst-case usage scenario). Using their existing approach with the Ciphertex appliance took over 60 hours to move the 10 TB dataset on/off the box.
The first thing we did to improve performance was to change transfer methods from CIFS to ISCSI - using the software ISCSI initiator built into Windows to connect to a 12TB NTFS formatted target - this brought the transfer time down to 38 hours.
Our next approach involved replacing the firmware on the Ciphertex/QNAP with FreeNAS (booting from an external USB drive). The Ciphertex/QNAP appliance included a dual port 10GbE Base-T card as well as a single port 10GbE SFP+ card (along with 4 1GbE adapters on the motherboard) - the 10GbE Base-T adapter turned out to be Intel-based and was recognized by FreeNAS with no issues; however, we did have to swap the SFP+ adapter to a single port Chelsio card. We then set up the same ISCSI configuration and ran the test again - this reduced our transfer time to 25 hours (the only hardware change at this point was the SFP+ NIC). - This is a huge testament to the changes that have been implemented within FreeNAS over the past few years that address ISCSI performance!
Once we knew that FreeNAS was a truly viable option for this usage case, we set out to build the best portable FreeNAS appliance we could. The build consisted of the components below and came in at just over $4k (roughly half of what the Ciphertex appliance had run)
Case:

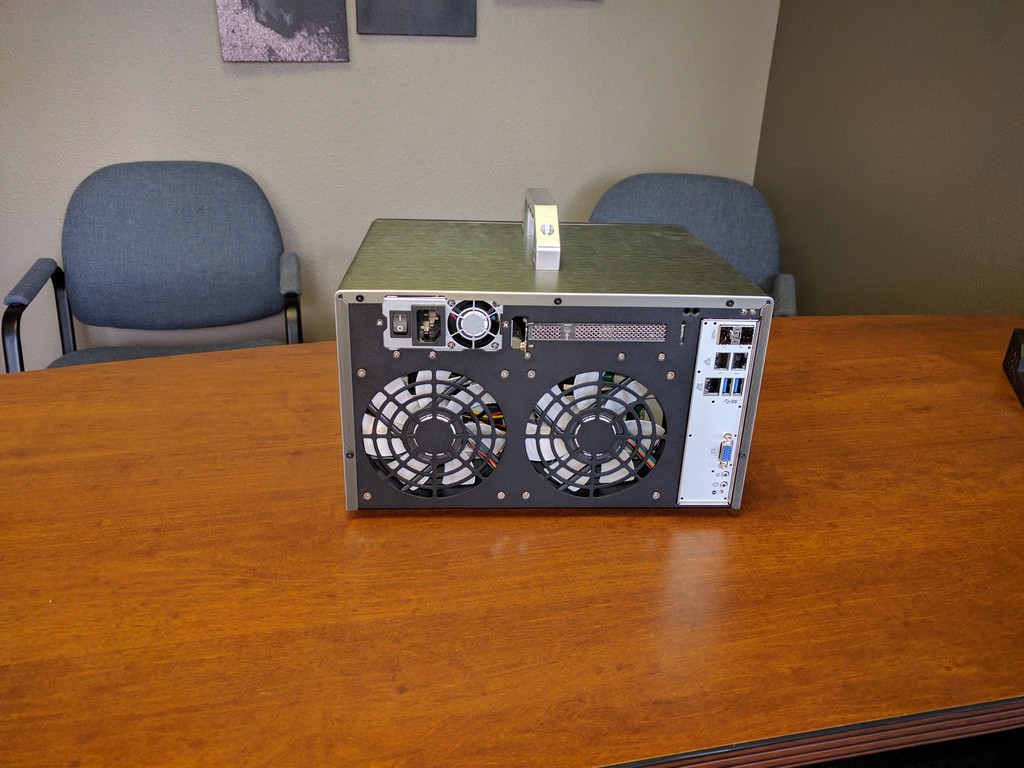

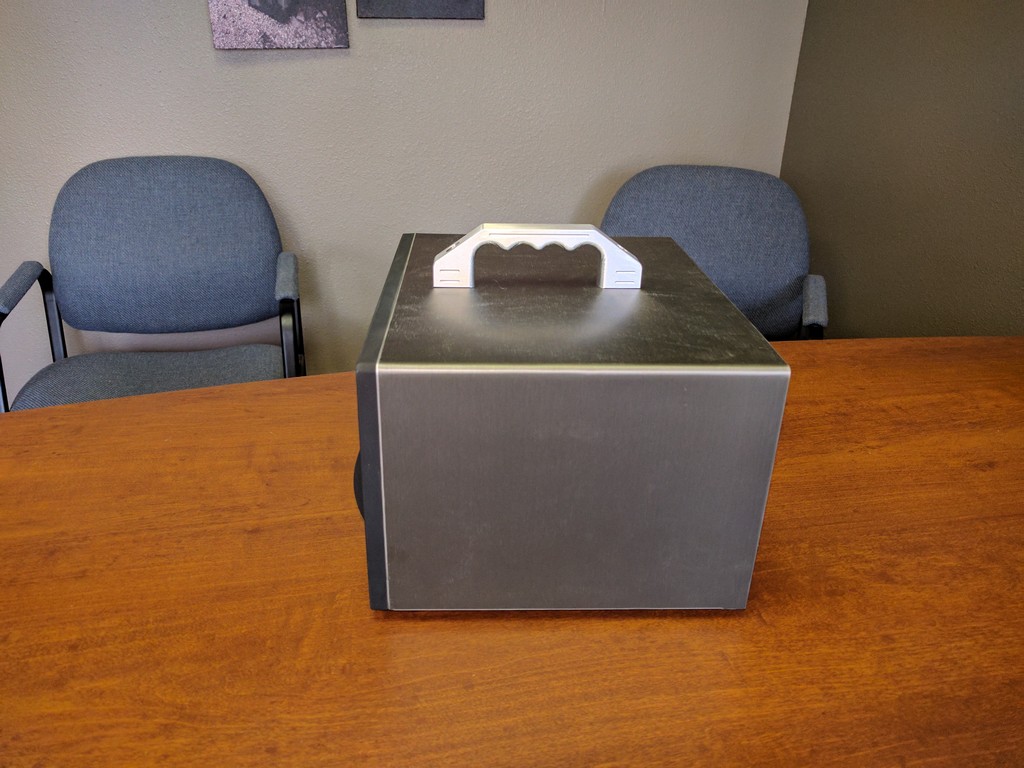

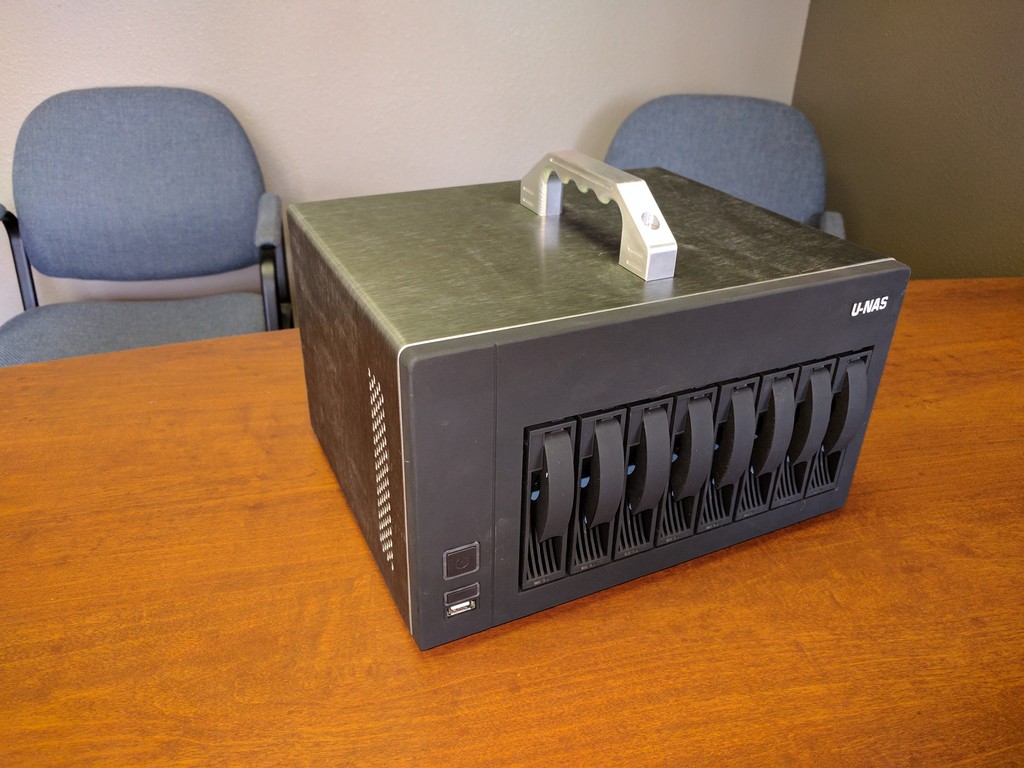

My client was very concerned with the image they were portraying when they walked into their customer's office and did not want an appliance that looked 'hacked together'. To address this we ended up going with a U-NAS NSC-800 case and added a billet aluminum handle from MNPCTech to make it easier to lift out of the Pelican case used for shipping.
Motherboard/Processor:

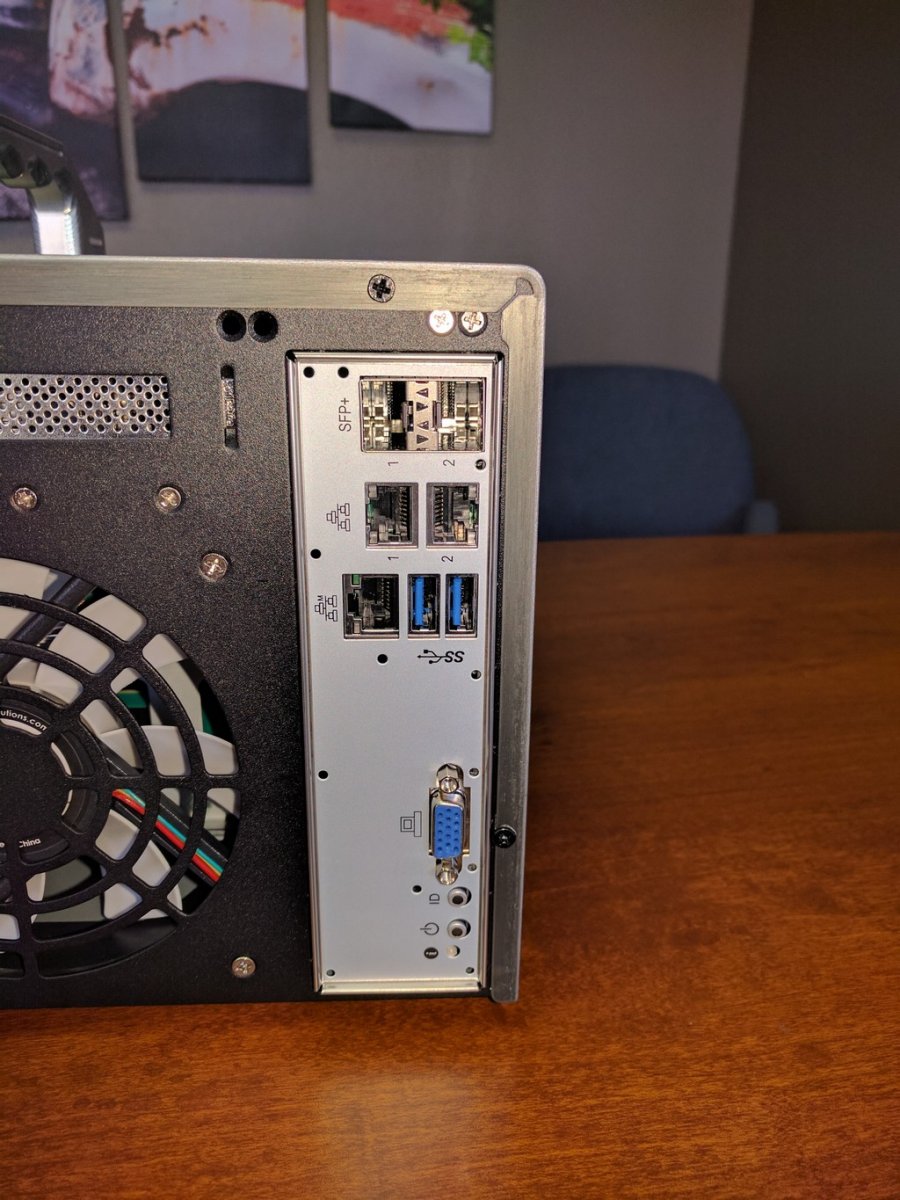

When searching for a Mini-ITX motherboard to use in the case I was originally looking for something with a high SATA-port count as I was planning on using the one available PCI-e port for a 10GbE adapter; however, in my search I found the Gigabyte MB10-DS3 which includes 2 on-board 10GbE SFP+ ports, 2 1GbE ports, and a dedicated management/IPMI port. This comes with a non-removable Intel Xeon D-1541 processor (8 cores / 16 threads) and supports DDR4 ECC Ram. We were then able to add a SAS/SATA HBA to the x16 PCI-e slot.
