hello togehter,
i'm just the process of setting up my first truenas build.

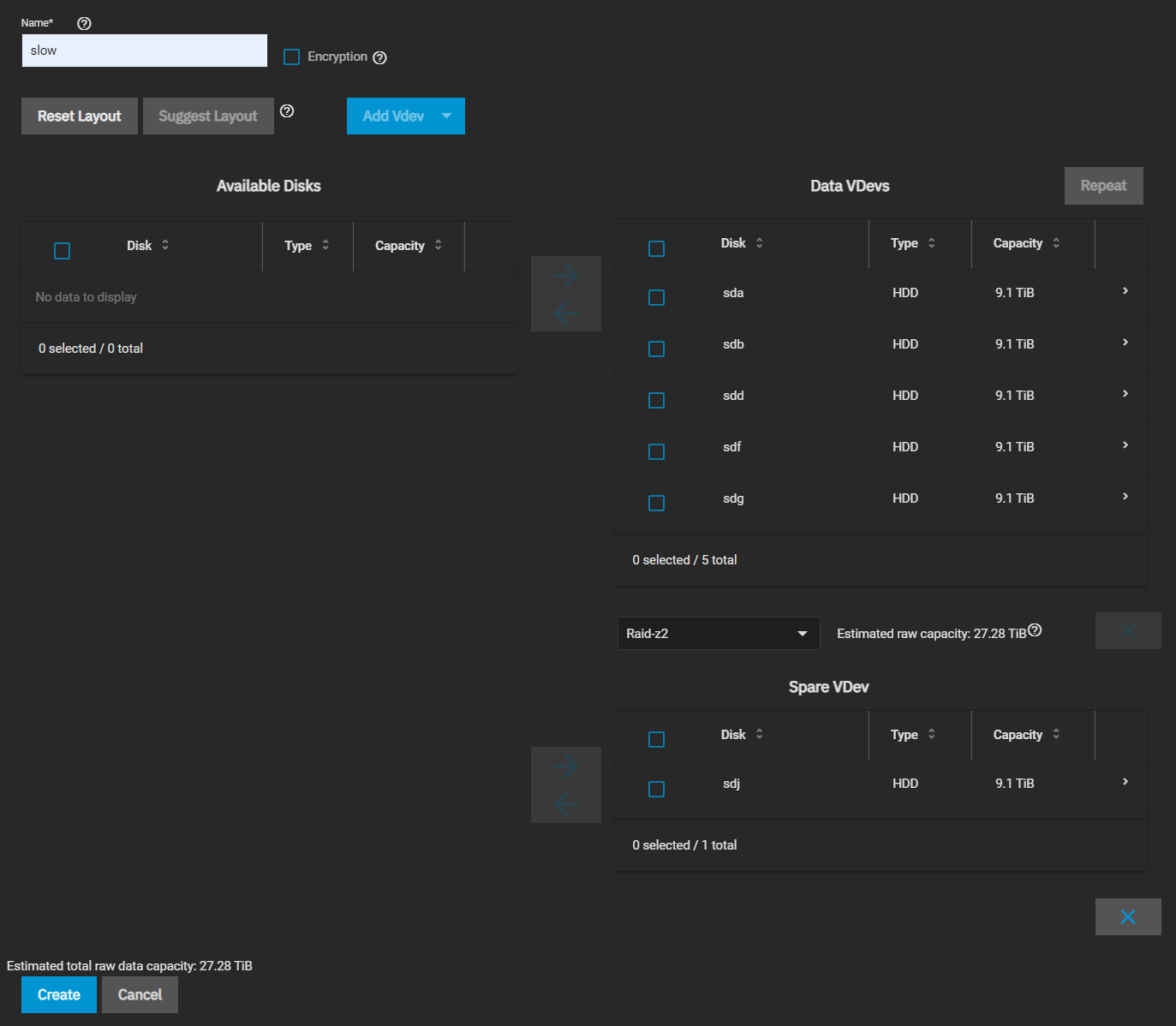

i can't create my data pool. turenas scale always says device or resource busy,
it is supposted to be an array of 6 disks.
once i confirm to wipe the disc i get
when i remove the sdd from the pool it's just another drive that is busy.
i have rebootet several times and tried.
i have a 9305-16i in the system
i tried updateing firmware on the disks. nothing helps
i have no idea what else i can try.
i could use cfdisk to create a parition on the drive. so it is responding
i'm just the process of setting up my first truenas build.
i can't create my data pool. turenas scale always says device or resource busy,
it is supposted to be an array of 6 disks.

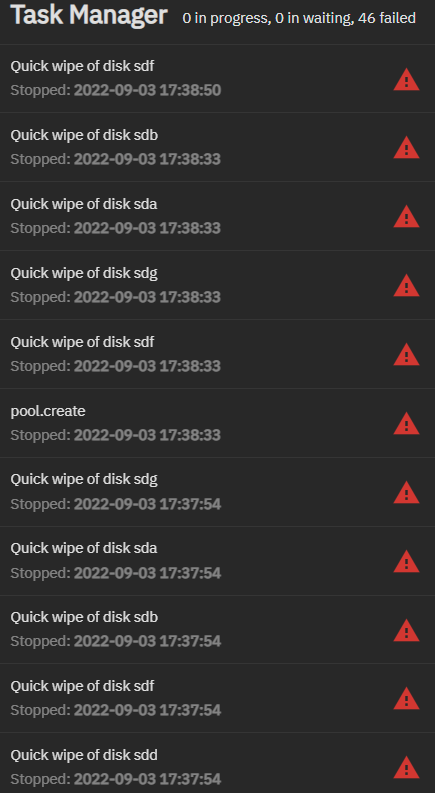

once i confirm to wipe the disc i get
Error: Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/middlewared/job.py", line 411, in run
await self.future
File "/usr/lib/python3/dist-packages/middlewared/job.py", line 446, in __run_body
rv = await self.method(*([self] + args))
File "/usr/lib/python3/dist-packages/middlewared/schema.py", line 1140, in nf
res = await f(*args, **kwargs)
File "/usr/lib/python3/dist-packages/middlewared/schema.py", line 1272, in nf
return await func(*args, **kwargs)
File "/usr/lib/python3/dist-packages/middlewared/plugins/pool.py", line 740, in do_create
await self.middleware.call('pool.format_disks', job, disks)
File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1344, in call
return await self._call(
File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1293, in _call
return await methodobj(*prepared_call.args)
File "/usr/lib/python3/dist-packages/middlewared/plugins/pool_/format_disks.py", line 56, in format_disks
await asyncio_map(format_disk, disks.items(), limit=16)
File "/usr/lib/python3/dist-packages/middlewared/utils/asyncio_.py", line 16, in asyncio_map
return await asyncio.gather(*futures)
File "/usr/lib/python3/dist-packages/middlewared/utils/asyncio_.py", line 13, in func
return await real_func(arg)
File "/usr/lib/python3/dist-packages/middlewared/plugins/pool_/format_disks.py", line 29, in format_disk
await self.middleware.call(
File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1344, in call
return await self._call(
File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1304, in _call
return await self.run_in_executor(prepared_call.executor, methodobj, *prepared_call.args)
File "/usr/lib/python3/dist-packages/middlewared/main.py", line 1205, in run_in_executor
return await loop.run_in_executor(pool, functools.partial(method, *args, **kwargs))
File "/usr/lib/python3.9/concurrent/futures/thread.py", line 52, in run
result = self.fn(*self.args, **self.kwargs)
File "/usr/lib/python3/dist-packages/middlewared/plugins/disk_/format.py", line 26, in format
raise CallError(f'Failed to wipe disk {disk}: {job.error}')
middlewared.service_exception.CallError: [EFAULT] Failed to wipe disk sdd: [Errno 16] Device or resource busy: '/dev/sdd'
when i remove the sdd from the pool it's just another drive that is busy.
i have rebootet several times and tried.
i have a 9305-16i in the system
i tried updateing firmware on the disks. nothing helps
root@nas[~]# sas3flash -listall
Avago Technologies SAS3 Flash Utility
Version 16.00.00.00 (2017.05.02)
Copyright 2008-2017 Avago Technologies. All rights reserved.
Adapter Selected is a Avago SAS: SAS3224(A1)
Num Ctlr FW Ver NVDATA x86-BIOS PCI Addr
----------------------------------------------------------------------------
0 SAS3224(A1) 16.00.11.00 10.00.00.05 08.33.00.00 00:01:00:00
Finished Processing Commands Successfully.
Exiting SAS3Flash.
root@nas[~]# lsscsi -sig
[0:0:0:0] disk HGST HUH721010AL5200 A9G0 /dev/sda 35000cca26b9312b0 /dev/sg1 10.0TB
[0:0:1:0] disk HGST HUH721010AL5200 A9G0 /dev/sdb 35000cca26a279a80 /dev/sg2 10.0TB
[0:0:3:0] disk HGST HUH721010AL5200 A21D /dev/sdd 35000cca26b583bb0 /dev/sg4 10.0TB
[0:0:5:0] disk HGST HUH721010AL5200 A9G0 /dev/sdf 35000cca26b935384 /dev/sg6 10.0TB
[0:0:6:0] disk HGST HUH721010AL5200 A9G0 /dev/sdg 35000cca26a295fd0 /dev/sg7 10.0TB
[0:0:7:0] disk HGST HUH721010AL5200 A9G0 /dev/sdj 35000cca26b584948 /dev/sg5 10.0TB
[5:0:0:0] disk ATA SAMSUNG MZ7LM240 0F3Q /dev/sdi - /dev/sg8 240GB
[6:0:0:0] disk ATA SAMSUNG MZ7LM240 0F3Q /dev/sdh - /dev/sg9 240GB
[7:0:0:0] enclosu AHCI SGPIO Enclosure 2.00 - - /dev/sg0 -
root@nas[~]#
root@nas[~]# smartctl -a /dev/sg1
smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.131+truenas] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: HGST
Product: HUH721010AL5200
Revision: A9G0
Compliance: SPC-4
User Capacity: 10,000,831,348,736 bytes [10.0 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
LU is fully provisioned
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Logical Unit id: 0x5000cca26b9312b0
Serial number: 1SJLW000
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Sat Sep 3 17:41:35 2022 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Enabled
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 35 C
Drive Trip Temperature: 85 C
Accumulated power on time, hours:minutes 36223:09
Manufactured in week 01 of year 2018
Specified cycle count over device lifetime: 50000
Accumulated start-stop cycles: 30
Specified load-unload count over device lifetime: 600000
Accumulated load-unload cycles: 1536
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 26147385440731136
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 0 3 0 3 994431 16134.711 0
write: 0 0 0 0 79731 100434.581 0
verify: 0 610 0 610 38481 1970163.849 0
Non-medium error count: 106
No Self-tests have been logged
root@nas[~]# smartctl -a /dev/sg2
smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.131+truenas] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: HGST
Product: HUH721010AL5200
Revision: A9G0
Compliance: SPC-4
User Capacity: 10,000,831,348,736 bytes [10.0 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
LU is fully provisioned
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Logical Unit id: 0x5000cca26a279a80
Serial number: 2TGP000
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Sat Sep 3 17:41:38 2022 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Enabled
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 35 C
Drive Trip Temperature: 85 C
Accumulated power on time, hours:minutes 36223:39
Manufactured in week 03 of year 2018
Specified cycle count over device lifetime: 50000
Accumulated start-stop cycles: 312
Specified load-unload count over device lifetime: 600000
Accumulated load-unload cycles: 452
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 3843022651392
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 0 0 0 0 25 0.117 0
write: 0 0 0 0 24 18.562 0
verify: 0 0 0 0 10411 1970163.836 0
Non-medium error count: 197
SMART Self-test log
Num Test Status segment LifeTime LBA_first_err [SK ASC ASQ]
Description number (hours)
# 1 Background short Completed - 36222 - [- - -]
Long (extended) Self-test duration: 65535 seconds [1092.2 minutes]
root@nas[~]# smartctl -a /dev/sg4
smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.131+truenas] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: HGST
Product: HUH721010AL5200
Revision: A21D
Compliance: SPC-4
User Capacity: 10,000,831,348,736 bytes [10.0 TB]
Logical block size: 512 bytes
Physical block size: 4096 bytes
LU is fully provisioned
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Logical Unit id: 0x5000cca26b583bb0
Serial number: 1SHKJ000
Device type: disk
Transport protocol: SAS (SPL-3)
Local Time is: Sat Sep 3 17:41:47 2022 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Enabled
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Current Drive Temperature: 38 C
Drive Trip Temperature: 85 C
Accumulated power on time, hours:minutes 33919:08
Manufactured in week 45 of year 2017
Specified cycle count over device lifetime: 50000
Accumulated start-stop cycles: 10
Specified load-unload count over device lifetime: 600000
Accumulated load-unload cycles: 1421
Elements in grown defect list: 0
Vendor (Seagate Cache) information
Blocks sent to initiator = 8608886957277184
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 0 0 0 0 423591 13444.862 0
write: 0 0 0 0 98919 32690.463 0
verify: 0 4 0 4 41672 1749975.368 0
Non-medium error count: 13
No Self-tests have been logged
root@nas[~]#
i have no idea what else i can try.
i could use cfdisk to create a parition on the drive. so it is responding
