One interface with two ip addresses

Nakedape

Dabbler
Joined
Mar 2, 2020
Messages
16

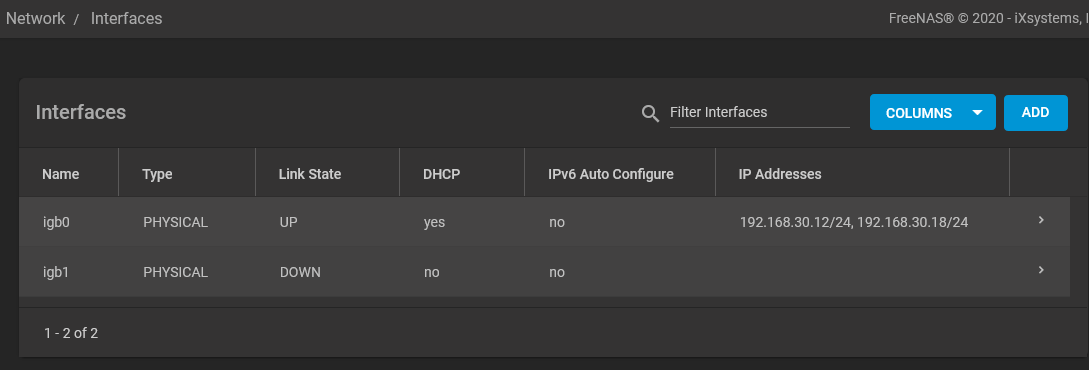

I'm trying to understand why and how my FreeNas box has two ip addresses on the igb0 interface. I can reach the FreeNas GUI from both the x.x.x.12 and the x.x.x.18 IP's. Can someone point me in the right direction?

Code:
root@freenas[~]# ifconfig
igb0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: LAN Connection
        options=6403bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,
                     VLAN_HWCSUM,TSO4,TSO6,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
        ether 0c:c4:7a:b7:22:62
        hwaddr 0c:c4:7a:b7:22:62
        inet 192.168.30.12 netmask 0xffffff00 broadcast 192.168.30.255
        inet 192.168.30.18 netmask 0xffffff00 broadcast 192.168.30.255
        nd6 options=9<PERFORMNUD,IFDISABLED>
        media: Ethernet autoselect (1000baseT <full-duplex>)
        status: active
<snip>


Code:
root@freenas[~]# netstat -4 -r -n
Routing tables

Internet:
Destination        Gateway            Flags     Netif Expire
default            192.168.30.1       UGS        igb0
127.0.0.1          link#3             UH          lo0
192.168.30.0/24    link#1             U          igb0
192.168.30.12      link#1             UHS         lo0
192.168.30.18      link#1             UHS         lo0









Attachments

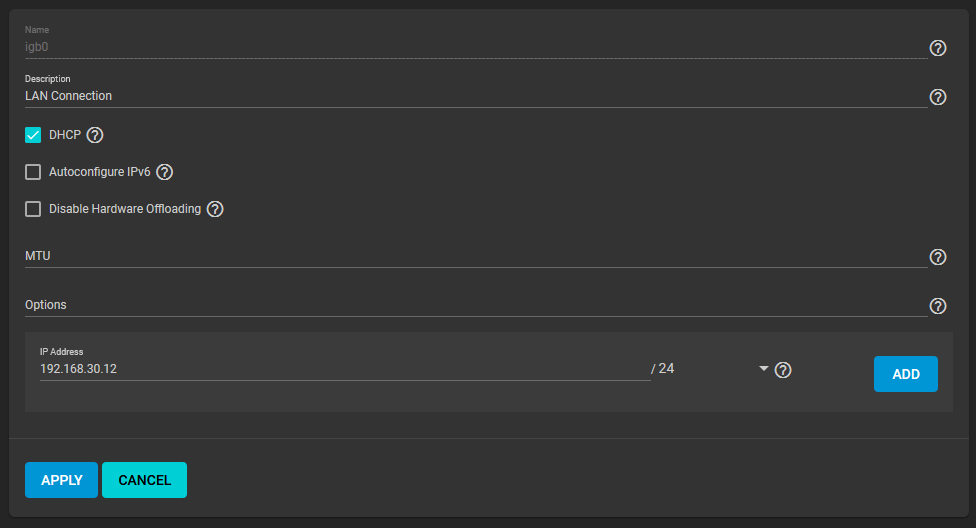

  • 1607298317753.png
    15.4 KB · Views: 136

dexll

Dabbler
Joined
Jul 16, 2020
Messages
10
Bumping this. I don't understand this either.

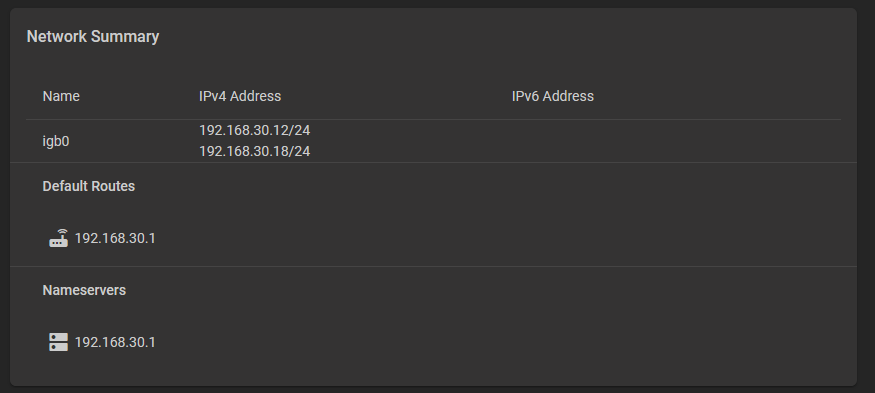

Booted into the console this morning and saw the web gui had two different IPs. Both work. Why?
