SOLVED NVME SSD Dataset periodically offline

[Johnnnnnnnnnny]

Hi,
please help me debug this issue:

My ssdPool (which consists only of 1 m.2 nvme SSD) goes periodically offline. It seems that the time it keeps on running OK is random. The SSD goes offline after 2 hours to about 2 days. After this happens, the device cannot be found anywhere - seems like disconnected. Even after reboot it will not appear - I must shut down the NAS completely for a couple of minutes and then it shows up normally like nothing happend.

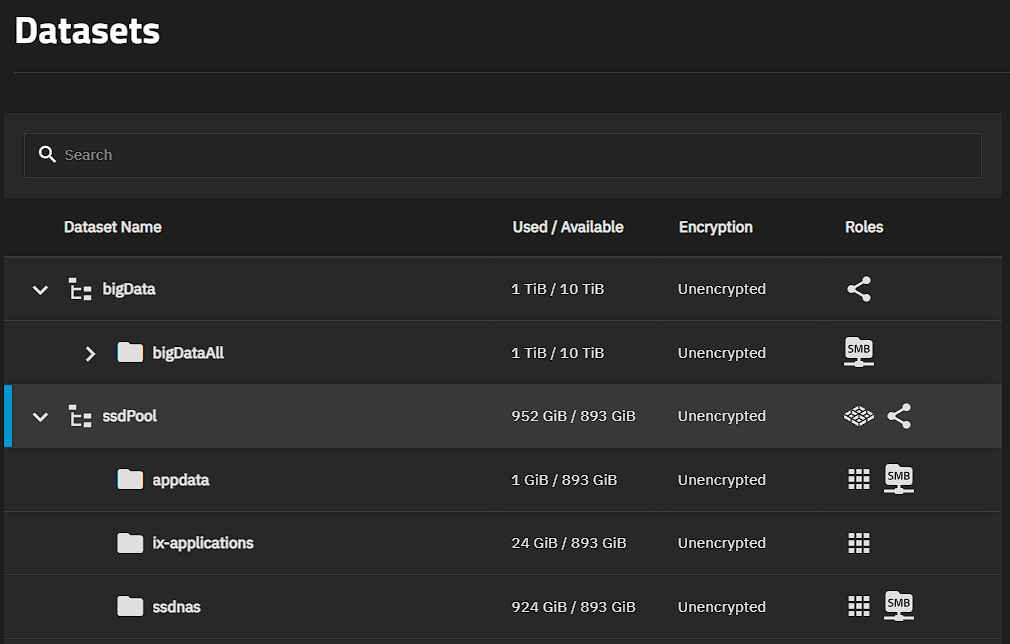

My pool looks like this - it contains my apps dataset.

My first guess was overheating of the SSD but I ruled that out because adding a cooler and more airflow to the SSD didn't help at all and the temperatures seems fine under 50c all the time.
The SSD doesn't support SMART so I don't know how to debug further.

My plan B is to move everything to the second pool but I'm not sure how hard that would be considering I need to move apps folder and all the permissions as well.

Any advice appreciated. :)

EDIT: solved in post #11



[winnielinnie]

You can use nvmecontrol to check its info and logs.

Examples for error, info, and tests log pages:

Code:

nvmecontrol logpage -p 1 nvme0
nvmecontrol logpage -p 2 nvme0
nvmecontrol logpage -p 6 nvme0

and the temperatures seems fine under 50c all the time.

It's idling at 50C?



[Arwen]

You might also investigate power saving features. It is possible that the NVMe drive is going to power save automatically after a specific period of time since last access. Access would be random enough that you might not be able to make a correlation between last access and drop.

Further, PCIe power save might also be a factor.

Plus, I agree with @winnielinnie, 50c sounds very high.



[tsm37]

Agreed. 50C assuming idle is high for nvme m2. Is it pcie gen 4 nvme m2? If so, do you have a heatsink and thermal pad on? Gen 4 idle temp with heatink and thermal pad should be around 30-35C idle but below 40C unless your m2 is close to a, say, HBA card or other cards with heatink and generating heat.



[sretalla]

You can use nvmecontrol to check its info and logs.

Not on SCALE...

you need to use nvme:

nvme smart-log /dev/nvme0n1 for example.

You can run nvme list first to find the actual list of devices you can work with.



[Johnnnnnnnnnny]

Not on SCALE...

you need to use nvme:

nvme smart-log /dev/nvme0n1 for example.

You can run nvme list first to find the actual list of devices you can work with.

Thanks for the correct command. My log is as follows:
Smart Log for NVME device:nvme0n1 namespace-id:ffffffff critical_warning : 0 temperature : 29 C available_spare : 100% available_spare_threshold : 1% percentage_used : 0% endurance group critical warning summary: 0 data_units_read : 8235004 data_units_written : 6185963 host_read_commands : 34676013 host_write_commands : 111061253 controller_busy_time : 108 power_cycles : 82 power_on_hours : 489 unsafe_shutdowns : 54 media_errors : 0 num_err_log_entries : 150 Warning Temperature Time : 0 Critical Composite Temperature Time : 0 Temperature Sensor 1 : 29 C Temperature Sensor 2 : 0 C Thermal Management T1 Trans Count : 0 Thermal Management T2 Trans Count : 0 Thermal Management T1 Total Time : 0 Thermal Management T2 Total Time : 0
For me nothing seems suspicious there.

You might also investigate power saving features. It is possible that the NVMe drive is going to power save automatically after a specific period of time since last access. Access would be random enough that you might not be able to make a correlation between last access and drop.

Further, PCIe power save might also be a factor.

Plus, I agree with @winnielinnie, 50c sounds very high.

Thanks. That sounds possible. I;ve already disabled any power savings for the disk i GUI but I'll also look to bios options.
Unfortunatelly my SSD went offline again after about 2 days use.



[sretalla]

Except for the 150 error log entries, nothing suspicious.

You can read those with a command like this:
nvme error-log /dev/nvme0n1 -e 150 (obviously adjusting for your actual NVME drive name)



[Johnnnnnnnnnny]

Except for the 150 error log entries, nothing suspicious.

You can read those with a command like this:
nvme error-log /dev/nvme0n1 -e 150 (obviously adjusting for your actual NVME drive name)

Wow, thanks.

I found this error:
0x2002(INVALID_OPCODE: The associated command opcode field is not valid)

Found the problem mentioned here, but no solutions: https://github.com/linux-nvme/nvme-cli/issues/627

sudo nvme id-ctrl /dev/nvme0n1 | grep oacs
gives me 0x17



[sretalla]

If it's a samsung drive, it seems it's a known bug. Unless it's blocking you from doing something, there seems no need to do anything about it.



[joeschmuck]

Out of curiosity, what is the NVMe drive used for? I only ask due to how much data it's written in such a short period of time. I'm curious if it's overheating as well. But I don't know much about NVMe's as my only one is in my Windoze computer, not on a server. Maybe when I get really wealthy I can afford a vdev of NVMe's.



[Johnnnnnnnnnny]

After some more debugging I got it to work :)

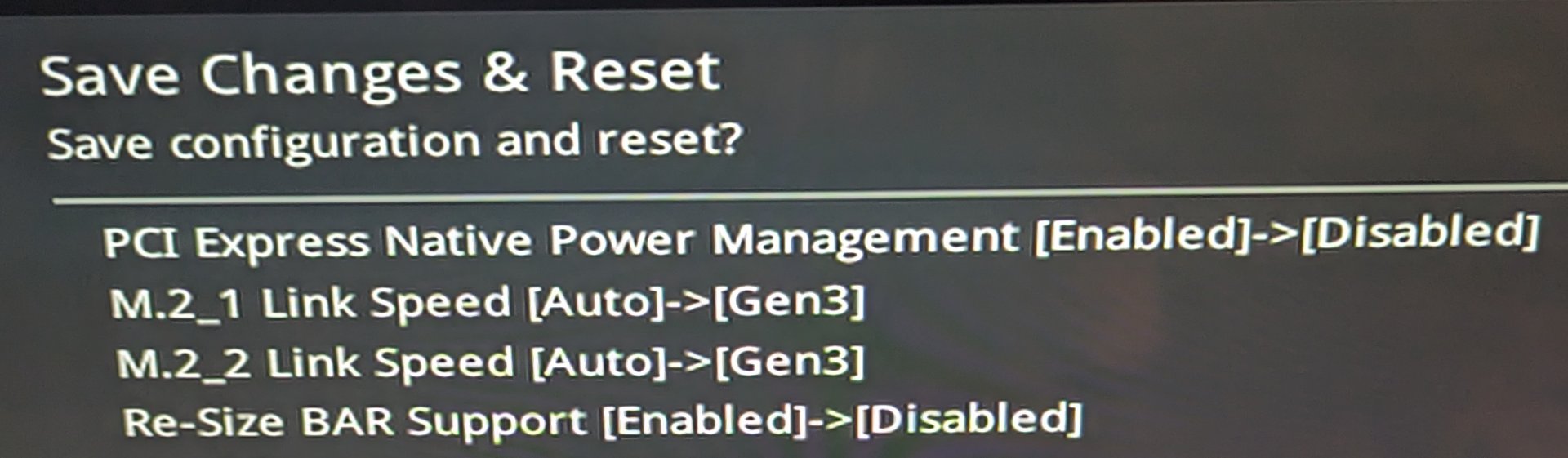

It works fine after I changed those settings in BIOS from their defaults:

The most likely one seems to be the power management.
I have a ASUS board and 12th gen i3 so this information might be usefull for others.
Thanks to all for the great advise :)
