SOLVED No IP from DHCP on jails - Moved to new ticket
- Thread starter melloa
- Start date
- Status
melloa
Wizard
- Joined
- May 22, 2016
- Messages
- 1,749

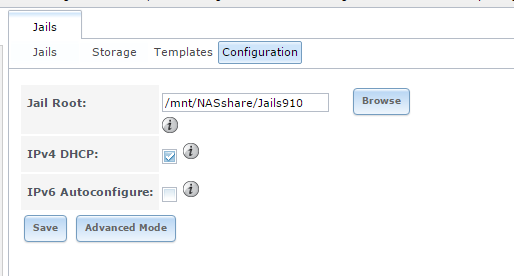

I'm not sure if this would help, but I had a problem with my 9.10. I have DHCP enabled on the jails configuration:

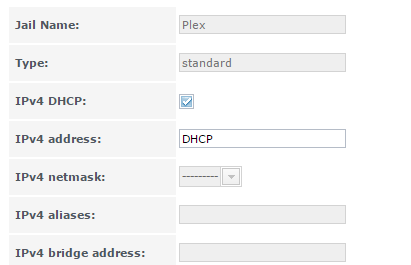

and also on the specific jail:

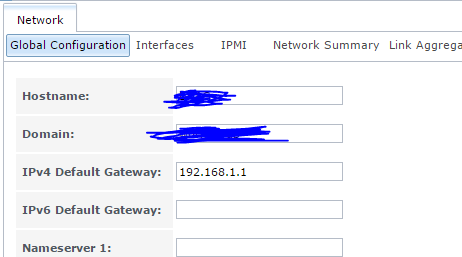

I also wouldn't get an IP address, until i set my default gateway under network
This is something new, I didn't have to do this under 9.3 or 9.3.1.
good luck!
and also on the specific jail:
I also wouldn't get an IP address, until i set my default gateway under network
This is something new, I didn't have to do this under 9.3 or 9.3.1.
good luck!
melloa
Wizard
- Joined
- May 22, 2016
- Messages
- 1,749
hmmm ... don't know. My configuration has always been DHCP on the jail general and DHCP on my jails themselves. I used to get their MAC and assign on my routed a SIP LAN IP and set a DNS Resolver for it, so I could access with the names instead and won't need to remember the ~55 IPs for my devices on my home network.
Will play a little with that, as I also reported a bug that seems to be linked with the general jail DHCP configuration.
Will play a little with that, as I also reported a bug that seems to be linked with the general jail DHCP configuration.
melloa
Wizard
- Joined
- May 22, 2016
- Messages
- 1,749
Nope, that didn't fix the DHCP issue and, in fact, it shouldn't be the logical configuration, as FN should go to my DHCP Server to get a free IP, not provide an IP from a range you'd specify in it. That could cause IP conflicts inside the network.

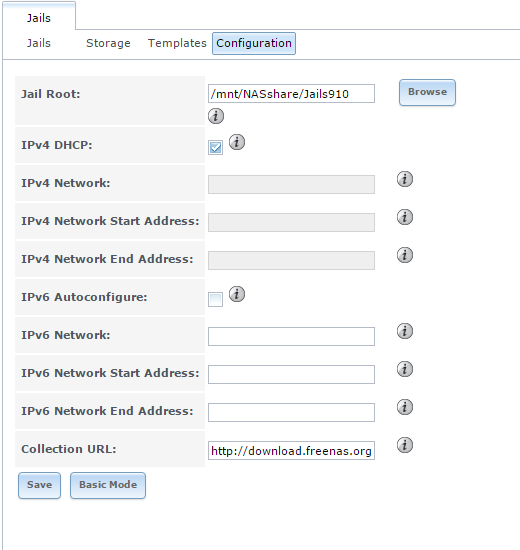

I'm super new to this, so bare with me. But I'm not specifying any IP address ranges anywhere in FreeNAS. I thought the DHCP option in the Jails -> Configuration meant "I'm using a DHCP server use IT to get an IP address, don't try to create IPs on the server (freeNAS jails)". Again, on my FreeNAS Jails -> configuration I have DHCP enabled, if I click advanced options the 'range' is grayed out. (adding screenshot)
Which leads me to believe that FreeNAS will not try to 'create' IPs, instead it'll use the DHCP on my router (which is also my default gateway). Then inside the jail itself for PLEX, I also have DHCP enabled, which I believe requests an ip from the "jails manager" (if I can call it that).
So to recap, this is how I understand it.
The Plex jail == DHCP enabled, which then it goes to it's parent the 'all jails' config, in my case, also DHCP, which then goes to the network and says 'gimmie an ip'.
Anyways, I'm sorry that didn't fix your issue, hopefully someone that actually understands this stuff will chime in (meaning not me).
Attachments
found this too, maybe it would help?
https://forums.freenas.org/index.php?threads/jail-not-working-with-dhcp.42310/
https://forums.freenas.org/index.php?threads/jail-not-working-with-dhcp.42310/
melloa
Wizard
- Joined
- May 22, 2016
- Messages
- 1,749
Interesting discussion. It seems the issue was reported before, but the ticket open was closed with a "can't replicate". Also the "bug" with the GUI I've found is interesting. As the DHCP Client isn't working, I've set jails for testing with SIP, but every time you open the jail configuration (click the icon or double-click the jail) the GUI changes the IPv4 from uncheck to checked and erases the IP I've configured for the jail...
In a way that was good for me b/c forced me to build a VBox server and move my servers to VMs, so have learned a lot re-configuring them to make them work with my FN CIFS.
But ... I'm a FN fan and want it fixed!
In a way that was good for me b/c forced me to build a VBox server and move my servers to VMs, so have learned a lot re-configuring them to make them work with my FN CIFS.
But ... I'm a FN fan and want it fixed!
pirateghost
Unintelligible Geek
- Joined
- Feb 29, 2012
- Messages
- 4,219
Weird. DHCP works for me
melloa
Wizard
- Joined
- May 22, 2016
- Messages
- 1,749
For me DHCP only works for the FN Box interface. The Jails won't get an IP, unless I forced from the shell.
pirateghost
Unintelligible Geek
- Joined
- Feb 29, 2012
- Messages
- 4,219
Yeah. I haven't had any issues with dhcp on my jails.
did you do a clean 9.10 install on the jails? According to other threads, if there was going to be a problem, that's the scenario they show up in. When I tried my 9.3 configuration, using the old jails dataset, it looked ok.
pirateghost
Unintelligible Geek
- Joined
- Feb 29, 2012
- Messages
- 4,219
When I upgraded from 9.3.1 I used the same jails config and dataset
Ah ok, that's probably why then, the issues all seem to be centered around users that did a fresh 9.10 install, using 9.10 jail template.
melloa
Wizard
- Joined
- May 22, 2016
- Messages
- 1,749
I have four FNs running. Three upgraded from 9.3 and they all have the issue. One I did a fresh install, imported the config, deleted all jails and jails DS, recreated the jail DS with a different name just in case, created jails and no IP from DHCP. Built a fresh box, installed 9.3, upgraded to 9.10 and same ... no IP from DHCP. Blamed my pfSense as I have installed pf for all my family members and tested with a linksys router -> No IP.
I've ran out of options and ideas for this moment, so planning my downgrade until I can run a 9.10 in one VM without issues, so will move to the physical boxes.
I've ran out of options and ideas for this moment, so planning my downgrade until I can run a 9.10 in one VM without issues, so will move to the physical boxes.
When you did your 9.3 upgrade to 9.10. Was the jail template created under 9.3 and then when you did the FN update to 9.10 you lost the ability to pickup an IP for it? Honestly, I really don't know how to help, but I'm just trying to keep track of the scenarios in which this occurs.
