New pool with new drives and not faster

[ondjultomte]

I had a old pool with 6x 4TB sata drives with no frills, fio benchmark below

https://imgur.com/a/hUew9

good write performance at around 400MBps old drives from 2016.

I got a new pool with 8x 10TB SAS drives which I get the worse from, its more uneven! in seq write that is.

This is not expected, with drives that can read/write at 200MBps compared to 100 of the old sata drives I expeced to get more seq performance outof this new setup.

I need to ideas how to tweak or understand this behaviour better.



above



[ondjultomte]



[ondjultomte]

hardware on server is

SM x10srh
Xeon E5 2695v4
128GB ram

the old pool sits in a server with
Intel Xeon Silver 4108 (16) @ 3.000GHz
some dell MB
16GB ram



[ondjultomte]

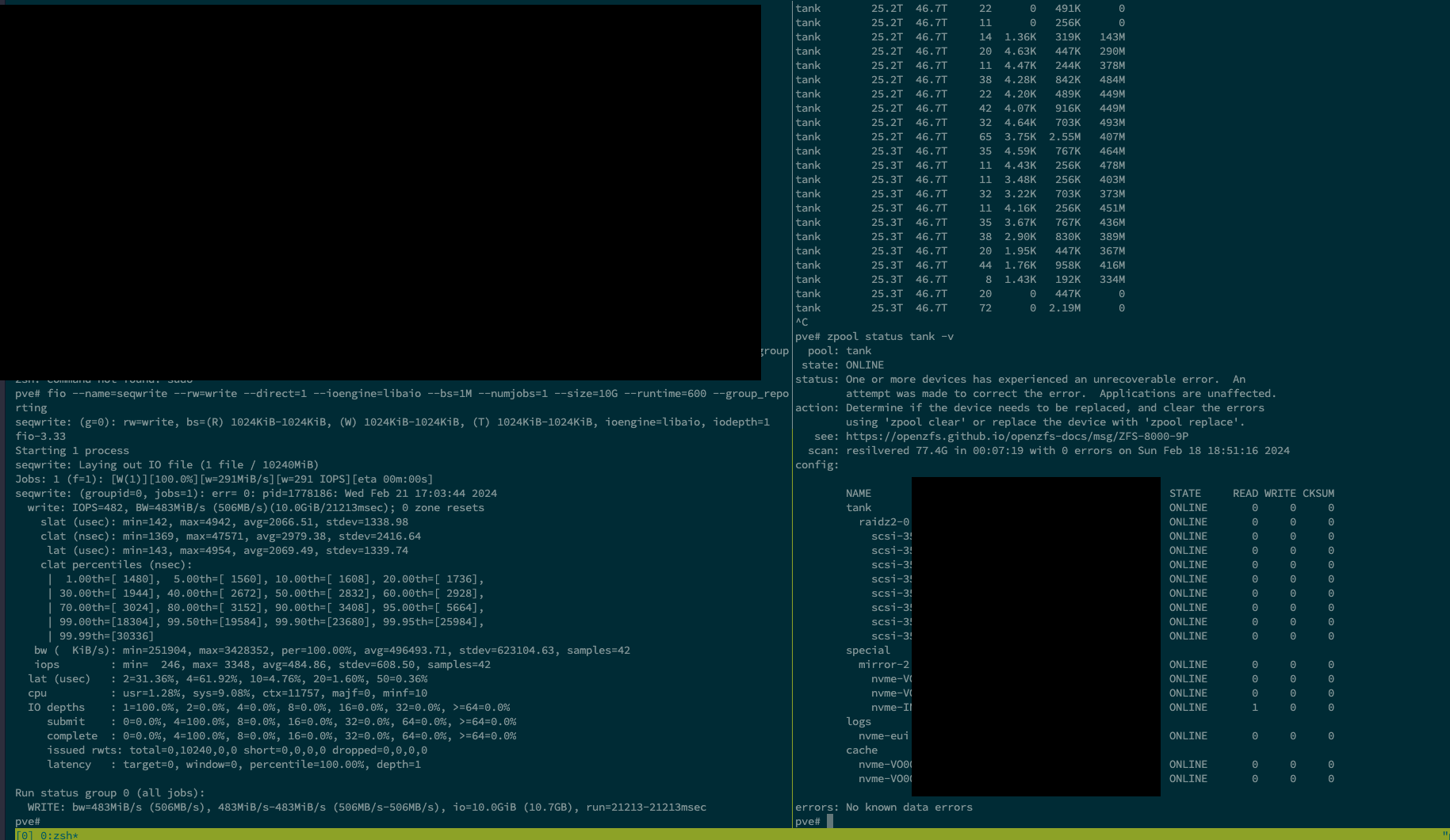

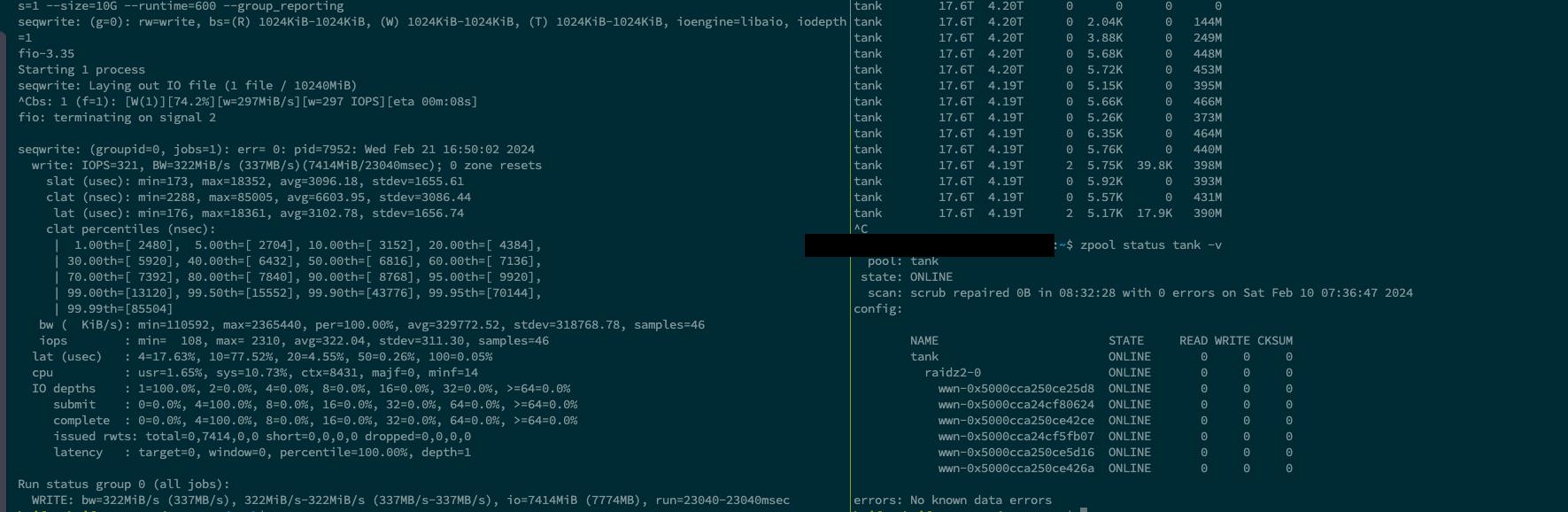

benchmark again with 64G file

new pool

vs old pool



[ondjultomte]

are there cpu limitations here?



[ondjultomte]

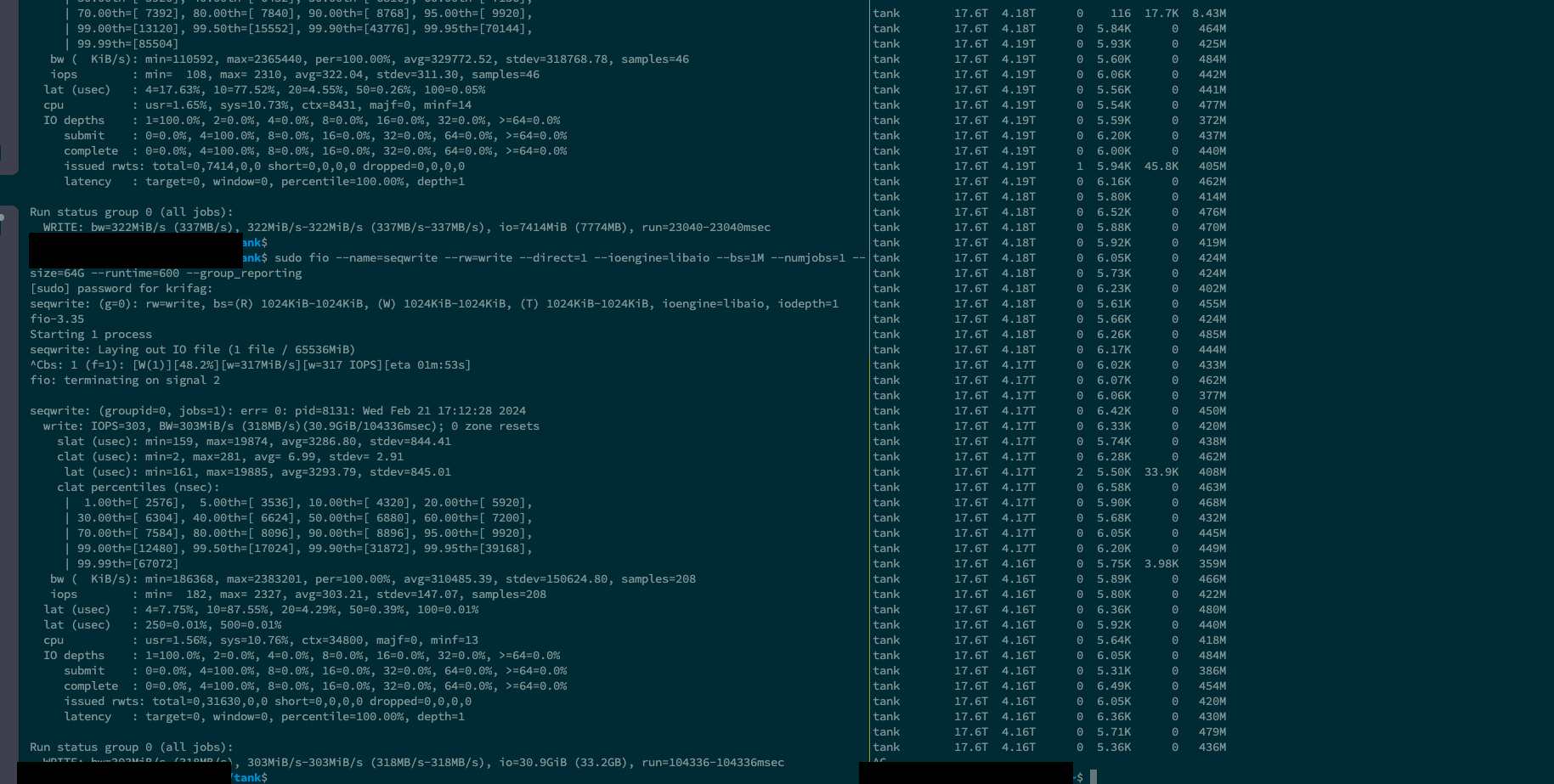

Its silly but look at each drive performing much better with to old sata sompared to the 10TB sas drives!



[ondjultomte]

the new this which are on datasheet twice as fast are in reality twice as slow! ...

imgur.com

Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.

imgur.com



[sretalla]

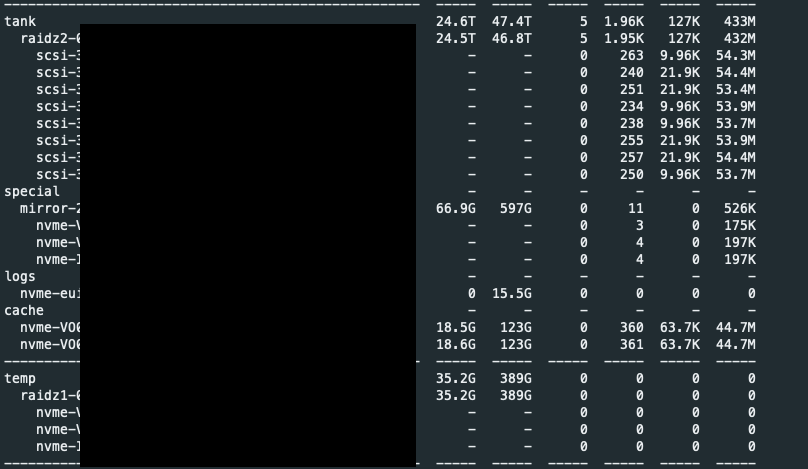

I notice a key difference is you added SLOG and L2ARC (in addition to the special VDEV).

Perhaps remove the SLOG and L2ARC first and retry your tests.



[ondjultomte]

are we seeing pci limitation ? or cpu ?



[ondjultomte]

I notice a key difference is you added SLOG and L2ARC (in addition to the special VDEV).

Perhaps remove the SLOG and L2ARC first and retry your tests.

I could try that, but that should defenetly only just improve things if eg synced writes.



[ondjultomte]

I can do the otherway around! add slog and l2arc to the old pool :)



[ondjultomte]

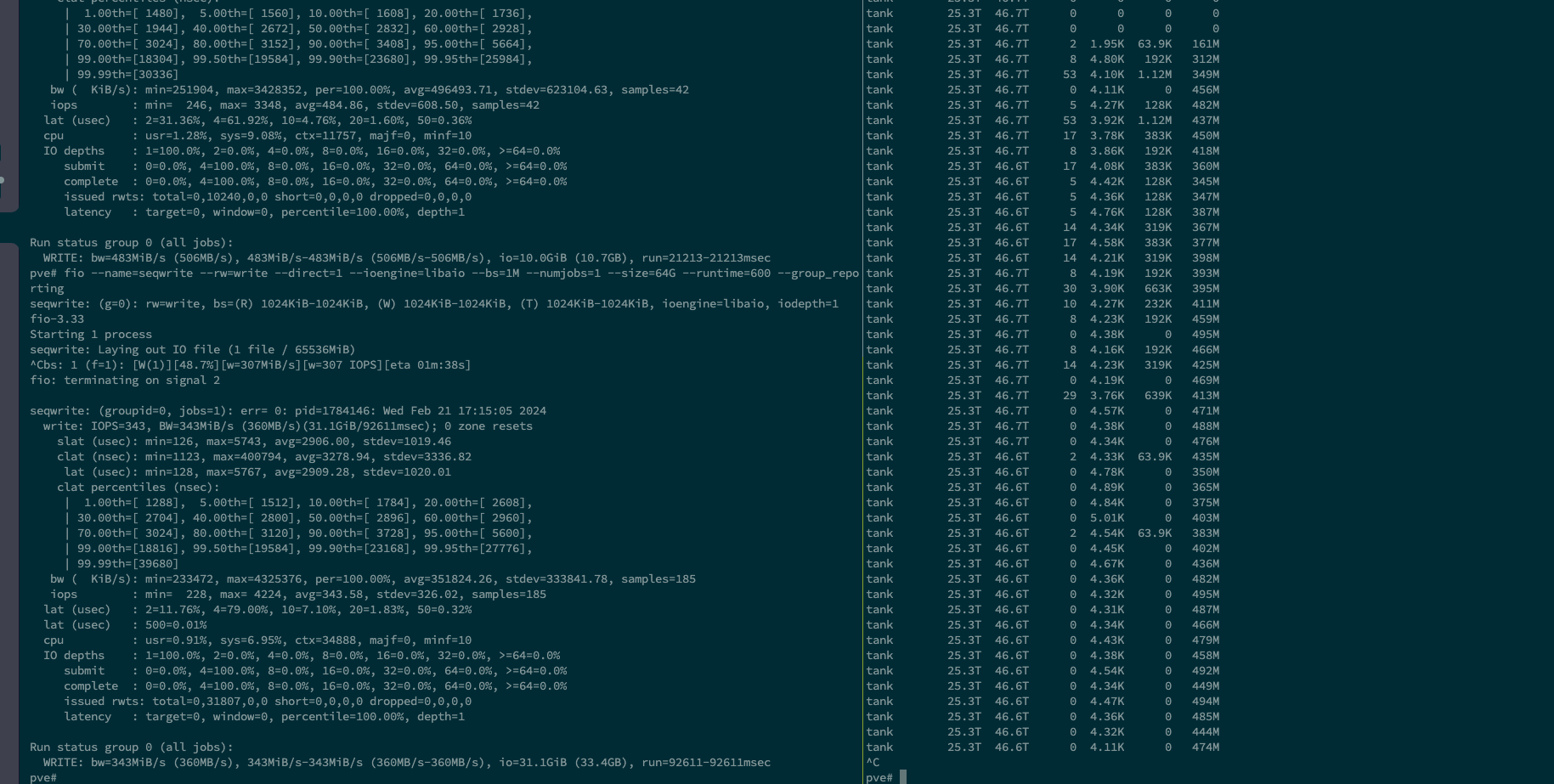

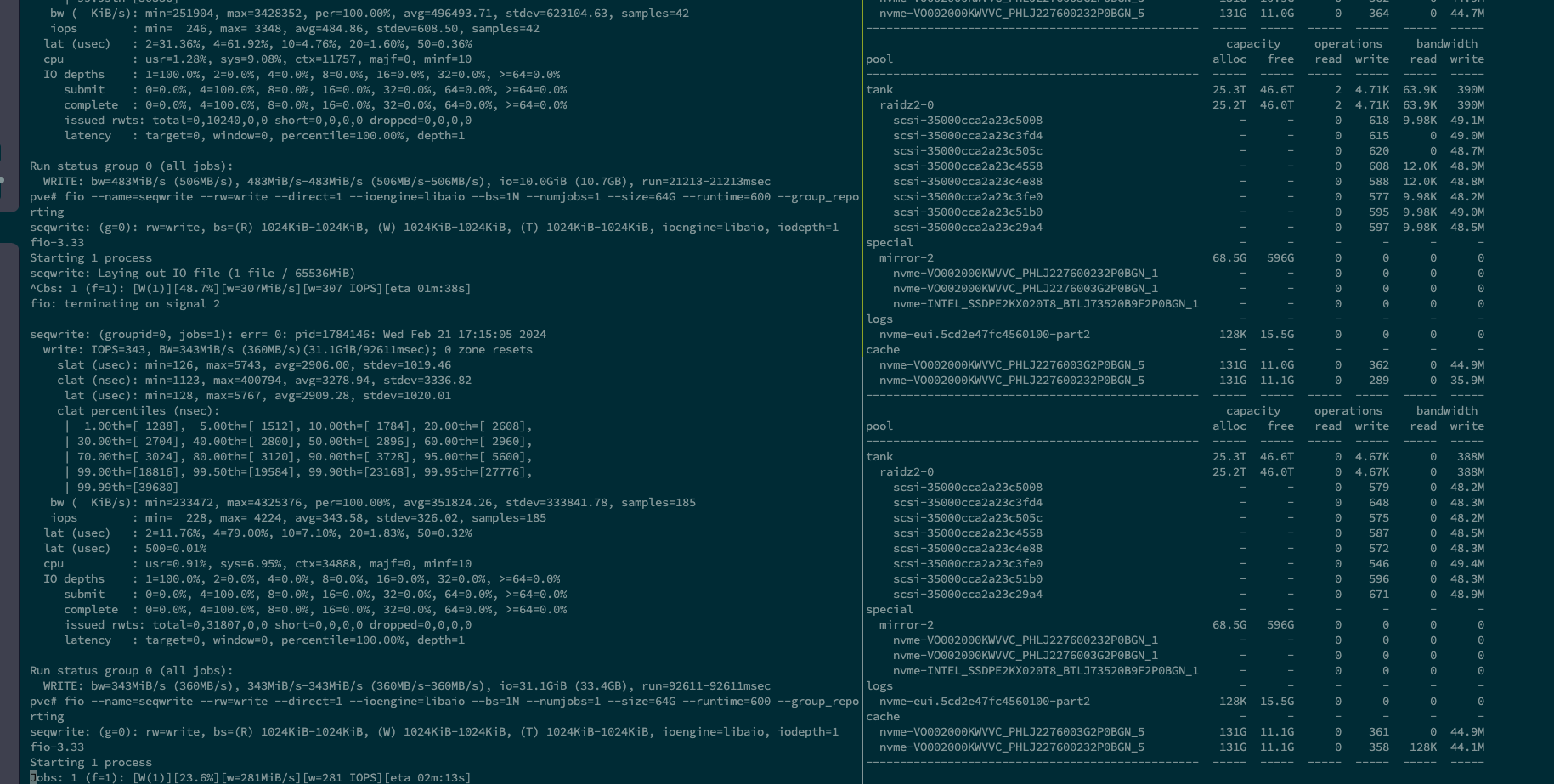

wow, adding the slog and l2arc made the old pool faster ! :)

imgur.com

Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.

imgur.com

600MBps
