Jails: DHCP works but static IP doesn't

Status
Not open for further replies.

petesmc

Cadet
Joined
Mar 29, 2017
Messages
7
I have tried time and again to assign a static IP address to each jail in the GUI, but once i do, nothing in ping-able and i cannot access the server on the same network.

Server: 192.168.80.15
Gateway: 192.168.80.1

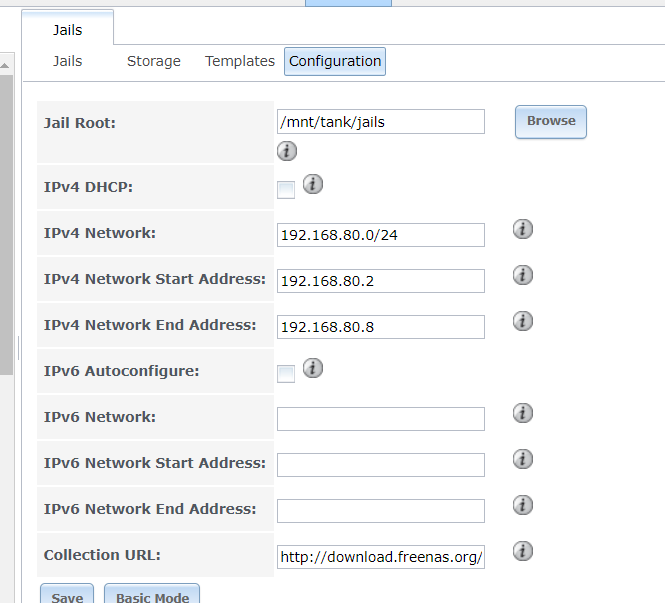

Jail network configuration:

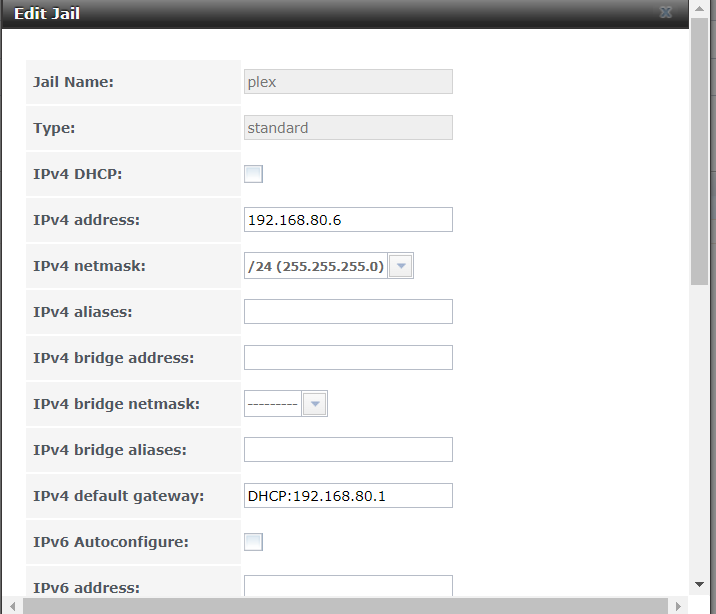

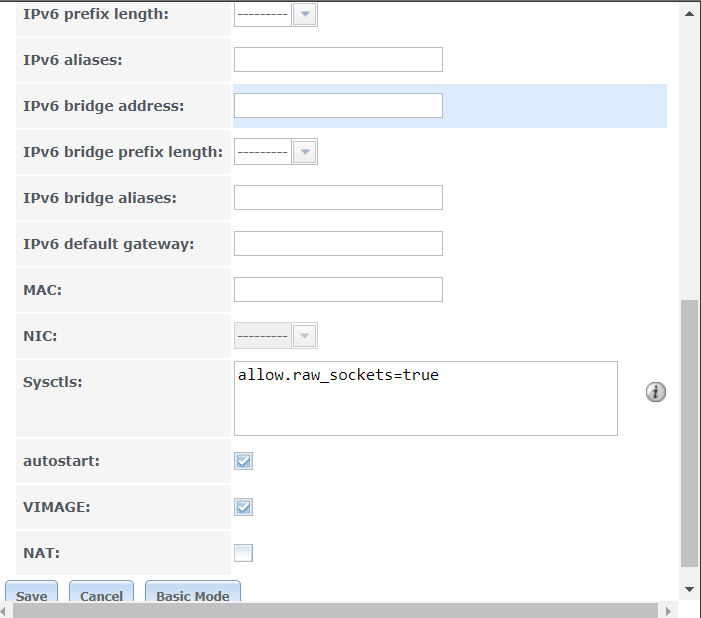

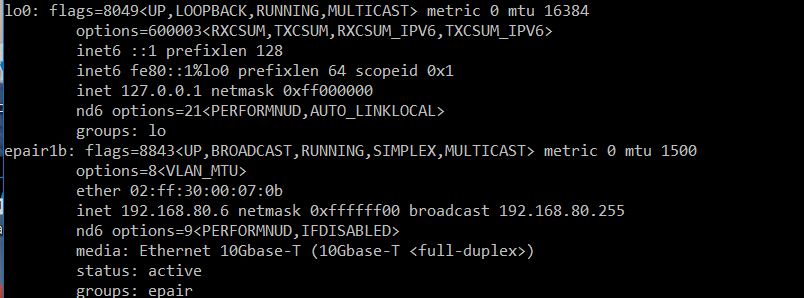

Jail with static IP:

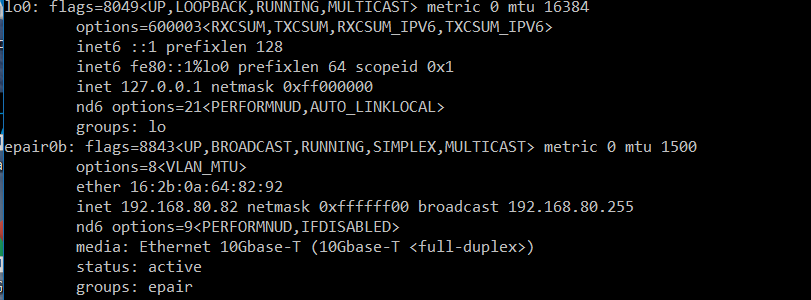

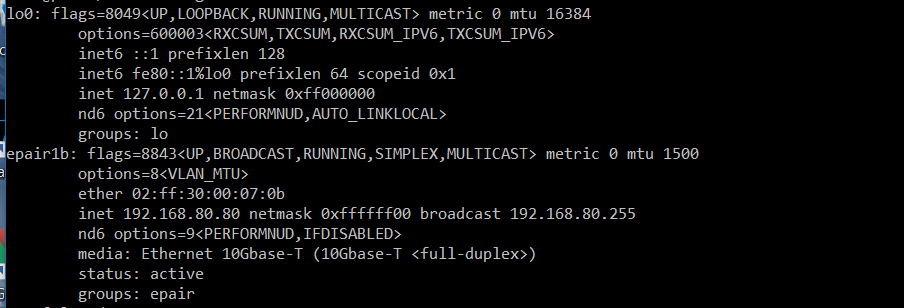

With DHCP enabled all is fine. Can ping the outside world and access on the network:




Any tips where i can start debugging this issue. I don't have control over the router to do address reservation so i need to set static IPs directly.

Regards
Peter


Attachments

  • upload_2018-2-23_0-0-28.png
    38.9 KB · Views: 241

Nick2253

Wizard
Joined
Apr 21, 2014
Messages
1,633
The only thing that jumps out at me is you have DHCP:192.168.80.1 as your gateway, but you should only need 192.168.80.1. Can you try changing that?
