Hi guys,
Hopefully i can't get some input from the experts or someone with same problem as me.
I am using MPIO on SuperSnap LUN, connected via 2x 10GbE
System:
Supermicro Motherboard X9DRi-F
Dual Intel Xeon E5 2609 V2 CPU's supporting Quad Core ,2.5Ghz,15MB Cache
128Gb of RAM
24 x Intel SSD DC S3510 Series 800gb each ( Raidz2 in 4 lots of 6 SSD drives)
LSI SAS 9207-4i4e PCI-e 3.0 x 8, 6 Gb/s
One Intel x550-t2
FreeNAS-11.2-U5
Switch is Netgear 12 Port Prosafe 10GE Smart Switch
Windows side:
2 hosts running Windows 2019 Server Standard with the latest updates
Intel x550-t2 cards in each host
Iscsi in mutipath setup from Freenas
The 2 hosts are setup in a cluster.
Cluster Validation all green with no errors in the storage.

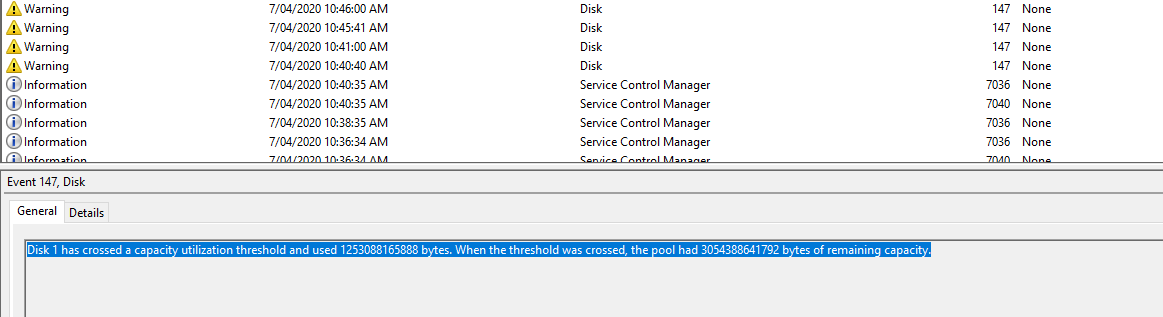

Errors in the VM's and hosts:
Hopefully i can't get some input from the experts or someone with same problem as me.
I am using MPIO on SuperSnap LUN, connected via 2x 10GbE
System:
Supermicro Motherboard X9DRi-F
Dual Intel Xeon E5 2609 V2 CPU's supporting Quad Core ,2.5Ghz,15MB Cache
128Gb of RAM
24 x Intel SSD DC S3510 Series 800gb each ( Raidz2 in 4 lots of 6 SSD drives)
LSI SAS 9207-4i4e PCI-e 3.0 x 8, 6 Gb/s
One Intel x550-t2
FreeNAS-11.2-U5
Switch is Netgear 12 Port Prosafe 10GE Smart Switch
Windows side:
2 hosts running Windows 2019 Server Standard with the latest updates
Intel x550-t2 cards in each host
Iscsi in mutipath setup from Freenas
The 2 hosts are setup in a cluster.
Cluster Validation all green with no errors in the storage.
Errors in the VM's and hosts:
