So to give a brief update I have been able to run zrepl on the host system at both ends by installing the zrepl plugin and then stopping the jail as we just need the binaries.
He is my first testing config, I had to add a few more global configs than normal to put a run path.
Local system config /mnt/tank/iocage/jails/zrepl/root/usr/local/etc/zrepl/zrepl.yml:
Code:
global:
logging:
- type: "stdout"
level: "error"
format: "human"
- type: "syslog"
level: "info"
format: "logfmt"
control:
sockpath: /mnt/tank/iocage/jails/zrepl/root/var/run/zrepl/control
serve:
stdinserver:
sockdir: /mnt/tank/iocage/jails/zrepl/root/var/run/zrepl/stdinserver
jobs:
- name: sunfish_to_sturgeon
type: push
connect:
type: tcp
address: "10.0.0.2:8888"
filesystems: {
"tank/photography": true,
}
snapshotting:
type: periodic
prefix: zrepl_
interval: 10m
pruning:
keep_sender:
- type: not_replicated
- type: last_n
count: 10
keep_receiver:
- type: grid
grid: 1x1h(keep=all) | 24x1h | 30x1d | 6x30d
regex: "^zrepl_"
My backup server config /mnt/tank/iocage/jails/zrepl/root/usr/local/etc/zrepl/zrepl.yml:
Code:
global:
logging:
- type: "stdout"
level: "error"
format: "human"
- type: "syslog"
level: "info"
format: "logfmt"
control:
sockpath: /mnt/tank/iocage/jails/zrepl/root/var/run/zrepl/control
serve:
stdinserver:
sockdir: /mnt/tank/iocage/jails/zrepl/root/var/run/zrepl/stdinserver
jobs:
- name: sink
type: sink
serve:
type: tcp
listen: ":8888"
listen_freebind: true
clients: {
"10.0.0.1": "Sunfish"
}
root_fs: "tank"
To begin with I'm just testing with one of our datasets which is small at about 125GiB. The initial snapshot was transferred at an average speed of 2.5Gbps on a 10Gbps direct connection between the two servers using jumbo frames. Running two x six disk raidz2 vols for the tank pool using 12x12TB mechanical disks. I would have expected a better speed but can totally live with 2.5Gbps for the initial seed. Once the backup is offsite it will be limited to 1Gbps and the transfer amount will be very small incremental amounts throughout the day.

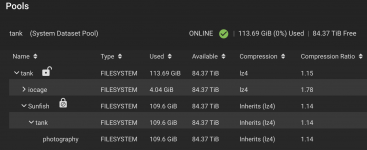

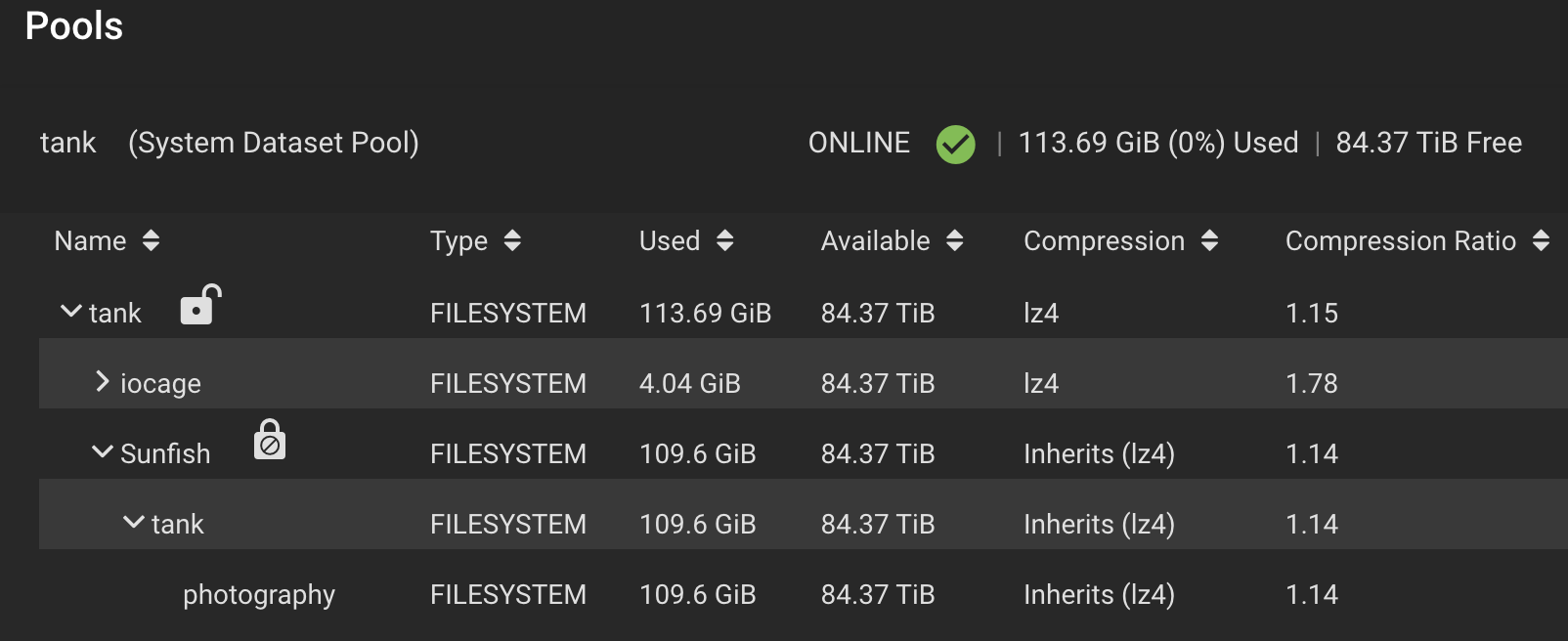

On the receiving end, it is set up as fan in so stores the receiving datasets like this:
tank/$HOST/$POOL/$DATASET
I would prefer I could control the exact source to destination position but not the end of the world.
I found out that the replicated datasets are not mounted at the other end, that is fine but whatever you do, don't mount them otherwise you change the remote dataset and then the backup cannot continue due to diverged data. If you want to mount the dataset to check on it, clone a snapshot and mount that instead.
What I don't fully understand yet:
Both ends have their Pools encrypted. Encryption setup under TrueNAS 12 when creating the pools.
Seems like the data on the backup server is not encrypted...
Does that mean if the disks were yanked onto another system could the backed-up datasets be read without the main pools decryption key?
A few other things I need to work out are:
1) how does the pruning/snapshotting interact with snapshots created by TrueNAS GUI where they are prefixed auto_
2) the best way to make sure the zrepl deamon is ran and kept running on both systems at boot. Suggestions welcomed.
3) notifications of progress and errors. At a minimum, we need emails if there are any errors and a weekly digest of what has happened. zrepl can log to syslog and stderr, so I wonder if TrueNAS default notifications could pick it up.
