Interface with 2 IPs ?!?!

[cezarq]

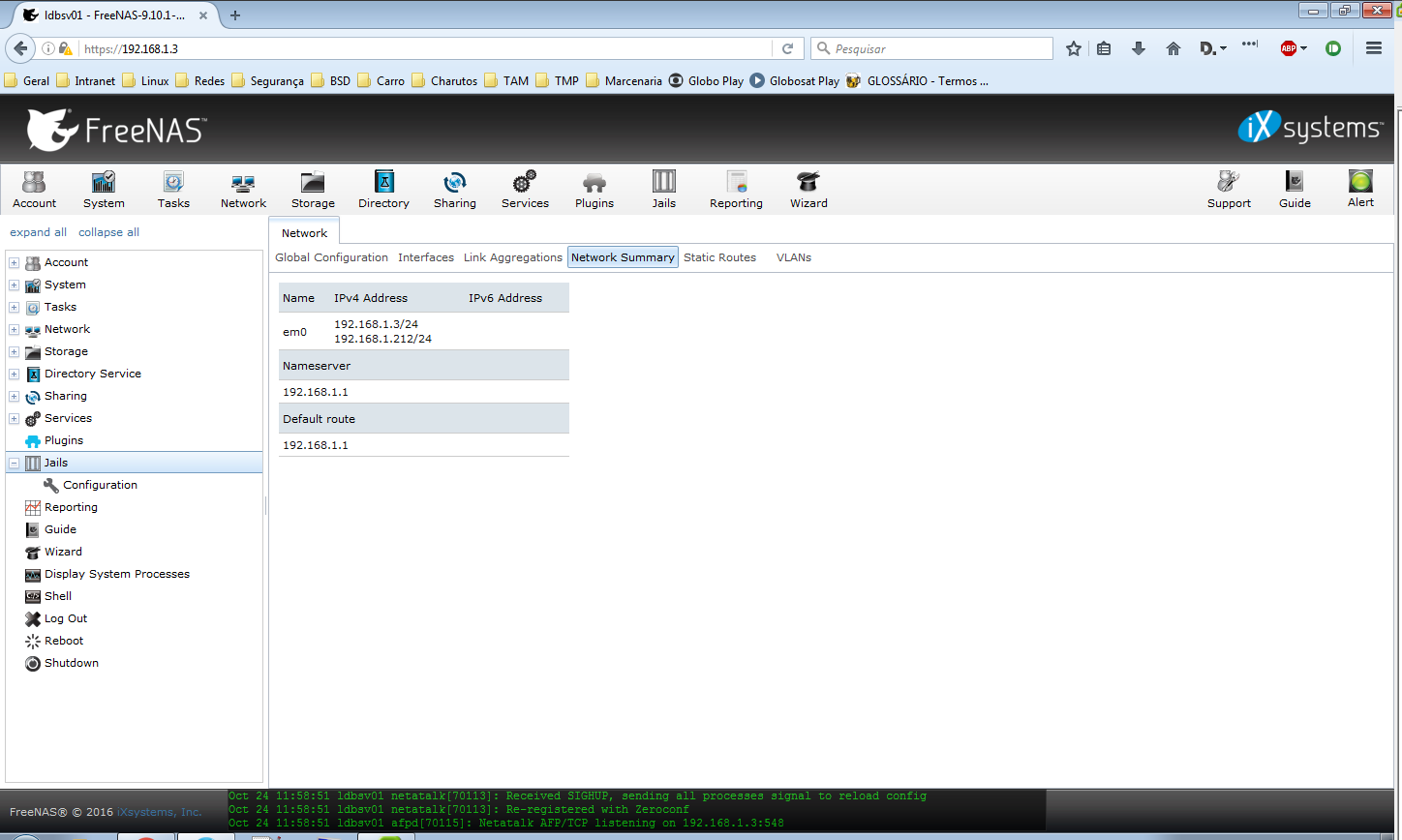

My network interface is showing 2 differents IPs addresses... Why and how can I fix it?
The correct IP is 192.168.1.3/24 and it is static.



[Spearfoot]

My network interface is showing 2 differents IPs addresses... Why and how can I fix it?
The correct IP is 192.168.1.3/24 and it is static.
View attachment 14341

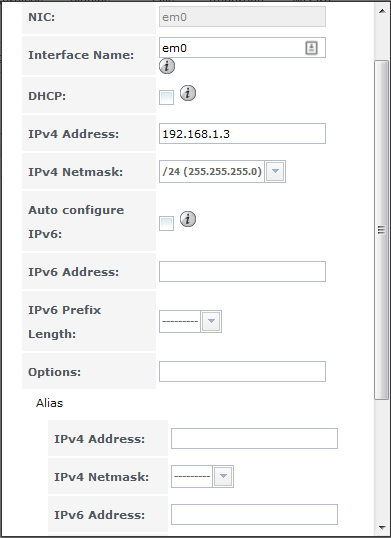

Edit em0 under 'Network->Interfaces' and make sure you don't have an alias defined there.



[pasiz]

Do you have any jails or plugins running.

Those are creating alias when vimage is not set.

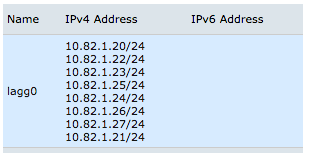

like this:



[cezarq]

Do you have any jails or plugins running.

Those are creating alias when vimage is not set.

like this:

View attachment 14342

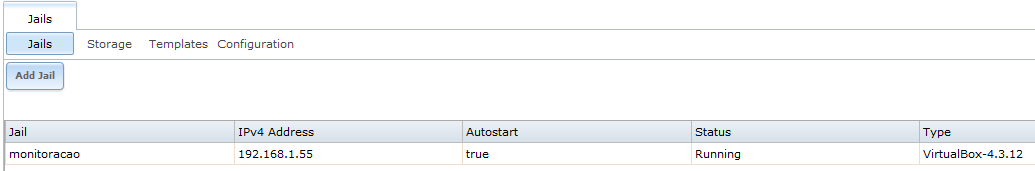

There is one jail running, but with a different IP.

Do you have any jails or plugins running.

Those are creating alias when vimage is not set.

like this:

View attachment 14342

No alias set



[pasiz]

Ifconfig output?



[cezarq]

Ifconfig output?

Code:

# ifconfig
em0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=98<VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM>
		ether 00:0c:29:c5:8f:f5
		inet 192.168.1.3 netmask 0xffffff00 broadcast 192.168.1.255
		inet 192.168.1.212 netmask 0xffffff00 broadcast 192.168.1.255
		nd6 options=9<PERFORMNUD,IFDISABLED>
		media: Ethernet autoselect (1000baseT <full-duplex>)
		status: active
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
		options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
		inet6 ::1 prefixlen 128
		inet6 fe80::1%lo0 prefixlen 64 scopeid 0x2
		inet 127.0.0.1 netmask 0xff000000
		nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
bridge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
		ether 02:e3:ac:c8:57:00
		nd6 options=1<PERFORMNUD>
		id 00:00:00:00:00:00 priority 32768 hellotime 2 fwddelay 15
		maxage 20 holdcnt 6 proto rstp maxaddr 2000 timeout 1200
		root id 00:00:00:00:00:00 priority 32768 ifcost 0 port 0
		member: epair0a flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
				ifmaxaddr 0 port 4 priority 128 path cost 2000
		member: em0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
				ifmaxaddr 0 port 1 priority 128 path cost 20000
epair0a: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
		options=8<VLAN_MTU>
		ether 02:ff:20:00:04:0a
		nd6 options=1<PERFORMNUD>
		media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
		status: active



[pasiz]

is vimage enabled on jail?



[pasiz]

Ahh, card is in promiscuous mode, must be related to your vm image networking...



[cezarq]

is vimage enabled on jail?

It was enabled... I just unchecked... Do I have to restart the server to check if the IP is still set?



[pasiz]

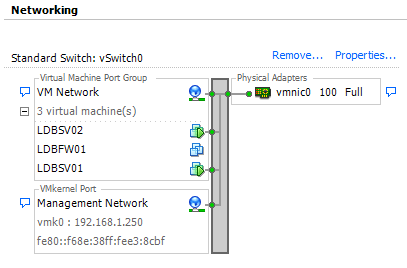

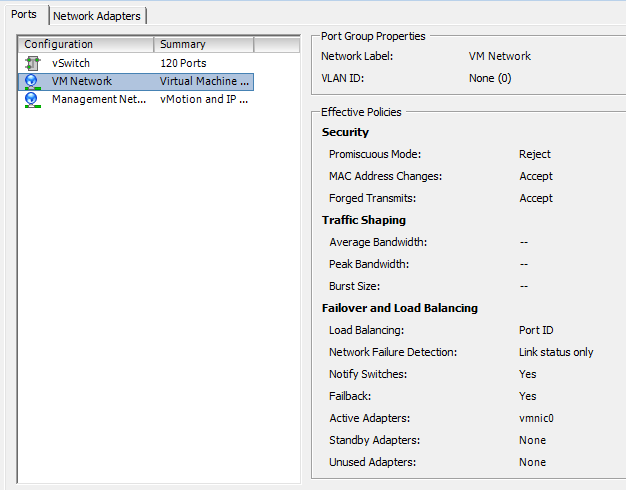

I think it belongs to your vm settings, how network is routed. See also your vm config about network.



[cezarq]

I think it belongs to your vm settings, how network is routed. See also your vm config about network.



[pasiz]

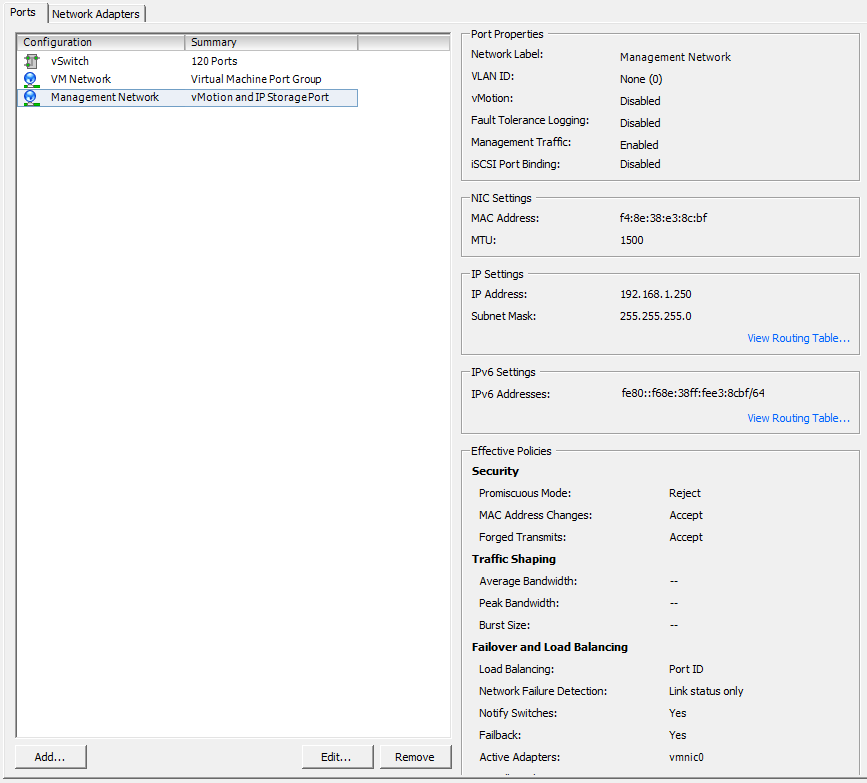

vmnic0 is the interface, could you show that?



[cezarq]

vmnic0 is the interface, could you show that?



[pasiz]

Strange... what is the ip of the vm?



[cezarq]

Strange... what is the ip of the vm?

Host = 192.168.1.250
FreeNAS = 192.168.1.3



[pasiz]

Could you determine anything via nmap?



[cezarq]

Could you determine anything via nmap?

The both IP (.3 and .212) are up and working.... Wtf?!?!



[pasiz]

But if you nmap full port range, could you make assumption of the services offered



[cezarq]

But if you nmap full port range, could you make assumption of the services offered

Code:

nmap -sS 192.168.1.212

Starting Nmap 6.47 ( http://nmap.org ) at 2016-10-26 10:52 BRST
Nmap scan report for 192.168.1.212
Host is up (0.0014s latency).
Not shown: 997 closed ports
PORT	STATE SERVICE
80/tcp  open  http
199/tcp open  smux
443/tcp open  https
MAC Address: 00:0C:29:C5:8F:F5 (VMware)

Nmap done: 1 IP address (1 host up) scanned in 257.19 seconds

Code:

nmap -sS 192.168.1.3

Starting Nmap 6.47 ( http://nmap.org ) at 2016-10-26 11:53 BRST
Nmap scan report for 192.168.1.3
Host is up (0.00025s latency).
Not shown: 994 closed ports
PORT	STATE SERVICE
80/tcp  open  http
139/tcp open  netbios-ssn
199/tcp open  smux
443/tcp open  https
445/tcp open  microsoft-ds
548/tcp open  afp
MAC Address: 00:0C:29:C5:8F:F5 (VMware)

Nmap done: 1 IP address (1 host up) scanned in 251.96 seconds



[pasiz]

So you have http, https and snmp in listen. Have you configured something via console?
