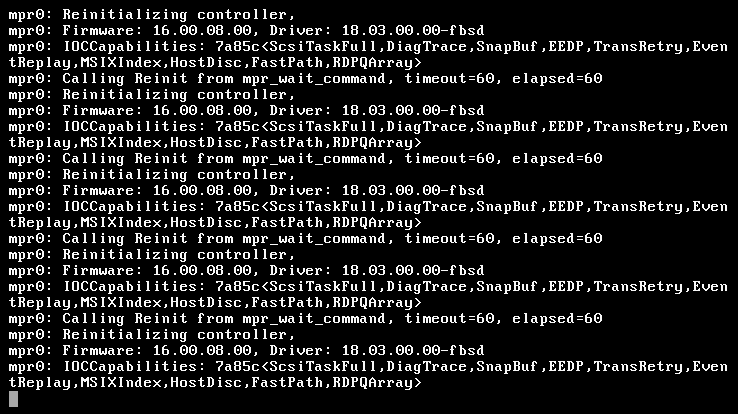

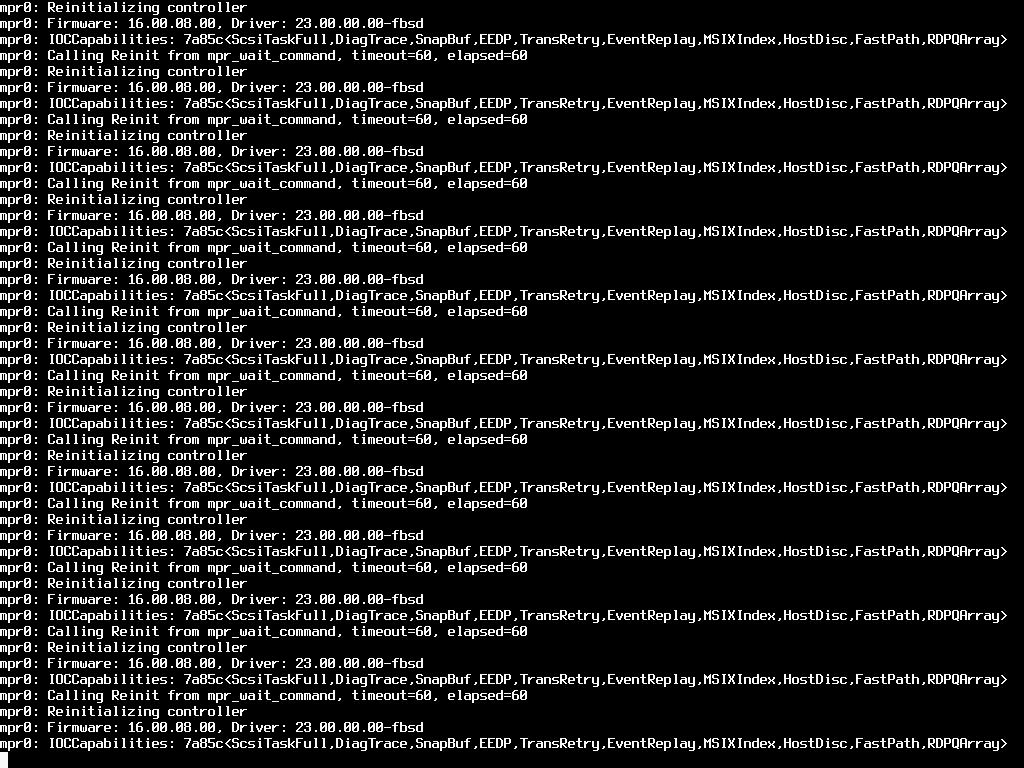

Install on Dell Poweredge R730xd stuck - mpr0: Reinitializing controller

[Diff]

I have tried different options, but stuck on install of FreeNAS 11.3, as well as TrueNAS Core 12 Beta.

More details in this JIRA:

https://jira.ixsystems.com/browse/NAS-106677

if you are hitting same issues, please add your comments.

if there is a solution to it, please share.



[Samuel Tai]

This may be due to the change to the FreeBSD boot loader in 11.2. Try an 11.1 ISO, which still uses GRUB: http://download.freenas.org/11/11.1-U7/x64/FreeNAS-11.1-U7.iso



[Diff]

Tried 11.1-U7, similar problem



[Samuel Tai]

Are you sure this controller is in IT mode?



[Diff]

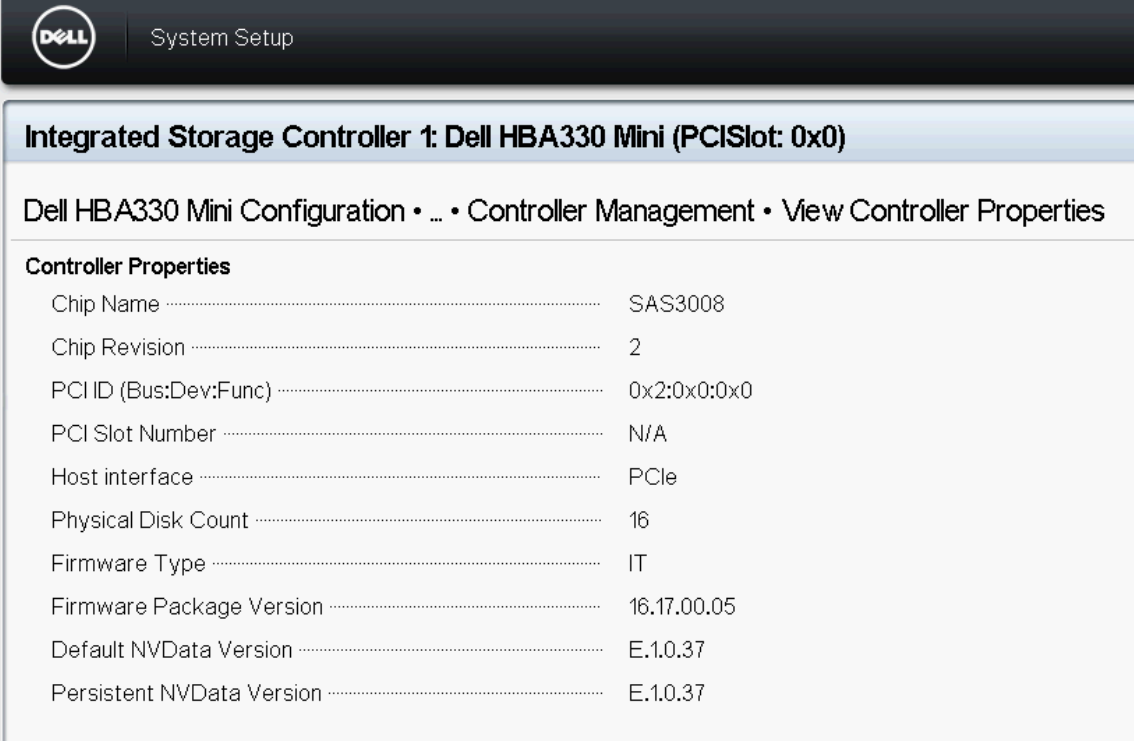

It says Firmware Type: IT



[Samuel Tai]

This FreeBSD bug report may shed some light. Some things to try:

• Flipping the setting of X2APIC
• Flipping the setting for HyperThreading
• Moving the card to a different slot



[Diff]

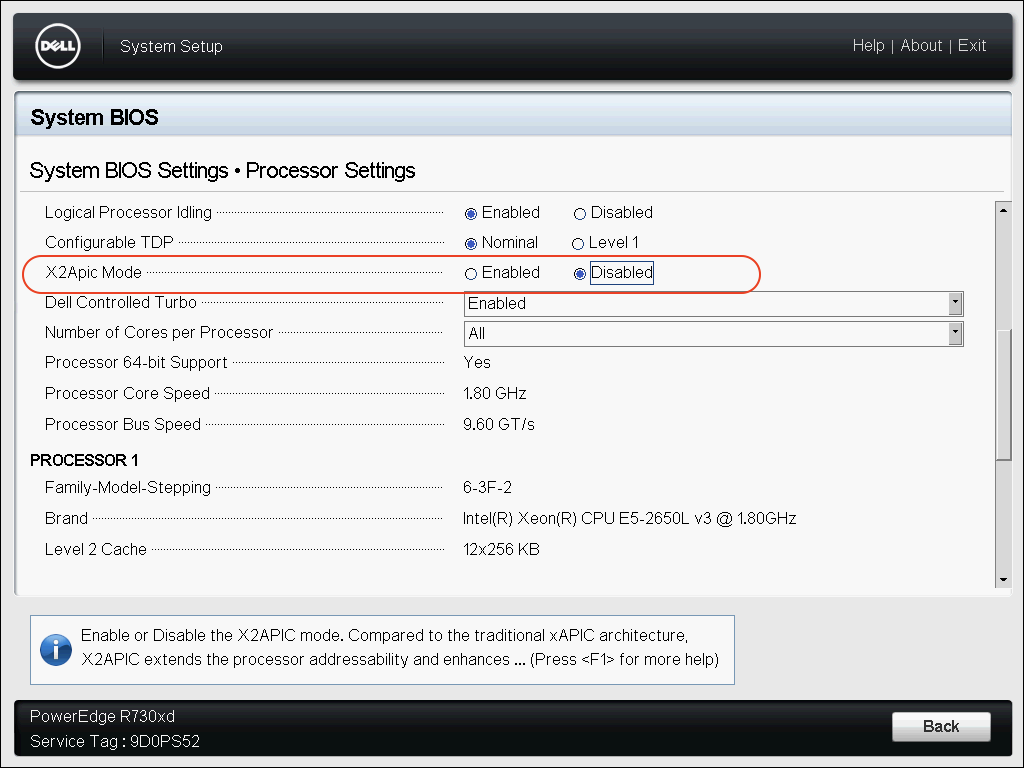

@Samuel Tai - thank you very much for pointer! Surprisingly X2Apic was the one which solved the problem. At least I was able to get through install.
