How to set the self signed certificate for public IP access?

[3038922]

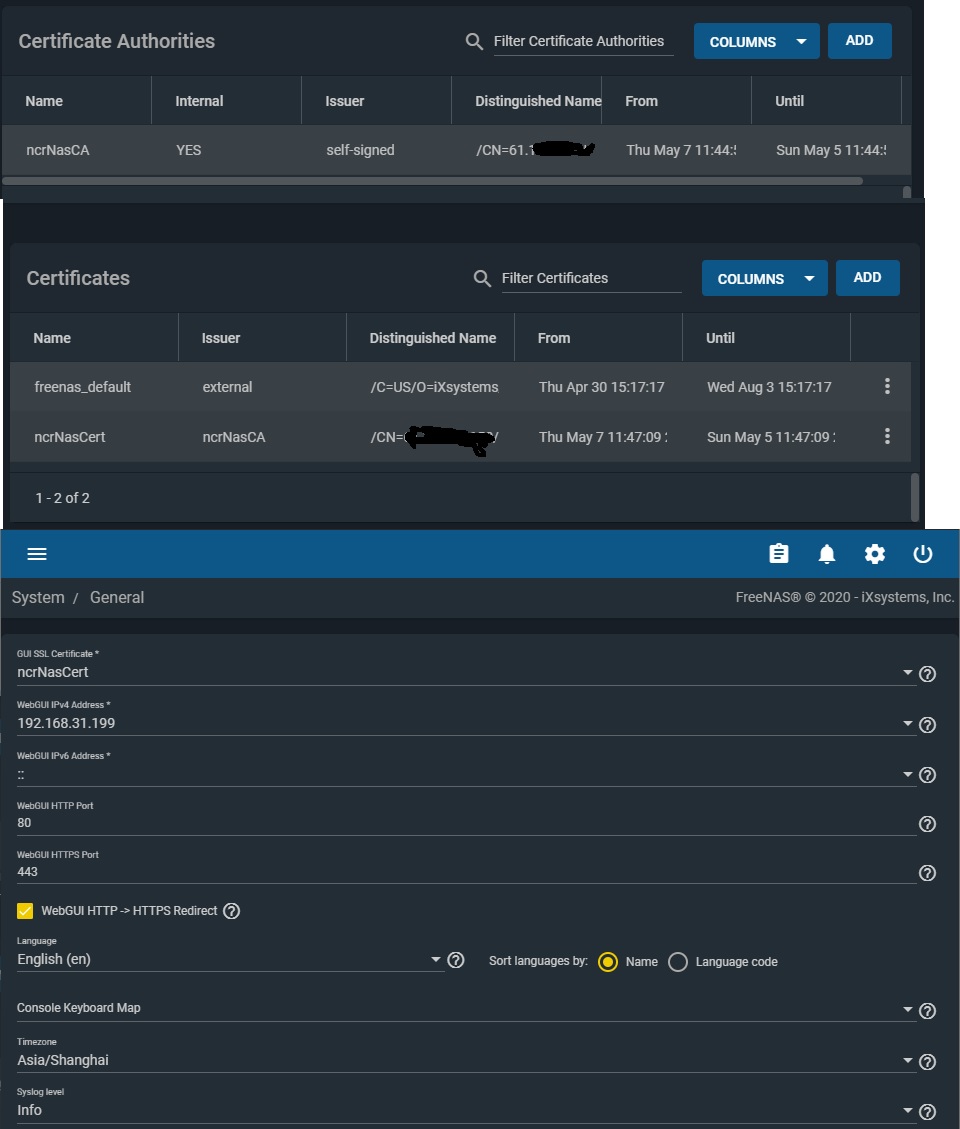

I set up the Certificate Authorities & certificates.

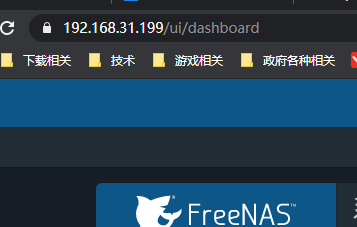

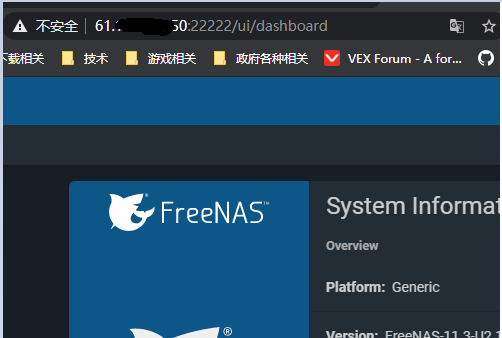

I imported the certificate.Intranet access is normal.But using public IP access is not safe.
Is it unsafe to use public IP access?
I just do a simple port forwarding on the route.



[danb35]

Is it unsafe to use public IP access?

Yes.



[Yorick]

But not because of the cert, to clarify. It’s unsafe to expose the UI to the Internet at large because a) it uses root / password for login, though 2FA in TrueNAS Core will help with that and b) isn’t typically deployed like that, and so not designed for being exposed.

I’d expect management interfaces like this to be remote-accessed via a VPN gateway on the Internet-facing router. Inexpensive options for that are a good question - the fortigate 40f comes to mind, and, there might be even lower cost and yet solid options.
What kind of hardware do people run pfSense on? That seems like a complete solution, see https://docs.netgate.com/pfsense/en/latest/vpn/openvpn/openvpn-remote-access-server.html .



[danb35]

What kind of hardware do people run pfSense on?

Pretty much anything x86. I use the Netgate hardware, though last time I looked it had gone up $200 in price and couldn't be described as cost-effective. But units like this have been pretty popular for new hardware purchases:

Amazon.com: Barebone Mini PC with Intel Celeron j1900 Processor, Quad core 2.42 GHz, AES-NI Fanless Dual LAN Support Linux Windows OS: Computers & Accessories

Amazon.com: Barebone Mini PC with Intel Celeron j1900 Processor, Quad core 2.42 GHz, AES-NI Fanless Dual LAN Support Linux Windows OS: Computers & Accessories

www.amazon.com



[danb35]

Though it's worth pointing out that the actual issue is almost certainly that the public IP address isn't listed on the cert, but the private IP address is. That would explain a certificate error when accessing externally, but not internally. That's easy enough to fix by making a new cert, but it doesn't solve the problem of exposing a system that isn't designed to be on the public internet to the public internet.



[3038922]

Though it's worth pointing out that the actual issue is almost certainly that the public IP address isn't listed on the cert, but the private IP address is. That would explain a certificate error when accessing externally, but not internally. That's easy enough to fix by making a new cert, but it doesn't solve the problem of exposing a system that isn't designed to be on the public internet to the public internet.

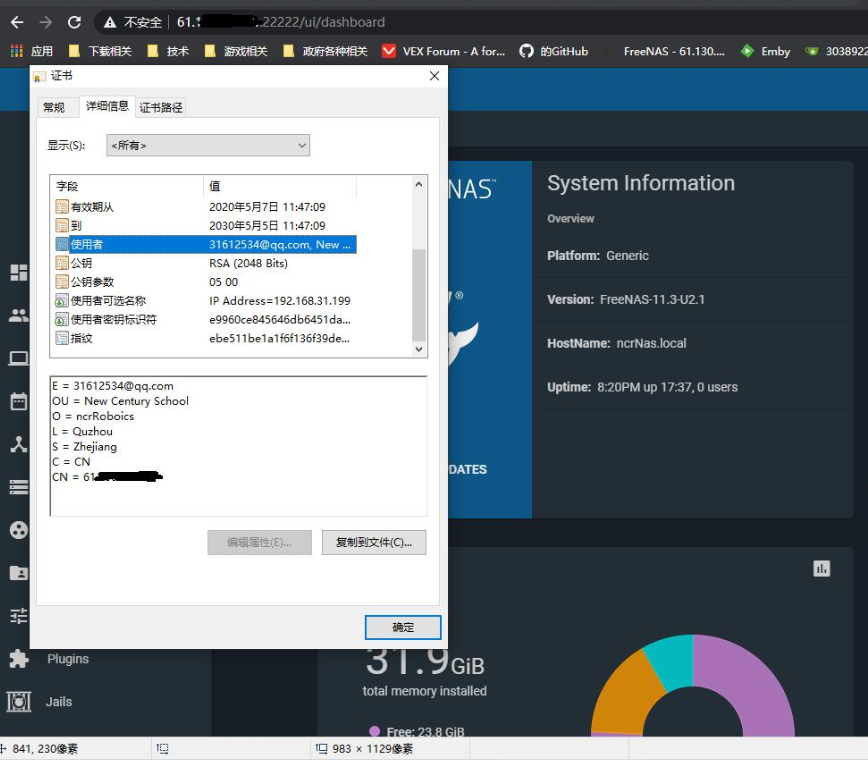

The certificate address is the same as the actual public address. As a result, the intranet access is correct.
CN =61.XXXXX
Do you want to write the port number?



[danb35]

Did you enter both the public and private IPs as Subject Alternate Names when you created the cert?



[3038922]

Did you enter both the public and private IPs as Subject Alternate Names when you created the cert?

yes,Private is automatically generated by the system.



[kiriak]

But not because of the cert, to clarify. It’s unsafe to expose the UI to the Internet at large because a) it uses root / password for login, though 2FA in TrueNAS Core will help with that and b) isn’t typically deployed like that, and so not designed for being exposed.

I’d expect management interfaces like this to be remote-accessed via a VPN gateway on the Internet-facing router. Inexpensive options for that are a good question - the fortigate 40f comes to mind, and, there might be even lower cost and yet solid options.
What kind of hardware do people run pfSense on? That seems like a complete solution, see https://docs.netgate.com/pfsense/en/latest/vpn/openvpn/openvpn-remote-access-server.html .

another option is Sophos XG firewall/router
I run it on picoPC (only 6W consumption) that is smaller than some commercial routers.
Sophos XG is free for personal use and, almost full of features but the free edition uses up to 4 cores and 6 Gb ram.
It is super easy to setup the VPN server (in reality just to setup users and permissions) and can have 2 FA if someone wants to.
Only downside (for some of us) that it is not open source.
