So I have been using FreeNAS for a while now and have finally got a set-up I am proud of. What do you think?
Home Network
Cisco SG-500X 48P setup as standalone
Supermicro A1SRi-2758F in a 1U case and a mellanox connect-x 2 10G
Direct attach copper cables running to all 10G NIC's
FreeNAS System
Mobo: Supermicro x9srl-f
CPU: Intel Xeon E5 2606 v2
RAM: 96 GB ECC DDR3
RAID Controller: LSI 9211-8
HDD's
Spinners: 14x 4 TB WD Red Pro drives
SSD: 240 GB Kingston SSD Now
FreeNAS os: 32 GB thumb drive
Network: Mellanox connect-x 2
Workstation
CPU: Intel Core i7 5820k
Mobo: AsRock Fatality x99 Killer
RAM: 64GB DDR4
EVGA Nvidia GTX 970 SSC
HDD's
Spinners: 2x 4TB WD Black
SSD RAID: 2x 240 GB kingston SSD Now in RAID0
Main SSD: Samsung Evo 850 M.2
Network: mellanox connect-x 2

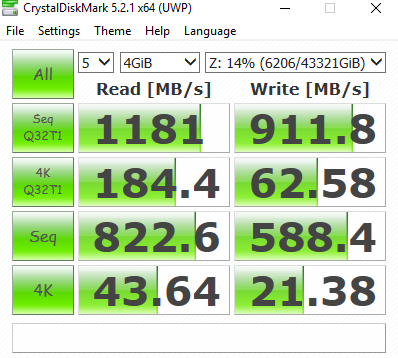

attached is the performance I am getting with my systems.
Home Network
Cisco SG-500X 48P setup as standalone
Supermicro A1SRi-2758F in a 1U case and a mellanox connect-x 2 10G
Direct attach copper cables running to all 10G NIC's
FreeNAS System
Mobo: Supermicro x9srl-f
CPU: Intel Xeon E5 2606 v2
RAM: 96 GB ECC DDR3
RAID Controller: LSI 9211-8
HDD's
Spinners: 14x 4 TB WD Red Pro drives
SSD: 240 GB Kingston SSD Now
FreeNAS os: 32 GB thumb drive
Network: Mellanox connect-x 2
Workstation
CPU: Intel Core i7 5820k
Mobo: AsRock Fatality x99 Killer
RAM: 64GB DDR4
EVGA Nvidia GTX 970 SSC
HDD's
Spinners: 2x 4TB WD Black
SSD RAID: 2x 240 GB kingston SSD Now in RAID0
Main SSD: Samsung Evo 850 M.2
Network: mellanox connect-x 2
attached is the performance I am getting with my systems.
Attachments
