FreeNAS Version 11.3U4.1
Hardware:
Motherboard: FATAL1TY ASRock AB350 Gaming-ITX/ac
CPU: AMD Ryzen 3 1200
RAM: 16GB 2x Kingston KVR24N17S8/8
PSU: Be Quiet 300w
Bootdrive: Intenso Top Performance SSD 128GB, m.2
Pool1: 3x WD Red 4TB
Pool2: Cruicial MX500 500GB
I upgraded my FreeNAS to 11.3 because of the 11.2 train reaching EOL and my bhyve VMs(Linux) doesn't work properly (can boot but VNC and SSH connection freezes after 1-15 seconds). After Upgrading my FreeNAS seems to working fine, but every day now I need to do a hard reset to get access to it because it loosing connection to the router (cant see my FreeNAS on my router or it's VMs or iocages).
I tried to find something in the log but I can't figure out what is wrong.

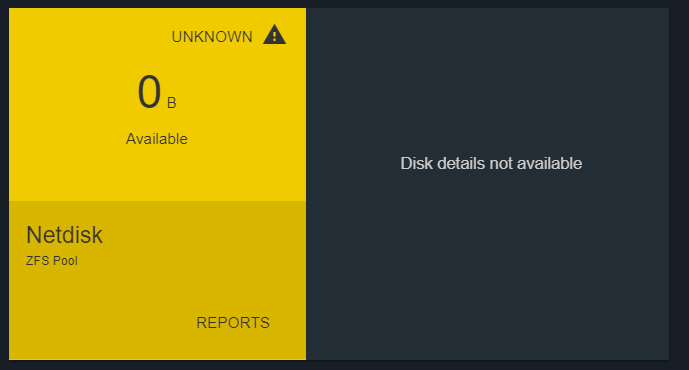

shows:
Thanks for any feedback.
Hardware:
Motherboard: FATAL1TY ASRock AB350 Gaming-ITX/ac
CPU: AMD Ryzen 3 1200
RAM: 16GB 2x Kingston KVR24N17S8/8
PSU: Be Quiet 300w
Bootdrive: Intenso Top Performance SSD 128GB, m.2
Pool1: 3x WD Red 4TB
Pool2: Cruicial MX500 500GB
I upgraded my FreeNAS to 11.3 because of the 11.2 train reaching EOL and my bhyve VMs(Linux) doesn't work properly (can boot but VNC and SSH connection freezes after 1-15 seconds). After Upgrading my FreeNAS seems to working fine, but every day now I need to do a hard reset to get access to it because it loosing connection to the router (cant see my FreeNAS on my router or it's VMs or iocages).
I tried to find something in the log but I can't figure out what is wrong.
Code:
cat /var/log/messages
Code:
Sep 24 06:48:14 freenas kernel: epair2b: changing name to 'epair0b' Sep 24 06:48:14 freenas kernel: vnet0.3: promiscuous mode enabled Sep 24 06:48:14 freenas kernel: lo0: link state changed to UP Sep 24 06:48:14 freenas kernel: lo0: link state changed to UP Sep 24 06:52:16 freenas kernel: vnet0.3: link state changed to DOWN Sep 24 06:52:16 freenas kernel: vnet0.3: link state changed to DOWN Sep 24 06:52:16 freenas kernel: epair0b: link state changed to DOWN Sep 24 06:52:16 freenas kernel: epair0b: link state changed to DOWN Sep 24 06:52:16 freenas epair2a: Ethernet address: 02:88:d0:00:07:0a Sep 24 06:52:16 freenas epair2b: Ethernet address: 02:c8:b5:00:08:0b Sep 24 06:52:16 freenas kernel: epair2a: link state changed to UP Sep 24 06:52:16 freenas kernel: epair2a: link state changed to UP Sep 24 06:52:16 freenas kernel: epair2b: link state changed to UP Sep 24 06:52:16 freenas kernel: epair2b: link state changed to UP Sep 24 06:52:16 freenas kernel: epair2a: changing name to 'vnet0.4' Sep 24 06:52:16 freenas kernel: epair2b: changing name to 'epair0b' Sep 24 06:52:16 freenas kernel: vnet0.4: promiscuous mode enabled Sep 24 06:52:16 freenas kernel: lo0: link state changed to UP Sep 24 06:52:16 freenas kernel: lo0: link state changed to UP Sep 24 06:52:19 freenas kernel: in6_purgeaddr: err=65, destination address delete failed Sep 25 00:00:00 freenas syslog-ng[987]: Configuration reload request received, reloading configuration; Sep 25 00:00:00 freenas syslog-ng[987]: Configuration reload finished; Sep 25 08:25:31 freenas syslog-ng[984]: syslog-ng starting up; version='3.23.1' Sep 25 08:25:31 freenas Copyright (c) 1992-2019 The FreeBSD Project. Sep 25 08:25:31 freenas Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994 Sep 25 08:25:31 freenas The Regents of the University of California. All rights reserved. Sep 25 08:25:31 freenas FreeBSD is a registered trademark of The FreeBSD Foundation. Sep 25 08:25:31 freenas FreeBSD 11.3-RELEASE-p11 #0 r325575+fb17f3e15b8(HEAD): Tue Jul 28 11:09:10 EDT 2020 Sep 25 08:25:31 freenas root@tnbuilds05.tn.ixsystems.net:/freenas-releng/freenas/_BE/objs/freenas-releng/freenas/_BE/os/sys/FreeNAS.amd64 amd64 Sep 25 08:25:31 freenas FreeBSD clang version 8.0.0 (tags/RELEASE_800/final 356365) (based on LLVM 8.0.0) Sep 25 08:25:31 freenas VT(vga): text 80x25 Sep 25 08:25:31 freenas CPU: AMD Ryzen 3 1200 Quad-Core Processor (3094.28-MHz K8-class CPU) Sep 25 08:25:31 freenas Origin="AuthenticAMD" Id=0x800f11 Family=0x17 Model=0x1 Stepping=1 Sep 25 08:25:31 freenas Features=0x178bfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,MMX,FXSR,SSE,SSE2,HTT> Sep 25 08:25:31 freenas Features2=0x7ed8320b<SSE3,PCLMULQDQ,MON,SSSE3,FMA,CX16,SSE4.1,SSE4.2,MOVBE,POPCNT,AESNI,XSAVE,OSXSAVE,AVX,F16C,RDRAND> Sep 25 08:25:31 freenas AMD Features=0x2e500800<SYSCALL,NX,MMX+,FFXSR,Page1GB,RDTSCP,LM> Sep 25 08:25:31 freenas AMD Features2=0x35c233ff<LAHF,CMP,SVM,ExtAPIC,CR8,ABM,SSE4A,MAS,Prefetch,OSVW,SKINIT,WDT,TCE,Topology,PCXC,PNXC,DBE,PL2I,MWAITX> Sep 25 08:25:31 freenas Structured Extended Features=0x209c01a9<FSGSBASE,BMI1,AVX2,SMEP,BMI2,RDSEED,ADX,SMAP,CLFLUSHOPT,SHA> Sep 25 08:25:31 freenas XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES> Sep 25 08:25:31 freenas AMD Extended Feature Extensions ID EBX=0x7<CLZERO,IRPerf,XSaveErPtr> Sep 25 08:25:31 freenas SVM: NP,NRIP,VClean,AFlush,DAssist,NAsids=32768 Sep 25 08:25:31 freenas TSC: P-state invariant, performance statistics Sep 25 08:25:31 freenas real memory = 17179869184 (16384 MB) Sep 25 08:25:31 freenas avail memory = 16524460032 (15758 MB) Sep 25 08:25:31 freenas Event timer "LAPIC" quality 600 Sep 25 08:25:31 freenas ACPI APIC Table: <ALASKA A M I > Sep 25 08:25:31 freenas FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs Sep 25 08:25:31 freenas FreeBSD/SMP: 1 package(s) x 4 core(s) Sep 25 08:25:31 freenas WARNING: VIMAGE (virtualized network stack) is a highly experimental feature. Sep 25 08:25:31 freenas Firmware Warning (ACPI): Optional FADT field Pm2ControlBlock has valid Length but zero Address: 0x0000000000000000/0x1 (20171214/tbfadt-796) Sep 25 08:25:31 freenas ioapic0 <Version 2.1> irqs 0-23 on motherboard Sep 25 08:25:31 freenas ioapic1 <Version 2.1> irqs 24-55 on motherboard Sep 25 08:25:31 freenas SMP: AP CPU #3 Launched! Sep 25 08:25:31 freenas SMP: AP CPU #1 Launched! Sep 25 08:25:31 freenas SMP: AP CPU #2 Launched! Sep 25 08:25:31 freenas Timecounter "TSC-low" frequency 1547138638 Hz quality 1000 Sep 25 08:25:31 freenas random: entropy device external interface Sep 25 08:25:31 freenas random: registering fast source Intel Secure Key RNG Sep 25 08:25:31 freenas random: fast provider: "Intel Secure Key RNG" Sep 25 08:25:31 freenas kbd1 at kbdmux0 Sep 25 08:25:31 freenas mlx5en: Mellanox Ethernet driver 3.5.1 (April 2019) Sep 25 08:25:31 freenas nexus0 Sep 25 08:25:31 freenas vtvga0: <VT VGA driver> on motherboard Sep 25 08:25:31 freenas cryptosoft0: <software crypto> on motherboard Sep 25 08:25:31 freenas aesni0: <AES-CBC,AES-XTS,AES-GCM,AES-ICM> on motherboard Sep 25 08:25:31 freenas padlock0: No ACE support. Sep 25 08:25:31 freenas acpi0: <ALASKA A M I > on motherboard Sep 25 08:25:31 freenas acpi0: Power Button (fixed) Sep 25 08:25:31 freenas cpu0: <ACPI CPU> on acpi0 Sep 25 08:25:31 freenas cpu1: <ACPI CPU> on acpi0 Sep 25 08:25:31 freenas cpu2: <ACPI CPU> on acpi0 Sep 25 08:25:31 freenas cpu3: <ACPI CPU> on acpi0 Sep 25 08:25:31 freenas attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0 Sep 25 08:25:31 freenas Timecounter "i8254" frequency 1193182 Hz quality 0 Sep 25 08:25:31 freenas Event timer "i8254" frequency 1193182 Hz quality 100 Sep 25 08:25:31 freenas atrtc0: <AT realtime clock> port 0x70-0x71 on acpi0 Sep 25 08:25:31 freenas atrtc0: registered as a time-of-day clock, resolution 1.000000s Sep 25 08:25:31 freenas Event timer "RTC" frequency 32768 Hz quality 0 Sep 25 08:25:31 freenas hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff irq 0,8 on acpi0 Sep 25 08:25:31 freenas Timecounter "HPET" frequency 14318180 Hz quality 950 Sep 25 08:25:31 freenas Event timer "HPET" frequency 14318180 Hz quality 450 Sep 25 08:25:31 freenas Event timer "HPET1" frequency 14318180 Hz quality 450 Sep 25 08:25:31 freenas Event timer "HPET2" frequency 14318180 Hz quality 450 Sep 25 08:25:31 freenas Timecounter "ACPI-fast" frequency 3579545 Hz quality 900 Sep 25 08:25:31 freenas acpi_timer0: <32-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0 Sep 25 08:25:31 freenas pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0 Sep 25 08:25:31 freenas pcib0: _OSC returned error 0x10 Sep 25 08:25:31 freenas pci0: <ACPI PCI bus> on pcib0 Sep 25 08:25:31 freenas amdsmn0: <AMD Family 17h System Management Network> on hostb0 Sep 25 08:25:31 freenas amdtemp0: <AMD CPU On-Die Thermal Sensors> on hostb0 Sep 25 08:25:31 freenas pci0: <base peripheral, IOMMU> at device 0.2 (no driver attached) Sep 25 08:25:31 freenas pcib1: <ACPI PCI-PCI bridge> at device 1.3 on pci0 Sep 25 08:25:31 freenas pci1: <ACPI PCI bus> on pcib1 Sep 25 08:25:31 freenas xhci0: <AMD 300 Series USB 3.0 controller> mem 0xfe8a0000-0xfe8a7fff irq 32 at device 0.0 on pci1 Sep 25 08:25:31 freenas xhci0: 32 bytes context size, 64-bit DMA Sep 25 08:25:31 freenas usbus0 on xhci0 Sep 25 08:25:31 freenas usbus0: 5.0Gbps Super Speed USB v3.0 Sep 25 08:25:31 freenas ahci0: <AMD 300 Series AHCI SATA controller> mem 0xfe880000-0xfe89ffff irq 33 at device 0.1 on pci1 Sep 25 08:25:31 freenas ahci0: AHCI v1.31 with 8 6Gbps ports, Port Multiplier supported Sep 25 08:25:31 freenas ahcich0: <AHCI channel> at channel 0 on ahci0 Sep 25 08:25:31 freenas ahcich1: <AHCI channel> at channel 1 on ahci0 Sep 25 08:25:31 freenas ahcich4: <AHCI channel> at channel 4 on ahci0 Sep 25 08:25:31 freenas ahcich5: <AHCI channel> at channel 5 on ahci0 Sep 25 08:25:31 freenas pcib2: <ACPI PCI-PCI bridge> irq 34 at device 0.2 on pci1 Sep 25 08:25:31 freenas pci2: <ACPI PCI bus> on pcib2 Sep 25 08:25:31 freenas pcib3: <ACPI PCI-PCI bridge> irq 32 at device 0.0 on pci2 Sep 25 08:25:31 freenas pci3: <ACPI PCI bus> on pcib3 Sep 25 08:25:31 freenas pcib4: <ACPI PCI-PCI bridge> irq 33 at device 1.0 on pci2 Sep 25 08:25:31 freenas pci4: <ACPI PCI bus> on pcib4 Sep 25 08:25:31 freenas pcib5: <ACPI PCI-PCI bridge> irq 32 at device 4.0 on pci2 Sep 25 08:25:31 freenas pci5: <ACPI PCI bus> on pcib5 Sep 25 08:25:31 freenas pcib6: <ACPI PCI-PCI bridge> irq 33 at device 5.0 on pci2 Sep 25 08:25:31 freenas pci6: <ACPI PCI bus> on pcib6 Sep 25 08:25:31 freenas pcib7: <ACPI PCI-PCI bridge> irq 34 at device 6.0 on pci2 Sep 25 08:25:31 freenas pci7: <ACPI PCI bus> on pcib7 Sep 25 08:25:31 freenas pci7: <network> at device 0.0 (no driver attached) Sep 25 08:25:31 freenas pcib8: <ACPI PCI-PCI bridge> irq 35 at device 7.0 on pci2 Sep 25 08:25:31 freenas pci8: <ACPI PCI bus> on pcib8 Sep 25 08:25:31 freenas igb0: <Intel(R) PRO/1000 Network Connection, Version - 2.5.3-k> port 0xf000-0xf01f mem 0xfe600000-0xfe61ffff,0xfe620000-0xfe623fff irq 35 at device 0.0 on pci8 Sep 25 08:25:31 freenas igb0: Using MSIX interrupts with 3 vectors Sep 25 08:25:31 freenas igb0: Ethernet address: 70:85:c2:5a:fb:67 Sep 25 08:25:31 freenas igb0: Bound queue 0 to cpu 0 Sep 25 08:25:31 freenas igb0: Bound queue 1 to cpu 1 Sep 25 08:25:31 freenas pcib9: <ACPI PCI-PCI bridge> at device 7.1 on pci0 Sep 25 08:25:31 freenas pci9: <ACPI PCI bus> on pcib9 Sep 25 08:25:31 freenas pci9: <unknown> at device 0.0 (no driver attached) Sep 25 08:25:31 freenas pci9: <encrypt/decrypt> at device 0.2 (no driver attached) Sep 25 08:25:31 freenas xhci1: <AMD KERNCZ USB 3.0 controller> mem 0xfe300000-0xfe3fffff irq 37 at device 0.3 on pci9 Sep 25 08:25:31 freenas xhci1: 64 bytes context size, 64-bit DMA Sep 25 08:25:31 freenas usbus1 on xhci1 Sep 25 08:25:31 freenas usbus1: 5.0Gbps Super Speed USB v3.0 Sep 25 08:25:31 freenas pcib10: <ACPI PCI-PCI bridge> at device 8.1 on pci0 Sep 25 08:25:31 freenas pci10: <ACPI PCI bus> on pcib10 Sep 25 08:25:31 freenas pci10: <unknown> at device 0.0 (no driver attached) Sep 25 08:25:31 freenas ahci1: <AMD KERNCZ AHCI SATA controller> mem 0xfe908000-0xfe908fff irq 42 at device 0.2 on pci10 Sep 25 08:25:31 freenas ahci1: AHCI v1.31 with 1 6Gbps ports, Port Multiplier supported with FBS Sep 25 08:25:31 freenas ahcich11: <AHCI channel> at channel 3 on ahci1 Sep 25 08:25:31 freenas pci10: <multimedia, HDA> at device 0.3 (no driver attached) Sep 25 08:25:31 freenas isab0: <PCI-ISA bridge> at device 20.3 on pci0 Sep 25 08:25:31 freenas isa0: <ISA bus> on isab0 Sep 25 08:25:31 freenas acpi_button0: <Power Button> on acpi0 Sep 25 08:25:31 freenas uart2: <Non-standard ns8250 class UART with FIFOs> iomem 0xfedc9000-0xfedc9fff,0xfedc7000-0xfedc7fff irq 3 on acpi0 Sep 25 08:25:31 freenas uart3: <Non-standard ns8250 class UART with FIFOs> iomem 0xfedca000-0xfedcafff,0xfedc8000-0xfedc8fff irq 4 on acpi0 Sep 25 08:25:31 freenas uart4: <Non-standard ns8250 class UART with FIFOs> iomem 0xfedce000-0xfedcefff,0xfedcc000-0xfedccfff irq 3 on acpi0 Sep 25 08:25:31 freenas uart5: <Non-standard ns8250 class UART with FIFOs> iomem 0xfedcf000-0xfedcffff,0xfedcd000-0xfedcdfff irq 4 on acpi0 Sep 25 08:25:31 freenas wbwd0: <Nuvoton NCT6792 (0xc9/0x11) Watchdog Timer> at port 0x2e-0x2f on isa0 Sep 25 08:25:31 freenas amdsbwd0: <AMD FCH Rev 41h+ Watchdog Timer> at iomem 0xfed80b00-0xfed80b03,0xfed80b04-0xfed80b07 on isa0 Sep 25 08:25:31 freenas amdsbwd0: watchdog hardware is disabled Sep 25 08:25:31 freenas device_attach: amdsbwd0 attach returned 6 Sep 25 08:25:31 freenas atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0 Sep 25 08:25:31 freenas atkbd0: <AT Keyboard> irq 1 on atkbdc0 Sep 25 08:25:31 freenas kbd0 at atkbd0 Sep 25 08:25:31 freenas atkbd0: [GIANT-LOCKED] Sep 25 08:25:31 freenas hwpstate0: <Cool`n'Quiet 2.0> on cpu0 Sep 25 08:25:31 freenas ZFS filesystem version: 5 Sep 25 08:25:31 freenas ZFS storage pool version: features support (5000) Sep 25 08:25:31 freenas Timecounters tick every 1.000 msec Sep 25 08:25:31 freenas freenas_sysctl: adding account. Sep 25 08:25:31 freenas freenas_sysctl: adding directoryservice. Sep 25 08:25:31 freenas freenas_sysctl: adding middlewared. Sep 25 08:25:31 freenas freenas_sysctl: adding network. Sep 25 08:25:31 freenas freenas_sysctl: adding services. Sep 25 08:25:31 freenas ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled Sep 25 08:25:31 freenas ugen0.1: <0x1022 XHCI root HUB> at usbus0 Sep 25 08:25:31 freenas ugen1.1: <0x1022 XHCI root HUB> at usbus1 Sep 25 08:25:31 freenas uhub0: <0x1022 XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0 Sep 25 08:25:31 freenas uhub1: <0x1022 XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus1 Sep 25 08:25:31 freenas uhub1: 8 ports with 8 removable, self powered Sep 25 08:25:31 freenas uhub0: 22 ports with 22 removable, self powered Sep 25 08:25:31 freenas ugen0.2: <vendor 0x8087 product 0x0aa7> at usbus0 Sep 25 08:25:31 freenas ada0 at ahcich0 bus 0 scbus0 target 0 lun 0 Sep 25 08:25:31 freenas ada0: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device Sep 25 08:25:31 freenas ada0: Serial Number WD-WCC7K5AE6KK0 Sep 25 08:25:31 freenas ada0: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes) Sep 25 08:25:31 freenas ada0: Command Queueing enabled Sep 25 08:25:31 freenas ada0: 3815447MB (7814037168 512 byte sectors) Sep 25 08:25:31 freenas ada0: quirks=0x1<4K> Sep 25 08:25:31 freenas ada1 at ahcich1 bus 0 scbus1 target 0 lun 0 Sep 25 08:25:31 freenas ada1: <CT500MX500SSD1 M3CR020> ACS-3 ATA SATA 3.x device Sep 25 08:25:31 freenas ada1: Serial Number 1826E1466EDA Sep 25 08:25:31 freenas ada1: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 512bytes) Sep 25 08:25:31 freenas ada1: Command Queueing enabled Sep 25 08:25:31 freenas ada1: 476940MB (976773168 512 byte sectors) Sep 25 08:25:31 freenas ada2 at ahcich4 bus 0 scbus2 target 0 lun 0 Sep 25 08:25:31 freenas ada2: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device Sep 25 08:25:31 freenas ada2: Serial Number WD-WCC7K6DJD717 Sep 25 08:25:31 freenas ada2: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes) Sep 25 08:25:31 freenas ada2: Command Queueing enabled Sep 25 08:25:31 freenas ada2: 3815447MB (7814037168 512 byte sectors) Sep 25 08:25:31 freenas ada2: quirks=0x1<4K> Sep 25 08:25:31 freenas ada3 at ahcich5 bus 0 scbus3 target 0 lun 0 Sep 25 08:25:31 freenas ada3: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device Sep 25 08:25:31 freenas ada3: Serial Number WD-WCC7K6LV5XJ1 Sep 25 08:25:31 freenas ada3: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes) Sep 25 08:25:31 freenas ada3: Command Queueing enabled Sep 25 08:25:31 freenas ada3: 3815447MB (7814037168 512 byte sectors) Sep 25 08:25:31 freenas ada3: quirks=0x1<4K> Sep 25 08:25:31 freenas ada4 at ahcich11 bus 0 scbus4 target 0 lun 0 Sep 25 08:25:31 freenas ada4: <Intenso SSD P1228BS> ACS-2 ATA SATA 3.x device Sep 25 08:25:31 freenas ada4: Serial Number 3832430-531710001 Sep 25 08:25:31 freenas ada4: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 1024bytes) Sep 25 08:25:31 freenas ada4: Command Queueing enabled Sep 25 08:25:31 freenas ada4: 122104MB (250069680 512 byte sectors) Sep 25 08:25:31 freenas random: unblocking device. Sep 25 08:25:31 freenas Trying to mount root from zfs:freenas-boot/ROOT/11.3-U4.1 []... Sep 25 08:25:31 freenas kernel: lo0: link state changed to UP Sep 25 08:25:31 freenas kernel: lo0: link state changed to UP Sep 25 08:25:31 freenas kernel: igb0: link state changed to UP Sep 25 08:25:31 freenas kernel: igb0: link state changed to UP Sep 25 08:25:31 freenas GEOM_ELI: Device ada1p1.eli created. Sep 25 08:25:31 freenas GEOM_ELI: Encryption: AES-XTS 128 Sep 25 08:25:31 freenas GEOM_ELI: Crypto: hardware Sep 25 08:25:31 freenas GEOM_MIRROR: Device mirror/swap0 launched (2/2). Sep 25 08:25:31 freenas GEOM_ELI: Device mirror/swap0.eli created. Sep 25 08:25:31 freenas GEOM_ELI: Encryption: AES-XTS 128 Sep 25 08:25:31 freenas GEOM_ELI: Crypto: hardware Sep 25 08:25:31 freenas GEOM_ELI: Device ada1p1.eli destroyed. Sep 25 08:25:31 freenas GEOM_MIRROR: Device mirror/swap1 launched (2/2). Sep 25 08:25:31 freenas GEOM_ELI: Device mirror/swap1.eli created. Sep 25 08:25:31 freenas GEOM_ELI: Encryption: AES-XTS 128 Sep 25 08:25:31 freenas GEOM_ELI: Crypto: hardware Sep 25 08:25:31 freenas hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> F17H/6/48/0x1ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA> Sep 25 08:25:31 freenas kernel: igb0: link state changed to DOWN Sep 25 08:25:31 freenas kernel: igb0: link state changed to DOWN Sep 25 08:25:31 freenas kernel: igb0: link state changed to UP Sep 25 08:25:31 freenas kernel: igb0: link state changed to UP Sep 25 08:25:32 freenas CPU: AMD Ryzen 3 1200 Quad-Core Processor (3094.28-MHz K8-class CPU) Sep 25 08:25:32 freenas Origin="AuthenticAMD" Id=0x800f11 Family=0x17 Model=0x1 Stepping=1 Sep 25 08:25:32 freenas Features=0x178bfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,MMX,FXSR,SSE,SSE2,HTT> Sep 25 08:25:32 freenas Features2=0x7ed8320b<SSE3,PCLMULQDQ,MON,SSSE3,FMA,CX16,SSE4.1,SSE4.2,MOVBE,POPCNT,AESNI,XSAVE,OSXSAVE,AVX,F16C,RDRAND> Sep 25 08:25:32 freenas AMD Features=0x2e500800<SYSCALL,NX,MMX+,FFXSR,Page1GB,RDTSCP,LM> Sep 25 08:25:32 freenas AMD Features2=0x35c233ff<LAHF,CMP,SVM,ExtAPIC,CR8,ABM,SSE4A,MAS,Prefetch,OSVW,SKINIT,WDT,TCE,Topology,PCXC,PNXC,DBE,PL2I,MWAITX> Sep 25 08:25:32 freenas Structured Extended Features=0x209c01a9<FSGSBASE,BMI1,AVX2,SMEP,BMI2,RDSEED,ADX,SMAP,CLFLUSHOPT,SHA> Sep 25 08:25:32 freenas XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES> Sep 25 08:25:32 freenas AMD Extended Feature Extensions ID EBX=0x7<CLZERO,IRPerf,XSaveErPtr> Sep 25 08:25:32 freenas SVM: NP,NRIP,VClean,AFlush,DAssist,NAsids=32768 Sep 25 08:25:32 freenas TSC: P-state invariant, performance statistics Sep 25 08:25:32 freenas ntpd[1171]: ntpd 4.2.8p12-a (1): Starting Sep 25 08:25:32 freenas ntpd[1171]: Command line: /usr/sbin/ntpd -g -c /etc/ntp.conf -p /var/run/ntpd.pid -f /var/db/ntpd.drift Sep 25 08:25:32 freenas ntpd[1171]: ---------------------------------------------------- Sep 25 08:25:32 freenas ntpd[1171]: ntp-4 is maintained by Network Time Foundation, Sep 25 08:25:32 freenas ntpd[1171]: Inc. (NTF), a non-profit 501(c)(3) public-benefit Sep 25 08:25:32 freenas ntpd[1171]: corporation. Support and training for ntp-4 are Sep 25 08:25:32 freenas ntpd[1171]: available at https://www.nwtime.org/support Sep 25 08:25:32 freenas ntpd[1171]: ---------------------------------------------------- Sep 25 08:25:39 freenas tap0: Ethernet address: 00:bd:03:d3:f7:00 Sep 25 08:25:39 freenas bridge0: Ethernet address: 02:0f:b5:c6:7c:00 Sep 25 08:25:39 freenas kernel: bridge0: link state changed to DOWN Sep 25 08:25:39 freenas kernel: bridge0: link state changed to DOWN Sep 25 08:25:39 freenas kernel: tap0: promiscuous mode enabled Sep 25 08:25:39 freenas kernel: igb0: link state changed to DOWN Sep 25 08:25:39 freenas kernel: igb0: link state changed to DOWN Sep 25 08:25:39 freenas kernel: igb0: promiscuous mode enabled Sep 25 08:25:39 freenas kernel: tap0: link state changed to UP Sep 25 08:25:39 freenas kernel: tap0: link state changed to UP Sep 25 08:25:39 freenas kernel: bridge0: link state changed to UP Sep 25 08:25:39 freenas kernel: bridge0: link state changed to UP Sep 25 08:25:40 freenas epair0a: Ethernet address: 02:88:d0:00:05:0a Sep 25 08:25:40 freenas epair0b: Ethernet address: 02:c8:b5:00:06:0b Sep 25 08:25:40 freenas kernel: epair0a: link state changed to UP Sep 25 08:25:40 freenas kernel: epair0a: link state changed to UP Sep 25 08:25:40 freenas kernel: epair0b: link state changed to UP Sep 25 08:25:40 freenas kernel: epair0b: link state changed to UP Sep 25 08:25:40 freenas kernel: epair0a: changing name to 'vnet0.1' Sep 25 08:25:40 freenas kernel: vnet0.1: promiscuous mode enabled Sep 25 08:25:41 freenas kernel: lo0: link state changed to UP Sep 25 08:25:41 freenas kernel: lo0: link state changed to UP Sep 25 08:25:43 freenas kernel: igb0: link state changed to UP Sep 25 08:25:43 freenas kernel: igb0: link state changed to UP Sep 25 08:25:44 freenas epair1a: Ethernet address: 02:88:d0:00:06:0a Sep 25 08:25:44 freenas epair1b: Ethernet address: 02:c8:b5:00:07:0b Sep 25 08:25:44 freenas kernel: epair1a: link state changed to UP Sep 25 08:25:44 freenas kernel: epair1a: link state changed to UP Sep 25 08:25:44 freenas kernel: epair1b: link state changed to UP Sep 25 08:25:44 freenas kernel: epair1b: link state changed to UP Sep 25 08:25:44 freenas kernel: epair1a: changing name to 'vnet0.2' Sep 25 08:25:44 freenas kernel: epair1b: changing name to 'epair0b' Sep 25 08:25:44 freenas kernel: vnet0.2: promiscuous mode enabled Sep 25 08:25:44 freenas kernel: lo0: link state changed to UP Sep 25 08:25:44 freenas kernel: lo0: link state changed to UP Sep 25 08:26:10 freenas dhclient: New IP Address (igb0): 192.168.1.116 Sep 25 08:26:10 freenas dhclient: New Subnet Mask (igb0): 255.255.255.0 Sep 25 08:26:10 freenas dhclient: New Broadcast Address (igb0): 192.168.1.255 Sep 25 08:26:10 freenas dhclient: New Routers (igb0): 192.168.1.1
Code:
ifconfig -a
Code:
igb0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
description: igb0
options=2400b9<RXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,RXCSUM_IPV6>
ether 70:85:c2:5a:fb:67
hwaddr 70:85:c2:5a:fb:67
inet 192.168.1.116 netmask 0xffffff00 broadcast 192.168.1.255
nd6 options=9<PERFORMNUD,IFDISABLED>
media: Ethernet autoselect (1000baseT <full-duplex>)
status: active
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x2
inet 127.0.0.1 netmask 0xff000000
nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
groups: lo
tap0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
description: Attached to Ark_Server
options=80000<LINKSTATE>
ether 00:bd:03:d3:f7:00
hwaddr 00:bd:03:d3:f7:00
nd6 options=1<PERFORMNUD>
media: Ethernet autoselect
status: active
groups: tap
Opened by PID 1779
bridge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
ether 02:0f:b5:c6:7c:00
nd6 options=1<PERFORMNUD>
groups: bridge
id 00:00:00:00:00:00 priority 32768 hellotime 2 fwddelay 15
maxage 20 holdcnt 6 proto rstp maxaddr 2000 timeout 1200
root id 00:00:00:00:00:00 priority 32768 ifcost 0 port 0
member: vnet0.2 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
ifmaxaddr 0 port 6 priority 128 path cost 2000
member: vnet0.1 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
ifmaxaddr 0 port 5 priority 128 path cost 2000
member: igb0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
ifmaxaddr 0 port 1 priority 128 path cost 20000
member: tap0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
ifmaxaddr 0 port 3 priority 128 path cost 2000000
vnet0.1: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
description: associated with jail: Teamspeak3 as nic: epair0b
options=8<VLAN_MTU>
ether 70:85:c2:45:f8:5d
hwaddr 02:88:d0:00:05:0a
nd6 options=1<PERFORMNUD>
media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
status: active
groups: epair
vnet0.2: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
description: associated with jail: nextcloud as nic: epair0b
options==8<VLAN_MTU>
ether 70:85:c2:ba:b5:81
hwaddr 02:88:d0:00:06:0a
nd6 options=1<PERFORMNUD>
media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
status: active
groups: epairThanks for any feedback.
