FreeNAS-9.10.2 disk replacement bit lost, my system does not look like documentation

[Simon Bingham]

Hi


FreeNAS-9.10.2 disk replacement

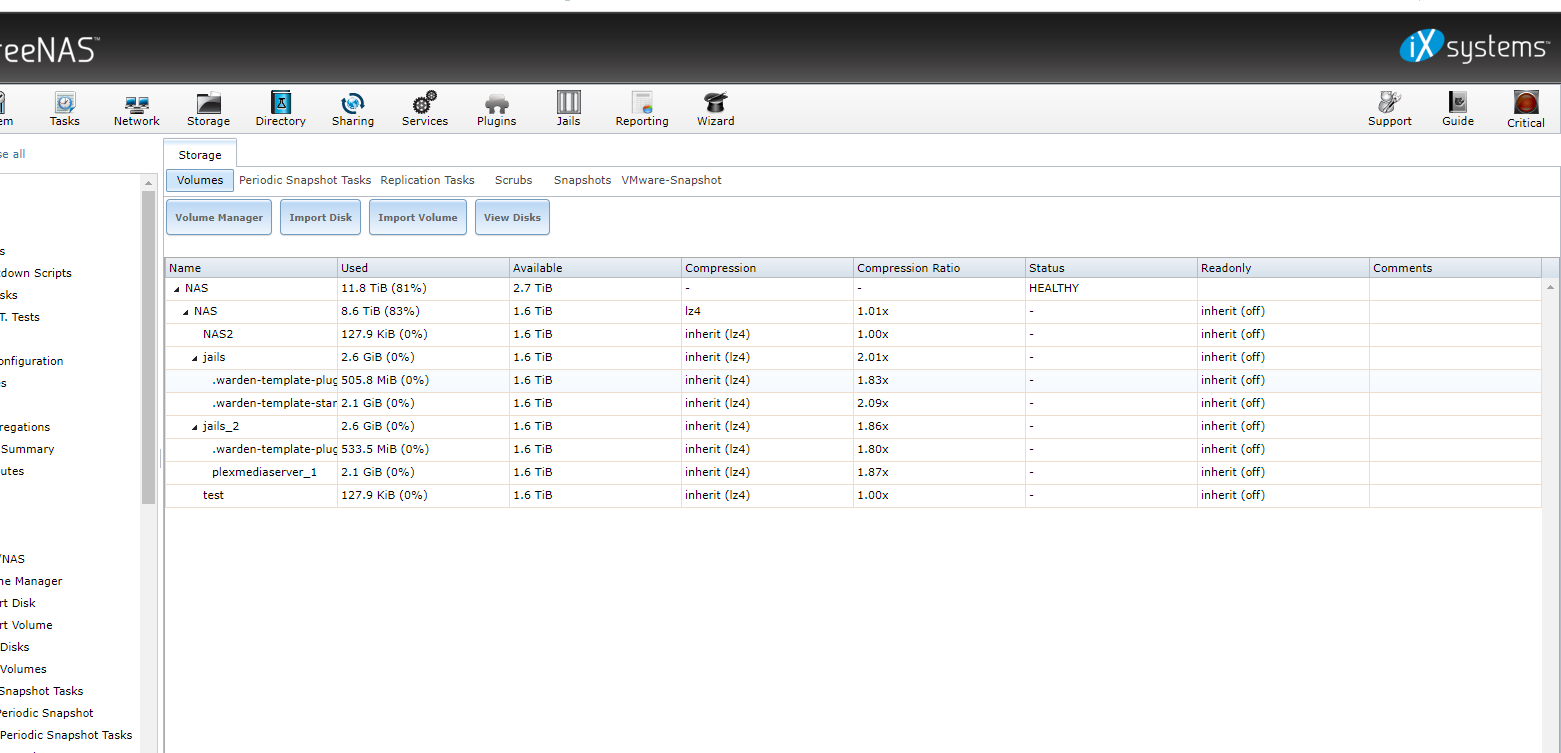

I’m bit out of my depth here I’m trying to replace my drive but my screen looks nothing like the examples or the documentation, any idea how I replace my drive ?



Looking to replace this drive ..



CRITICAL: June 10, 2020, 11:05 p.m. - Device: /dev/ada2, 3 Currently unreadable (pending) sectors



Is it possible I’m using hardware RAID ? but what I’m find odd is if I’m using Hardware raid. Then would free NAS not just see one big drive ?

Its so long since I set this up and at the time I think I did not realise the best thing was use software raid, I come from the network engineering background where Hardware = fast , software = slow.



Any pointer appreciated, do not see an option to take my drive offline on the GUI ?
this is on a HP MicroServer Gen 8 with a RIAD controler.



[Samuel Tai]

See the 9.10 Guide, Section 8.1.10 - Replacing a Failed Drive. Also, on a MicroServer, you have to shutdown to remove and add drives.



[danb35]

do not see an option to take my drive offline on the GUI ?

You need to be on the volume status page, not the view disks page. In addition to the manual linked above, you can also see this resource:

Replacing a failed/failing disk

So you've had a disk fail, or you know it's about to fail, and you need to replace it. And for whatever reason, the manual's instructions weren't clear enough. So, step by step, here's how to do it. Note: The illustrations below describe the...

www.ixsystems.com

But you aren't using TrueNAS, so why did you post in the TrueNAS forum?



[Simon Bingham]

Dan thanks so much that worked sorry for posting in wrong place



[Simon Bingham]

See the 9.10 Guide, Section 8.1.10 - Replacing a Failed Drive. Also, on a MicroServer, you have to shutdown to remove and add drives.

Thanks again Sam all swapped out now
