FreeNAS 11.2-BETA2 & RAID 10

Status
Not open for further replies.
D

DeletedUser080302028

Guest
Was support for creating RAID 10-like pools removed in FreeNAS 11.2? The only options when creating a four-disk pool are stripe, mirror, RAIDZ1 or RAIDZ2.


Mihalich

Patron
Joined
Mar 14, 2017
Messages
297
Create two mirrors first and then combine them into a stripe.

D

DeletedUser080302028

Guest
Where in the GUI do I find the option for this?


Redcoat

MVP
Joined
Feb 18, 2014
Messages
2,925
Where in the GUI do I find the option for this?
Volume Manager - maybe read Manual section 8.1.1 for the pertinent information.

D

DeletedUser080302028

Guest
Volume Manager - maybe read Manual section 8.1.1 for the pertinent information.

I'm running FreeNAS 11.2-BETA2 and going off the documentation for that release. Section 9.1.1 gives no directive on creating a RAID 10-like pool. There's also no option in the GUI to create a stripe of newly-created mirrors.


Redcoat

MVP
Joined
Feb 18, 2014
Messages
2,925
There's also no option in the GUI to create a stripe of newly-created mirrors.



Make the mirrors, use the information in 8.1.1.4
  • to extend a ZFS mirror, add the same number of drives. The resulting striped mirror is a RAID 10. For example, if ten new drives are available, a mirror of two drives could be created initially, then extended by creating another mirror of two drives, and repeating three more times until all ten drives have been added.


Attachments

  • upload_2018-9-6_18-41-1.png
    14.1 KB · Views: 793
Joined
Jan 18, 2017
Messages
525
I'm running FreeNAS 11.2-BETA2 and going off the documentation for that release. Section 9.1.1 gives no directive on creating a RAID 10-like pool. There's also no option in the GUI to create a stripe of newly-created mirrors.

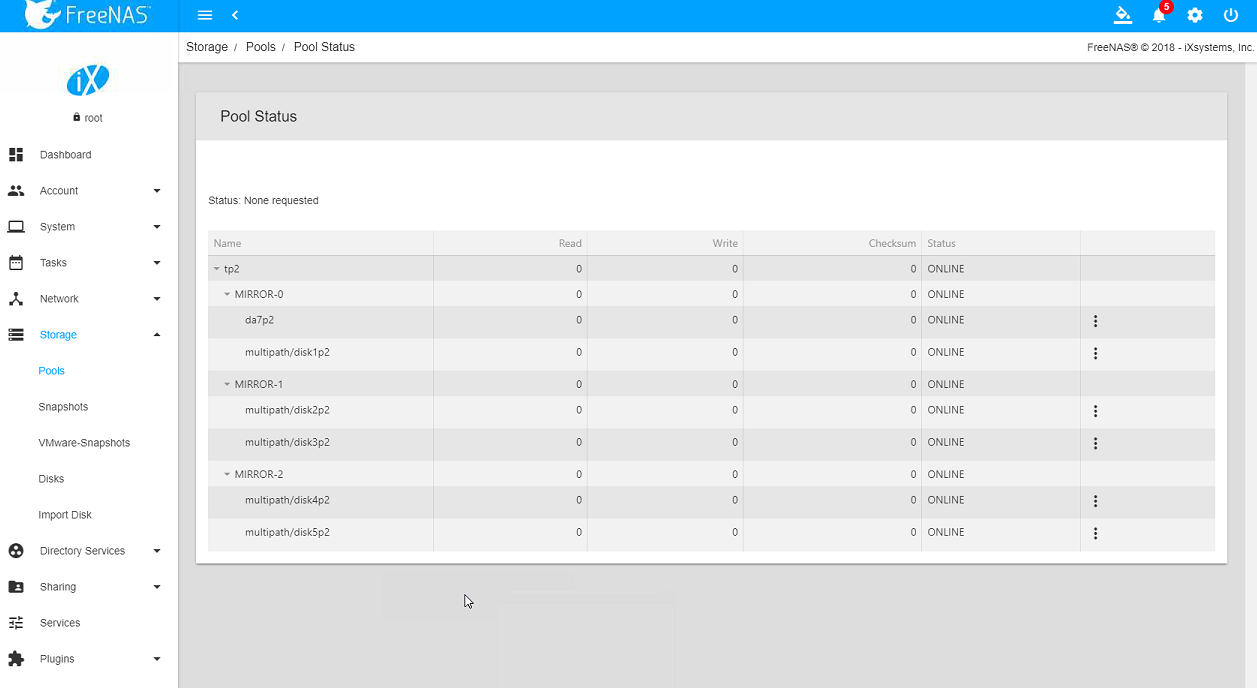

9.1.1 does indeed provide the information you need. You can create each VDEV one by one when building a pool by using the add data button next to the cancel button. Then you can place which ever drives you have available in each VDEV
test pool mirrors.png


Last edited:

cpaquin

Cadet
Joined
Dec 3, 2018
Messages
1

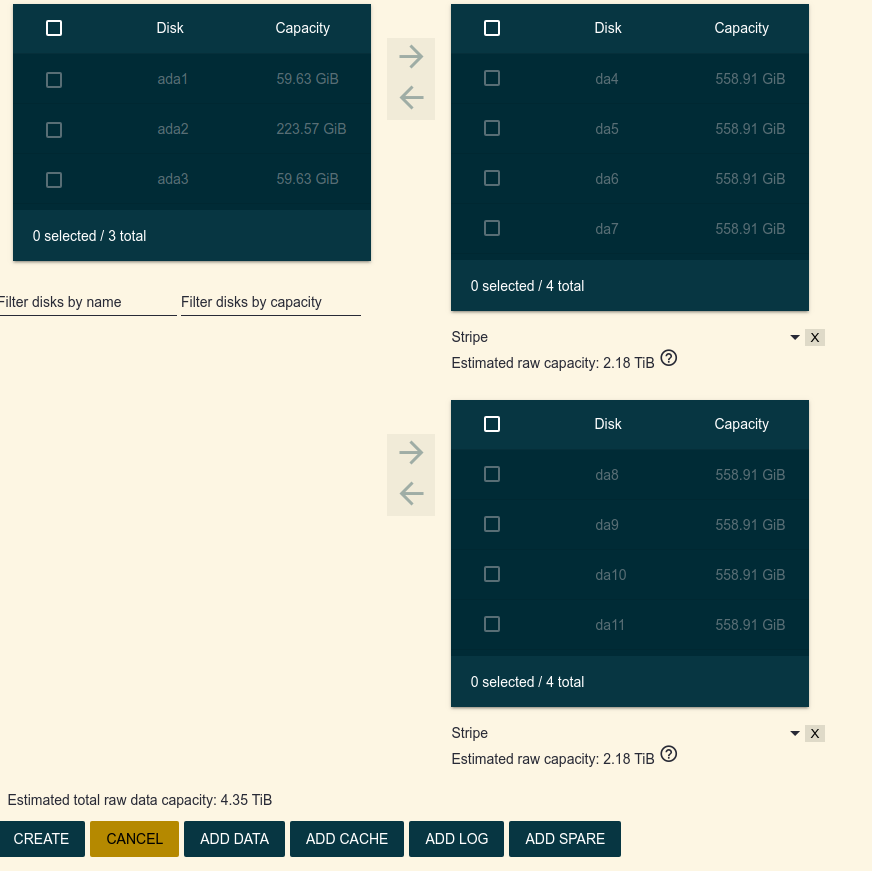

I am trying to do the same thing with 8 600gb SAS drives. I can configure a 4 drive stripe in each vdev, but I cannot find a mechanism to mirror the two vdevs.


Attachments

  • Screenshot from 2018-12-06 22-59-29.png
    Screenshot from 2018-12-06 22-59-29.png
    65 KB · Views: 650

Mihalich

Patron
Joined
Mar 14, 2017
Messages
297

garm

Wizard
Joined
Aug 19, 2017
Messages
1,556
I am trying to do the same thing with 8 600gb SAS drives. I can configure a 4 drive stripe in each vdev, but I cannot find a mechanism to mirror the two vdevs.
Vdevs can’t be mirrored, you mirror drives in a vdev and stripe the vdevs

Joined
Jan 18, 2017
Messages
525
I am trying to do the same thing with 8 600gb SAS drives. I can configure a 4 drive stripe in each vdev, but I cannot find a mechanism to mirror the two vdevs.
So you were trying to make a RAID 01-like pool which I have never seen done in ZFS
