fopen /var/db/nut/upsd.pid: No such file or directory (upsc see ups)

[genai]

Hi everybody )

So... problem:

FreeNAS 9.3
Driver: HP ups 4 Various (SNMP mode) HP UPS Management Module (snmp-ups)

After start have following:

Jan 31 18:56:38 freenas2 notifier: Detected HP R3000 XR on host 192.168.1.19 (mib: pw 0.7)
Jan 31 18:56:41 freenas2 notifier: Network UPS Tools - UPS driver controller 2.7.3
Jan 31 18:56:41 freenas2 notifier: Starting nut.
Jan 31 18:56:41 freenas2 notifier: fopen /var/db/nut/upsd.pid: No such file or directory
Jan 31 18:56:41 freenas2 notifier: listening on 127.0.0.1 port 3493
Jan 31 18:56:41 freenas2 notifier: Connected to UPS [hpups]: snmp-ups-hpups
Jan 31 18:56:41 freenas2 notifier: /usr/local/etc/nut/cmdvartab not found - disabling descriptions
Jan 31 18:56:42 freenas2 notifier: Starting nut_upsmon.
Jan 31 18:56:42 freenas2 notifier: kill: No such process
Jan 31 18:56:42 freenas2 notifier: UPS: hpups (master) (power value 1)
Jan 31 18:56:42 freenas2 notifier: Using power down flag file /etc/nokillpower
Jan 31 18:56:42 freenas2 upsmon[19159]: Communications with UPS hpups lost
Jan 31 18:56:42 freenas2 notifier: Starting nut_upslog.
Jan 31 18:56:47 freenas2 upsmon[19159]: UPS hpups is unavailable


/var/db/nut# ls
./ ../ snmp-ups-hpups= snmp-ups-hpups.pid upsd.pid upslog.pid upsmon.pid

# upsc hpups
ambient.temperature: 34.0
ambient.temperature.high: 55.00
ambient.temperature.low: 0.00
battery.charge: 100.00
battery.charger.status: resting
battery.runtime: 2369.00
battery.runtime.low: 180.00
battery.voltage: 130.00
device.mfr: Powerware Corporation
device.model: HP R3000 XR
device.serial: ID: YCDYJTJ51V , Msg: 192187-002
...



[BigDave]

Your issue is a common one that is shared by many users.
I have not seen examples of an HP unit being used before,

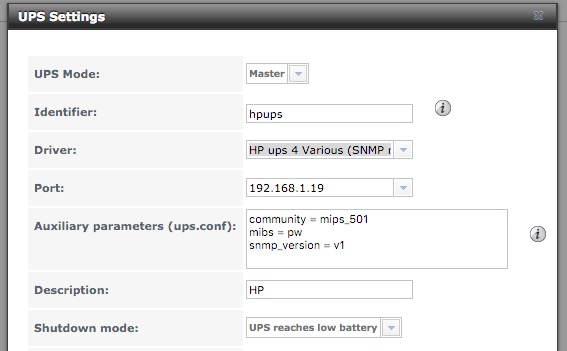

but can say, the driver you have shown in the screen shot
may not be the one that ends up working for you.
My first suggestion is to try plugging in your UPS data
cable to another USB2.0 primary port on your motherboard.
Some times this simple act fixes the issue, some times it does not.
If the issue continues, try a different driver.
Network UPS Tools - Hardware compatibility list



[genai]

As i understand, upsc takes data from UPS and then upsmon just perform necessary actions (shutdown e.t.c)

I think if SNMP communication is working (upcs see ups) - everything ok with driver, isn't it?
May be problem in communications inside NUT between upcs and upsmon? Or am i wrong?



[BigDave]

I think if SNMP communication is working (upcs see ups) - everything ok with driver, isn't it?

That has been the case for most users, the server shuts down (as it's configured to do) when power is lost, even though the
log indicates a problem of some issue. The log problem finally beat me down to the point that I ended up configuring the
FreeNAS as a slave and hooked the USB cable to my pfSense firewall box, it does a bang up job as master as I had several outages
and everythings works just as it should.
A lot of bugs have been filed, but afaik, the FreeNAS Devs say this is a NUT problem and can't yet be fixed on the FreeNAS end of things.
